Summary of Contents for AJA RH10DA

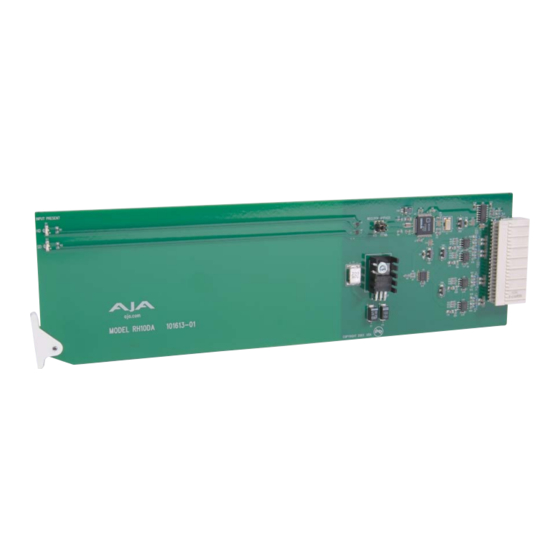

- Page 1 RH10DA 1x8 SD/HD-SDI Re-clocking Distribution Amplifier (dual-rate) R-series Card Module Published: 6/30/10 Installation and Operation Guide B e c a u s e m a t t e r s .
-
Page 2: Contacting Support
Video parts or supplies, or d) to service a product that has been modified or integrated with other products when the effect of such a modification or integration increases the time or difficulty of servicing the product. -
Page 3: Block Diagram
Amplifer. The input is re-clocked and equalized to 100/300 meters (HD/SD) of coax cable. The RH10DA automatically configures to 143, 177, 270, 360mb, or 1.485gb SDI inputs. The RH10DA is compatible with AJA’s FR1 or FR2 frames. Features RH10DA Card Module, Side View •... -
Page 4: User Controls
Output configuration is discussed next in User Controls . User Controls There are no user controls on the RH10DA. An earlier version of the RH10DA (pre- 6/2010) had a jumper for configuring reclocking (J1); it is not present in the current version. -
Page 5: Specifications
AJA RH10DA 1x8 SD/HD-SDI Reclocking DA User Manual Instructions for removing the frame front door for module installation is discussed in the FR1/FR2 User Manual. Specifications Item Specification Input SMPTE 259M/292M/296M, BNC Outputs SMPTE 259M/292M/296M, 8 x BNC Size: Fits AJA R-Series Frames... - Page 6 Appendix A: Safety & Compliance Federal Communications Commission (FCC) Compliance Notices Class A This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15, Subpart B of the FCC Rules. These limits are designed to provide Interference reasonable protection against harmful interference in a commercial installation.
-
Page 7: Korea Kcc Compliance Statement
AJA RH10DA 1x8 SD/HD-SDI Reclocking DA User Manual Declaration of Marking by this symbol indicates compliance with the Essential Requirements of the EMC Directive of the European Union 2004/108/EC. Conformity This equipment meets the following conformance standards: Safety: CB- IEC 60065:2001 + A1:2005 NRTL - UL 60065:2003 R11.06, CSA C22.2 NO. -
Page 8: Taiwan Compliance Statement
Taiwan Compliance Statement This is a Class A product based on the standard of the Bureau of Standards, Metrology and Inspection (BSMI) CNS 13438, Class A. Japanese Compliance Statement 1. Class A ITE この装置は、 クラスA 情報技術装置です。 この装置を家庭環境で使用すると電波妨害 を引き起こすことがあります。 この場合には使用者が適切な対策を講ずるよう要求され ることがあります。 ＶＣＣＩ−Ａ This is a Class A product based on the standard of the VCCI Council (VCCI V-3/2008.04). - Page 9 AJA RH10DA 1x8 SD/HD-SDI Reclocking DA User Manual Warning! Do not use this device near water and clean only with a dry cloth. Avertissement! N'utilisez pas cet appareil près de l'eau et nettoyez-le seulement avec un tissu sec.. Warnung! Das Gerät nicht in der Nähe von Wasser verwenden und nur mit einem trockenen Tuch säubern.
- Page 10 Warnung! Das Gerät sollte nur von qualifizierten Fachkräften gewartet werden. Eine Wartung ist fällig, wenn das Gerät in irgendeiner Weise beschädigt wurde, wie bei beschädigtem Netzkabel oder Netzstecker, falls Flüssigkeiten oder Objekte in das Gerät gelangen, das Gerät Regen oder Feuchtigkeit ausgesetzt wurde, nicht ordnungsgemäß funktioniert oder fallen gelassen wurde.
- Page 11 AJA RH10DA 1x8 SD/HD-SDI Reclocking DA User Manual Warning! Ensure Mains Power is disconnected before installing the FR1 or FR2 frame R-series modules into the frame, or installing and removing options. If a Mains switch is not provided, the power cord(s) of this equipment provide the means of disconnection.
