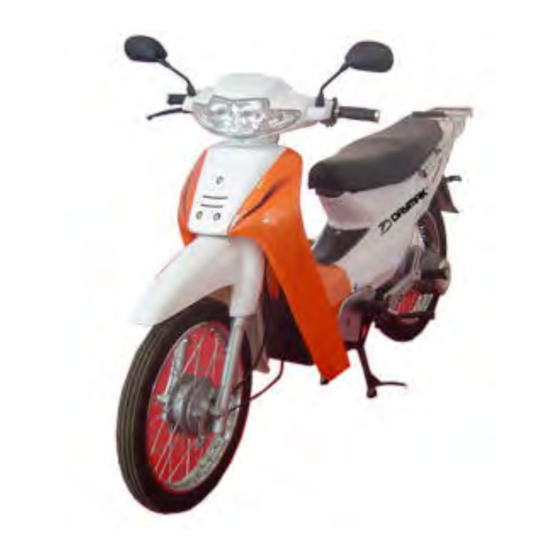

- Page 1 The Cairo E-Bike By Daymak Electric Bicycle User’s Guide For Use in Canada Only Updated July, 2008...
-
Page 2: About Daymak
Daymak Drive™ Technology. For more information on the company, please visit http://www.daymak.com. www.daymak.com Copyright 2008, Daymak Inc. All materials in this guide are the copyright property of Daymak, Inc. Reproduction of these materials requires written permission from Daymak. -
Page 3: Table Of Contents
Page 3 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Table of Contents About Daymak ........................2 Table of Contents ........................3 Introduction..........................4 Bicycle Part Diagrams ......................5 Riding Instructions........................6 Operating Instructions ......................10 The Battery .......................... 12 Technical Data ........................16 Maintenance and Troubleshooting.................. -
Page 4: Introduction
Liability Daymak does not assume any liability for damages, loss of profits, or claims from third parties due to improper use of this product. Daymak does not assume any liability for damages due to problems with the product resulting from service by a third party that is not... -
Page 5: Bicycle Part Diagrams
21. Seat Compartment Diagram 2: The Handlebars and Controls This diagram illustrates the various parts of the control mechanism and display. The diagram may not exactly show the features on the Cairo e-bike, but will parallel them. 1. Accelerator 4. Speedometer 7. -
Page 6: Riding Instructions
Page 6 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Riding Instructions This guide assumes that you already know how to ride a standard bicycle. Before you try to ride an electric bicycle, you should be very familiar with controlling and balancing a normal bicycle. - Page 7 Page 7 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Holding the Handlebars As with a normal bicycle or gas scooter, place your fingers over the brake levers, using the palms of your hand and your thumbs to wrap around and under the handlegrips. Doing this allows you to activate the brakes easily, by squeezing your hand, in case you have to stop quickly.
- Page 8 Page 8 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Stopping Your e-bike has two sets of brakes, at the front and at the rear. The levers attached to the handlebars, on the left and right, activate the brakes. Pull the levers toward you to activate the brakes.
- Page 9 Page 9 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Pedaling This e-bike is designed to be a motor-assisted bicycle. You can use the motor by itself, but ideally, you can work with the motor by pedaling. This increases the distance you can travel on your e-bike, because it assists the motor and reduces the amount of electricity you draw from the battery.
-
Page 10: Operating Instructions
Page 10 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Operating Instructions Using the Rear Storage Compartment The rear storage compartment is opened using the key provided to you when you purchased your e-bike. Insert the key and turn it to the right to open the compartment. - Page 11 Page 11 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Maximum Load Do not exceed the maximum load capabilities of your e-bike. You can find the exact loading capacity listed in the technical specifications in this guide. If you exceed the maximum load, the performance of the bike will suffer.
-
Page 12: The Battery
Page 12 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin The Battery This section details what you need to know about the battery that powers your e-bike. Always remember to treat your e-bike’s electrical systems with respect. Battery Power The dashboard has a battery charge indicator. - Page 13 If your charger’s LED status light does not change from red to green over an extended period of time, for perhaps more than 14 hours, and the battery is very hot, the battery or charger may need replacing. Stop charging and bring both to your Daymak dealer immediately. Do not charge the battery.
- Page 14 Page 14 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Battery Care Follow these suggestions to maintain your battery’s optimal performance. If you do not follow these suggestions, your battery may lose its ability to maintain a charge and might have to be replaced sooner than would otherwise be necessary.
- Page 15 Contact your local Daymak dealer to purchase a new battery. When replacing your battery, dispose of it at a proper municipal battery recycling facility. If none is available, please contact your local Daymak dealer.
-
Page 16: Technical Data
This section provides you with the technical specifications for your e-bike. The Motor and Wheel Assembly The Cairo e-bike has a 500 Watt magnetic DC brushless motor on the rear wheel hub. This type of motor has excellent low-end torque and high efficiency when working within its range. - Page 17 Page 17 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin The Brakes The brakes on your e-bike are drum-brakes, like those found on gas scooters and motorcycles. They provide for very fine stopping and control. This is a very tested and well- designed technology, but even so, the brakes will require servicing from time to time, and may have to be adjusted for tension.
- Page 18 Page 18 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Basic Statistics Dimensions Weight Loading Capacity Speed and Mileage Wheel Size: 3.0" x 24” 36 kg without battery Standard: 75 kg Max. Speed: 32 km/h Body Size: 169 x 39 x 109 cm...
-
Page 19: Maintenance And Troubleshooting
Please contact your Daymak dealer for specific instructions on how to remove your wheel and tires safely, and how to replace the tubes. It may be easier – and safer - to have the tubes replaced by your Daymak dealer. - Page 20 TPS Training Bulletin The Brakes The drum brakes on your Cairo e-bike allow you to stop and are a critical safety feature. Make sure you test them regularly. Take the e-bike to your Daymak dealer if the brakes appear to be losing their stopping power or feel looser than they were previously.
- Page 21 It is a good idea to always carry a spare 30 A fuse, to replace the fuse in case it blows. The Motor Do not service the motor yourself. Bring the e-bike to your Daymak dealer for service. The motor in your e-bike is a highly complex and fine-tuned mechanism. Repairing it requires significant expertise.
- Page 22 If your e-bike is not performing properly, disconnect the circuit breaker and bring the e-bike to your local Daymak dealer. Do not store the e-bike without disconnecting the circuit breaker. Liability Daymak will not be held responsible for damage or injuries resulting from errors resulting from improperly serviced parts.
-
Page 23: E-Bikes And Canadian Law
Page 23 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin E-Bikes and Canadian Law British Columbia, Alberta, Saskatchewan, Manitoba, Quebec, Nova Scotia, Newfoundland and Labrador, Yukon Currently, eight Canadian jurisdictions (British Columbia, Alberta, Saskatchewan, Manitoba, Quebec, Nova Scotia, Newfoundland and Labrador and Yukon Territory) have legalized power-assisted bicycles for public road use and are treating these vehicles as conventional bicycles and not as motor vehicles. - Page 24 Page 24 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin Specific Riding Requirements Power-assisted bicycles are treated as bicycles. This means: • No driver's licence is required • No written test is required • No vehicle registration or license plate is required •...
-
Page 25: Tps Training Bulletin
Page 25 The Cairo Electric Bicycle User’s Guide TPS Training Bulletin TPS Training Bulletin TPS Training Bulletin Attention Traffic and Training Sergeants: Recently we have had some enquiries from officers in the field and members of the public regarding e-bikes and have found that there is some confusion over the definition of a Power Assisted Bicycle (e-bike).
