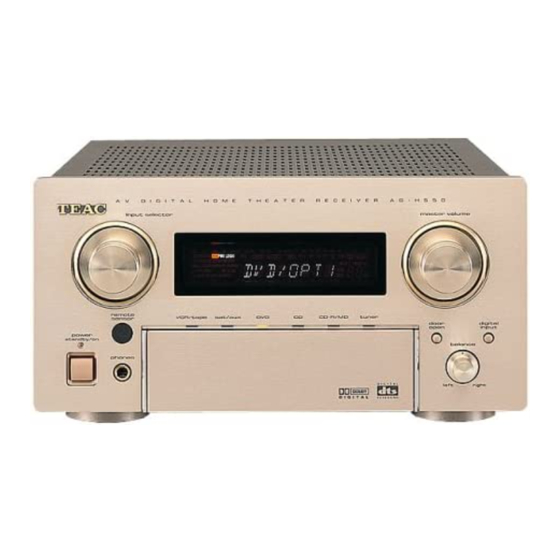

Teac AG-H550 Service Manual

Teac AG-H550 Service Manual

Av digital home theater receiver
Hide thumbs Also See for AG-H550:

Advertisement

Quick Links

CONTENTS
1 SPECIFICATIONS
・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・
2 EXPLODED VIEWS AND PARTS LIST
3 PC BOARDS AND PARTS LIST
4 INCLUDED ACCESSORIES
NOTES
PC boards shown are viewed from parts side.
The parts with no reference number or no parts number in the
exploded views are not supplied.
As regards the resistors and capacitors, refer to the circuit diagrams
contained in this manual.
Parts marked with this sign are safety critical components. They
£
must be replaced with identical components - refer to the appropriate
parts list and ensure exact replacement.
Parts of [ ] mark can be used only with the version designated.
[J]:JAPAN [US]:U.S.A. [C]:CANADA [E]:EUROPE [UK]:U.K.
Effective : March, 2002
SERVICE MANUAL
A A G G - - H H 5 5 5 5 0 0
2
4
・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・
6
・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・
13
・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・ ・
AV Digital Home Theater Receiver
