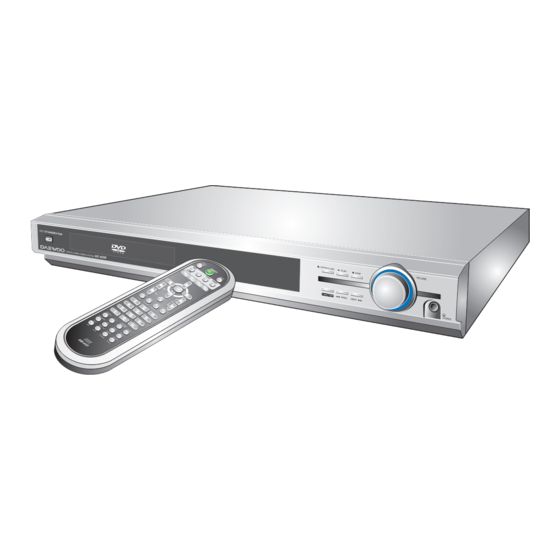

Daewoo HC-4130 Service Manual
  1. Manuals
  2. Brands
  3. Daewoo Manuals
  4. Digital home cinema system
  5. HC-4130
  6. Service manual

Daewoo HC-4130 Service Manual

Hc-4100b series; 4200b series
Hide thumbs Also See for HC-4130:

Advertisement

Quick Links

Service Manual
Digital Home Cinema System
Mini Component System
Model:
HC-4100B/4200B Series
HC-4130(
HC-4150(
HC-4160(
HC-4180(
HC-4100(
HC-4200(
DAEWOO DAT CO., LTD.
9CD8302600
S/N No. :
) / HC-4230(
)
) / HC-4250(
)
) / HC-4260(
)
) / HC-4280(
)
) Series
) Series
JUN. 2004
FEB. 2004

Advertisement

loading
Need help?

Need help?

Do you have a question about the HC-4130 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Daewoo HC-4130

Summary of Contents for Daewoo HC-4130

  • Page 1 Digital Home Cinema System Mini Component System Model: HC-4100B/4200B Series HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280( HC-4100( ) Series HC-4200( ) Series DAEWOO DAT CO., LTD. JUN. 2004 FEB. 2004...

  • Page 2: Table Of Contents

    DIGITAL HOME CINEMA SYSTEM HC4100( )/4200( ) Series HC-4130( ) / 4150( ) / 4160( ) / 4180( ) HC-4230( ) / 4250( ) / 4260( ) / 4280( ) Contents 1. SAFETY PRECAUTIONS............1/2 8. INTERNAL BLOCK DIAGRAM OF ICs......32/37 2.

  • Page 3: Safety Precautions

    1. Safety Precautions WARNING: TO PREVENT FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE laundry tub, in a wet basement, or near a swimming pool, THIS APPLIANCE TO RAIN OR MOISTURE. and the like. 2. Carts and Stands - The appliance PORTABLE CART CAUTION should be used only with a cart or...
  • Page 4 1. Safety Precautions 13.Outdoor Antenna Grounding - If an outside antenna is 15.Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through connected to the receiver be sure the antenna system is openings.

  • Page 5: Specifications

    Operation Voltage AC 230V / 50Hz Power output Table Power output at 10%THD(RMS) Model Front/Center Remark Woofer /Rear HC-4130 30 W, 6 ohm 50 W, 6 ohm HC-4230 HC-4150 50 W, 6 ohm 80 W, 4 ohm Same to HC-4250 “...

  • Page 6: Location Of Users Controls

    3. Location of Users Controls Front Panel : HC-4100( ) Series Only 1. STANDBY/ON button with LED lamp 7. STOP ( ) button 2. DISC TRAY 8. PREV ( ) button 3. Remote Control Sensor 9. NEXT ( ) button 4.

  • Page 7: Rear Panel

    3. Location of Users Controls Rear Panel 11 12 1. Power cord 10. DIGITAL OUTPUT jackj 2. FM ANTENNA connector 11. VIDEO IN jacks 3. SUBWOOFER SPEAKER connectors 12. VIDEO OUT jacks 4. CENTER SPEAKER connectors 13. S VIDEO MONITOR OUT jack 5.

  • Page 8: Remote Controller

    Index to Parts and Controls Index to Parts and Controls Remote controller Rear Panel 1. STANDBY/ON button 11 12 2. MUTE button 3. OPEN/CLOSE button 4. INPUT SELECTOR: VIDEO button 5. INPUT SELECTOR: TUNER button 6. INPUT SELECTOR: DVD button TV SYSTEM(PAL/NTSC: DVD only) button 7.

  • Page 9: Connecting To Equipment

    4. Connecting to Equipment Connecting to TV 21-Pin SCART Cable(not included) to 21-pin SCART input terminal on TV SCART Specification : Composite and Component Video output(DVD, Video)Audio L/R Output(DVD only) for EU version: optional If the TV or monitor is equipped with an S video input, make the S video connection in addition to the normal video connection. The S video connection will provide higher quality picture playback.

  • Page 10: Connecting To Speaker

    4. Connecting to Equipment Connecting to Speaker Before connecting This machine is designed to reproduce optimum sound quality when speakers with the specified impedance below are connected. Please check the following information and choose speakers with appropriate impedance for the connections. Front speakers / Center speaker / Surround Speakers : 6 ohms min.

  • Page 11: Firmware Upgrade

    1. Detect the Update Disc. 2. Display for Update Version. • Basic Version : HC-4150 / 60 / 80, HC-4250 / 60 / 80 (A50_8.ROM) • Basic Version : HC-4130, HC-4230 (A30_8.ROM) • DivX Version : HC-4150 / 60 / 80...
  • Page 12 5. Firmware Upgrade Read the Disc, Checksum Check and Update New Firmware. READING OK FLASH CHECKSUM OK ERASE/WRITE Caution • While updating, if the door opened or closed by touch, or power button is pressed, the Flash Memory will be damaged. Completed Update.

  • Page 13: Trouble Shooting Guide

    6. Trouble Shooting Guide Audio Part 1. BASIC OPERATING START Is Standby LED Check Power Supply Circuit. Check Connection CN701. Turn Power on. Is Power on? Check DVD Processor Circuit. IC501 Block. Does Initial read work? Check DVD Mechanism. Check RF Circuit IC301. Does It Play? Check DVD Region.
  • Page 14 6. Trouble Shooting Guide Front Circuit 1. INITIAL OPERATING START Is Standby LED on? Is Power on? Check Connection CN701. Check Power Supply. Is Power on? Check if IC501 pin 207 is high? Replace Reset IC. IC508. Check OSC waveform of XC501.
  • Page 15 6. Trouble Shooting Guide Front Circuit Check if pwr_on of IC208 is high? Check if display of Logo on TV? Check Connection between Main and Mechanism. Replace DVD Mechanism. Check I2C Line of IC504. Check Devices connected I2C Line. IC201, IC401, IC408. Check interface of VFD Driver Check VFD Data Interface.
  • Page 16 6. Trouble Shooting Guide Audio Part 3. AUDIO Abnormal Audio Abnormal of DVD Function Video Input Function. Tuner Input Function. Digital Audio Input Function. Check if the I2S output of IC501 is ok? Replace IC501. Check if the I2S input of IC201 is ok? Check Schmitt Triger IC.
  • Page 17 6. Trouble Shooting Guide Audio Part 3. AUDIO Abnormal Audio Abnormal of Video Input Function Check if the I2S output of IC401 is ok? Check if I2C between IC501 is ok? Check I2C Line. Check if I2S between IC406 is ok? Check I2S output of IC406.
  • Page 18 6. Trouble Shooting Guide Audio Part 3. AUDIO Abnormal Audio Abnormal of Tuner Function Check if the Data Interface is ok? Check if the Tuner data is Check IC207 Data Interface Stereo, Tuned, PLL_CE. Check if the RDS data is Check IC501 Data Interface RDS_CLK, RDS_DATA Check if the I2S...
  • Page 19 6. Trouble Shooting Guide Audio Part 3. AUDIO Abnormal Audio Abnormal of Digital OPTICAL INPUT & COAXIAL INPUT Audio Input Function Check if the Input Select is Check if the Data interface is ok? Check IC207 Data Interface DATA, CLK, 41 17_CS Check if the I2S output of IC407 is ok?
  • Page 20 6. Trouble Shooting Guide Audio Part 4. AUDIO LINE OUTPUT Abno rmal Audio Abnormal of H/P Output Check if the output of IC501 pin121 is ok? Replace IC501. Check if the output of IC408 is ok? Check if I2S between IC501 is ok? Check I2S Line.
  • Page 21 6. Trouble Shooting Guide Audio Part 4. AUDIO LINE OUTPUT Abno rmal Audio Abnormal of Rec Output Check if the output of IC501 pin121 is ok? Replace IC501. Check if the output of IC408 is ok? Check if I2S between IC501 is ok? Check I2S Line.
  • Page 22 6. Trouble Shooting Guide Audio Part 4. AUDIO LINE OUTPUT Abno rmal Audio Abnormal of Subwoofer Output Check if the output of IC501 pin120 is ok? Replace IC501. Check if the output of IC408 is ok? Check if I2S between IC501 is ok? Check I2S Line.
  • Page 23 6. Trouble Shooting Guide Audio Part 4. AUDIO LINE OUTPUT Abno rmal Audio Abnormal of Optical Output Check if the output of IC501 pin124 is ok? Replace IC501. Check if the output of IC404 is ok? Check if Setu p is ok? Setting for Digital Output on Check if IC303...
  • Page 24 6. Trouble Shooting Guide Audio Part 5. AUDIO CONTROL Abnormal Audio Abnormal of Volume Control Check if the data of IC501 is Check Input data of volume is ok? Check Connection CN701. Check Encoder SW. VR701. Replace IC501 Check if the I2C waveform of IC201 is ok? Check between IC501 to IC201.
  • Page 25 6. Trouble Shooting Guide Audio Part 5. AUDIO CONTROL Abnormal Audio Abnormal of Remote Con trol Check if the data of IC501 is Check Input data of RMC is Check Connection CN701. Check Remote Receiver, RM701. Replace IC501...
  • Page 26 6. Trouble Shooting Guide Audio Part 6. VIDEO OUTPUT Abnormal VIDEO Abnormal of Component Check if the Output of IC501 is ok? Check Crystal is ok? Replace Cystal, XC501. Check Setup is Setting for RGB Mode. Replace IC501 Check the output of IC601 is ok? Check Filter Circuit.
  • Page 27 6. Trouble Shooting Guide Audio Part 6. VIDEO OUTPUT Abnormal VIDEO Abnormal of S-VIDEO Check if the Output of IC501 is ok? Check Crystal is ok? Replace Crystal, XC501. Check Setup is Setting for S-VIDEO Mode. Replace IC501 Check the output of IC601 is ok? Check Filter Circuit.
  • Page 28 6. Trouble Shooting Guide Audio Part 6. VIDEO OUTPUT Abnormal VIDEO Abnormal of Composite Check if the Output of IC501 is ok? Check Crystal is ok? Replace Crystal, XC501. Replace IC501 Check the output of IC602 is ok? Check the control of Select is ok? Check Power Supply Circuit.

  • Page 29: Waveforms Of Major Check Point

    6. Trouble Shooting Guide Audio Part 7. MECHA CONTROL Abnormal Control Abnormal of Open/Close Check if the data input of IC501 is ok? Check VFD data is ok? Replace Front PCB Ass’y. Check Connection CN701. Check data waveforn of VFD_DATA, CLK, CS Replace IC501 Check the output of IC303...
  • Page 30 6. Trouble Shooting Guide Audio Part 7. MECHA CONTROL Abnormal Control Abnormal of Disc Loading Check if the data input of IC501 is ok? Check VFD data is ok? Replace Front PCB Ass’y. Check Connection CN701. Check data waveforn of VFD_DATA, CLK, CS Replace IC501 Check the...

  • Page 31: Audio Out Signal Waveform

    7. Waveforms of Major Check Method Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar Audio Out Signal Waveform DAC Output Signal Waveform Optical Output Audio Data Signal waveform PWM Output Waveform During Normal Play Serial Data Output Waveform During Normal Play...

  • Page 32: Pr Output Data Waveform In Component Output

    7. Waveforms of Major Check Method Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar Pr Output Data Waveform in Component Output Pb Output Data Waveform in Component Output Y Output Data Waveform in Component Output...

  • Page 33: Compositeoutput Data Waveform In Monitor Output

    7. Waveforms of Major Check Method Test Point : DVD Test Disc MDVD-W111 TRACK2 Color Bar Composite Output Data Waveform in Monitor Output S-Video Output Data Waveform...

  • Page 34: Internal Block Diagram Of Ics

    8. Internal Block Diagram of ICs 74HC00 74HC14 74HC374 74HCU04...
  • Page 35 8. Internal Block Diagram of ICs AK4117 AK5365 BA7660FS BA6287F...
  • Page 36 8. Internal Block Diagram of ICs CS4360 ES6629FD/ES6698FD...
  • Page 37 8. Internal Block Diagram of ICs LA7952 FAN8024DB M29W800DB LD1117A...
  • Page 38 8. Internal Block Diagram of ICs PT6315 STA505...
  • Page 39 8. Internal Block Diagram of ICs STA308A...

  • Page 40: Block Diagram

    9. Block Diagram Main Block [HC-4100( ) / 4200( ) Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...
  • Page 41 9. Block Diagram SMPS Block [HC-4100( ) / 4200( ) Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...

  • Page 42: Wiring Diagram

    10. Wiring Diagram [HC-4100( ) Series Only] [HC-4100( ) Series Model] HC-4130( ) / HC-4150( HC-4160( ) / HC-4180(...
  • Page 43 10. Wiring Diagram [HC-4200( ) Series Only] [HC-4200( ) Series Model] HC-4230( ) / HC-4250( HC-4260( ) / HC-4280(...

  • Page 44: Schematic Diagram

    11. Schematic Diagram DVD Processor Section HC-4150 DVD PROCESSOR SECTION [HC-4100( ) / 4200( ) Series Model] HC-4130( D) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280( IC501 ES6629FD ES6698FD PICK UP : SANYO SF-HD60/62 Only...

  • Page 45: Dvd Rf Section

    11. Schematic Diagram DVD RF Section [HC-4100( ) / 4200( ) Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...

  • Page 46: Video & Analog Audio Section

    11. Schematic Diagram Video & Analog Audio Section HC-4150 VIDEO & ANALOG AUDIO SECTION [HC-4100( ) / 4200( Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...

  • Page 47: Ddx Section

    11. Schematic Diagram DDX Section [HC-4150( ) / 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only] HC-4150 DDX SECTION...
  • Page 48 11. Schematic Diagram DDX Section [HC-4130( ) / 4230( ) Only] HC 4130 DDX ECTION...

  • Page 49: Pwm Amp. Section

    11. Schematic Diagram PWM Amp. Section [HC-4150( ) / 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only] HC-4150 PWM AMP SECTION...
  • Page 50 11. Schematic Diagram PWM Amp. Section [HC-4130( ) / 4230( ) Only] HC-4130 PWM MP SECTION...

  • Page 51: Front Section

    11. Schematic Diagram Front Section [HC-4100( ) Series Only] [HC-4100( ) Series Model] HC-4130( ) / HC-4150( HC-4160( ) / HC-4180(...
  • Page 52 11. Schematic Diagram Front Section [HC-4200( ) Series Only] [HC-4200( ) Series Model] HC-4230( ) / HC-4250( HC-4260( ) / HC-4280(...
  • Page 53 11. Schematic Diagram SMPS Section [HC-4100( ) / 4200( ) Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...

  • Page 54: Printed Circuit Diagram

    [Bottom View] : HC-4100( ) Series Only [HC-4100( ) Series Model] Key & Power [Bottom View] : HC-4100( ) Series Only HC-4130( ) / HC-4150( HC-4160( ) / HC-4180( Front [Bottom View] : HC-4200( ) Series Only [HC-4200( ) Series Model]...
  • Page 55 12. Printed Circuit Diagram Main [Top View] : HC-4130( ) / 4230( ) Only...
  • Page 56 12. Printed Circuit Diagram Main [Bottom View] : HC-4130( ) / 4230( ) Only...
  • Page 57 12. Printed Circuit Diagram Main [Top View] : HC-4150( ) / 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only...
  • Page 58 12. Printed Circuit Diagram Main [Bottom View] : HC-4150( ) / 4160( ) / 4180( ) / 4250( ) / 4260( ) / 4280( ) Only...
  • Page 59 12. Printed Circuit Diagram SMPS [Bottom View] [HC-4100( ) / 4200( ) Series Model] HC-4130( ) / HC-4230( HC-4150( ) / HC-4250( HC-4160( ) / HC-4260( HC-4180( ) / HC-4280(...

  • Page 60: Exploded View And Mechanical Parts List

    14. Exploded View and Mechanical Parts List HC-4100( ) Series Only [HC-4100( ) Series Model] HC-4130( ) / HC-4150( HC-4160( ) / HC-4180(...
  • Page 61 14. Exploded View and Mechanical Parts List HC-4100( ) Series Only...
  • Page 62 14. Exploded View and Mechanical Parts List HC-4200( ) Series Only [HC-4200( ) Series Model] HC-4230( ) / HC-4250( HC-4260( ) / HC-4280(...
  • Page 63 14. Exploded View and Mechanical Parts List HC-4200( ) Series Only...
  • Page 64 PCB MAIN ASS'y_ASA Mech [9CDC072100 : HC-4150 / 9CDC072200 : HC-4130] Loc. Part Code Part Name Description Remark B001 9CD6592700 PCB MAIN 344 X 160 1.6T FR-4 BD801 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz BD802 5LX100J001 COIL BEAD 3.6PI X 6MM 100 OHM,100MHz...
  • Page 65 Loc. Part Code Part Name Description Remark CE606 CEXF1H220V C ELECTRO 50V RSS 22MF CE607 CEXF1E470V C ELECTRO 25V RSS 47MF (5X11) TP CE608 CEXF1C102V C ELECTRO 16V RSS 1000MF (5X11) TP CE609 CEXF1C101V C ELECTRO 16V RSS 100MF (5X11) TP CE610 CEXF1C101V C ELECTRO...
  • Page 66 Loc. Part Code Part Name Description Remark HC211 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC212 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC213 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC214 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC216 HCBK104KBA C CHIP CERA...
  • Page 67 Loc. Part Code Part Name Description Remark HC420 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC421 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC422 HCQK220JBA C CHIP CERA 50V CH 22PF J 1608 HC423 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC424 HCBK104KBA C CHIP CERA...
  • Page 68 Loc. Part Code Part Name Description Remark HC538 HCBK153KBA C CHIP CERA 50V X7R 0.015MF K 1608 HC540 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC541 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC542 HCBK104KBA C CHIP CERA 50V X7R 0.1MF Z 1608 HC543 HCBK104KBA C CHIP CERA...
  • Page 69 Loc. Part Code Part Name Description Remark HC826 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012 HC827 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012 HC828 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012 HC829 HCBK105KCA C CHIP CERA 50V X7R 1MF K 2012 HC830 HCBK105KCA C CHIP CERA...
  • Page 70 Loc. Part Code Part Name Description Remark HL502 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 HL503 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 HL505 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 HL506 5LX600K841 CHIP BEAD FB 60 OHM 100MHZ 2012 HL507 5LX600K841 CHIP BEAD...
  • Page 71 Loc. Part Code Part Name Description Remark HR310 HRFT102JBA R CHIP 1/10 1K OHM J 1608 HR311 HRFT332JBA R CHIP 1/10 3.3K OHM J 1608 HR312 HRF4109JEA R CHIP 1/4 1OHM J 3216 HR313 HRF4109JEA R CHIP 1/4 1OHM J 3216 HR314 HRF4109JEA R CHIP...
  • Page 72 Loc. Part Code Part Name Description Remark HR440 HRFT104JBA R CHIP 1/10 100K OHM J 1608 HR441 HRFT750JBA R CHIP 1/10 75 OHM J 1608 HR442 HRFT101JBA R CHIP 1/10 100 OHM J 1608 HR443 HRFT104JBA R CHIP 1/10 100K OHM J 1608 HR444 HRFT103JBA R CHIP...
  • Page 73 Loc. Part Code Part Name Description Remark HR525 HRFT512JBA R CHIP 1/10 5.1K OHM J 1608 HR526 HRFT103JBA R CHIP 1/10 10K OHM J 1608 HR527 HRFT122JBA R CHIP 1/10 1.2K OHM J 1608 HR529 HRFT203JBA R CHIP 1/10 20K OHM J 1608 HR530 HRFT683JBA R CHIP...
  • Page 74 (S-VIDEO+RCA, Shield plate) 9736328300 JACK S-VIDEO DIN-409A(Shield plate) W/O Digital Audio Input Europe Only J403 9736324800 JACK SCART SCART RGB-14 HC-4130/50/60 : 180~265V(CE) With Progressive Europe/America 9736327600 JACK RCA RCA-603EA-32 (RGB 6P, Shield plate) HC-4130/50/60 : 90V~135V(UL) J404 Page 11...
  • Page 75 Loc. Part Code Part Name Description Remark J404 Without Progressive Europe/America 9736328500 JACK RCA RCA-303A-21 (RGB 3P, Shield plate) HC-4130/50/60 : 180~265V(CE) J801 9736325000 JACK SPK PA1220601P L801 5LC150K846 COIL 15UH LPF(SPK) L802 5LC150K846 COIL 15UH LPF(SPK) L803 5LC150K846 COIL...
  • Page 76 HIKF 50V 0.1MF Z (FORMING) CC918 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING) CC919 CCFF1H104Z C CERA HIKF 50V 0.1MF Z (FORMING) HC-4130 All Model CEXN2D221P C ELECTRO 220uF 200V LHS HC-4150/60 : 90V~135V(UL) CE901 HC-4130/50/60 : 180~265V(CE) CEXN2D331P C ELECTRO...
  • Page 77 Loc. Part Code Part Name Description Remark HC-4130 All Model CE906 CEXF1V222C C ELECTRO HC-4150/60 : 90V~135V 2200uF 35V RUS 105℃ HC-4150/60 : 180~265V CEXF1H102V C ELECTRO 1000uF 50V HC-4180 All Model HC-4130 All Model CE907 CEXF1V102V C ELECTRO 1000uF 35V...
  • Page 78 TL431 Open 90~135V, 180~265V IC981 1STR83145- IC TRIAC STR83145 Free Volt W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO HC-4130/50/60 : 90V~135V(UL) JW901 Open 90~135V, 180~265V Only JW903 W581GY1505 WIRE JUMPER AWG22 1/0.65 SN 17.5 AUTO JW906 W581GY12J5 WIRE JUMPER AWG22 1/0.65 SN 12.5 AUTO...
  • Page 79 R927 RD-AZ822J- R CARBON FILM 1/6 8.2K OHM J R928 RD-AZ182J- R CARBON FILM 1/6 1.8K OHM J HC-4130 All Model RN-AZ3302F R METAL FILM 1/6 33K OHM F(Metal 1%) HC-4150/60 : 90V~135V R930 HC-4150/60 : 180~265V RN-AZ3632F R METAL FILM 1/6 36.3K OHM F(Metal 1%)
