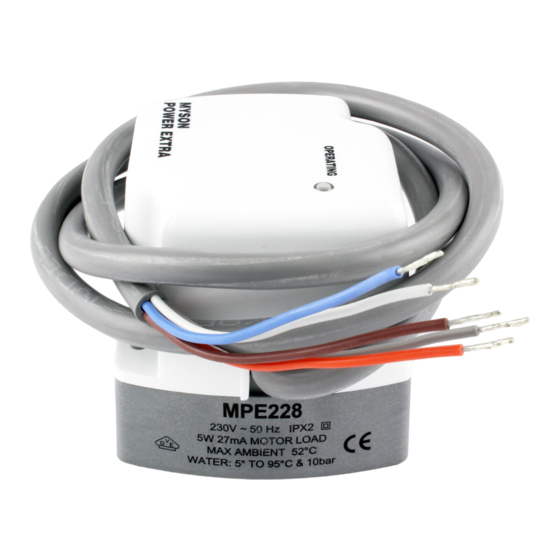

MYSON POWER EXTRA
SPRING RETURN ZONE VALVE
MPE 228 / MPE2 1" - 2 PORT 28mm VALVE
Thank you for choosing a MYSON heating control.
The MPE 228 is designed to control water circulation in primary hot water or
central heating circuits. The motor is powered to open the valve with a spring
return to the closed position.
The valve is not directionally sensitive and may be fitted with flow through either
Port A or Port B.
For convenience the neon indicator light illuminates, indicating when the valve is
open.
When the manual lever is moved to the right, the valve is open. This is used when
filling, venting or draining the system. The spring return valve rests in the closed
position.
TECHNICAL SPECIFICATION
Motor Supply Voltage
Frequency
Power Consumption
Motor Insulation Rating
Maximum Working Pressure
Maximum Water Temperature
Maximum Ambient Temperature
KV value
Switch Rating
High Temperature Silicon Cable
Valve Body
Actuator
MPEDOC003
230 V AC
50 Hz
6 W
Class 'F'
10 Bar
o
95
C
o
52
C
7.3
3(0.5) A
1100mm
Brass with spring loaded
Mica filled PTFE shoes
Power to Open
Spring to Close
Issue: 8
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Myson MPE 228
- Page 1 MPE 228 / MPE2 1” - 2 PORT 28mm VALVE Thank you for choosing a MYSON heating control. The MPE 228 is designed to control water circulation in primary hot water or central heating circuits. The motor is powered to open the valve with a spring return to the closed position.
- Page 2 INSTALLATION INSTRUCTIONS Step 1. Select Valve Position: Choose a suitable position for the valve TWO PORT in the circuit to be controlled, which VALVES allows sufficient access for wiring and maintenance. RADIATORS The position chosen must not isolate the boiler from the open vent or the cold TANK feed pipe work.
- Page 3 The installation will be simplified by the use of an electrical junction box into which all the system equipment can connect. The actual wiring connections will depend on the system equipment used, following the wiring principle outlined below. The MPE 228 is double insulated and requires no earth connection. IMPORTANT:...
- Page 4 NOTE: For fully pumped systems the White wire is unused and should be made safe by wiring into a blank terminal. The pump and boiler should both be connected to the Orange wire. MYSON CONTROLS, MYSON LTD., EASTERN AVENUE, TEAM VALLEY, GATESHEAD, TYNE & WEAR, NE11 OPG SALES OFFICE No.: 0845-402-3434...
