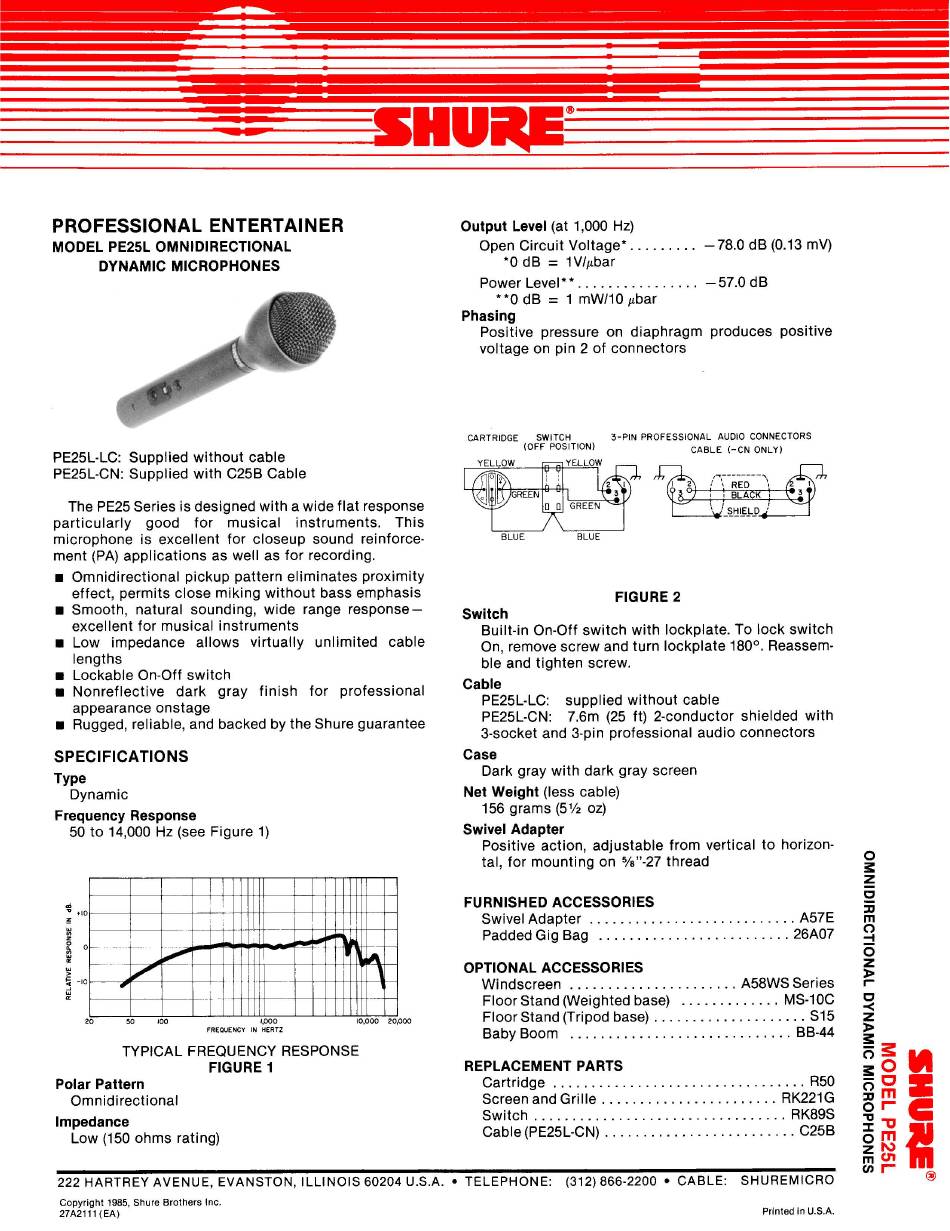

Shure PE25L Series Manual

PROFESSIONAL ENTERTAINER
MODEL PE25L OMNIDIRECTIONAL
DYNAMIC MICROPHONES
PE25L-LC: Supplied without cable
PE25L-CN: Supplied with C25B Cable
The PE25 Series is designed with a wide flat response
particularly good for musical instruments. This
microphone is excellent for closeup sound reinforce-
ment (PA) applications as well as for recording.
Omnidirectional pickup pattern eliminates proximity
effect, permits close miking without bass emphasis
Smooth, natural sounding, wide range response-
excellent for musical instruments
Low impedance allows virtually unlimited cable
lengths
Lockable On-Off switch
Nonreflective dark gray finish for professional
appearance onstage
Rugged, reliable, and backed by the Shure guarantee
SPECIFICATIONS
Type
Dynamic
Frequency Response
50 to 14,000 Hz (see Figure 1)
rn
-
+I0
Z
w
Z
B
0
Y
w
>
5
-10
2
u
z
20 5 0 I 0 0 1 . 0 0 0 1 0 . 0 0 0 2 0 , 0 0 0
FREWENCY IN HERTZ
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Omnidirectional
Impedance
Low (150 ohms rating)
Output Level (at 1,000 Hz)
Open Circuit Voltage*.
. . . . . . . .
-78.0 dB (0.13 mV)
*O dB
=
1Vlpbar
. . . . . . . . . . . . . . .
Power Level**. -57.0 dB
**0 dB
=
1 mWI10 pbar
Phasing
Positive pressure on diaphragm produces positive
voltage on pin 2 of connectors
CARTRIDGE SWITCH 3-PIN PROFESSIONAL AUDIO CONNECTORS
(OFF POSITION)
CABLE (-CN ONLY)
BLUE BLUE
FIGURE 2
Switch
Built-in On-Off switch with lockplate. To lock switch
On, remove screw and turn lockplate 180°. Reassem-
ble and tighten screw.
Cable
PE25L-LC: supplied without cable
PE25L-CN: 7.6m (25 ft) 2-conductor shielded with
3-socket and 3-pin professional audio connectors
Case
Dark gray with dark gray screen
Net Weight (less cable)
156 grams (5% oz)
Swivel Adapter
Positive action, adjustable from vertical to horizon-
tal, for mounting on 5/8"-27 thread
FURNISHED ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Swivel Adapter A57E
. . . . . . . . . . . . . . . . . . . . . . . . .
PaddedGigBag 26A07
OPTIONAL ACCESSORIES
. . . . . . . . . . . . . . . . . . . . . .
Windscreen A58WS Series
. . . . . . . . . . . . .
Floor Stand (Weighted base) MS-1OC
Floor Stand (Tripod base)
. . . . . . . . . . . . . . . . . . . .
S15
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BabyBoom BB-44
REPLACEMENT PARTS
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cartridge R50
. . . . . . . . . . . . . . . . . . . . . . .
Screen and Grille RK221G
Switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
RK89S
. . . . . . . . . . . . . . . . . . . . . . . . .
Cable(PE25L-CN) C25B
222 HARTREY AVENUE, EVANSTON, ILLINOIS 60204 U.S.A. TELEPHONE:
(312) 866-2200 CABLE:
SHUREMICRO
Copyright 1985, Shure Brothers Inc.
27A2111 ( E A )
Printed in U.S.A.
