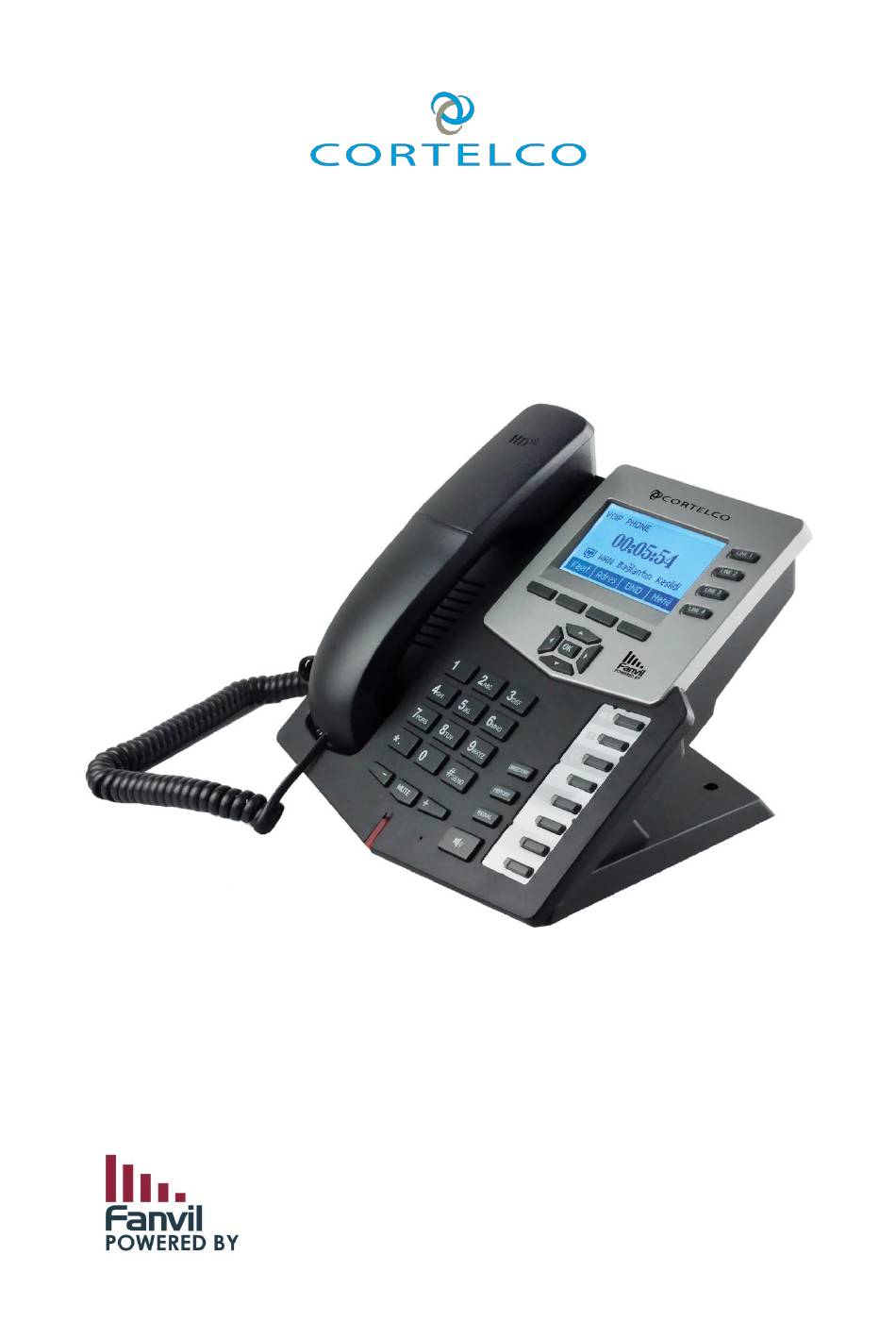

C62 VoIP Phone User Manual Cortelco 1703 Sawyer Road Corinth, MS 38834 www.cortelco.com Tel: (662)287-5281 Fax:(662)287-3889 Version 1.0 August 14, 2013...
Page 2
Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Please use the external power supply that is included in the package. Other power supplies may cause damage to the device, affect the behavior or induce noise.
Introducing C62 VoIP Phone Thank you Thank you for purchasing the C62 Voice Over Internet Protocol (VoIP) telephone. The C62 is a fully featured telephone that provides voice communication over the data network. This phone has all the features of a traditional telephone and all gives access to many data service features.
Page 8
During a call press this key to prevent the distant party from Mute hearing the conversation. The distant party will still be heard. The C62 has 4 SIP lines. The user may select either of Line1/2/3/4 them to place a call if they have been registered to a SIP server.
Various functions which can be configured in the web DSS keys interface. See Section 8.3.5. Input/Output Ports Port Port name Description Power switch Input: 5V AC, 1A 10/100M Connect it to Network 10/100M Connect it to PC Headset Port type: RJ-9 connector Handset Port type: RJ-9 connector External console...
Call mute Contact DND(Do not Disturb) In hand free mode In handset mode In headset mode Missed call Call forward LED Introduction 1.6.1 Programmable key LEDs for BLF LED Status Description Steady green The object is idle. Slow blinking red The object is ringing.
Slow Blinking Green The call is on hold. Slow Blinking Red Registration is unsuccessful. The line is not subscribed or idle. 1.6.4 Programmable key LEDs for MWI LED Status Description Blinking Green There are new voice mails. There is no new voice mail. 1.6.5 Power Indication LED (Power Light Enabled) LED Status...
2. Connect the handset to the handset jack using the handset cable in the package. 3. Connect the power supply to the DC port on the back of the phone. Connect the power supply to a standard power outlet. Note that the power supply will not be needed if your network provides Power over Ethernet (PoE).
7. Input the password (default value is 123). 8. Press ENTER. 9. Scroll down to “2. Network.” 10. Press OK. 11. Press OK to select WAN Settings. 12. Scroll down to “4. PPPoE Settings.” 13. Press OK. 14. Use the keypad to enter the User Name. 15.
20. Use the keypad to enter the Gateway Address. 21. Press SAVE softkey. 22. Press DOWN ARROW. 23. Use the keypad to enter the DNS 1 Address. 24. Press SAVE softkey. 25. Press DOWN ARROW. 26. Use the keypad to enter the DNS 2 Address if desired. 27.
Basic Functions Making a call 3.1.1 Call Device Calls can be made using three different devices: 1. Handset - Pick up the handset. The icon will be shown on the LCD screen. 2. Speakerphone - Press the Speaker button. The icon will be shown on the LCD screen.
The following call forwarding events can be configured: Off: Call forwarding is deactivated by default. Always: Incoming calls are immediately forwarded. Busy: Incoming calls are immediately forwarded when the phone is busy. No Answer: Incoming calls are forwarded when the phone is not answered after a specific period.
Call transfer 3.9.1 Blind Transfer During a conversation, press the XFER key, dial the number to which the call is to be transferred followed by "#" and then hang up. 3.9.2 Attended Transfer During a conversation, press the XFER key, dial the number to which the call is to be transferred followed by "#"...
Advanced Functions Call pickup This allows a third party to answer a call by dialing a code. For example: A calls B, but there is no answer. C can go off hook, dial a code plus B’s number, and pick up the call. The following chart shows how to configure this in the dial peer screen.
Click to dial If User A browses to User B’s phone number or SIP address in the contact page and clicks it, User A’s phone will ring. After he goes off hook, the phone will call User B. Note:This feature requires that the PBX support click to dial. Call back This function will redial the last received call.
3. Press Edit 4. Use the navigation keys to enable voicemail. 5. Input the number. Press 2aB softkey if necessary to change the input method. 6. Press Save to save the change. 7. To hear a new voicemail, press the Voicemail softkey. Then press Dial. It may then be necessary to enter a password.
4. Use UP ARROW or DOWN ARROW to access time setting. 5. Use keypad to enter time in seconds. Auto Handdown This is the time after a call ends before the phone returns to the idle state. 1. Press Menu ->Features-> Enter->Auto Handdown-> Enter. 2.
Auto Redial If Auto Redial is enabled, the phone will continue to retry a busy call. The user sets the retry interval and the number of times to redial. The user is also given the option to activate this feature on each busy call. 1.
Example: A call is placed to 6625551212. Password is set to 662 and length is set to 3. Display will show 662***1212. 1. Press Menu ->Features-> Enter->Passwd Dial-> Enter. 2. Use LEFT ARROW or RIGHT ARROW to enable the feature. 3.
Ring Settings 6.3.1 Ring Volume 1. Press Menu ->Settings-> Enter->Basic Settings-> Enter->Ring Settings->Enter->Ring Volume->Enter. 2. Use LEFT ARROW or RIGHT ARROW to select the desired ring volume from the 9 choices. The phone will ring at the selected volume shortly after it is selected. 3.
4. Press Save. 5. Use BACK or EXIT to return to idle screen. Greeting Words This feature shows the words displayed in the upper left of the LCD. Default is VOIP PHONE. 1. Press Menu ->Settings-> Enter->Basic Settings-> Enter->Greeting Word->Enter. 2.
name must be entered. Factory Reset Choose Yes to return the phone to factory default settings. Web Configuration Introduction of configuration 8.1.1 Configuration Methods There are three methods which can be used to configure this phone: Phone keypad – As discussed in previous sections ...
After configuring the IP phone, remember to click SAVE under the Maintenance tab. If this is not done, the phone will lose the modifications when it is rebooted. Configuration via WEB 8.3.1 BASIC 8.3.1.1 Status...
Field Name Explanation Network Shows the configuration information for WAN and LAN port, including connection mode of WAN port (Static, DHCP, PPPoE), MAC address, IP address of WAN port and LAN port, DHCP server status for LAN port (ENABLED or DISABLED). Accounts Shows the phone numbers and registration status for the 6 SIP LINES and 1 IAX2 server.
8.3.1.2.1 Static IP If Static IP is selected, this screen will be displayed. Information provided by the ISP should be entered. Click Back to return to the Wizard screen. Click Next to go to Quick SIP Settings 8.3.1.2.2 DHCP After selecting DHCP and clicking NEXT, the Quick SIP Settings screen will appear. Click Back to return to the Wizard screen.
8.3.1.2.4 Quick SIP Settings Field Name Explanation Display Name The name shown in caller ID. Server Address SIP server address either IP address or URI. Server Port SIP server port (usually 5060). Authentication User Login name or Authentication ID. Authentication Password SIP password.
8.3.1.3 Call Log Outgoing call logs can be seen on this page. Field Name Explanation Start Time Start time of the outgoing call Duration Duration of the outgoing call. Dialed Calls Account, protocol, and line of the outgoing call. 8.3.1.4 Language Field name Explanation...
8.3.2 Network 8.3.2.1 WAN Config Field Name Explanation Active IP Address The current IP address of the phone. Current Subnet Mask The current Subnet Mask. Current IP Gateway The current Gateway IP address. MAC Address The MAC address of the phone. MAC Timestamp Time the MAC address was obtained.
8.3.2.1.1 Static IP If Static IP is chosen, the screen below will appear. Enter values provided by the ISP. 8.3.2.1.2 DHCP If DHCP is chosen, all configuration information will be provided by a DHCP server. Contact the ISP to determine if DHCP is used. 8.3.2.1.3 PPPoE If PPPoE is chosen, the screen below will appear.
8.3.2.2 LAN Config Field Name Explanation IP Address LAN static IP. Subnet Mask LAN Subnet Mask. DHCP Service Activate DHCP server for LAN port. The phone must be rebooted for the DHCP server setting to take effect. Enable NAT operation Port Mirror Port Mirror can only be activated in bridge mode.
Page 37
Chart 1 shows a network switch with no VLAN. Any broadcast frames will be transmitted to all other ports. For example, and frames broadcast from Port 1 will be sent to Ports 2, 3, and 4. Chart 2 shows an example with two VLANs indicated by red and blue. In this example, frames broadcast from Port 1 will only go to Port 2 since Ports 3 and 4 are in a different VLAN.
Page 38
Field Name Explanation Enable LLDP Enable or Disable Link Layer Discovery Protocol (LLDP) Packet Interval The time interval for sending LLDP Packets Enable Learning Function Enables the telephone to synchronize its VLAN data with the Network Switch. The telephone will automatically synchronize DSCP, 802.1p, and VLAN ID values even if these values differ from those provided by the LLDP server.
8.3.2.4 Service Port Set the port values for Telnet/HTTP/RTP on this page. Field Name Explanation Specify Web Server Type – HTTP or HTTPS Web Server Type HTTP Port Port for web browser access. Default value is 80. To enhance security, change this from the default. Setting this port to 0 will disable HTTP access.
8.3.2.5 DHCP SERVICE Field Name Explanation DHCP Client Table IP-MAC mapping table. If the LAN port of the phone connects to a device, this table will show its IP and MAC address. Leased Table Name Name of the lease table. Start IP Address Beginning IP address of the lease table.
8.3.2.6 TIME&DATE Set the time zone and SNTP (Simple Network Time Protocol) server on this page. Daylight savings time configuration and manual time and date entry are also done on this page Field Name Explanation Simple Network Time Protocol (SNTP) Settings Enable SNTP Enable or Disable SNTP Enable DHCP Time...
Daylight Saving Time Settings Enable Enable daylight saving time. Offset(minutes) DST offset. Default is 60 minutes. Month Start and end month for DST Week Start and end week for DST Start and end day for DST Hour Start and end hour for DST Minute Start and end minute for DST Manual Time Settings...
Page 43
Field Name Explanation Choose the sip line to configured (SIP 1 – SIP 6). Click the dropdown arrow to select the line. Shows registration status. Will show “Registered” if registered Status or “Unapplied” if not registered. Server Address SIP server IP address or URI. Server Port SIP server port.
Page 44
Display Name Set the display name. This name is shown on Caller ID. Enable Registration Check to submit registration information. Domain Realm SIP Domain if different than the SIP Registrar Server. Proxy Server Address SIP proxy server IP address or URI(This is normally the same as the SIP Registrar Server) Proxy Server Port SIP Proxy server port.
Page 45
Subscribe For MWI If enabled, the phone will send Message Waiting Indication (MWI) Subscribe message to the SIP Server MWI Number Specify the number to call to retrieve Voice Messages. Subscribe Period Time interval between MWI Subscribe Messages. Conference Type Choose Conference Type, either local or network Conference Number Number to dial to access network conference server.
Page 46
Different VoIP Service providers may require different modes. Local port SIP port. Default is 5060. Ring type Set ring tone. There are 9 standard options and 3 user options. Enable Rport Enable/Disable support for NAT traversal via RFC3581 (Rport). Enable PRACK Enable or disable SIP PRACK function.
Registration failure retry time – If registration fails, the phone will Registration Failure Retry Time attempt to register again after registration failure retry time. This will affect all lines 8.3.3.2 IAX2 Field Name Explanation Shows registration status. Will show “Registered” if registered Status or “Unapplied”...
non- numeric, this number can be used to replace the echo test text. This allows dialing a number to perform an echo voice test. This function is provided to test whether communication through the server. Echo Test Text Echo test text Refresh Time Expiration time of IAX2 server registration.
Field Name Explanation STUN NAT Transversal Shows whether or not STUN NAT Transversal was successful. Server Address STUN Server IP address STUN Server Port – Default is 3478. Server Port STUN blinding period – STUN packets are sent at this interval Binding Period to keep the NAT mapping active.
Page 50
Example 2: Substitution – To dial a long distance call to Beijing requires dialing area code 010 before the local phone number. Using this feature 1 can be substituted for 010. For example, to call 62213123 would only require dialing 162213123 instead of 01062213123. Example 3: Addition –...
Page 51
Field Name Explanation Phone number There are two types of matching: Full Matching or Prefix Matching. In Full matching, the entire phone number is entered and then mapped per the Dial Peer rules. In prefix matching, only part of the number is entered followed by T.
Dial “8309“ The phone will add the alias to the end of the dialed number if The SIP1 server will receive “07558309” the dialed number matches the template in the Phone Number box. Dial “0106228” Set Phone Number, Alias and Delete Length.
Page 53
Third Codec The third codec choice: G.711A/u, G.722, G.723, G.729, G.726, None Fourth Codec The forth codec choice: G.711A/u, G.722, G.723, G.729, G.726, None Fifth Codec The fifth codec choice G.711A/u, G.722, G.723, G.729, G.726, None Sixth codec The sixth codec choice G.711A/u, G.722, G.723, G.729, G.726, None Onhook Time Time the handset must be on hook to disconnect a call.
8.3.4.2 FEATURE This page configures various features such as Hotline, Call Transfer, Call Waiting, etc. Field Name Explanation Do Not Disturb If enabled, the phone will reject incoming calls. The callers receive busy tone. Outgoing calls may be made. Enable Call Transfer If enabled, Call Transfer is allowed.
Page 55
Auto Redial Times Maximum number of auto redial attempts. Auto Headset Automatically answers call on headset. Enable Intercom If enabled, allows intercom calls. Enable Intercom Tone If enabled, plays intercom ring tone to alert to an intercom call. P2P IP Prefix Set Prefix for peer to peer IP call.
Page 56
Ring from Headset If this is enabled and a headset is connected, ring tone will be played in the headset. Enable Intercom Mute If enabled, mutes incoming calls during an intercom call Enable Intercom Barge If enabled, the phone will auto-answer an intercom call during an outside call.
8.3.4.3 DIAL PLAN This phone supports 7 dialing modes: 1. End with “#”– Dial the desired number, and press # to send it to the server. 2. Fixed Length – The number will be sent to the server after the specified number of digits are dialed.
Page 58
5. Press # to Do Blind Transfer - Press # after entering the target number for the transfer. The phone will transfer the current call to the third party. 6. Blind Transfer on Onhook - Hang up after entering the target number for the transfer. The phone will transfer the current call to the third party.
8.3.4.4 CONTACT Enter the name, phone number and ring type for each contact here. Field Name Explanation Phonebook Tables Group Dropdown box to select group Name Contact name...
Page 60
Office Number, Mobile Contact phone numbers Number, Other Number Ring Type Ring type for this contact Group Contact group for this contact Add Contact Name Contact name Office Number, Mobile Contact phone numbers Number, Other Number Line Select line for associated contact number Ring Type Ring type for this contact Group Setting...
8.3.4.5 REMOTE CONTACT Allows access to remote contact lists either via XML or LDAP. TFTP example: Set the Phonebook Name as cortelco - Server URL is tftp://192.168.1.3/admin/phonebook/index.xml. LDAP example: Server URL is ldap://192.168.1.3/dc=winline,dc=com. Remote Phonebook Setting Phonebook Name Phonebook name displayed on the phone.
8.3.5 Function Key The phone has 8 programmable DSS/Function keys with associated LEDs and 4 programmable Line keys with LEDs. The 4 directional arrow keys and the OK button are also programmable. This screen also sets the LCD contrast and enables the backlight. For additional DSS/Function buttons, up to 5 C10 Expansion modules may be connected.
Page 63
Screen Configuration Field Name Explanation Contrast Set screen contrast Enable Backlight Enable/disable LCD backlight. Line Key Settings/Function Key Settings Field Name Explanation Key Name Type Select the type of function the key is to perform. Choices are: None BLF List Key –...
8.3.5.3 EXT Keys These are the keys on the C10 Expansion Module. Up to 5 modules may be connected to one phone. The phone can power one module. Additional modules will require a separate power supply. See the C10 documentation for installation instructions. The keys have the same capabilities as the Function Keys.
Page 67
Auto Provision Setting Field Name Explanation Show the current config file’s version. If the version of Current Config Version configuration downloaded is higher than this, the configuration will be upgraded. If the endpoints confirm the configuration by the Digest method, the configuration will not be upgraded unless it differs from the current configuration.
PnP Port PnP Server Port PnP Transfer protocol – UDP or TCP PnP Transport PnP Interval Interval time for querying PnP server. Default is 1 hour. Phone Flash Settings Server Address Set FTP/TFTP/HTTP server IP address for auto update. The address can be an IP address or Domain name with subdirectory.
Page 69
Level Name Description Emergency System is unusable. This is the highest debug info level. Alert Action must be taken immediately. Critical Critical conditions. System is probably working incorrectly. Error Error conditions. System may not work correctly. Warning Warning conditions. System may work correctly but needs attention.
8.3.6.3 Config Setting Config Setting Field Name Explanation Save Configuration Save the current phone configuration. Clicking this saves all configuration changes and makes them effective immediately. Backup Configuration Save the phone configuration to a txt or xml file. Please note to Right click on the choice and then choose “Save Link As.”...
8.3.6.4 Update This page allows uploading configuration files to the phone. Update Field Name Explanation Web Update Browse to the config file, and press Update to load it to the phone. Web Update Various types of files can be loaded here including firmware, ring tones, local phonebook and config files in either text or xml format.
Page 72
Type Action to be executed by the phone. 1. Application update - download system update file 2. Config file export - Upload config file to FTP/TFTP server. It can then be named and saved. 3. Config file import - Download the config file from FTP/TFTP server.
8.3.6.5 Access User accounts can be added or deleted from this page. The authority of accounts can also be changed. Access Configuration Field Name Explanation LCD Menu Password Settings Menu Password Sets the password for entering the setup menu from the phone keypad.
8.3.6.6 Reboot Some configuration modifications require a reboot to become effective. Clicking the Reboot button will cause the phone to reboot immediately. Note: Be sure to save the configuration before rebooting. 8.3.7 Security 8.3.7.1 WEB FILTER WEB Filter The Web filter is used to limit access to the phone. When the web filter is enabled, only the IP addresses between the start IP and end IP can access the phone.
8.3.7.2 Firewall Firewall Configuration Firewall rules can be used to prevent unauthorized Internet users from accessing private networks connected to this phone (input rule), or prevent unauthorized devices connected to this phone from accessing the Internet (output rule). Each rule type supports a maximum of 10 items.
When a connected device tries to access 192.168.1.118, the phone will deny the request because of the out_access rule. Access to any other IP address will be allowed. Click the Delete button to delete the selected rule. 8.3.7.3 Network Address Translation (NAT) NAT is the process of modifying IP address and port information in transition from a private to a public network.
Page 77
connectivity to specific hosts in the internal network, although communication with other hosts in the DMZ and to the external network is allowed. This allows hosts in the DMZ to provide services to both the internal and external network, while a firewall controls the traffic between the DMZ servers and the internal network clients.
Network Address Translation (NAT) Table Shows the NAT TCP and UDP mapping tables NAT Table Option Transfer Type Select the TCP or UDP protocol. Inside IP Set the local IP address of device. Inside Port Set the LAN (inside) port for NAT mapping Outside Port Set the WAN (outside) port for NAT mapping Note: After entering settings, click the Add button to add new mapping table data.
VPN Server Address Set VPN L2TP Server IP address. VPN User Set User Name access to VPN L2TP Server. VPN Password Set Password access to VPN L2TP Server. 8.3.7.5 Security Field Name Explanation Update Security File Select Security File Browse to the security file to be updated. Click the Update button to update.
Appendix Specification 9.1.1 Hardware Item Specification Power Adapter Input: 100-240V Output: 5V 1A Port 10/100Base- T RJ-45 1 PORT 10/100Base- T RJ-45 1 PORT RJ45 1 PORT Headset RJ9 1 PORT Power Consumption Idle: 2.5W Active: 2.8W LCD Size 128x64 53.5 x 70mm Operation Temperature 0~40℃...
Page 81
SIP domain SIP authentication none basic MD5 DNS Peer to Peer/ IP call Automatic line selection 9 Standard ring tones and 3 user-defined ring tones DTMF SIP info DTMF Relay (In-Band) ...
Wan Port Supports Main DNS and Secondary DNS Supports DNS via DHCP or Static DNS Supports DHCP client on WAN Supports DHCP server on LAN QoS with DiffServ Network Tools in Telnet Server Ping ...
Digit-character map table Keypad Character Keypad Character 7 P Q R S p q r s 2 A B C a b c 8 T U V t u v 3 D E F d e f 9 W X Y Z w x y z 4 G H I g h i 5 J K L j k l 6 M N O m n o...
