Pure Acoustics Noble II-F Owner's Manual

Technical Specifications

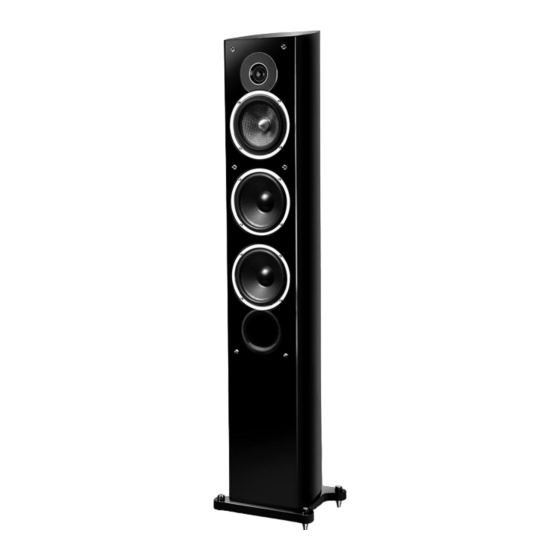

NOBLE II-F
POWER HANDLING 185 W RMS,
300 W peak
48 Hz - 22 KHz
FREQUENCY RESPONSE
92 dB
SENSITIVITY (+/–3dB)
OHMS, NOMINAL/MIN. 8/4 ohms
3-way
DRIVER COMPLEMENT
Two 5.25˝ poly-
WOOFER
injected woofers
One 5.25˝ carbon-
MIDRANGE
fiber midrange
1˝ oil-cooled
TWEETER
silk dome tweeter
CROSSOVER FREQUENCY
1,000/3,500 Hz
DIMENSIONS (H x W x D) 43 x 9.5 x 8.3 ins.
WEIGHT
33 lbs.
FINISH
Piano high-gloss,
White, Black
GRILLE
Black cloth
Design and specifications are subject to change without notice.
www.pure-acoustics.com
NOBLE II-C NOBLE II-S
150 W RMS, 150 W RMS,
225 W peak 225 W peak
60 Hz - 22 KHz 60 Hz - 22 KHz
87 dB 87 dB
8/4 ohms 8/4 ohms
2-way 2-way
Two 4˝ poly-injected One 4˝ poly-injected
woofers woofer
N/A N/A
1˝ oil-cooled 1˝ oil-cooled
silk dome tweeter silk dome tweeter
3,500 Hz
5.5 x 15.75 x 5.5 ins. 9.85 x 5.7 x 5.5 ins
8.8 lbs. 6.3 lbs.
Piano high-gloss, Piano high-gloss,
White, Black White, Black
Black cloth Black cloth
NOBLE SERIES
OWNER'S MANUAL
THE PURE SOUND OF LIFE
PURE ACOUSTICS®
Pure Acoustics, Inc.
18 Fuller Place • Brooklyn, NY 11215
Customer Service: 718-788-4411
www.pure-acoustics.com
