Summary of Contents for Wind Crest UIX2916S

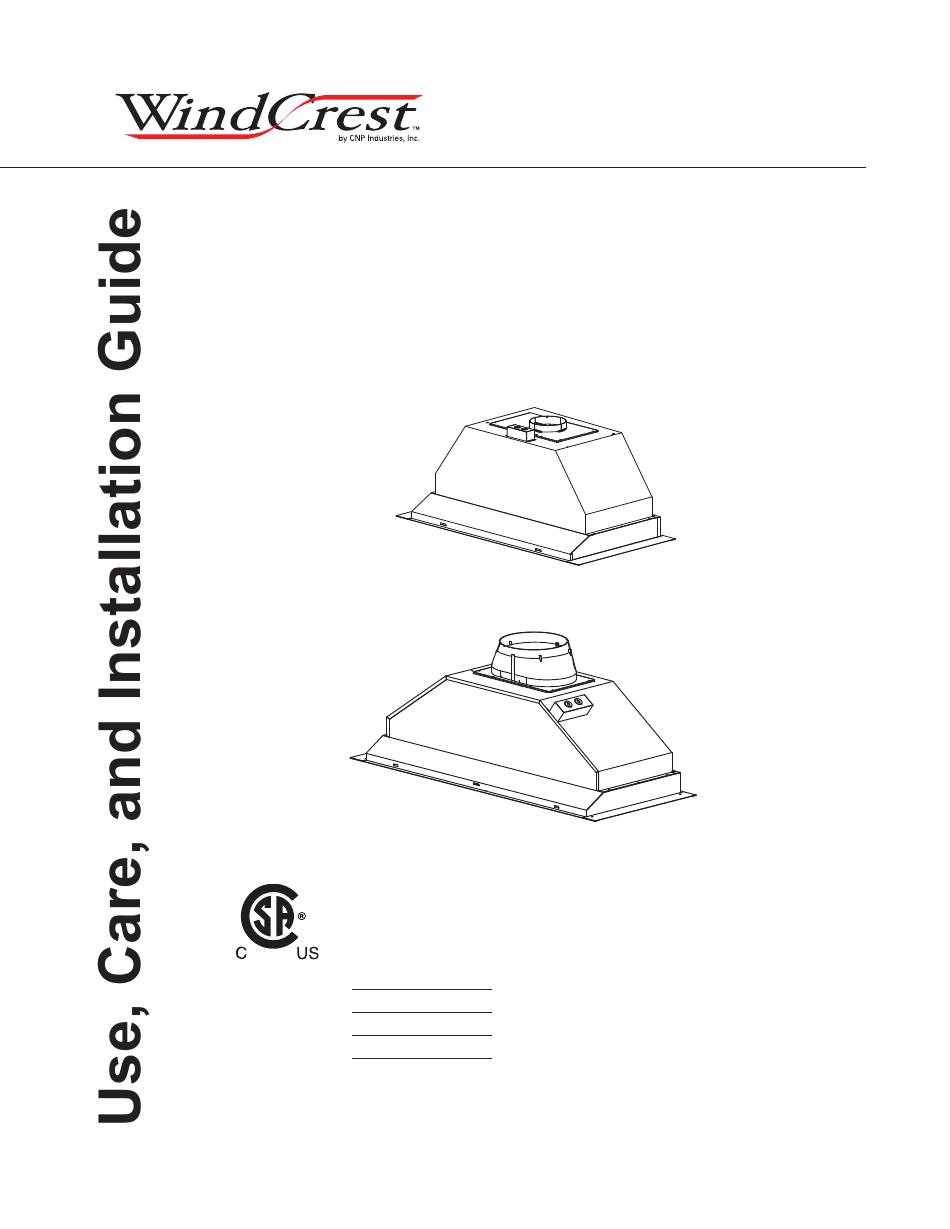

- Page 1 UIX2916S UIX3816S Model number: Serial Number: Date of Purchase: Sales Dealer: SEP12.0302 © 2012 Wind Crest CNP Industries, Inc. READ AND SAVE THESE INSTRUCTIONS...
- Page 2 www.windcrestcnp.com...
- Page 3 SAFETY NOTICE ..............LIST OF MATERIALS ............INSTALLATION Ducting Calculation Sheet ........Mounting Height & Clearance ........ Ducting Options ............Specifi cations ............... Electrical ................. Installing the Insert ............. VEN111I Dual Internal Blower Kit 11-12 ......FEATURES & CONTROLS Slide Controls ...............
- Page 4 When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities. d. Ducted fans must always vent to the outdoors. e. Make sure the power is off before installing, wiring or maintenancing. © Wind Crest CNP Industries, Inc.
-
Page 5: Operation
15 or 20 ampere circuit breaker or time delay fuse. Wiring must be 2 wire with ground. Please also refer to Electrical Diagram on product. UIX2916S (single blower) - 390W, 3.25 Amps UIX2916S (dual blower) - 710W, 5.95 Amps UIX3816S (dual blower) - 780W, 6.55 Amps... -
Page 6: Hardware Package Contents
- Cable connector (if required by local codes) - *Dual internal blower kit (VEN111I) - UIX2916S only - Optional stainless steel hood liner *Dual blower kit includes blower plate and 1 blower. Blower from UIX2916S is required to complete installation. © Wind Crest CNP Industries, Inc. - Page 7 Equivalent number Equivalent number Duct pieces Duct pieces length x used T otal length x used T otal 3-1/ 4” x 10” 1 Ft. 6” Round 30 Ft. Rect., wall cap straight with damper 6” Round, 1 Ft. 6” Round, 30 Ft.
- Page 8 If long duct run is required, increase duct size. If turns or transitions are required; install as far away from hood duct output and as far apart, between the two as possible. © Wind Crest CNP Industries, Inc.
- Page 9 WARNING FIRE HAZARD NEVER exhaust air or terminate duct work into spaces between walls, crawl spaces, ceiling, attics or garages. All exhaust must be ducted to the outside. Use metal ductwork only. Fasten all connections with sheet metal screws and tape all joints with certifi ed Silver Tape or Duct Tape. Some Ducting Options side wall cap side wall cap...
- Page 10 *8” round adapter only needed if using dual internal blower kit. 6” round collar is standard and requires no adapter. UIX2916S UIX2916S front ” 7/16 ” 11/16 ” 13/16 UIX2916S/UIX3816S side ” ” ” ” A: elec. ” ” 7/16 UIX3816S UIX3816S front © Wind Crest CNP Industries, Inc.
- Page 11 ELECTRICAL WARNING All Electrical work must be performed by qualifi ed electrician or person with similar technical know how and background. For personal safety, remove house fuse or open circuit breaker before beginning installation. Do not use extension cord or adapter plug with this appliance. Follow national electrical codes or prevailing local codes and ordinances.
- Page 12 Refer to page 11 for instructions 2. Install 8” round adapter to top of UIX2916S or 10” adapter on top of UIX3816S. See page 12, step 8 for instuctions. 3. Install optional UL29xxS or UL38xxS Stainless Steel Liner. Review cabinet bottom cut-out size manual included with liner for more details.
- Page 13 OPTIONAL VEN111I DUAL BLOWER KIT IS FOR USE WITH UIX2916S. NOTE: SINGLE BLOWER FROM UIX2916S IS REQUIRED TO COMPLETE VEN111I DUAL BLOWER KIT. UIX3816S ALREADY INCLUDES A DUAL BLOWER. 2. Remove support screw from top of insert near 1. Disconnect single blower wire from inside of the back.
- Page 14 7. Re-attach dual blower plate to insert by following 8. Place 8” round adapter (included with removal instructions in reverse. Re-attach UIX2916S) on top of insert and secure with (4) blower wire to insert. M4x8 screws. Connect 8” round duct work.
- Page 15 Blower On/Off Speed Selection Lights Bright/Dim/Off I I I BLOWER ON/OFF/SPEED SELECTION 0 is off, I is low speed, II is medium speed and III is high speed. LIGHTS BRIGHT/DIM/OFF 0 is off, I is dim, and II is bright.
-
Page 16: Surface Maintenance
Filters may be placed in dishwasher at low heat or soaked in hot soapy water Dry fi lters and re-install before using hood. Removing Decorative Mesh Filters (UIX2916S), FIG 4: 1. Pull down on fi lter handle. 2. Remove fi lter by pulling it out from the power pack. -
Page 17: Replacing Light Bulbs
REPLACING LIGHT BULBS CAUTION: Light bulb becomes extremely hot when turned on. DO NOT touch bulb until switched off and cooled. Touching hot bulbs could cause serious burns. Make sure all power is turned off and bulbs are not hot. Remove by turning bulb counter clockwise. - Page 18 TROUBLESHOOTING PROCEDURES FOR UIX2916S AND UIX3816S Issue Cause What to do After installation, 1. The power source is not turned ON. 1. Make sure the circuit breaker and the unit’s the unit doesn’t power is ON. work. 2. The power line and the cable locking connector 2.
- Page 19 PART # Replacement Parts Light Bulb MR16 (GU10) 35W (each) 11206.00 Decorative Mesh Filter (each) 11271.00 Baffl e Filter (each) 11272.00 Optional Accessories Dual blower kit(UIX2916S only) VEN111I Liner,36” (UIX2916S) UL2936S Liner,42” (UIX2916S) UL2942S Liner,48” (UIX3816S) UL3848S Liner,54” (UIX3816S) UL3854S Liner,60”...
-
Page 20: Full One Year Warranty
7.) Service to replace consumable parts (i.e. Light Bulbs, Heat Lamps, Filters). 8.) Expenses for travel and transportation if appliance is located in a remote area. You may also write to us at: Wind Crest™ by CNP Industries, Inc. 351 Thor Place Brea, CA 92821 (877) 387-6721 This warranty applies to appliances used in residential applications only.
