Macro-Tech 1202 Power Draw, Current Draw And Thermal Dissipation At Various Duty Cycles; Macro-Tech 2402 Power Draw, Current Draw And Thermal Dissipation At Various Duty Cycles - Crown Macro-Tech 602, Macro-Tech 1202 Reference Manual

Macro-Tech ® 602/1202/2402 Power Amplifiers

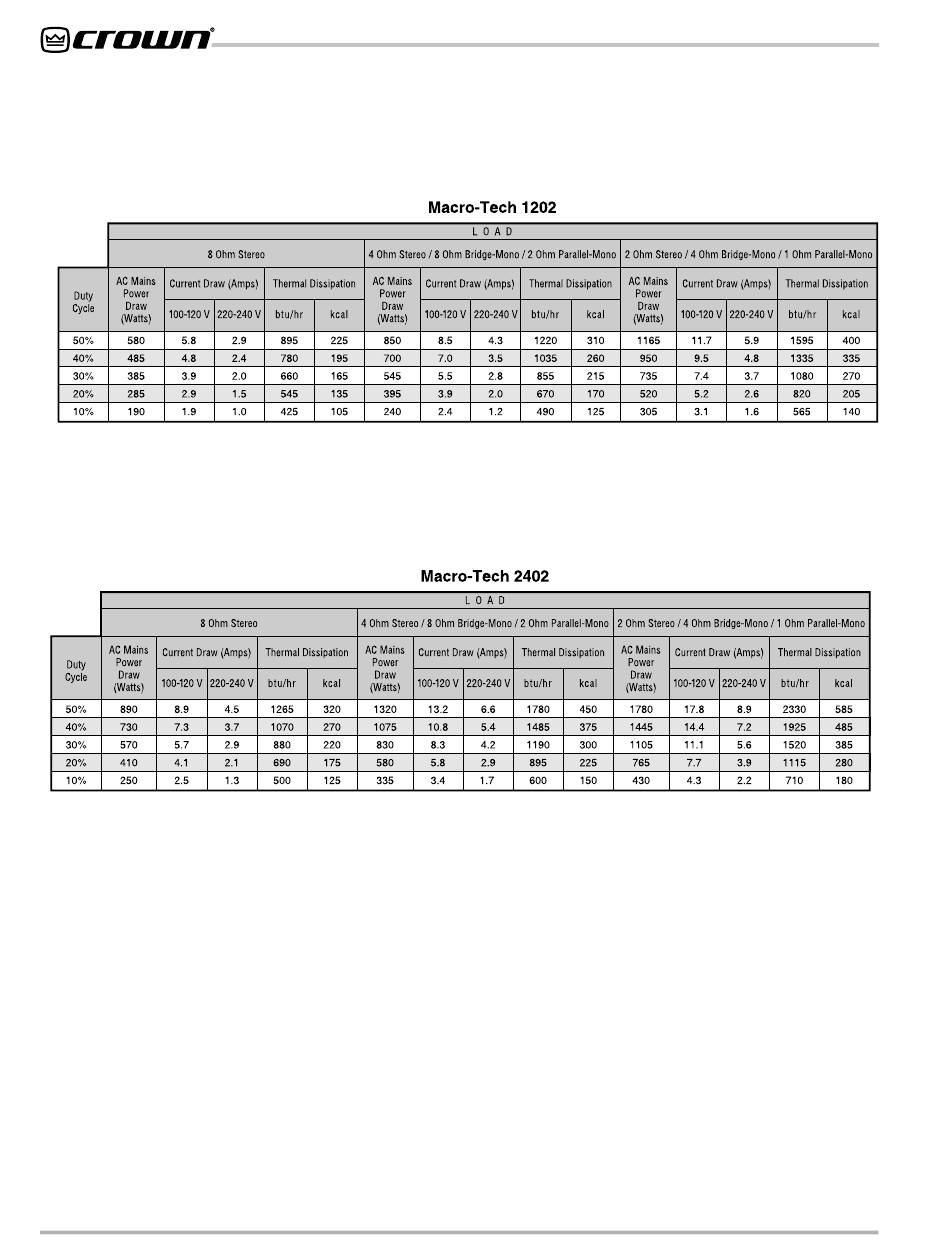

Fig. 7.2 Macro-Tech 1202 Power Draw, Current Draw and
Thermal Dissipation at Various Duty Cycles
Fig. 7.3 Macro-Tech 2402 Power Draw, Current Draw and
Thermal Dissipation at Various Duty Cycles
Page 38 Reference Manual
