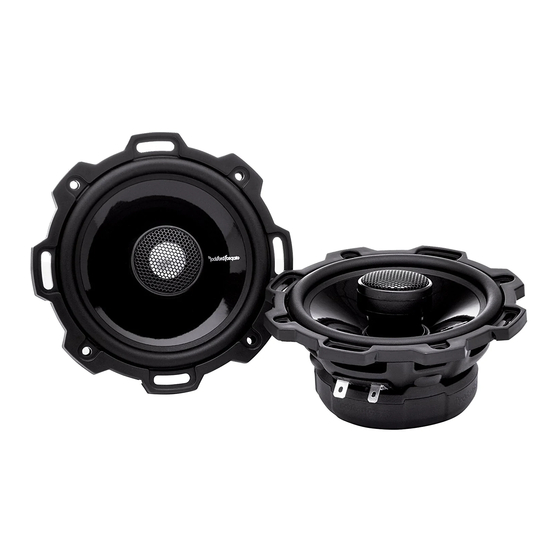

Rockford Fosgate T142 Installation & Operation Manual
Hide thumbs
Also See for T142:
- Installation & operation manual (16 pages) ,
- Template manual (12 pages)
Advertisement
Quick Links
Full Range Speakers
T142 – 4˝
T152 – 5.25˝
T1S652 – 6.5˝ Shallow
T1652 – 6.5˝
T1462 – 4˝x 6˝
T1572 – 5˝x 7˝
T1682 – 6˝x 8˝
T1692 – 6˝x 9˝
T1693 – 6˝x 9˝ 3-Way
Serial Number:
Installation & Operation
Installation et fonctionnement
Instalación y funcionamiento
Einbau und Betrieb
Installazione e funzionamento
Date of Purchase:
Advertisement
Related Manuals for Rockford Fosgate T142
Summary of Contents for Rockford Fosgate T142

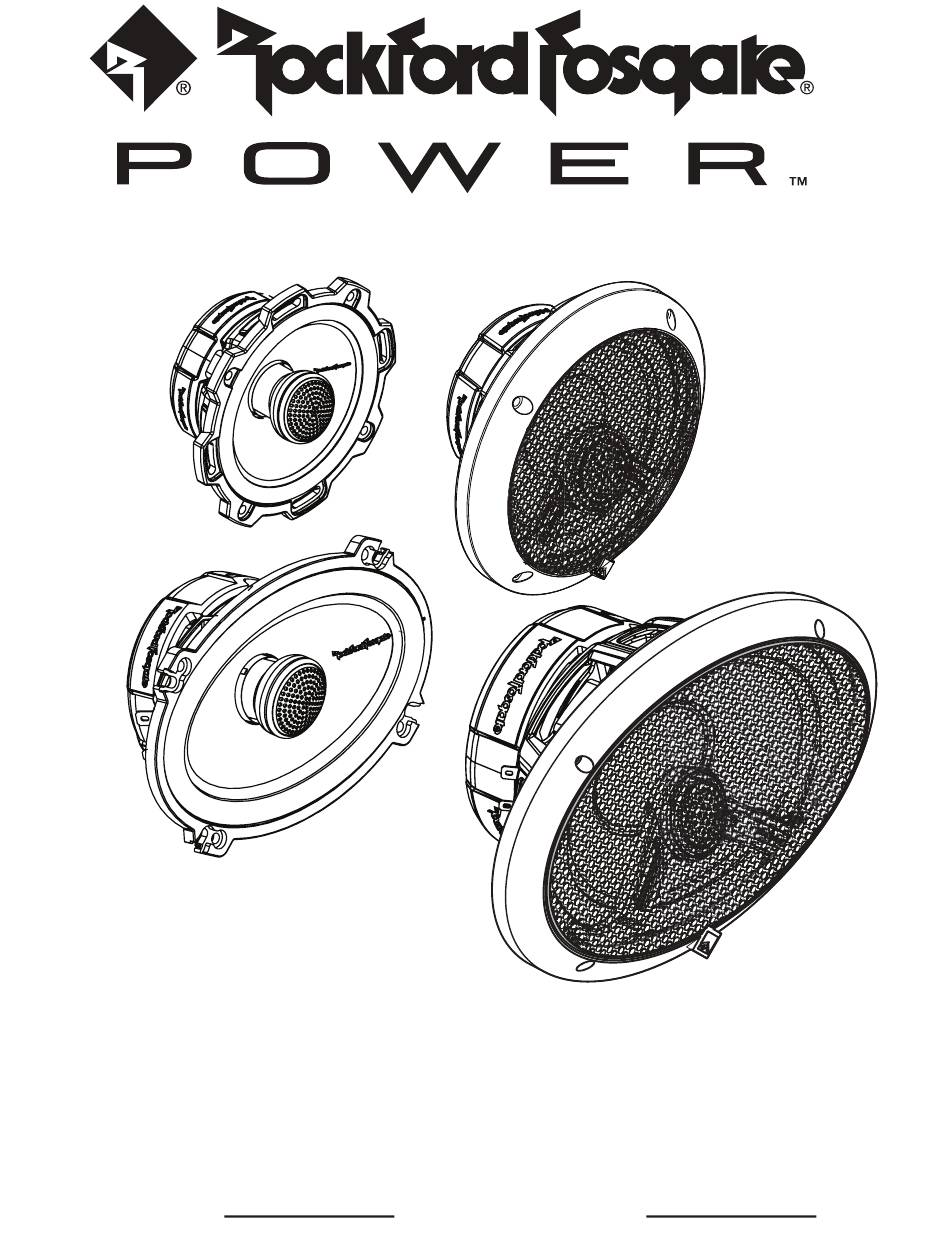

- Page 1 Full Range Speakers T142 – 4˝ T152 – 5.25˝ T1S652 – 6.5˝ Shallow T1652 – 6.5˝ T1462 – 4˝x 6˝ Installation & Operation T1572 – 5˝x 7˝ Installation et fonctionnement T1682 – 6˝x 8˝ Instalación y funcionamiento T1692 – 6˝x 9˝...
- Page 2 Tighten the screws until the speaker is snug in place to prevent rattling. Do not rear deck installation over tighten the screws. NOTE: For T142, T1462, T152, T1S652, T1652 and T1572 only, if needed use the adapter plate provided to mount the speaker. See Adapter Plate Templates at the end of this manual.
- Page 3 PECIFICATIONS T142 T152 T1S652 T1652 T1462 T1 Full-Range Nominal Diameter - inch (mm) 4.0 (102) 5.25 (133) 6.5 (165) 6.5 (165) 4 x 6 (102 x 152) Description 2-Way 2-Way 2-Way 2-Way 2-Way Nominal Impedance (ohms) 4Ω 4Ω 4Ω 4Ω...
- Page 4 PECIFICATIONS T152 T142 T1462 6.02" 5.08" 6.48" (153mm) (129mm) (165mm) 3.84" 3.20" 4.37" (98mm) 5.43" (81mm) (111mm) 4.53" (138mm) (115mm) Diameter Diameter 4.23" (107mm) 3.15" (80mm) 6.22" 1.17" 2.50" (158mm) (30mm) (64mm) 1.79" 3.78" (46mm) (96mm) 4.06" 2.26" (103mm) (58mm) 3.31"...
- Page 5 PECIFICATIONS T1572 8.72" (222mm) T1682 8.27" (210mm) 4.31" 3.69" (109mm) (94mm) 2.60" (66mm) 5.47" (139mm) 4.80" (122mm) 7.32" (186mm) 8.08" 5.02" (205mm) (128mm) 4.14" (105mm) 3.20" (81mm) 5.04" 2.30" (128mm) (59mm) 5.66" (144mm) 7.13" 5.08" (181mm) (129mm) 4.62" (117mm) 9.37’’ T1692 (238mm) 6.60’’...
- Page 6 électrique ou les conduites de carburant, de freinage REMARQUE: Pour les modèles T142,T1462,T152,T1S652 et T1652 seulement, hydraulique ou de dépression en travaillant sur un véhicule. En cas d'installa- utilisez si nécessaire la plaque d'adaptation fournie pour monter le tion sur un bateau, veillez à...
- Page 7 Klappern zu verhindern. Die Schrauben nicht zu fest anziehen. HINWEIS: Falls erforderlich die beiliegende Adapterplatte bei der Befestigung des NOTA: Si es necesario, sólo para T142, T1462, T152, T1S652 y T1652, use la Lautsprechers verwenden (nur bei T142,T1462,T152,T1S652 und placa adaptadora proporcionada para montar el altavoz. Consulte las T1652).
- Page 8 NOTA: Nel caso dei T142,T1462,T152,T1S652 e T1652 solamente, montare il diffusore servendosi, se necessario, della piastra di adattamento in dotazione.
- Page 9 Adapter Plate Template 5"x7" Hole Mounting Remove Shaded Areas to Mount T142 4" Remove Shaded Areas Mount T1462 4"x6"...
- Page 10 Adapter Plate Template – 6.5" Hole Mounting Remove Dark Shaded Areas Mounting for T152 5.25" Remove Shaded Areas to Mount T1S652 6.5" Shallow...
- Page 11 Adapter Plate Template – 6"x9" Hole Mounting For 5"x7" Hole Mounting - Remove Dark Shaded Areas Mounting for T152 5.25" Remove For Optional Tweeter Remove Shaded Areas to Mount T1S652 6.5" Shallow...
- Page 12 Adapter Plate Template – 6"x9" Hole Mounting For 5"x7" Hole Mounting - Remove Dark Shaded Areas Remove Shaded Areas to Mount T1652 6.5" Remove For Optional Tweeter...
- Page 13 Some states do not allow limitations on the length of an implied warranty, so this limitation may not apply. No person is authorized to assume for Rockford Fosgate any other liability in connection with the sale of the product.
