Summary of Contents for Life Fitness Hip Abduction / Adduction

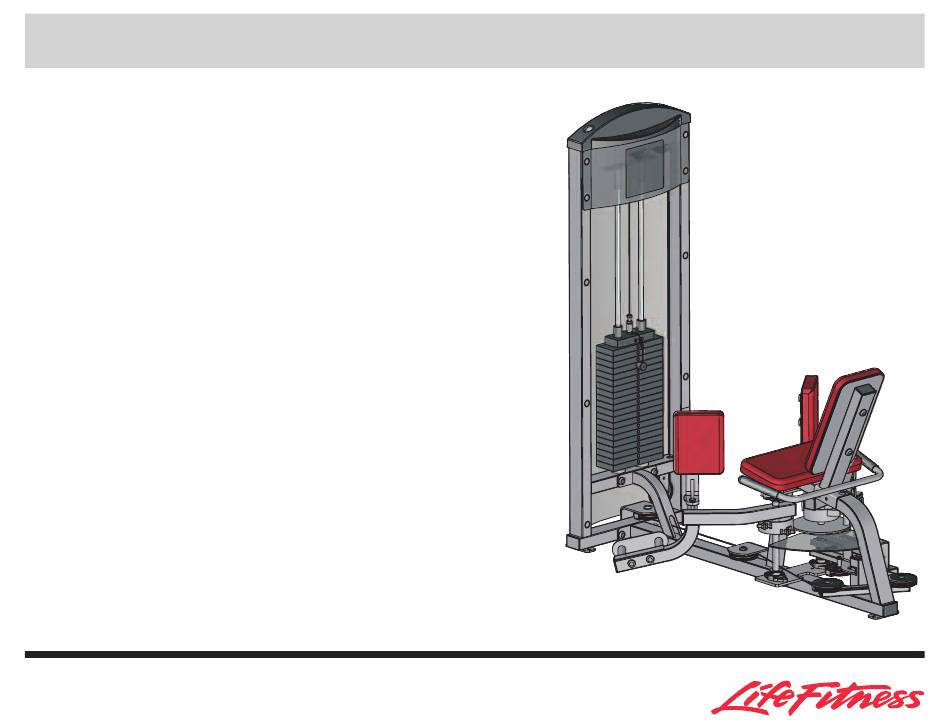

- Page 1 Hip Abduction / Adduction Owners Manual...
-
Page 2: Tools Required
Hip Abduction / Adduction 1. Assembly Instructions Item Description Part Number Item Description Part Number Base Assembly AAP04-0736 Seat Pad / Back Pad P07-0082 Tower AP04-0735 (WHT)(PLT) 3/8 x 32mm Hex Bolt DA1C03803216NU RH Cap P06-0021 (WHT)(PLT) Back Pad Support... - Page 3 3 & 38)
- Page 4 Hip Abduction / Adduction 1. Assembly Instructions SECURELY assemble BASE (1) to the TOWER (2) using eight RH CAPS (3), three 3/8 X 92mm BOLTS (4), one 3/8 X 98mm BOLT (5), eight 3/8" SAE WASHERS (6), eight 3/8" RH WASHERS (7) and four 3/8" LOW HEIGHT LOCK NUTS (8) as shown.
-
Page 5: Weight Stack Assembly
WEIGHT STACK ASSEMBLY: Insert the two GUIDE RODS (15) into the base of the TOWER (2) as shown. Slide two WEIGHT STACK CUSHIONS (16) down over the GUIDE RODS . Lubricate the GUIDE RODS with a slicon or teflon spray that is available at most hardware stores. - Page 6 Hip Abduction / Adduction 1. Assembly Instructions SECURELY assemble the SEAT PAD (22) to the BASE (1) using two RH CAPS (3), two 3/8 X 32mm BOLTS (23), two 3/8" SAE WASHERS (6) and two 3/8" RH WASH- ERS (7) as shown.
- Page 7 11. SHROUD ASSEMBLY: 33 34 SECURELY assemble the FRONT SHROUD (30) and the REAR SHROUD (31) to the TOWER (2) using ten 3/8 X 90mm BUTTON HEAD BOLTS (32), twenty 3/8" SAE BLK WASHERS (33) and ten 3/8" ACORN NUTS (34) as shown. SECURELY assemble the TOWER CAP (35) to the TOWER (2) using two 3/8 X 25mm BUTTON HEAD BOLTS (36) and two 3/8"...
-
Page 8: Safety And Warranty
Hip Abduction / Adduction 2. Safety & Warranty It is the sole responsibility of the purchaser of LIFE FITNESS products to instruct all individuals, whether they are the end user or supervising personnel on proper usage of the equipment. It is recommended that all users of LIFE FITNESS exercise equipment be informed of the following information prior to its use. -
Page 9: Warranty
WHO PAYS TRANSPORTATION & INSURANCE FOR SERVICE If the Product or any covered part must be returned to a service facility for repairs, We, Life Fitness, will pay all transportation and insurance charges for the first year. You are responsible for transportation and insurance charges during the second and third years (if applicable). -
Page 10: Exclusive Warranty
Hip Abduction / Adduction 2. Safety & Warranty EXCLUSIVE WARRANTY THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES OF ANY KIND EITHER EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, AND ALL OTHER OBLIGATIONS OR LIABILITIES ON OUR PART. -
Page 11: Hip Abduction / Adduction
Visual placard provides illustration for proper use. 5. Equipment Anchoring All machines have holes in the feet, which allow for easy anchoring to the floor. Life Fitness recommends that all machines be anchored to the floor to minimize the possibility that they will be tipped. - Page 12 Hip Abduction / Adduction 4. Exercise Hip Abduction Start Finish Hip Adduction Start Finish...
-
Page 13: Maintenance
Hip Abduction / Adduction 5. Maintenance CLEAN Upholstery with a mild soap and water. Hand grips with mild soap and water. INSPECT Hardware should be checked for looseness. Tighten as required. Frames should be inspected for wear or damage. All paint chips should be filled immediately with touch-up paint. - Page 15 © 2005 Life Fitness, a division of Brunswick Corporation. All rights reserved. Life Fitnessis a registered trademark of Brunswick Corporation. FSHAA 8.23.05 7887701 RevB...
