Summary of Contents for BIRD TS 2650 B 2D

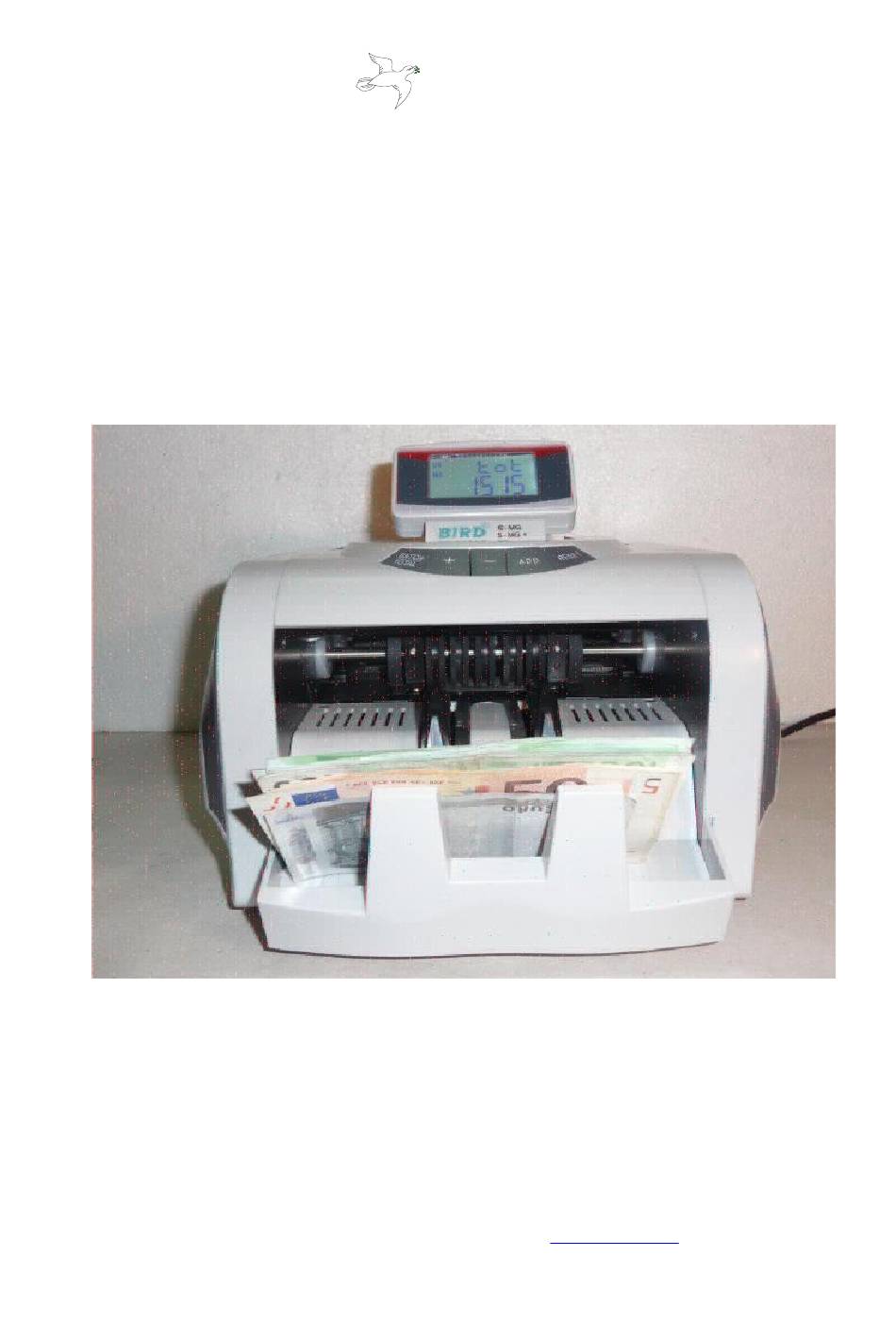

- Page 1 B I R D BANKNOTE-COUNTING MACHINES BIRD TS 2650 B 2D BIRD TS 2650 B 3D INSTRUCTION MANUAL “BIRD 2” LTD, 1202 Sofia, 42 Kiril i Metodi Str, Tel/Fax: 359 2 / 983 19 33, 983 51 45, E-mail: office@birdm.net, Website: www.birdm.net...
- Page 2 - 2 - INSTRUCTION MANUAL BIRD TS 2650B 2D is a banknote-counting machine which track width and thickness of the banknotes. BIRD TS 2650B 3D is a banknote-counting machine which track length, width and thickness of the banknotes. Machines have a UV sensor to monitor the quality of the paper.
- Page 3 For example: To make a batch of 47 banknotes, press the "+" key twice and three times the "-" key. Little digital indicator will display the number 47. Once banknote-counting machine is started, it will stop for every 47 banknotes counted. © BIRD ®...
- Page 4 If during the counting machine stops and the indication is flashing periodically remove the number of banknotes displayed and continue counting by pressing "RESET" key. © BIRD ®...
- Page 5 If any of the banknotes conduction through the rollers was not good, an indication for error can appear, i.e. nominal record could not be read. It is therefore necessary to recount the removed banknotes. © BIRD ®...
- Page 6 RESET key. Separated 'counterfeit' banknotes re-count again. 5. Counting of US dollars. Press MG. On the screen appears the following picture: ____________________________ MG * ____________________________ © BIRD ®...
- Page 7 Press the ADD key. Possible options for counting with accumulation result are the following pictures: 5.1. Counting with accumulation of the number of the banknotes: ____________________________ BATCH ____________________________ 5.2. Counting with accumulation and testing for the authentication of euro banknotes: ____________________________ BATCH ____________________________ © BIRD ®...
- Page 8 ____________________________ 5.4. Counting with accumulation of total sum and testing of Euro banknotes: ____________________________ t o t ____________________________ 5.5. Counting with accumulation of numbers of banknotes and testing of US dollars: ____________________________ BATCH MG * ____________________________ © BIRD ®...
- Page 9 For the first condition press MG; The second condition is met. UV button is on by default; For the third condition: press "+" key three times. The display shows the following picture: ____________________________ ____________________________ © BIRD ®...
- Page 10 Remove any banknotes from the holder. Place them back for counting in the feeder when it is empty. - Errch (Error chain) - an indication that banknotes are passing very close to each other and their validation is © BIRD ®...
- Page 11 Lift the panel, as shown in the second picture and manually remove the blocked banknote(s). Place back the panel in its position. (Panel level should align with the level of the side panels). © BIRD ®...
- Page 12 - 12 - © BIRD ®...
-
Page 13: Manufacturer's Recommendation
(many banknotes at high speed must pass through the magnetic head) is not performed good reading of the nominal value of these banknotes and the machine indicates an error. ® June 2011 the BIRD company © BIRD ®...
