Summary of Contents for SONIQ E24FB40A

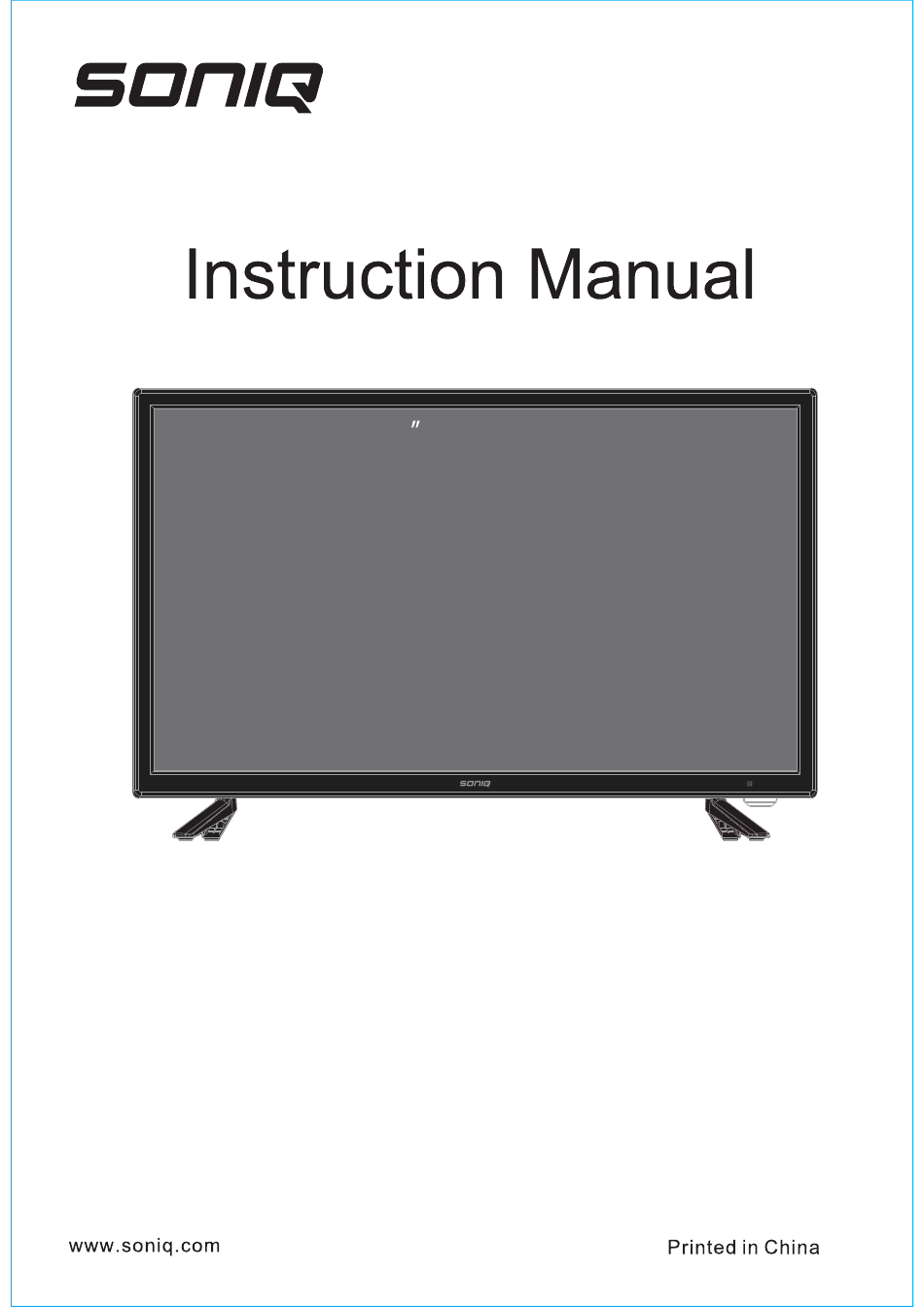

- Page 1 24 FHD LED LCD TV COMBO E 24 FB4 0A...
-
Page 2: Table Of Contents
CAUTION ....................2 ACCESSORY ....................4 STAND ASSEMBLY ..................5 CONTROL BUTTON ..................6 TERMINAL ....................7 REMOTE CONTROLLER ................8 MENU OPERATION ................10 ................14 MAIN LAUNCHER SPECIFICATIONS .................. - Page 4 Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as: -Using cabinets or stands recommended by the manufacturer of the television set. -Only using furniture that can safely support the television set - Ensuring the television set is not overhanging the edge of the supporting furniture -Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the...
-
Page 5: Accessory
ACCESSORY Note There are these accessories in the carton, the style will be different according to the product model. Quick installation manual -4 -... -
Page 6: Stand Assembly
4PCS of type M4 x6mm screws are required (the length of the screws fixed in the interior of the TV should not be longer than 10mm)Recommend to use SONIQ wall mount and install by professional people (do not operate while the TV is on). -
Page 7: Control Button
Note: The following is only functional schematic, and the actual position and arrangement of differect models may be different. VOL- VOL+ MENU SOURCE POWER But ton Functions VOL-: VOL+: CH-: CH+: MENU: SOURCE: Play/Pause: Eject disc Eject: POWER: IR RECEIVER: INDIC ATOR LED:... -
Page 8: Terminal
TERMINAL The LED TV has many multimedia functions. It can be connected to many types of equipment.. The following paragraph shows how to connect to other Audio and Video devices. SONIQ does not supply these cables. Po w er Co m p o sit e... -
Page 9: Remote Controller
REMOTE CONTROLLER The remote controller cannot be used unless it is within the receivable range. Before you use the remote control, please make sure there's no obstacle between the remote control and the receiver. Open the battery cover and insert 2 "AAA" batteries. Point the remote control at the remote sensor located on the unit. - Page 10 With this key, you can switch over subtitles of Standby or switch on the TV. different languages. Set to mute or return to previous sound level. Cycle through available video picture modes. Cycle through different sound settings. Display Audio language for DTV. Nicam function for ATV.
-
Page 11: Menu Operation
buttons on the main unit or on the remote control repeatedly to select the channel. buttons on the remote control to select the channel directly. buttons on the main unit or on the remote control to adjust the volume. button again or the button to resume the sound. - Page 12 Auto Tuning: Press the ENTER button to start Auto tuning which automatically scan and store all available programmes. ATV Manual Tuning: Manual store for ATV channels. DTV Manual Tuning: Manual store for DTV channels. Programme Edit: Press ok to enter and edit the channel according to the color suggestion function.
- Page 13 Sound Mode: You can select a sound mode to suit your personal preferences. five-stage equalization setting can be adjusted when the sound mode is set to Use r. Treble: Adjust the high frequency sounds. Bass: Adjust the low frequency sounds. Balance: Adjust the level of sound coming from the left and right speakers.
- Page 14 Press MENU button to display the main menu. Press button to select LOCK in the main menu, it will highlight the first option. Press OK button and input pasword (the default password is 0000 ) to enter the sub-title , and press to adjust OSD Language: Select your preferred On Screen Display language.
-
Page 15: Main Launcher
MAIN LAUNCHER The USB storage devices should beinserted into the terminal. Select the Media(or USB) source and view the multimedia. Select the multimedia and press the | OK ] button to enter. In the play interface, according to the menu display operation (Ifthe menu has disappeared, you can press the [ OK ] button). -
Page 16: Specifications
External Adapter 480i, 480p, 720p, 1080i, 1080p (50MHz ~ 230MHz) (474MHz ~ 862MHz) ,1080p 1920 x 1080 RF IN RF IN AV IN AV IN x 1 USB x 1 557mm(L) X165mm(W) X 368mm The terms HDMI, HDMI High-De nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. -
Page 17: Simple Troubleshooting
SIMPLE TROUBLESHOOTING If the display fails or the performance dramatically changes, check the display in accordance with the following instructions. Remember to check the peripherals to pinpoint the source of the failure. If the display still fails to perform as expected, contact the dealer for assistance. - Page 18 AUSTRALIA : www.soniq.com/au/contact-us NEW ZEALAND : www.soniq.com/nz/contact-us...
