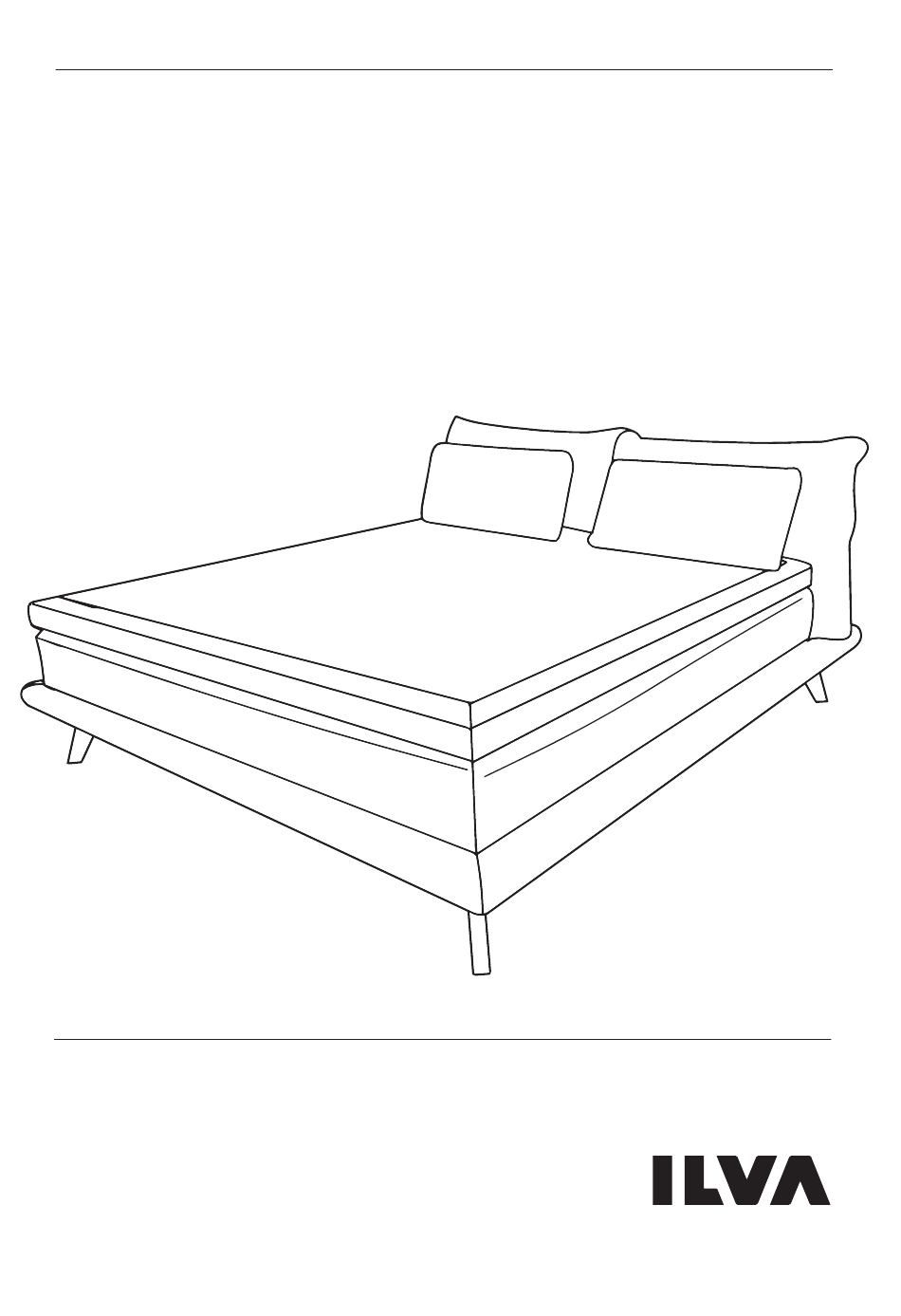

- Page 1 Assembly instruction Atlas Bed 1056191 2019-12-05 M-032...
- Page 2 Make sure to allocate good time or divide up the work. Mangler du enkeltdele, eller har du spørgsmål til samle- If any parts are missing or if you have questions for the vejledningen? Så kontakt kundeservice på ilva.dk assembly instruction, please contact costumer support at ilva.dk...
- Page 3 Total material list, hardware A/x8 B/x4 Assembly instruction, 1 LEFT RIGHT Attention! Face arrow of spiral like in the image before assembling.
- Page 4 Total material list, hardware A/x4 B/x16 M6x20 mm Assembly instruction, 2...
- Page 5 Total material list, hardware A/x4 B/x8 C/x4 M6x50 mm Assembly instruction, 3 Attention! Two people ip the bed...
- Page 6 Total material list, hardware A/x1 B/x1 Assembly instruction, 4 Attention! Assemble the leg rst. ADJUST!
- Page 7 Total material list, hardware A/x8 M6x40 mm Assembly instruction, 5 Attention! Arrow should be facing headboard!
- Page 8 Total material list, hardware A/x2 set B/x12 M6x40 mm Assembly instruction, 6 Attention! Arrow should be facing headboard!
