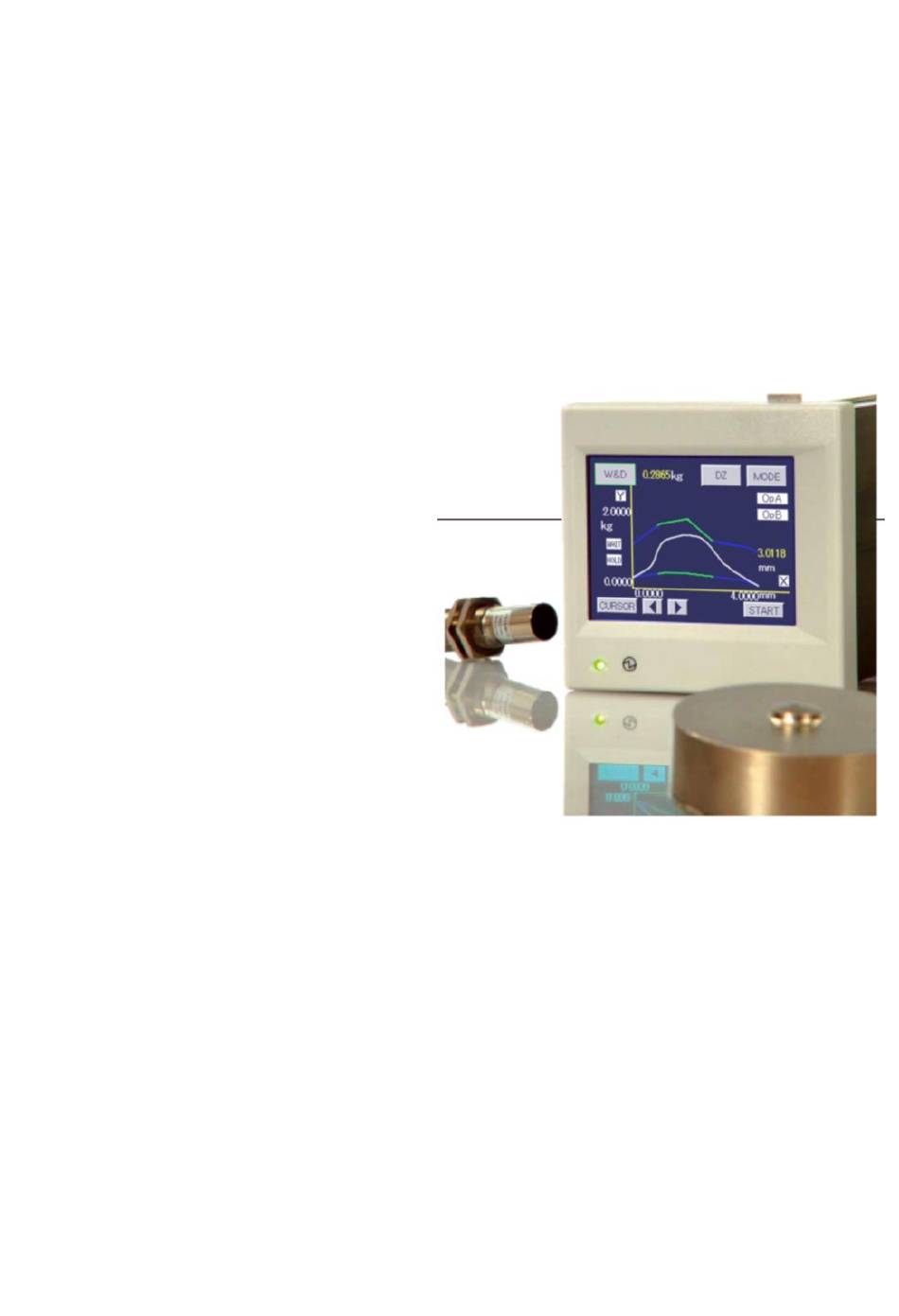

GRAPHIC MULTI-METER
MODEL : G1000 SERIES
SIMPLIFIED INSTRUCTION MANUAL
( STRAIN GAUGE / PROCESS )

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G1000 Series and is the answer not in the manual?

Questions and answers

Related Manuals for WATANABE G1000 Series

Summary of Contents for WATANABE G1000 Series

  • Page 1 GRAPHIC MULTI-METER MODEL : G1000 SERIES SIMPLIFIED INSTRUCTION MANUAL ( STRAIN GAUGE / PROCESS )

  • Page 2: Table Of Contents

    Simplified instruction manual MODEL G1000 2/44 Contents ■ 1. Configurations of model ........................3 2. Screen Configurations ........................3 2-1. N ......................3 AME AND UNCTION OF ISPLAY CREEN 2-2. F ............................5 UNCTIONAL ESCRIPTION 3. Setting..............................6 3-1. W &...

  • Page 3: Configurations Of Model

    Simplified instruction manual MODEL G1000 3/44 1. Configurations of model The G1000 Series are configured as follows : Check that there is no discrepancy between the model and its specifications you have chosen when ordering and the model and its specifications under your hand.
  • Page 4 Simplified instruction manual MODEL G1000 4/44 3) Graphic Display Screen Y-axis indicated value and unit Y-axis scale unit Ach indication (6)“WAIT” state unit (11)“Cursor X-axis scale and time (s) indication”key (12)“Cursor movement”key (13)“START/STOP”key 4) Waveform Comparison Display Screen (Ach,Bch) Y-axis indicated value and unit Y-axis scale unit HI limit waveform set value...

  • Page 5: Functional Description

    Simplified instruction manual MODEL G1000 5/44 2-2. Functional Description The touch panel is used for setting and operation on the screen. If 2 or more points are pressed simultaneously or quickly pressed continuously, the point so pressed may be detected incorrectly. Be sure to press only one point at intervals.

  • Page 6: Setting

    Simplified instruction manual MODEL G1000 6/44 3. Setting 3-1. Waveform Comparison / Waveform & Displacement Comparison (Example) Ordinary Display Screens Caution Screen for Starting Setting Main Setting Screen Note) When no memory-card function, “SD setup” button is not displayed. Itemized Setting Screen "Each Set"...

  • Page 7: Set-Value Input Screen

    Simplified instruction manual MODEL G1000 7/44 3-2. Set-Value Input Screen 1) Measured-value acquisition screen "CALIBRATION" : Displays Returns to itemized setting screen. contents to be set with indicator. "SET" key is used to acquire and finalize measured value. (Measured value becomes blue simultaneously with finelizing.) Data name to be set Display measured value.

  • Page 8: Data Setting List

    Simplified instruction manual MODEL G1000 8/44 3-3. Data Setting List Basic Function Setting (Setup) Setting item Default value Setting range Meter Setup A channel A channel, B channel, 2 channel, Wave Ach, Wave Bch, W&D Display Cycle 2.5 CPS 12.5, 6.25, 2.5, 1.0, 0.5 CPS Sampling Cycle 500 CPS 4000, 2000, 1000, 500, 200, 100, 50, 20, 10 CPS...
  • Page 9 Simplified instruction manual MODEL G1000 9/44 Input Setting Process (Bch) (P00 to P15) Setting item Default value Setting range Pattern Select P00 to 15 －－－－ Pattern Copy P00 to 15 －－－－ Input Range ±0 to 10V 0 to 10, ±0 to 20mA, 4 to 20mA Full Scale 10000 0 to 99999...
  • Page 10 Simplified instruction manual MODEL G1000 10/44 Hold Function (Hold) (P00 to P15) Setting item Default value Setting range Pattern Select P00 to 15 －－－ Pattern Copy P00 to 15 －－－ (1)Normal (2)Sample (3)Peak (4)Valley (5)Peak valley (6)Area Peak (7)Area Valley (8)Area Peak Valley (9)Time Peak (10)Time Valley (11)Time Peak Valley (12)Level + Time P Hold Normal...
  • Page 11 Simplified instruction manual MODEL G1000 11/44 Graphic Display Setting (Graph Disp) (P00 to P15) Setting item Default value Setting range Pattern Select P00 to 15 －－－ Pattern Copy P00 to 15 －－－ Y Start Point -99999 to 99999 Y Scale 1/100 (1/1, 1/2, 1/5, 1/10, 1/20, 1/50, 1/100, 1/200, 1/500, 1/1000, 1/2000) X Start Point...
  • Page 12 Simplified instruction manual MODEL G1000 12/44 Basic Function Setting 2 (System) Setting item Default value Setting range Protect DZ ON, OFF Protect Strain Gauge ON, OFF (Ach/Bch) ON, OFF (1)Comparator (2)Hold (3)Linearization (4)Waveform (5)Graph Disp Protect Others (6)Setup (7)Output (1) Initialize Strain Gauge P00 to 15 are selected and initialized (For Ach/Bch) －－－...

  • Page 13: Basic Function Setting (Setup)

    Simplified instruction manual MODEL G1000 13/44 4. Basic Function Setting (Setup) ・Setting procedure  "MODE" key  Caution Screen for Starting Setting  Main setting screen  "PAGE" key  "SETUP" key 1) Meter Setup ・Set meter operation on the set-value select screen. (1) A channel (2) B channel (3) 2 channel...
  • Page 14 Simplified instruction manual MODEL G1000 14/44 5) ZT = Zero Tracking ・Set ZT time and ZT width on the 10-key input screen. ・ZT Time : 0.0 to 9.9 seconds ・ZT Width : 0 to 99 digits ・ZT Time = 0.0 correction is continuously performed. When it is within the ZT Width, the indicated value is set to "0."...
  • Page 15 Simplified instruction manual MODEL G1000 15/44 7) Output OFF Delay (Output Delay) (Not used for Waveform Comparison and Waveform & Displacement Comparison) ・Set time on the 10-key input screen. Delay range : 0 to 4.999 seconds ・Used for comparison output (OUT1 to OUT5) and synchronizing signal output (SYNC). ・Set the time required from turning OFF of comparison output and synchronizing signal to actual turning OFF.
  • Page 16 Simplified instruction manual MODEL G1000 16/44 10) Contrast ・Control brightness on the contrast screen. ・Each time "+" key on the control screen is pressed, screen brightness increases. 11) Cross Talk ・Control "flicker" on the display screen. Each time "+" or "-" key on the control screen is pressed, screen flicker is adjusted.

  • Page 17: Input Setting

    Simplified instruction manual MODEL G1000 17/44 5. Input Setting Procedure for equivalent calibration and actual load (Ach) ･When doing a calibration, first set items other than Zero calibration, Equivalent calibration, and Actual load calibration mentioned in 5-2. Sampling speed is fixed at 50 times/second. 1) Turning OFF Protect Setting : Press "Protect strain gauge"...
  • Page 18 Simplified instruction manual MODEL G1000 18/44 3) Pattern Copy ・Set the pattern of the copy destination on the set-value select screen. ・Setting range : 0 to 15 4) Sensor Power ・Set voltage applied to the strain gauge sensor to be used. ・Set it on the set-value select screen.
  • Page 19 Simplified instruction manual MODEL G1000 19/44 ・Acquire set value and finalize with "SET" key. (Set value becomes blue simultaneously with finalizing.) SPIN value (Finalized output value) SPAN value error ・When the acquired SPIN value (finalized output value) falls under the following case, it is judged an error and resetting is performed.
  • Page 20 Simplified instruction manual MODEL G1000 20/44 SPAN set value When SPAN value is error ・A value obtained by subtracting ZERO value from the acquired measured value (SPAN value) is converted into SPIN value (mV/V value) and it is checked. In the following cases, it is judged an error and resetting is performed.

  • Page 21: Process Input (Bch)

    Simplified instruction manual MODEL G1000 21/44 10) Unit ・Set the unit corresponding to the indicated value. ・Set it on the set-value select screen. 11) Moving Average ・This function is provided for the moving average of data after A/D conversion so as to reduce the fluctuation of the indicated values.
  • Page 22 Simplified instruction manual MODEL G1000 22/44 4) Scaling ・Data setting a) Full scale b) Offset scale c) Full scale input d) Offset scale input ・Set each set value on the 10-key input screen. ・Setting conditions : Full scale > Offset scale ・Setting range : Voltage input Current...
  • Page 23 Simplified instruction manual MODEL G1000 23/44 There are 4 different data to be set. ・Example of scaling setting Display Full scale input = 9.000V 2000 Full scale (indicated value) = 2000 Offset scale input = 0.000V 1500 Offset scale (indicated value) = 0 1000 Input 0 2.000...
  • Page 24 Simplified instruction manual MODEL G1000 24/44 5) Decimal point ・Set a decimal point position to be displayed on the set-value select screen. ・Setting items : 0, 0.0, 0.00, 0.000, 0.0000 6) Digital shift ・Function provided to simply shift the indicated value. Indicated value = (Internal indicated value) + (±digital shift value) ・Set it on the 10-key input screen.

  • Page 25: Comparison Set Value (Comparator) (A/Bch)

    Simplified instruction manual MODEL G1000 25/44 6. Comparison Set Value (Comparator) (A/Bch) ・Setting procedure  "MODE" key  Caution Screen for Starting Setting  Main setting screen  "COMPARATOR" key ・When using the comparison set value, set as follows on 1) Meter Setup of "4. Basic Function Setting (Setup)".
  • Page 26 Simplified instruction manual MODEL G1000 26/44 5) Hysteresis ・Set hysteresis to be used at A channel, B channel and 2 channel. ・Set it on the 10-key input screen. ・For 2 channel, use the HI hysteresis set value and LO hysteresis set value for each channel.
  • Page 27 Simplified instruction manual MODEL G1000 27/44 ・Type of Comparison Output A Comparison output type can be selected from among 3 types. (It corresponds to A channel, B channel, and 2 channel.) Indicated value HH Limit HI Limit LO Limit LL Limit (1) In case of Normal operation type Output HH Output HI...

  • Page 28: Hold Function (Hold)

    Simplified instruction manual MODEL G1000 28/44 7. Hold Function (Hold) ・This function is provided to detect one sample with a peak, a valley, a peak valley, a maximum and the minimum, and point of inflection, holds the indicated value, performs HI/LO limit comparison simultaneously, and outputs the result.
  • Page 29 Simplified instruction manual MODEL G1000 29/44 ・In case of Hold Function or waveform comparison. The waveform start level is used for (12) "Level + time P" of the above-mentioned 3) to (17) "Level + Inflection point", and waveform comparison. It is also used when (3) Wave start level or (4) "E.S. + W.S." is selected at 8) Start type of "11. Graphic display setting (Graph disp).
  • Page 30 Simplified instruction manual MODEL G1000 30/44 ・In case of a waveform of which maximum value and minimum value repeat, the maximum value and minimum value of which number of times is set as a Detection Count is hold. ！ Caution When the indicated value contains much noise, the maximum value and minimum value of noise may be sometimes detected.

  • Page 31: Waveform Comparison / Waveform & Displacement Comparison (Waveform)

    Simplified instruction manual MODEL G1000 31/44 8. Waveform Comparison / Waveform & Displacement Comparison (Waveform) ・Waveform performs the A/D conversion of the analog input waveform which changes with time or displacement, compares the converted value (indicated value) with HI/LO limit waveform set-values and then outputs the result.
  • Page 32 Simplified instruction manual MODEL G1000 32/44 5) Sampling waveform movement (Sampling Wave Move) ・Moves, enlarges and reduces the sampled waveform to prepare a comparison waveform. * HI limit comparison waveform is first prepared, and then LO limit comparison waveform is prepared. Used to move the waveform up and down.
  • Page 33 Simplified instruction manual MODEL G1000 33/44 ・When drawing is completed, press "SET" key to save the comparison waveform in the buffer temporarily. (The prepared waveform turns into green.) 7) Comparison waveform edit (Comparison Wave Edit) ・Correct the prepared comparison waveform. ・Select a waveform (HI Limit waveform or LO Limit waveform) to be edited with "Up/down cursor"...
  • Page 34 Simplified instruction manual MODEL G1000 34/44 8) Comparison area setting (Comparison Area) ・Determine the starting point/end point of the comparison range, and set the waveform portion for comparison. Move the cursor with key, determine a comparison range ・ starting point and comparison range end point, and press "OK" key to set it.

  • Page 35: Graphic Display Setting (Graph Disp)

    Simplified instruction manual MODEL G1000 35/44 9. Graphic Display Setting (Graph Disp) Set the function necessary for waveform display. ・Setting procedure  "MODE" key  Caution Screen for Starting Setting  Main setting screen  "PAGE" key  "Graph Disp" key 1) Pattern Select ・Set a pattern to be set on the set-value select screen.
  • Page 36 Simplified instruction manual MODEL G1000 36/44 7) Interval Time ・It is available when the free run is set in accordance with the next paragraph. Pressing "START" key or turning on the start signal starts drawing. When one screen is finished, the period drawing screen at the interval time is held.
  • Page 37 Simplified instruction manual MODEL G1000 37/44 ・Rejection Data Store is usually turned on for automatic updating. Each time it is pressed, "ON/OFF" is alternately switched. (No backup is available.) ・When there is a waveform to be kept during automatic updating, turn it off. ・When (1) "1 Times Before"...

  • Page 38: Linearization

    Simplified instruction manual MODEL G1000 38/44 10. Linearization The function is for correcting the deflection of analog input signal. Number of break points becomes 32 points every channel at the maximum each. ・Setting procedure : "MODE” key  Caution Screen for Starting Setting  Main setting screen  "LINEARIZE"...

  • Page 39: Basic Function Setting 2 (System)

    Simplified instruction manual MODEL G1000 39/44 11. Basic Function Setting 2 (System) ・Setting procedure  "MODE" key  Caution Screen for Starting Setting  Main setting screen  "PAGE" key  "SYSTEM" key By basic function 2 (System), perform protection of each key, initialization and function check. 11-1.
  • Page 40 Simplified instruction manual MODEL G1000 40/44 Check Touch Panel ・touch a part of blue and check that a detection point is normal. Please confirm that the point that I touched reacts normally. Check I/O ・Check that wiring of external control I/O is normal. Control input : ON = yellow, OFF = blue Control output : Pressing key turns ON/OFF control output alternately.

  • Page 41: Output

    Simplified instruction manual MODEL G1000 41/44 12. Output 12-1. Analog Output Setting ・When analog output unit is mounted, it can be performed. ・Setting procedure : "MODE" key  Caution Screen for Starting Setting  Main setting screen  "PAGE" key "Output" key 1) Pattern Select ・Select a pattern to be set.

  • Page 42: About Error Messages

    Simplified instruction manual MODEL G1000 42/44 13. About Error Messages 1) When power is turned on, or each set value is changed, or the pattern used is changed, each set value is checked. If the contents at the time of setting differ from the contents at the time of reading, the following response is given : Example of response : Strain gauge input setting (Ach) "P05"...

  • Page 43: Accessories

    Simplified instruction manual MODEL G1000 43/44 14. Accessories This book Hardware Setup Manual Utility CD Card edge connector (Option : BCD unit) Instruction Manual for SD Memory Function (Option : SD Memory Function)
  • Page 44 Simplified instruction manual MODEL G1000 44/44 6-16-19, Jingumae, Shibuya-ku, Tokyo 150-0001, Japan 6-16-19, Jingumae, Shibuya-ku, Tokyo 150-0001, Japan WATANABE ELECTRIC INDUSTRY CO., LTD. Phone: (81)3-3400-6140 Phone: (81)3-3400-6141 WATANABE ELECTRIC INDUSTRY CO., LTD. Homepage http://en.watanabe-electric.co.jp/ Homepage http://www.watanabe-electric.co.jp/en/ ASAHI KEIKI DIVISION * The specifications, design and other contents of this manual are subject to change without notice for further improvement.
