CE-HD04M
INSTALLATION:
1. Connect the four HD-SDI cables coming from the cameras to the HD-SDI Inputs. Limit each cable distance to a maximum of 275 feet.
2. Connect the HD-SDI cable from the DVR (or HD-SDI monitor) to the HD-SDI Output. Limit this cable distance to a maximum of 275 feet.
3. To view on an additional monitor, connect an HDMI cable from the monitor to the HDMI Output. Limit this cable distance to a maximum of 25 feet.
4. Using the HDMI Resolution Dial, select the desired HDMI display resolution. The output resolution of the device can be found within the resolution setting in the device's
OSD. NOTE: Resolution should be set to 1080p 30 if connecting to a DVR. Higher frame rates will result in video loss at the DVR.
5. Connect a DC12V 0.5A power supply (sold separately) to the power input.

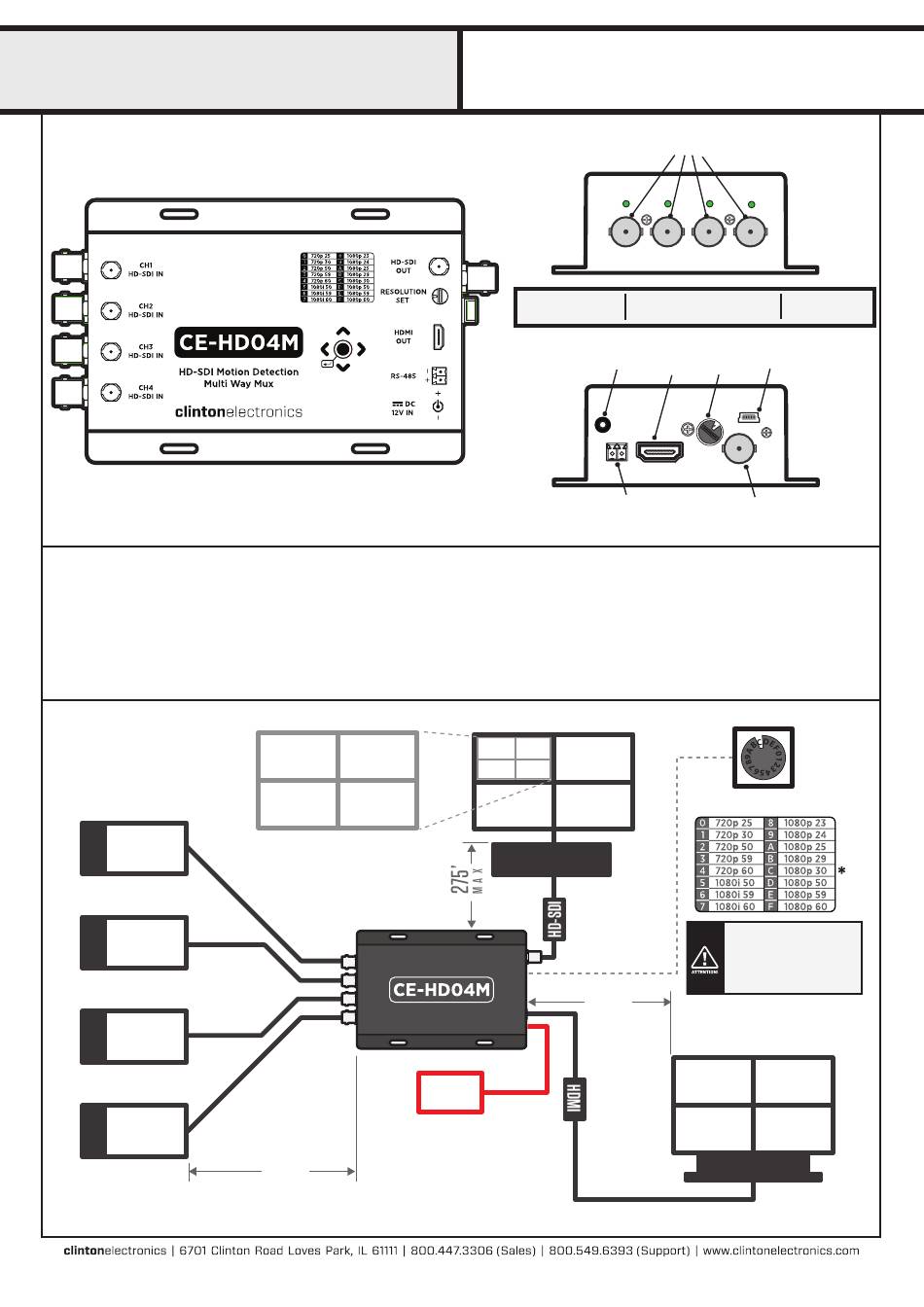

CONNECTION DIAGRAM:
HD-SDI
1
CAMERA
HD-SDI
2
CAMERA
HD-SDI
3
CAMERA
HD-SDI
4
CAMERA
User Guide
cam 1
cam 2
cam 3
cam 4
275'
M A X
*Distances shown are recommended maximums.
HD-SDI Multiplexer
The CE-HD04M Multiplexer enables four HD-SDI signals to be viewed, sequenced
and output to a single HD-SDI source, as well as an HDMI source.
SOLID GREEN LED:
Good HD-SDI Input Signal
DC12V 0.5A
POWER
CONNECTION
ch1
ch2
ch3
ch4
HD-SDI DVR (4ch)
25'
M A X
DC12V
HD-SDI
INPUTS
BLINKING GREEN LED:
Good HD-SDI Input Signal,
Current signal being shown on-screen
HDMI
HDMI
SERVICE PORT
OUTPUT
(not user serviceable)
DIAL
RS485
HD-SDI
INPUT
OUTPUT
HDMI Resolution
Resolution should be set
to 1080p 30 if connecting
to a DVR. Higher frame
rates will result in video
loss at the DVR.
1
2
3
4
HDMI MONITOR
RED LED ON:
Poor HD-SDI Signal
Advertisement
Table of Contents
Summary of Contents for Clinton Electronics CE-HD04M
- Page 1 CE-HD04M HD-SDI Multiplexer User Guide The CE-HD04M Multiplexer enables four HD-SDI signals to be viewed, sequenced and output to a single HD-SDI source, as well as an HDMI source. HD-SDI INPUTS BLINKING GREEN LED: SOLID GREEN LED: RED LED ON:...
- Page 2 OSD MENU: To access the OSD menu, press and hold ENTER (center joystick press) until the menu shows on screen. The current menu selection will be highlighted in yellow. Navigate the menu using UP, DOWN, LEFT, and RIGHT movements on the joystick. To exit the menu, press and hold ENTER until the menu disappears. The menu will automatically disappear after one minute.
- Page 3 Motion Mode 1- Default Channel 1 (FULL_M1): The default channel (channel 1) is shown on-screen unless motion is detected on another channel. If motion is detected, that channel will appear on-screen during motion. The default channel will return on-screen after 2~3 seconds after motion stops. 2~3 sec.
- Page 4 SENSITIVITY: The motion switching sensitivity level can be set from 1~15. A lower number indicates more sensitive to motion. SEQUENCE TIME: Duration from 3~99 seconds before on-screen image will change to the next channel in the sequence. BORDER LINE: Turning Border Line on will show a thin white line around the frame of each channel. CH TITLE: Turning Ch Title on will show the title for each channel in the lower left corner of each channel’s frame.
