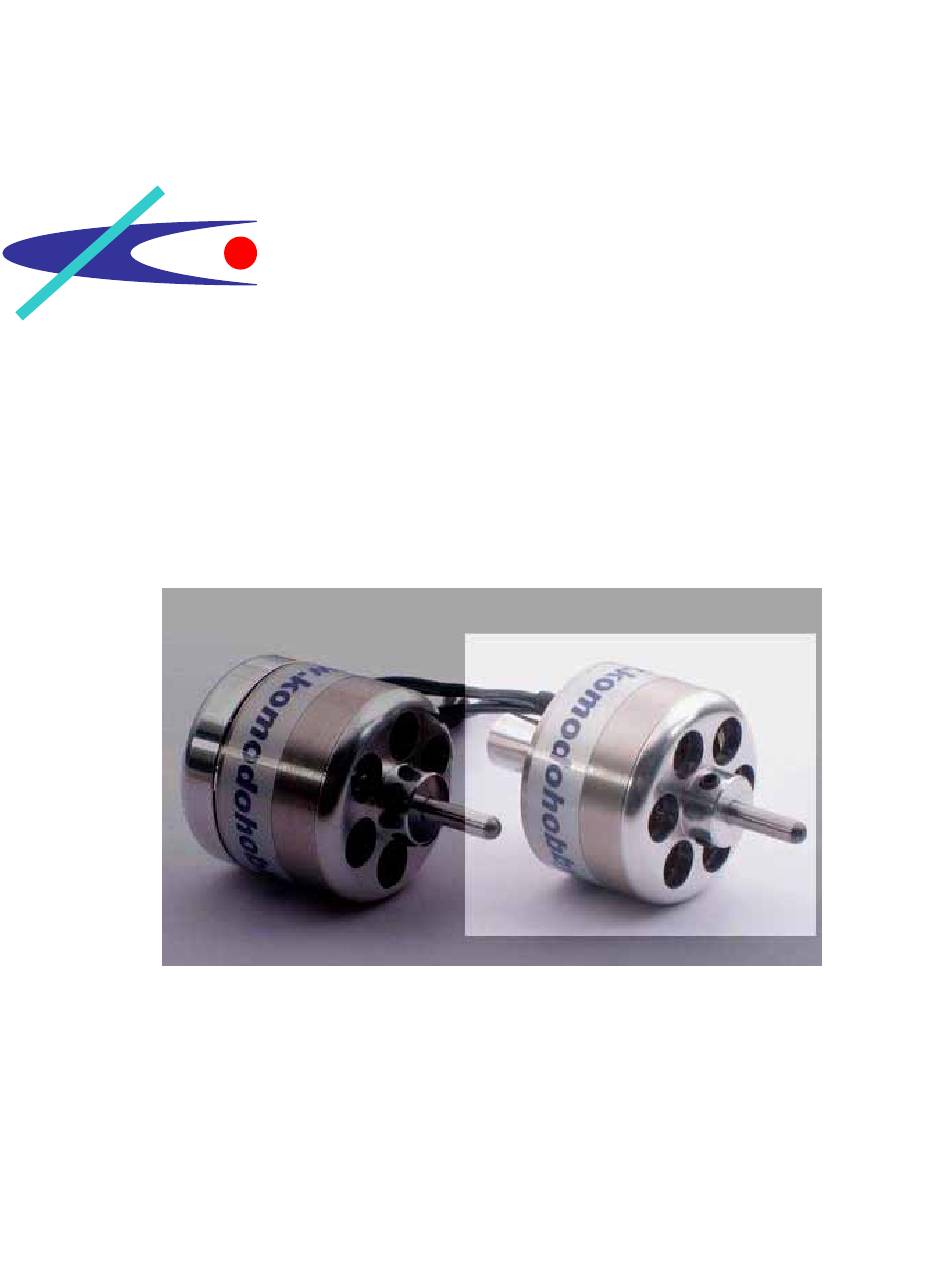

- Page 1 Komodo Hobby Building Instruction & Manual KH -283 Outrunner Motor Kit Version 2 (Stick Style)
- Page 2 Introduction Congratulations on your purchase of KH-283 Outrunner Motor Kit Version 2. KH-283 V.2 is a modified motor kit designed for powering 3D and Aerobatics RC airplanes. Modelers can choose either back mount style or stick style to meet the airplane requirement.
- Page 3 Komodo Hobby www.komodohobby.com 1. Marks color to magnets Use marker to mark different color to North Pole and South Pole. 2. Place magnets inside the bell First, place six South Pole magnets inside the bell and aligned it with six vent holes. Then, use a drop of CA to secure the position of magnet.
- Page 4 Komodo Hobby www.komodohobby.com 3. Insert Bearing Tube into Two Stators First, put Loctite to the whole area of bearing tube shoulder. Second, insert the bearing tube into two stators until the bearing tube shoulder touch the edge of stator. Third, align the stator teeth and wait for the Locitite dry.
- Page 5 Komodo Hobby www.komodohobby.com 4. Winding It is an example of using three individual magnet wires to complete a 3-phases system. We recommend beginners to wind 10turns for their first motor. For experienced motor builders, they can wind more or less turns to get different potential power.
- Page 6 Komodo Hobby www.komodohobby.com Phase 1 Step (1): Remain 7-8cm long magnet wire for connection use afterward. Use magnet wire “S1” to start to wind 11times in clockwise direction at tooth No.1. Wind from the hub to the outer edge of hammerhead then back to the hub.
- Page 7 Komodo Hobby www.komodohobby.com Phase 3 Step (9): Remain 7-8cm long magnet wire for connection use afterward. Use magnet wire “S3” to start to wind 11times in clockwise direction at tooth No.3. Wind from the hub to the outer edge of hammerhead then back to the hub.
- Page 8 Komodo Hobby www.komodohobby.com 4. Solder magnet wires to Delta or Wye system Now, you can make you own decision to solder the magnet wires to either Star (wye) or Delta system. Star vs Delta Star (wye) system gives more torque and uses fewer amps.
- Page 9 Komodo Hobby www.komodohobby.com Delta System Solder Solder Solder E3 to S1 E1 to S2 E2 to S3 5. Insert three soldered wires to Shrinking Tubes Now, you have three soldered wires attached to coils. Insert those soldered wires into shrinking tubes for insulating.
- Page 10 Komodo Hobby www.komodohobby.com 6. Place ball bearings to bearing tube. 7. Insert a main shaft to endbell and put the wound stator into the bell. 8. Put a c-clip to the slot of main shaft. Put a C-clip to the slot of main shaft to secure whole motor system.
- Page 11 Komodo Hobby www.komodohobby.com 10. Propeller saver and Replacement rings By using the propeller saver and replacement rings, it not only protects your propeller from hitting the ground but also let you install different brand of propeller easily. GWS 5.5mm GWS 7mm...
- Page 12 It is your own decision to use the propeller saver or not. Komodo Hobby (Trading) Company has no control over of it, no liability may be assumed, nor will any liability be accepted for crash damage, property damage, kits loss, all bodily harm and death resulting from the use of the propeller saver.
