Summary of Contents for Neat D-POS

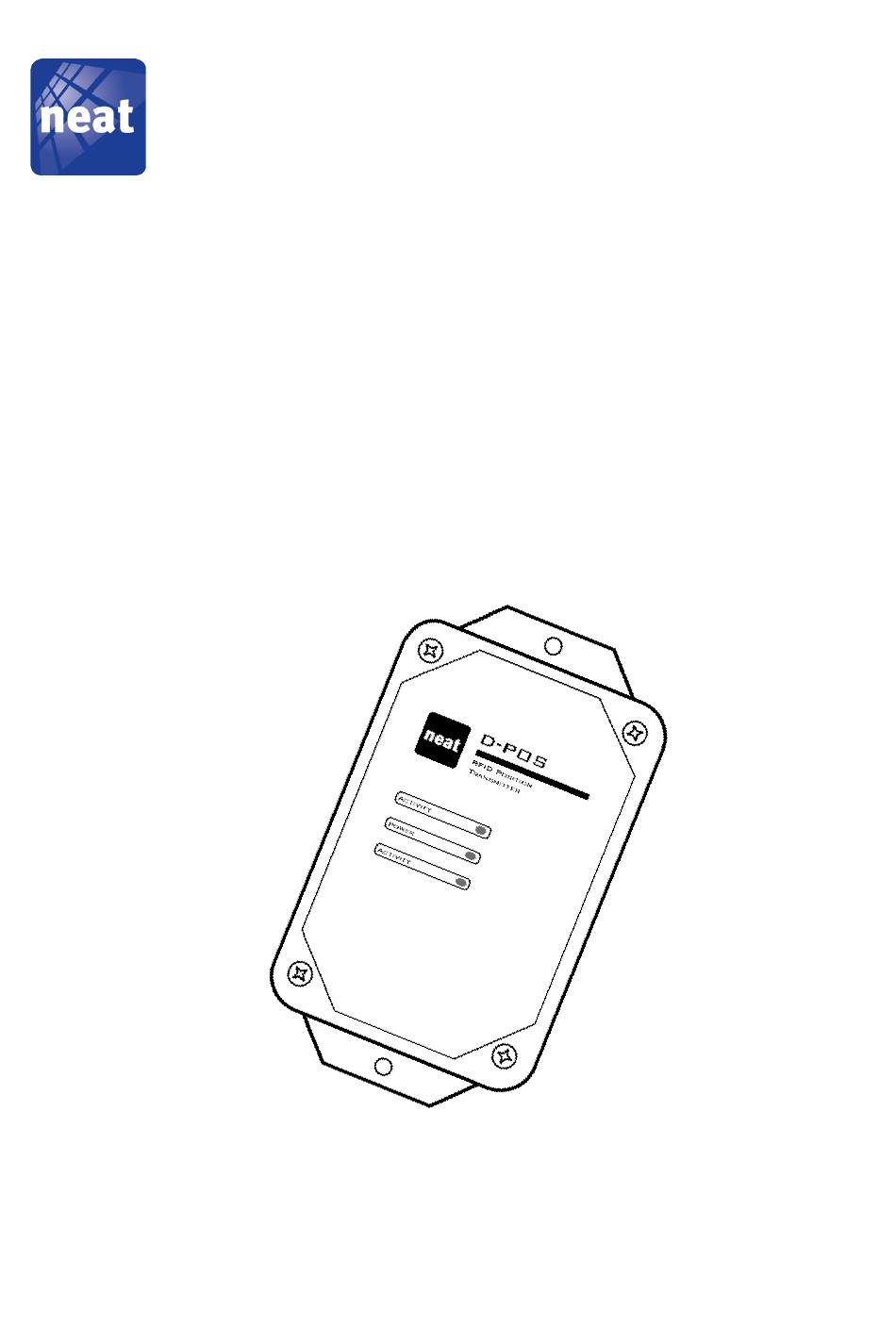

- Page 1 D-POS User Manual NE41 07105-02 v1.0...
- Page 2 This device complies with part 15 of the FCC Rules. NEAT Electronics AB is not responsible for any loss of Operation is subject to the following two conditions: data, income or any consequential damage whatso- (1) This device may not cause harmful interference, ever caused.
- Page 3 Tamper switch Tamper relay output (#11 and #12) LED Indication LOOP Antenna Installation Settings NPU Configuration Antenna 2 activation External control Identification Code Zone Number Walk Test Mode Important Safety Notes Cleaning Disposal Technical data D-POS User Manual NE41 07105-02 v1.0...
- Page 4 , 1.6A US plug)) ③ 1 x Plastic bag with 4 lid screws ④ 1 x This user manual Table 1. D-POS Kit parts D-POS and its corresponding parts must be installed by a professional fitter. D-POS User Manual NE41 07105-02 v1.0...
-
Page 5: Intended Use
Intended use The D-POS system is a versatile and highly customizable system for monitoring and surveillance of wardens, users, zones, doors, stairs etc. in order to create a safe, flexible and easily manageable environment for the dementia care sector. Hardware overview Denomination ①... -
Page 6: Tamper Switch
D-POS ANT 1 Table 4. Connector J1 Only use D-POS ANT (NEAT Ferrite Antenna), art#: NE31 07030-01. Tamper switch The unit is equipped with a tamper switch which indicates if the lid is open by both opening the Output as well as blinking with LED3, see “3.5 LED Indication”... -
Page 7: Led Indication
There are three light emitting diodes (LED) in D-POS. The activity LEDs - LED1 and LED2 - are red. The power LED - LED3 - is green. When the D-POS unit is powered on, all three LEDs light up for one second. LED3 burns with a steady green light as long as the power supply is OK and the D-POS unit is working without problems. - Page 8 In some applications there may be need for a configuration that cannot be set up with D-POS on-board switches. One example is when two magnetic switches are needed to control one antenna each. In this case a computer with the D-POS Programmer software and the NEAT USB interface (NPU) must be used.
-
Page 9: External Control
S1-S2 and DIP switches 5 and 6 it is possible to select one of 256 different identification codes. When a computer is used to configure D-POS it is possible to choose one of 65000 different identification codes. The ID code consists of four hexadeximal digits. The table below shows which code will be transmitted by antenna 1 and antenna 2 depending on the values of rotary switch S1-S2 and DIP switch 5 and 6. -
Page 10: Walk Test Mode
When a D-ATOM is inside the RFID field, its LED will blink once per second. The color of the D-ATOM LED indicates if it is configured to send an alarm when pass- ing an RFID field with the ID code and zone number transmitted by D-POS: red for alarm, green for no alarm. -
Page 11: Safety Notes
In the European Union, the bin label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling or returned to NEAT Electronics. D-POS User Manual NE41 07105-02 v1.0... -
Page 12: Technical Data
Technical data Denomination Data Current 12-24 V 1,5A Measures 130 x 73 x 25 mm Weight 129 g Output #11, #12 Resistance (Closed) 16 Ω Blocking voltage 60 V Load current 100 mA Leakage current (Open) 1 µA Isolation voltage 1500V...
