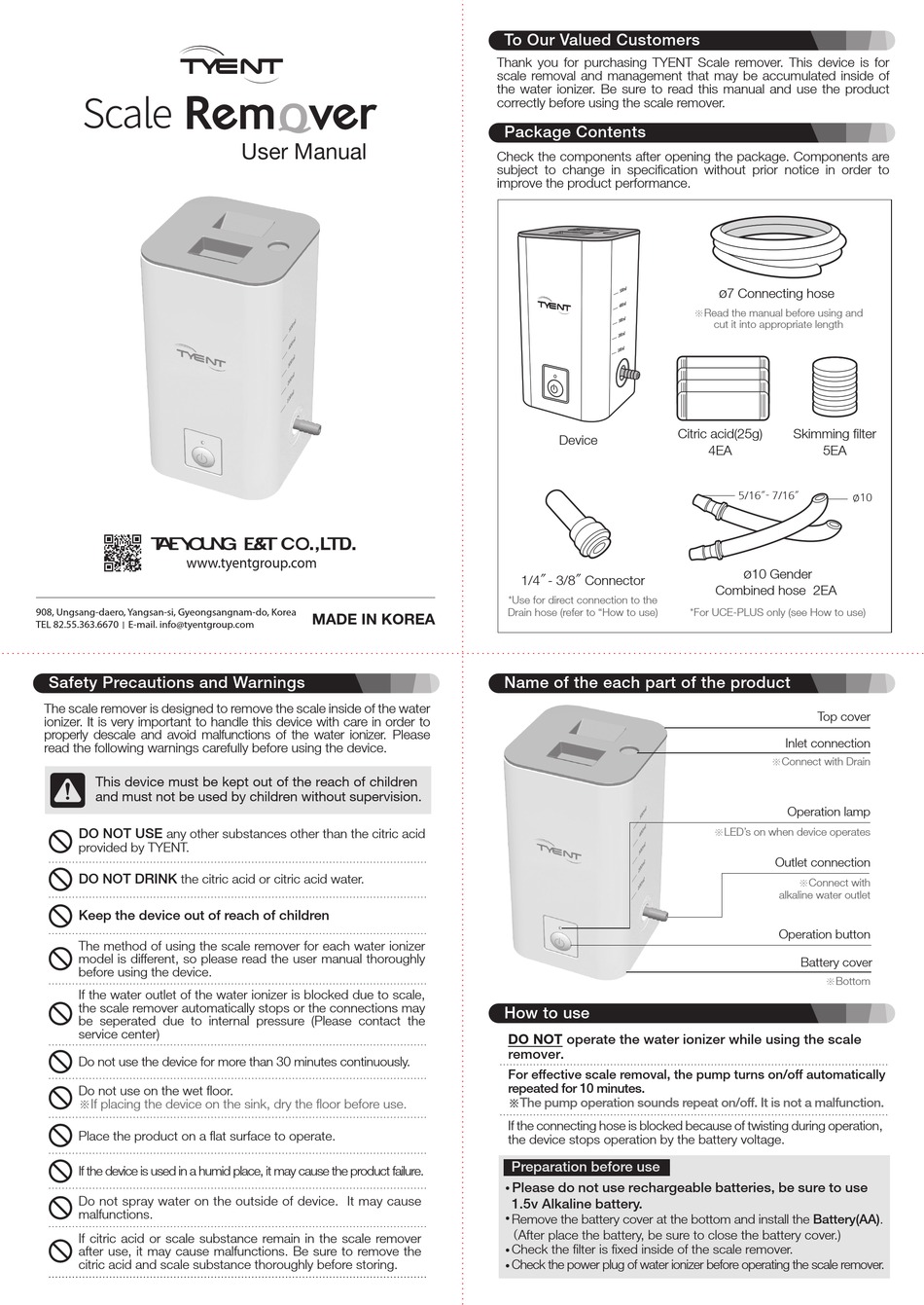

Tyent Scale Remover User Manual

www.tyentgroup.com
908, Ungsang-daero, Yangsan-si, Gyeongsangnam-do, Korea
TEL 82.55.363.6670 E-mail. info@tyentgroup.com
ㅣ
Safety Precautions and Warnings
The scale remover is designed to remove the scale inside of the water
ionizer. It is very important to handle this device with care in order to
properly descale and avoid malfunctions of the water ionizer. Please
read the following warnings carefully before using the device.
This device must be kept out of the reach of children
and must not be used by children without supervision.
DO NOT USE any other substances other than the citric acid
provided by TYENT.
DO NOT DRINK the citric acid or citric acid water.
Keep the device out of reach of children
The method of using the scale remover for each water ionizer
model is different, so please read the user manual thoroughly
before using the device.
If the water outlet of the water ionizer is blocked due to scale,
the scale remover automatically stops or the connections may
be seperated due to internal pressure (Please contact the
service center)
Do not use the device for more than 30 minutes continuously.
Do not use on the wet floor.
※If placing the device on the sink, dry the floor before use.
Place the product on a flat surface to operate.
If the device is used in a humid place, it may cause the product failure.
Do not spray water on the outside of device. It may cause
malfunctions.
If citric acid or scale substance remain in the scale remover
after use, it may cause malfunctions. Be sure to remove the
citric acid and scale substance thoroughly before storing.
User Manual
MADE IN KOREA
To Our Valued Customers
Thank you for purchasing TYENT Scale remover. This device is for
scale removal and management that may be accumulated inside of
the water ionizer. Be sure to read this manual and use the product
correctly before using the scale remover.
Package Contents
Check the components after opening the package. Components are
subject to change in specification without prior notice in order to
improve the product performance.
Device
1/4" - 3/8" Connector
*Use for direct connection to the
Drain hose (refer to "How to use)

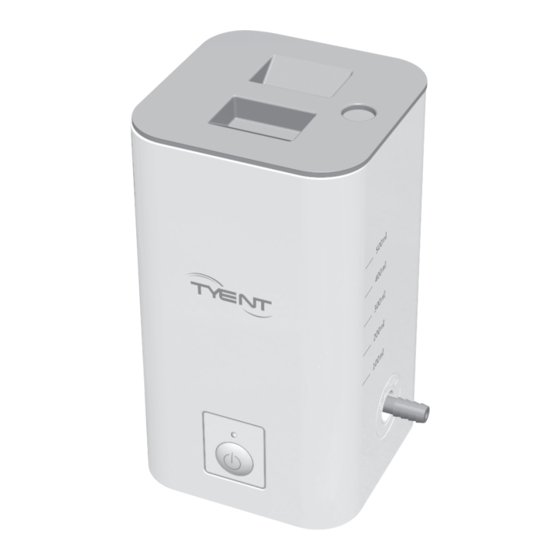

Name of the each part of the product
How to use
DO NOT operate the water ionizer while using the scale
remover.
For effective scale removal, the pump turns on/off automatically
repeated for 10 minutes.
※The pump operation sounds repeat on/off. It is not a malfunction.
If the connecting hose is blocked because of twisting during operation,
the device stops operation by the battery voltage.
Preparation before use
Please do not use rechargeable batteries, be sure to use
1.5v Alkaline battery.
Remove the battery cover at the bottom and install the Battery(AA).
(After place the battery, be sure to close the battery cover.)
Check the filter is fixed inside of the scale remover.
Check the power plug of water ionizer before operating the scale remover.
ø
7 Connecting hose
※Read the manual before using and
cut it into appropriate length
Citric acid(25g) Skimming filter
4EA 5EA
5/16"- 7/16"
ø
ø
10 Gender
Combined hose 2EA
*For UCE-PLUS only (see How to use)
Top cover
Inlet connection
※Connect with Drain
Operation lamp
※LED's on when device operates
Outlet connection
※Connect with
alkaline water outlet
Operation button
Battery cover
※Bottom
10
