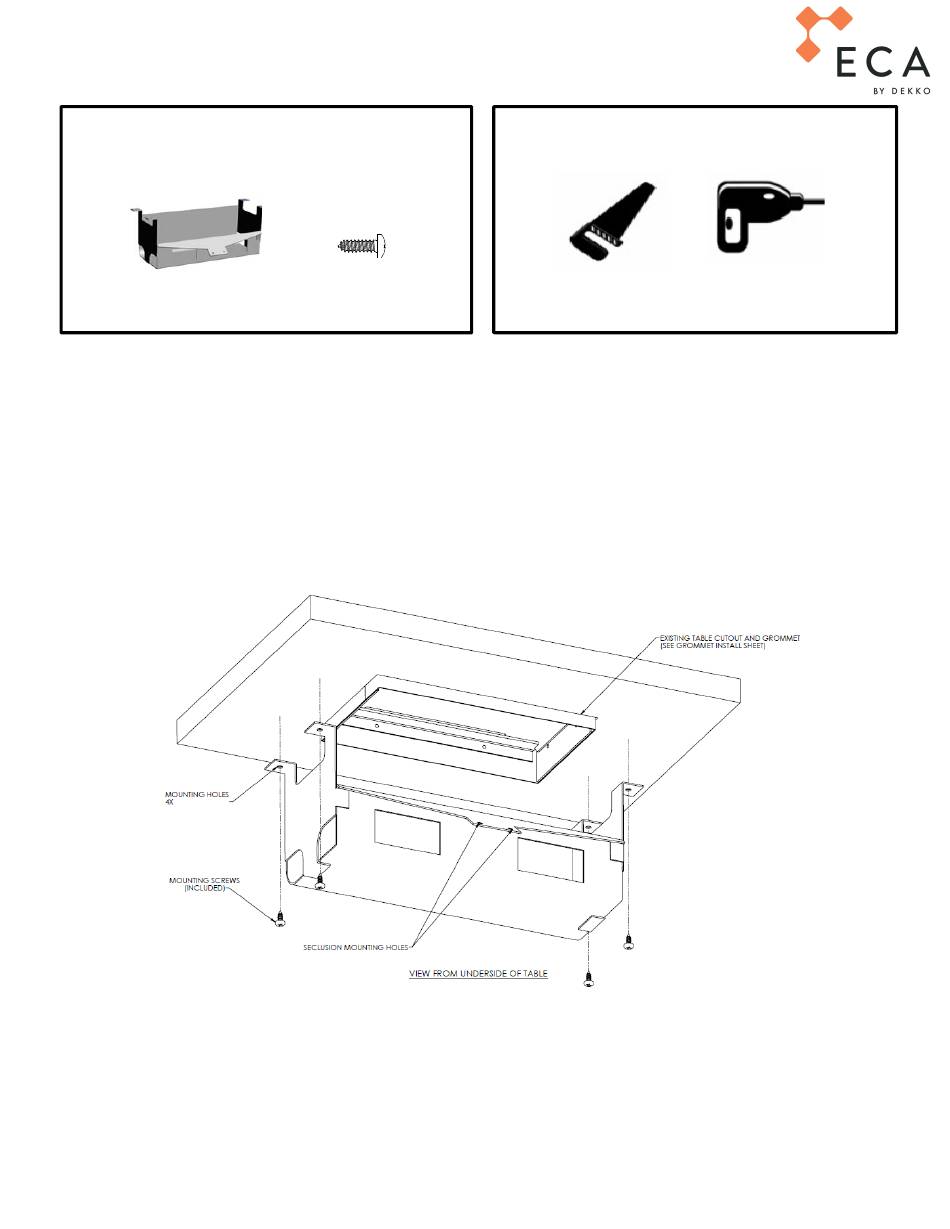

HIDE IT INSTALLATION
Components & Hardware
(A) Hide It
Qty 1
For use with: Do not use provided screws on table thicknesses less than 1.00"
Note: *Use caution not to pierce top surface with screws.
1‐
Mount Seclusion to Hide It (A) as location shown with screws provided with Seclusion.
2‐
Mount Hide It (A) in desired location to underside of work surface using screws (B) provided*.
3‐
Connect all power and data cabling as needed.
10 Mountain View Drive | Shelton, CT 06484 | P: 800-521-3175 | www.electri-cable.com
9065-0264 REV B
(B) Mounting Screw
#10x.75", Qty 4
© ECA– January 2017—Product specifications subject to change without notice
Tools Needed
Page 1
Advertisement
Table of Contents
Related Manuals for Dekko ECA Hide It
Summary of Contents for Dekko ECA Hide It
- Page 1 HIDE IT INSTALLATION Components & Hardware Tools Needed (B) Mounting Screw (A) Hide It #10x.75”, Qty 4 Qty 1 For use with: Do not use provided screws on table thicknesses less than 1.00” Note: *Use caution not to pierce top surface with screws. 1‐ Mount Seclusion to Hide It (A) as location shown with screws provided with Seclusion. 2‐ Mount Hide It (A) in desired location to underside of work surface using screws (B) provided*. 3‐ Connect all power and data cabling as needed. 10 Mountain View Drive | Shelton, CT 06484 | P: 800-521-3175 | www.electri-cable.com 9065-0264 REV B © ECA– January 2017—Product specifications subject to change without notice Page 1...
- Page 2 GROMMET INSTALLATION Components & Hardware Tools Needed (B) Mounting Screw (A) Grommet* #6 x 1/2 Qty 1 Qty 2 * VIL‐GROM‐F shown 1‐ Determine the surface cutout for the Grommet (A) version being installed and prepare the surface. Note: Refer to chart to determine X, Y & R dimensions. 2‐ Insert the Grommet into the cutout from above. 3‐ While pressing Grommet firmly to surface, insert Mounting Screws (B) through side holes, as shown, and into side of cutout in work surface. Note: Use care to not damage work surface 4‐ Ensure lid pivots freely through the entire motion. 10 Mountain View Drive | Shelton, CT 06484 | P: 800-521-3175 | www.electri-cable.com 9065-0158 REV G ©...
