EUROPRO 0701AREN30MAS User Manual

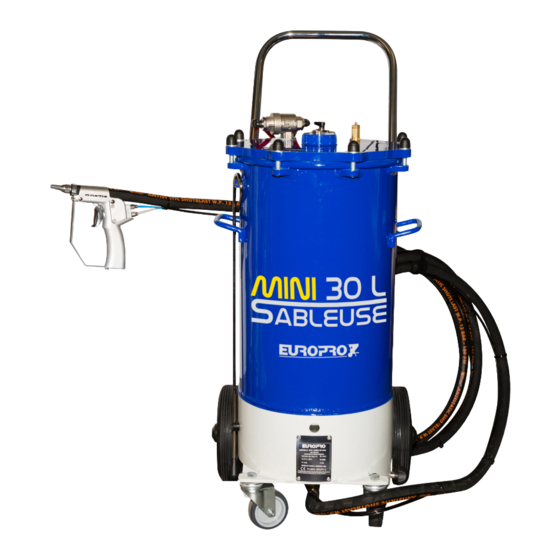

Mini-sandblaster 30l
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

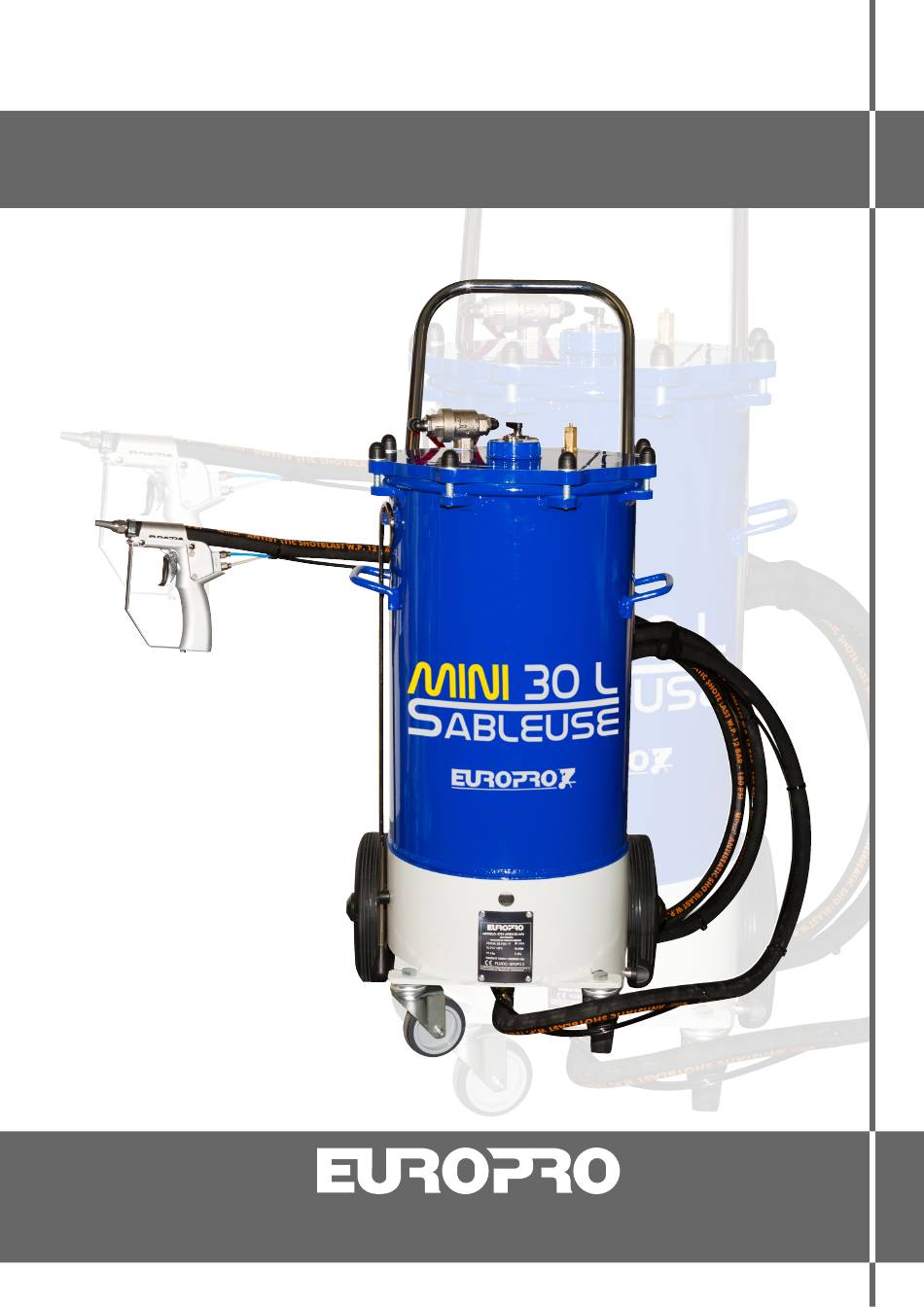

User manual
Mini-Sandblaster 30L
EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36
SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510
Edition of 07/04/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 0701AREN30MAS and is the answer not in the manual?

Questions and answers

Related Manuals for EUROPRO 0701AREN30MAS

Summary of Contents for EUROPRO 0701AREN30MAS

  • Page 1 User manual Mini-Sandblaster 30L EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510 Edition of 07/04/2020...

  • Page 2: Table Of Contents

    INSTRUCTIONS AND MAINTENANCE MANUAL INDEX THANKS ..............................2 1. MANUAL AIMED TO ..........................3 2. INFORMATION REMARK ........................3 3. GUARANTEE ............................4 4. WASTE PRODUCTS AND ENVIRONMENT ..................4 5. EQUIPMENT DESCRIPTIONS ......................4 5.1. GENERAL DESCRIPTION ..........................4 5.2.

  • Page 3: Manual Aimed To

    SANDBLASTER 0701AREN10MAS 1. MANUAL AIMED TO EUROPE PROJECTION has elaborated the here shown Instructions manual and maintenance as a document recommended to be attached to the precision sandblaster for its whole useful life, considering it as other component of this one. The Manual is aimed to the end user and technical assistant of the equipment and it contains every useful information on safety related to: ...

  • Page 4: Guarantee

    INSTRUCTIONS AND MAINTENANCE MANUAL 3. GUARANTEE The acquired equipment counts on a two years guarantee from the Invoice date. The guarantee covers manufacturing defects and faults in components. Elements repairs and substitution are only guaranteed if made by technical staff of EUROPE PROJECTION or Official Technical Service.

  • Page 5: Main Components

    SANDBLASTER 0701AREN10MAS  Paper and adhesive removing  Swimming pool stripping  Graffiti removing  Concrete cleaning and fitting  Plastic cleaning  Paving and flooring mark removing  Metallic surfaces preparation  Tank and metallic container clearing and stripping This sansblaster allows us the application of the following types of abrasives: corindon, metallic grain, glass, aluminium silicate, garnet, calcium carbonate and silica sand (grit).

  • Page 6: Identification Plate

    INSTRUCTIONS AND MAINTENANCE MANUAL Manometer Air tank release Table 2 Spare parts 1 – Main components 5.3. IDENTIFICATION PLATE...

  • Page 7: Technical Features

    To make any enquiry to EUROPE PROJECTION, related to the equipment, it will be neccessary to refer to the serial number on the identification plate. 5.4. TECHNICAL FEATURES The precision sandblaster technical features are shown in the table as follows: 0701AREN30MAS Weight 31,5 kg Tank capacity 30 l.

  • Page 8: Safety Systems

    INSTRUCTIONS AND MAINTENANCE MANUAL 5.6. SAFETY SYSTEMS 5.6.1. SAFETY VALVE The sandblaster is fitted as standard with a safety valve [Spare parts 1 – Posit.10] installed on the top of the tank [Spare parts 1 – Posit.2] , in order to never exceed the maximum working pressure for which it has been designed (6 kg/cm ).

  • Page 9: Use Instructions

    SANDBLASTER 0701AREN10MAS 7. USE INSTRUCTIONS 7.1. PRIOR OPERATIONS Before starting the equipment, we must do the following operations:  To drain the air feeding hose to eliminate possible water condensations.  To check that compressor is capable to supply the air flow rate required. The air flow rate depends on the type of work to be done (working pressure), that can be between 700 –...

  • Page 10: Abrasive Product Outlet Regulation

    INSTRUCTIONS AND MAINTENANCE MANUAL  To push the control again down to click the regulator.  Working pressure must never exceed 6 kg/cm (max. pressure on safety valve). Optimal pressure range is considered from 3,5 to 5,5 kg/cm Working pressure depends on the type of work we want to do. 7.4.

  • Page 11: Components Dismantle

    SANDBLASTER 0701AREN10MAS 8. COMPONENTS DISMANTLE Next, we describe how to procceed to tasks related with dismantling or substitution of equipment components that, to EUROPE PROJECTION´s discretion, are considered usual and can be made by the user. To do other types of dismantling actions, it is neccessary to count on your SAT- Official Technical Service 8.1.

  • Page 12: Pieces Of Advice To Avoid Inappropiate And Dangerous Practices

    INSTRUCTIONS AND MAINTENANCE MANUAL  To assure of tank is depressurized by checking manometer [Spare parts 1 – Posit.19] [Spare parts 1 – Posit.4] placed in the regulation box of the equipment  To unscrew and remove the screws [Spare parts 2 – Posit.8] joining the top to the body tank.
  • Page 13 SANDBLASTER 0701AREN10MAS  The equipment user must wear a protection screen and safety gloves. Any part of the body must be exposed to the impact of abrasive product on the treated surface. If required due to the sound level conditions on the working area, the user must wear hearing protection.

  • Page 14: Complete Spare Parts Dismantle

    INSTRUCTIONS AND MAINTENANCE MANUAL 10. COMPLETE SPARE PARTS DISMANTLE You can here find a table and graphical scheme of the components you can acquire as original spare parts: Model: 0701AREN30MAS Posit. Reference Denomination 52205 MANTLED TOP 52097 FINISHED TOP 550571B...
  • Page 15 SANDBLASTER 0701AREN10MAS COUPLING NUT M5 TO PIPE 4 52023B 50068B TRIGGER TRIGGER PIN ASSEMBLY (10 Units) 50067 50006 SEJER RING ASSEMBLY (10 Units) 52207 HANDLE CLAMP AIR DISTRIBUTOR 52103B 52073B FAST DISCHARGE VALVE 1/8 SWIVEL ELBOW 1/2 A 10 52088B POLYURETHANE PIPE 8x10 52089B 55313B...
  • Page 16 INSTRUCTIONS AND MAINTENANCE MANUAL Spare parts 2 – Repairing components (0701AREN30MAS) (Rev1)

  • Page 17: Troubleshooting

    SANDBLASTER 0701AREN10MAS TROUBLESHOOTING ANOMALY POSSIBLE CAUSE CHECKING POINTS SOLUTION I. No air through the A) Compressor unplugged or Feeding compressor To connect the compressor to switched off sandblaster and start it B) Tip clogged up To dismantle gun tip and blow it to remove obstruction C) Sand flow rate regulator Outlet product regulator...

  • Page 18: Equipment Storage

    INSTRUCTIONS AND MAINTENANCE MANUAL ANOMALY POSSIBLE CAUSE CHECKING POINTS SOLUTION VII. Lack o fair A) Existence of foreign Tops To clean surfaces in contact with tightness on tops particles which hinders tops the air tightness of those ones B) Worn or damaged joints Joints To substitute VII.

  • Page 19: Conformity Declaration

    DECLARATION OF CONFORMITY AUTHORIZED REPRESENTATIVE: EUROPE PROJECTION 228, avenue Olivier Perroy 13790 ROUSSET DECLARES THAT THE EQUIPMENT DESIGNATED BELOW: Model : MINI-SABLEUSE 30 L Reference : 70475 COMPLIES WITH THE STANDARDS: • UNE-EN 13445 ROUSSET, JANUARY 20th 2020 Patrick BOREL President EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET Tél : +33 (0)4 42 29 08 96 –...
  • Page 20 EUROPE PROJECTION - 228, avenue Olivier Perroy 13790 ROUSSET - Tél : +33 (0)4 42 29 08 96 – Fax : +33 (0)4 42 53 44 36 SAS au capital de 400 000 € - RCS Aix-en-Provence B 394 961 510 - NAF 2892 Z - Intracom : FR 54 394 961 510...
