maycom MP-50
User's Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MP-50 and is the answer not in the manual?

Questions and answers

Related Manuals for Maycom MP-50

Summary of Contents for Maycom MP-50

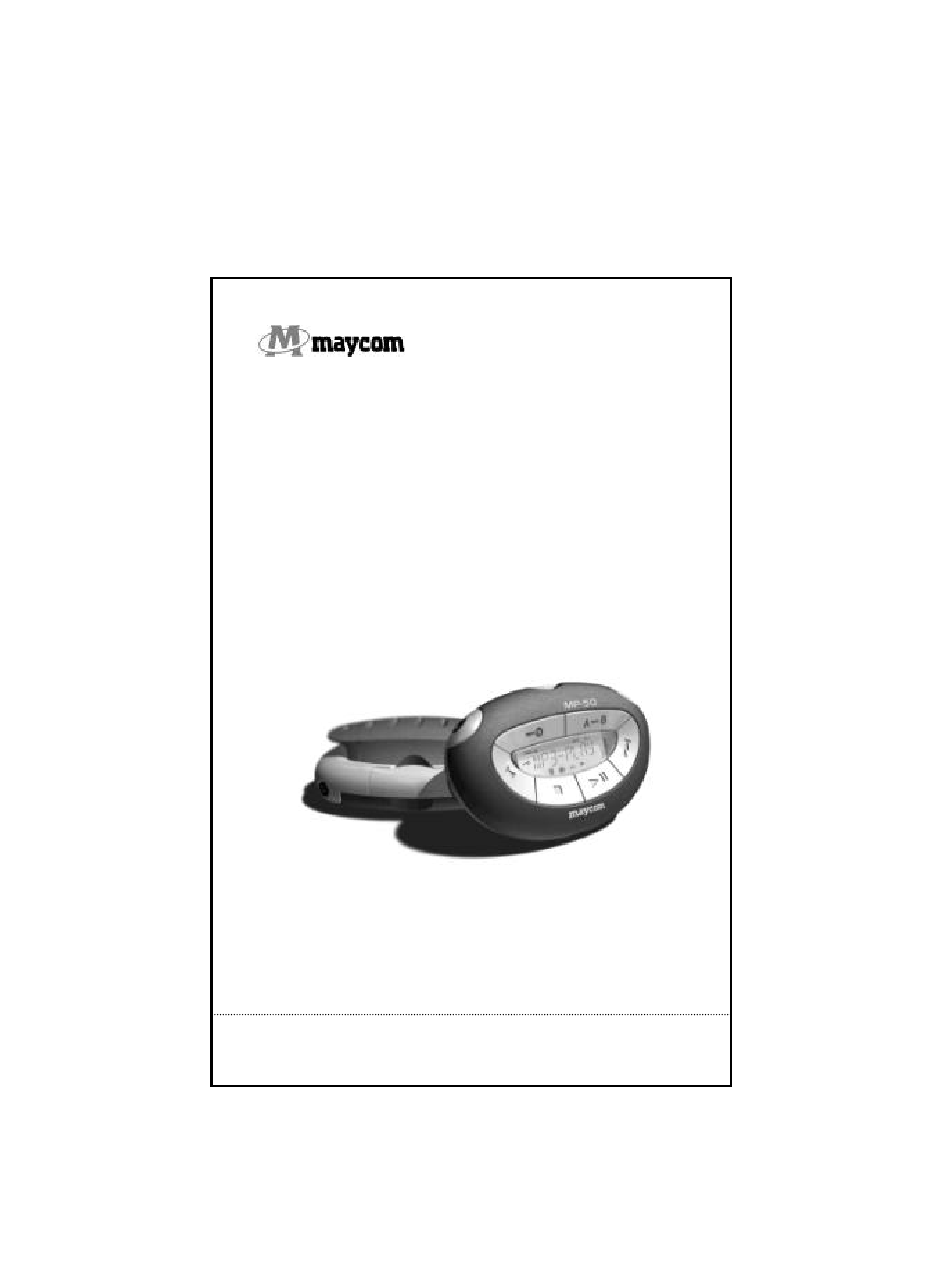

  • Page 1 MP-50 User's Guide...
  • Page 2 Information to user : PART 15, PARAGRAPH 15.21 AND 15.105(b) Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment FCC Notice NOTE : This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.

  • Page 3: Table Of Contents

    At a glance....................6 Specifications ....................7 Installing Batteries..................8 Exchanging Covers..................9 Installing the USB driver in Windows ............10 Copying files to the MP-50 Player in Windows ........17 Macintosh Operation .................19 Operating the MP-50 Player ..............21 Keylock .....................22 The Menu Key...................22 The Menu / Menu Tree / Equalizer ............23 Play Modes....................24...

  • Page 4: About Your Maycom Mp-50 Player

    About your maycom MP-50 Player The maycom MP-50 Player is the most convenient and easy-to-use way to enjoy music whereever you are. In order to make the most of your M P-50 Player read this user´s guide thoroughly.

  • Page 5: Unpacking Your Maycom Mp-50 Player

    Unpacking your MP-50 Player The following components are in the M P-50 Player box: MP-50 MP3 Player Additional Cover Stereo Headphones ‚ Owner´s Manual CD-Rom USB Cable Carrying case (Optional) Clip (Optional) Note: All pictures are symbol pictures only. The actual look of items may vary.

  • Page 6: At A Glance

    At a glance Front view Back view Description Key pressed for approx. 2 seconds MMC (MultiMediaCard) Door Display artist & title (ID3 tags) Activate/Deactivate Keylock Headphones Jack Previous Track Rewind within track Stop Power On/Off USB Jack A- B Repeat Format (erase) internal memory Menu Key / Volume up/down Next Track...

  • Page 7: Specifications

    Specifications MP-50 Player • Maximum audio output power: 2x15mW • Signal to noise ratio: >90dB • Frequency response: 20 Hz – 20 KHz • Maximum total harmonic distortion: 0.3% • Headphone impedance: 16 ohm • Power consumption at 128 kbps MP3 decoding at volume level 15, no EQ: approx.

  • Page 8: Installing Batteries

    Installing Batteries Install 2 AAA batteries* into your M P-50. You may use alkaline batteries or NiMh rechargable batteries (NOT NiCd). 1) To release battery cover 2) Open the cover. press down where in dicated. 3) Insert batteries according 4) Replace the battery to polarity diagram.

  • Page 9: Exchanging Covers

    Exchanging Covers 1) Open the MMC door. At 2) Loosen the cover below the marking indicated in the the menu key and below the above picture, gently lift the headphone jack. cover towards you until you hear a click. 3) The cover can now be 4) To replace the cover removed.

  • Page 10: Installing The Usb Driver In Windows

    Installing the USB driver in Windows 1) Turn on your PC and the M P-50 Player. 2) Insert the M P-50 CD-Rom into your CD -Rom drive. 3) Connect the USB cable to your M P-50 Player where indicated: Carefully open the USB P lug in the smaller end of door.
  • Page 11 Windows 98 1) Click "Next" to start the installation. 2) Select "Search for the best driver" and click "Next". 3) Select "Specify a location" and browse the CD to locate the correct path of the driver (e.g. D:\USB_Driver). Click "Next".
  • Page 12 4) After locating the driver the system asks for confirmation. Click "Next". 5) Click "Finish" to complete the installation. Turn to page 17.
  • Page 13 Windows 2000 1) Click "Next" to start the installation. 2) Select "Search for a suitable driver" and click "Next". 3) Select "CD-ROM drives" and click "Next".
  • Page 14 4) After locating the driver the system asks for confirmation. Click "Next". 5) Click "Finish" to complete the installation. Turn to page 17.
  • Page 15 Windows ME 1) Select "Automatic search" and click "Next". Windows ME will search the CD-ROM drive for the appropriate driver. 2) Click "Finish" to complete the installation. Turn to page 17. Windows XP 1) Select "Install the software automatically" and click "Next".
  • Page 16 2) Should the following message appear ignore it and click "Continue Anyway". Visit the support section of www.emaycom .com for further information on this message. 3) Click "Finish" to exit the Wizard. After successful installation: The driver installation has been completed. For information how to copy files continue on this page.

  • Page 17: Copying Files To The Mp-50 Player In Windows

    MMC installed, the icon represents the MMC. If there is no MMC installed, it represents the internal memory. Some versions of Windows are able to display "maycom" as the disk name when the internal memory is being used. Internal Memory...
  • Page 18 The M P-50 Player can also be used like a floppy disk. You may copy all types of files to the internal memory for portability. However, only MP3 files can be played by the M P-50 Player. If you are using a MultiMediaCard, the M P-50 Player has the function of an MMC Reader (similar to a floppy disk drive).

  • Page 19: Macintosh Operation

    Macintosh Operation Since the M P-50 Player is a USB mass storage class device, no driver needs to be installed. 1) Decide, whether you want to access the internal memory or an MMC. To access an MMC, insert it into the M P-50 Player (see page 26) and switch to it (see page 27).
  • Page 20 Beware: Never insert or remove an MMC before having ejected and disconnected the M P-50 Player from the Macintosh. If the internal memory is used, the volume´s name is " maycom". If the M P-50 Player was connected to your Macintosh with an MMC installed, the name of the volume is the name of the MMC ("Untitled"...

  • Page 21: Operating The Mp-50 Player

    Operating the MP-50 Player Connect your earphone set to the earphone jack. Use the 6 major keys for basic operation: Short Press Long Press Stop Power On/Off Play / Pause Internal memory/MMC* Skip to previous Rewind song Skip to next song...

  • Page 22: Keylock

    Keylock Push and hold to lock all keys and to protect current settings. To unlock, push and hold once again until the indication on the LCD disappears. The Menu Key Your M P-50 Player is equipped with a menu key. This key is used for the following functions: Move the key to adjust the Push the key to enter the...

  • Page 23: The Menu / Menu Tree / Equalizer

    The Menu / Menu Tree / Equalizer The following functions are controlled through the menu: • Equalizer • Play Mode The menu tree below shows where you can find specific set tings: Use the Equalizer to adjust the sound to suit your personal preferences.

  • Page 24: Play Modes

    Play Modes • Repeat one (RPT) Select this function to repeat the current track. The LCD displays • Repeat all (RPT ALL) Select this function to repeat all the tracks. The LCD displays • Random (RND) Select this function to switch playback to random mode. The LCD displays •...

  • Page 25: Using The Mmc Expansion Slot

    Using the MMC Expansion Slot The M P-50 Player is equipped with an expansion slot for additional memory. You may use a MultiMediaCard (MMC) of any size. If an MMC is installed you can use the M P-50 Player as an MMC Reader.

  • Page 26: Selecting The Source For Playback

    Selecting the source for playback If you have a MultiMediaCard installed press for 2 seconds to switch from the internal memory to the MMC and vice versa. The display indicates which source is currently in use: Internal memory in MMC in use...

  • Page 27: Removing A Multimediacard

    Removing a MultiMediaCard 1) Open the MMC door and will gently press the MMC in the released and should pop out. direction shown. You may now remove the MMC. 3) Close the MMC door.

  • Page 28: Installing Music Match Jukebox (Windows)

    Installing Music Match Jukebox Minimum system requirements Operating system: Windows98 or later CPU: Pentium 166MHz or better RAM : 32MB or more 256 colours or better 4x speed CD-ROM drive USB interface Sound system: 16 bit or better 1) Turn on your PC. 2) Insert the M P-50 CD-Rom into your CD-Rom drive.
  • Page 29 4) Within the "MusicMatch Jukebox" folder, highlight the file "Setup" and double-click to begin the installation. 5) Click "Next". 6) Choose "YES" to accept the license agreement.
  • Page 30 7) Complete the f orm and click "Next". 8) Choose whether you would like your listening preferences to be transferred to MusicMatch. Select "Yes" or "No". Then click "Next" to continue.
  • Page 31 9) Choose "Express" installation, then click "Next". 10) Click "Finish" to complete the installation.

  • Page 32: Encoding Mp3 Files From Audio Cds (Windows)

    See page 18 for details. We recommend a bitrate of 128 kbps for MP3 encoding (CD quality) in order to keep the file size small. Your maycom MP-50 Player supports variable bit rates of up to 256 kbps. If you experience any problem while using Music Match Jukebox, contact MusicMatch at: http://www.musicmatch.com/common/contact_us.cgi...

  • Page 33: Static Discharge

    Static discharge Your M P-50 Player consists of sophisticated and sensitive circuitry. There may be occasions when the player is affected by static discharge. When you move around, your body naturally builds up some electricity, which can cause what is known as static discharge. Should your M P-50 Player at any time appear to freeze operation, and you have already verified that the batteries are properly installed it is possible the player has been affected by static...

  • Page 34: Storing & Handling

    Moisture or humidity may cause the M P-50 Player to short circuit. If exposed to moisture, immediately dry the player with a soft cloth. • Do not use the MP-50 Player outdoors in poor weather conditions, such as rain or lightning. • Protect the MP-50 Player from shock.
  • Page 35 Maycom B/D, 280-5, Seoksu 2- Dong, Manan-Gu, Anyang- City, Kyongki- Do, Korea Tel : +82 (0)31-470-7700 Fax : +82 (0)31-472- 3700 http://www.emaycom.com e- mail : maycom@emaycom.com Printed in Korea...
