Summary of Contents for Aqila YARDCAM
- Page 1 USER GUIDE Untuk versi bahasa Indonesia silahkan unduh pada website, www.getaqila.com/download...
- Page 2 USER GUIDE...

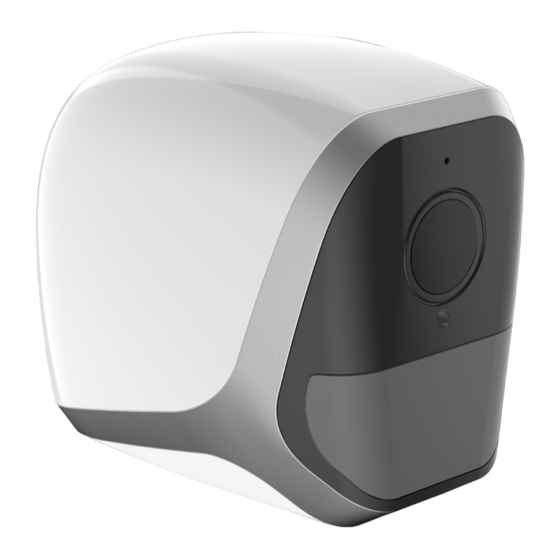

- Page 3 AQILA YARDCAM Aqila Yardcam is a completely wireless camera from Aqila. Its wireless technology makes it easy for you to install the camera as needed without having to think about the availability of power source. Monitor all activities inside/outside the house, day and night, directly through the Aqila Smart App.
-
Page 4: Product List
PRODUCT LIST 1 Aqila Yardcam 1 Fisher and Screws 1 Camera Magnet Bracket / Mount 1 USB Cable 1 Pin 1 Manual Book USER GUIDE... - Page 5 FITUR • 100% Wireless • Modern and elegant design • Rechargeable 5400 mAh battery • Easy Installation • Power Port DC 5V (± 10%) • Double Motion Sensor • Human Body Filtering • 110° Wide angle lens • Wi-Fi connectivity • 1080 HD Streaming • IR Night Vision • Two-way Audio Communication • Easily connected to the Aqila Smart App • Supports TF Memory Card up to 128 GB • Options for cloud storage • Can be used as a standalone device without Aquila Securehub™...
- Page 6 DISPLAY Microphone Camera Lens Motion Sensor Motion Sensor TF Memory Card Magnet Slot Bracket Power Button Speaker Micro Usb Battery Reset Button USER GUIDE...
- Page 7 Name Description • R ed Light Blinking: Camera ready to connect with Aqila Smart App • Green Light Blinking: Camera not connected with Indicator Aqila Smart App Light • Green Light On: Camera On and connected to the internet. You can view videos through the Aqila Smart App Press the reset button for 5-7 Tombol seconds to reset or restore the...
- Page 8 QUICK USER GUIDE DOWNLOAD AQILA SMART APP Register to create an Aqila account. Run the Aqila Smart App on your mobile phone, then register according to the instructions in the application You can log in if you already have an Aqila account USER GUIDE...
- Page 9 RESET 1. Press the reset button located on the back of the camera for 5-7 seconds, then release when you hear a “beep” sound indicating a successful reset 2. Wait for the reboot process and internet configuration. You will hear a confirmation sound from the camera and the LED Indicator will flash quickly (2 times every second) after the camera returns to its default settings...
-
Page 10: Led Status Indicator
STATUS INDICATOR Blinks fast Camera is ready (2 times every to connect and second) wait for internet configuration Blinks slowly Camera is (1 time every second) transmitting video stream LED Indicator off Camera is connected to Wi-Fi On for 5 Seconds Camera is in setup mode USER GUIDE... - Page 11 CONNECT AQILA YARDCAM TO AQILA SMART APP with SMART MODE 1. Press the + button / icon located at the top right of the Application 2. Make sure you are in Add Manually mode Yardcam 3. Select Yardcam 4. Turn on the camera...
- Page 12 Wi-Fi router and the camera 8. Then the QR Code will appear 9. Pair QR Code and Camera Lens 15-20 cm 10. When the connection is successful, a confirmation sound will be heard from the camera 11. Congratulations, your Aqila Yardcam is successfully connected, you can also change your camera name USER GUIDE...
- Page 13 CONNECTS AQILA YARDCAM TO AQILA SMART APPLICATION WITH AP MODE (ACCESS POINT) 1. If the connection via Smart Mode is not successful, an option will appear to repeat or use another connection method “Switch Pairing Mode” 2. Turn off the camera then turn it back on 3.
-
Page 14: Installation
Cellphone, Wi-Fi router and the camera 8. When the connection is successful, a confirmation sound will be heard from the camera 9. Congratulations, your Aqila Yardcam is successfully connected, you can also change your camera name INSTALLATION 1. Attach the bracket / mount... - Page 15 Playback can select the video you want to Button play back based on the date and time Note: Kembali Yardcam • This feature can only be used if you 2020 - 03 - 01 13:00:00:00 Signal : 100 % are using a memory card in your camera • Currently, the camera only supports TF...
- Page 16 Plays back camera footage stored on Cloud storage media. This feature is very useful if you lost Cloud Storage or break your camera or memory Button card Note: You must subscribe to Aqila’s VAS Cloud service to be able to use this feature To re-view videos and images from your recorded videos or Photo Album screenshots Button...
-
Page 17: Camera Setting
Tap-to-Run To see if the camera is used in & Automation the Tap-to-Run (Scenarios) and Automation features that you created on the Aqila Smart App. Tap-to-Run and Automation are features in the Aqila Smart App that can run device operation commands automatically based on met and pre-set conditions. For example, the alarm on Aqila Securehub™... - Page 18 (Passive Infrared Sensor) Off / Low / Medium / High Purchase VAS Additional services from AQILA for cloud video storage and other AQILA services You can subscribe to this service in accordance with the applicable terms. Power Battery camera Information.
- Page 19 AQILA account. You can Device also delete shared accounts and set up shared accounts as managers. • Press the “Add Sharing” button • Enter the phone number or email address of other Aqila users who will share the device with you. • Click “Done” Remove To remove camera from your Aqila account Aqila.
- Page 20 www.getaqila.com USER GUIDE...
