MONTAGE-INSTRUCTIES
INSTRUCTIONS D'ASSEMBLAGE
WARNING:
WAARSCHUWING:
ATTENTION :
et/ou de petites pièces. Ne convient pas aux enfants de moins de 3 ans.
Table Hockey
AIRHOCKEYTAFEL
HOCKEY SUR TABLE
REFERENCE NUMBER: 92519 (82683)
Choking Hazard--Toy contains small balls and/or small parts.
Not for children under 3 years.
Verstikkingsgevaar - Dit speelgoed bevat bal-letjes en/
of kleine onderdelen. Niet geschikt voor kinderen beneden de 3 jaar.
Risque de suffocation — Ce jeu comprend de petites balles

PARTS LIST

ONDERDELENLIJST
LISTE DES PIÈCES

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 92519 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dreamland 92519

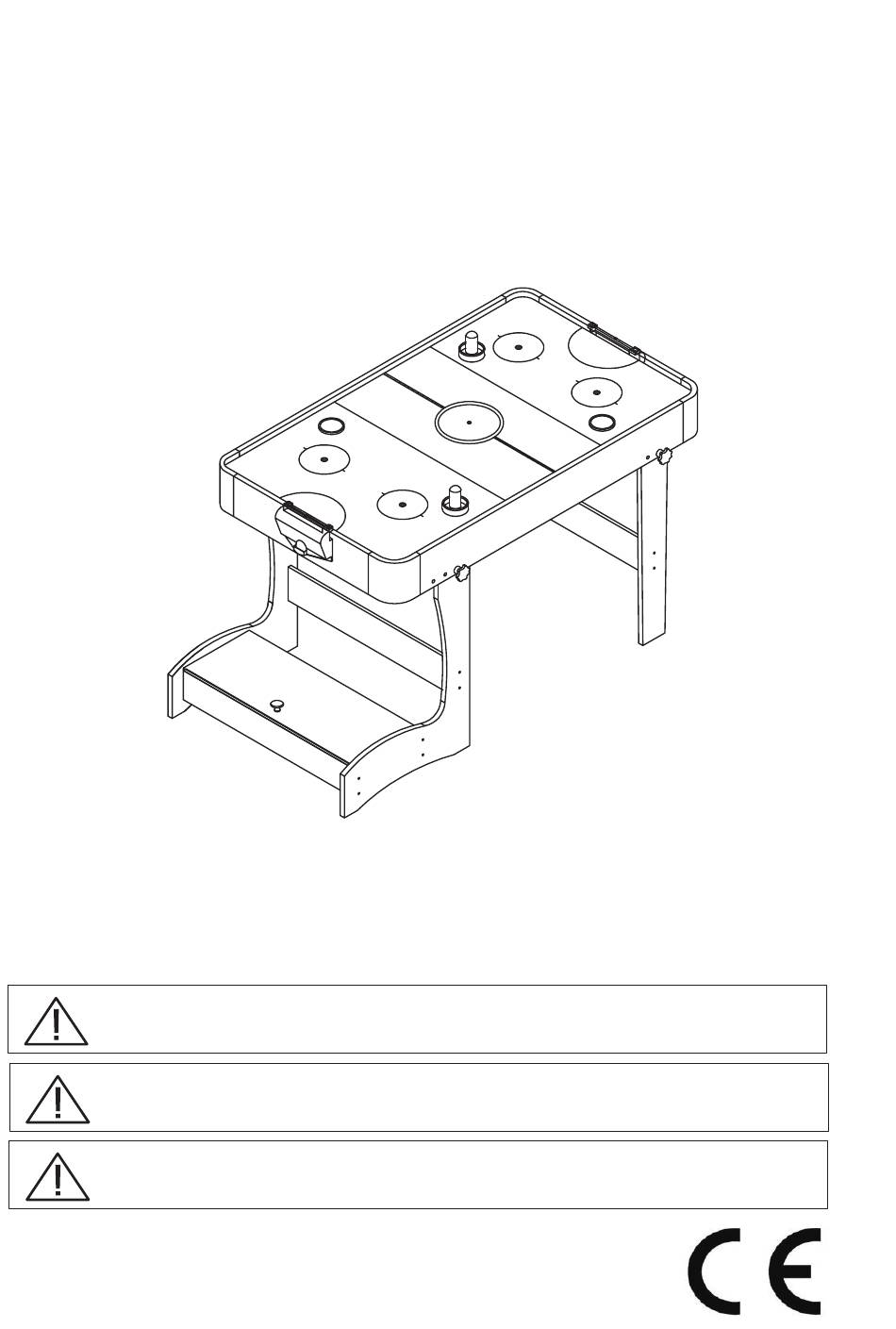

  • Page 1 Table Hockey AIRHOCKEYTAFEL HOCKEY SUR TABLE REFERENCE NUMBER: 92519 (82683) Assembly instructions PARTS LIST MONTAGE-INSTRUCTIES ONDERDELENLIJST INSTRUCTIONS D’ASSEMBLAGE LISTE DES PIÈCES WARNING: Choking Hazard--Toy contains small balls and/or small parts. Not for children under 3 years. WAARSCHUWING: Verstikkingsgevaar - Dit speelgoed bevat bal-letjes en/ of kleine onderdelen.
  • Page 2 IMPORTANT!/BELANGRIJK!/IMPORTANT ! Please Keep Your Instructions.Before attempting assembly,please read through this instruction book to familiarize yourself with all the parts and assembly steps.We recommend that two adults assemble this table.Please refer to the Parts List below and be sure that all parts have been included. Houd deze instructies bij.
  • Page 3 ASSEMBLY INSTRUCTIONS/MONTAGERICHTLIJNEN:/INSTRUCTIONS D’ASSEMBLAGE : We recommend that two adults work together to assemble this game. We raden aan dat dit spel door twee volwassenen wordt opgesteld. Nous recommandons que ce jeu soit assemblé par deux adultes. Step 1 - Open the carton of your new hockey game near where you will play. Select a clear level floor.This game requires at least two adults to assemble the table.
  • Page 4 Step 6 - Attach the one side panel of box (#5) to the legs (#2) using four of Washer head screws (#16) per leg. See FIG.3 Stap 6 – Maak de beugel zijpaneel van doos (#5) vast aan de poten (#2) met vier schroeven met borgring (#16) per poot. Zie Fig. 3 Étape 6 - Attacher un panneau latreal de la boite (#5) aux pieds (#2) à...
  • Page 5 Step 9 - Lift the table assembly from the floor with two strong adults, turn it over, and set table on its legs in the location where you will play. Go back and make sure that all connections are tight. Stap 9 –...
  • Page 6 Step 12 - Attac the one Cover Board (#7) to the end leg braces using six of Flat head screw (#18). See FIG.7 and 7A. Stap 12 – Maak de afdekplaat (#7) vast aan de eindpootbeugels met zes schroeven met platte kop (#18). Zie Fig. 7 en 7A. Étape 12 - Attacher la planche de recouvrement (#7) aux renforts latéraux à...
  • Page 7 Step 13 - Loosen the Wing Bolts (#14) on both sides,fold the table.See FIG.7A.Then locate the Legs to the Cabinet using Wing Bolts (#14) as shown in FIG.7B. Stap 13 - Draai de vleugelbouten (#14) aan beide kanten los en vouw de tafel op. Zie FIG. 7A. Bevestig de poten dan aan het tafelblad met behulp van de vleugelbouten (#14) zoals afgebeeld op FIG.
