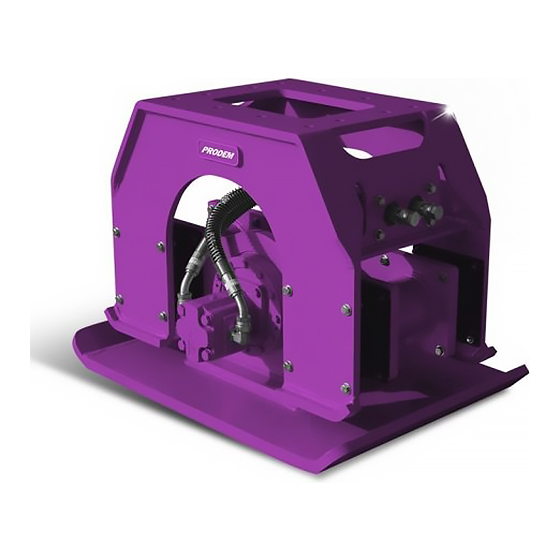

- Page 1 PARTS MANUAL Plate Compactor PHC050 Document No.:AA099-0048 Revision Date: 2011-12-15...
-
Page 2: Instructions For Use
For the purpose of continued product improvement, some information in this manual could be changed without prior notice, and might be differ from your product which was not covered by this publication. If you found the information that is unclear or not corresponding with the actual product, contact ProDem. How to use this parts manual: <Example>... - Page 3 Compare the parts to order with the corresponding parts in the drawings in this parts manual and note the part numbers to order. When ordering parts, please specify detail part names as shown in the following example, Model name of product: PHC050 PD Serial number: 05-H101 Part No.:...
- Page 4 - 4 -...
-
Page 5: Table Of Contents
Copyright © 2007 ProDem Corp. All rights reserved. This manual is copyrighted by ProDem Corp. with all rights reserved in accordance with prevailing law. It is positively prohibited to use or reproduce its contents in whole or in part without prior written permission. -
Page 6: Phc050 : Compactor Ass'y - Narrow Type
PHC050 : Compactor Ass’y – Narrow type 15V-PA-01 - 6 -... - Page 7 PHC050 : Compactor Ass’y – Narrow type ITEM PART NO. PART NAME REMARKS M051-9005 Compactor Ass’Y M051-7001 Base Frame M051-7020 Upper Frame A084-0015 Motor M100-4001 Cushion Rubber A082-0069 Compactor Valve S6144070 Bearing M051-5001 Shaft M051-5004 Cover M051-5005 Cover M051-5006 Cover...
- Page 8 PHC050 : Compactor Ass’y – Narrow type 15V-PA-01 - 8 -...
- Page 9 PHC050 : Compactor Ass’y – Narrow type ITEM PART NO. PART NAME REMARKS M051-9005 Compactor Ass’Y S8040081 O-Ring S8000181 O-Ring S8011701 O-RING S8000901 O-Ring S8000801 O-Ring M051-6003 Air Breather S5810020 Plug(Hex Socket) H001-0040D004 Hose S8180521 Seal Ring...
- Page 10 PHC050 : Compactor Ass’y – Narrow type 805V-PD-O1 - 10 -...
- Page 11 PHC050 : Compactor Ass’y – Narrow type ITEM PART NO. PART NAME REMARKS M051-9002 Compactor Ass’Y version ‘PD’ M051-7001 Base Frame M051-7009 Upper Frame A084-0015 Motor M100-4001 Cushion Rubber A082-0069 Compactor Valve S6144070 Bearing M051-5001 Shaft M051-5004 Cover M051-5005 Cover...
- Page 12 PHC050 : Compactor Ass’y – Narrow type 805V-PD-O1 - 12 -...
- Page 13 PHC050 : Compactor Ass’y – Narrow type ITEM PART NO. PART NAME REMARKS M051-9002 Compactor Ass’Y version ‘PD’ S8040081 O-Ring S8000181 O-Ring S8011701 O-RING S8000901 O-Ring S8000801 O-Ring M051-6002 Air Breather S5810020 Plug(Hex Socket) H001-0040D004 Hose S8180521 SEAL RING -13-...
-
Page 14: Phc050 : Base Plate Ass'y - Option
PHC050 : Base Plate Ass’y – Option 805V-OPT-01 - 14 -... - Page 15 PHC050 : Base Plate Ass’y – Option ITEM PART NO. PART NAME REMARKS M051-9003 Base Plate Ass’Y Plate M051-7017 Hex. Socket Head Bolt S0127763 Spring Washer S5101113 Plain Washer S5011113 -15-...
-
Page 16: Phc050 : Parts For Mounting
PHC050 : Parts For Mounting - 16 -... - Page 17 S0161961 Hex. Head Bolt S4002742 Hex. Nut The items with ‘Do’ at the end of their parts number are should be selected properly according to your carrier. Please contact ProDem dealer before ordering parts of the mounting pin set. -17-...
-
Page 18: Phc050 : Fitting Sets And Hose Sets
PHC050 : Fitting Sets and Hose Sets Fitting Set <BSP 1/2 (60°CONE)> ITEM PART NO. PART NAME REMARKS M050-9701D001 Fitting Set S8000181 O-Ring H002-0012D001 Adapter H002-0011D001 Fitting Set <ORFS -8> ITEM PART NO. PART NAME REMARKS M050-9701D002 Fitting Set S8000181... - Page 19 PHC050 : Fitting Sets and Hose Sets Hose Set <BSP 1/2 (60°CONE)> ITEM PART NO. PART NAME REMARKS M050-9702D001 Hose Set H001-0016D021 Hose A061-0027D003 Hose Plug Hose Set <ORFS -8> ITEM PART NO. PART NAME REMARKS M050-9702D002 Hose Set H001-0001D099...
-
Page 20: Phc050 : Tool Kit
PHC050 : Tool Kit 2, 3 4, 5 6, 7 - 20 -... - Page 21 PHC050 : Tool Kit Standard Tool Kit ITEM PART NO. PART NAME REMARKS M051-8002 Tool Kit 2199-9005 Tool Box T6550007 L-Wrench 6 T6550009 L-Wrench 8 T6510075 Spanner 19x22 T6510081 Spanner 24x27 T6510089 Spanner 13 T6510025 Spanner 36 -21-...
- Page 22 Notes - 22 -...
- Page 23 Notes -23-...
