READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO
NOT USE THIS PRODUCT!
Questions or problems? Contact Customer Service
If you experience a problem, have questions or need parts for this product, visit our website
http://www.buffalotools.com
8 AM - 4 PM Central Time. A copy of the sales receipt is required.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE REFERENCE

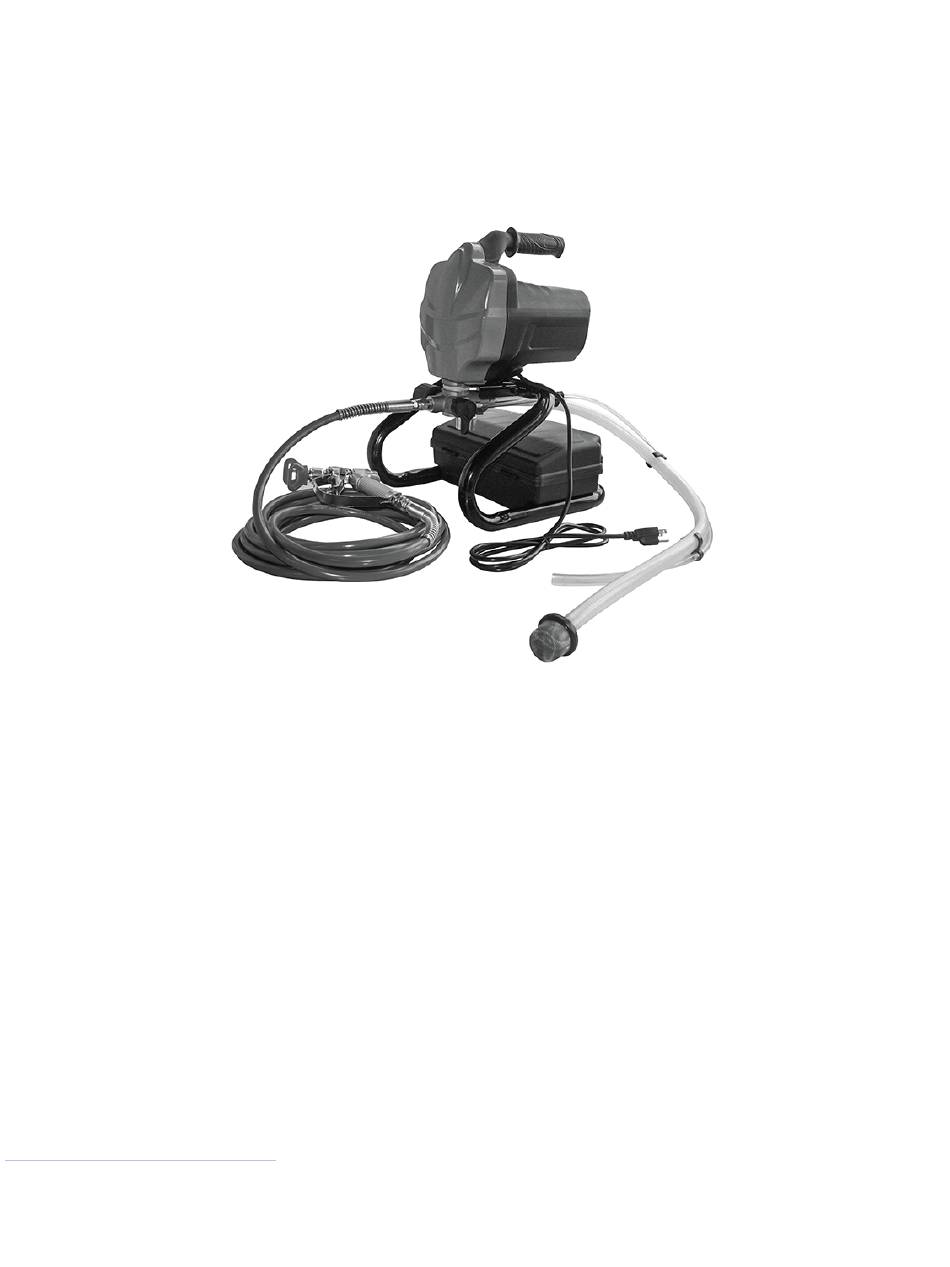

ITEM # APS517
AIRLESS PAINT SPRAYER
OPERATING INSTRUCTIONS
or call Customer Service at
1-
636-532-9888
, Monday-Friday,
Advertisement
Table of Contents
Related Manuals for Buffalo Tools APS517
Summary of Contents for Buffalo Tools APS517
- Page 1 ITEM # APS517 AIRLESS PAINT SPRAYER OPERATING INSTRUCTIONS READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
-
Page 2: Specifications
NOTICE is used to address practices not related to personal injury. CAUTION, without the safety alert symbol, is used to address practices not related to personal injury. Page 2 ITEM # APS517 Airless Paint Sprayer Operating Instructions... - Page 3 Follow the paint and solvent manufacture’s safety instructions. • Place pump at least 20 feet (6 meters) from the spray object in a well ventilated area (add more hose if necessary). Page 3 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 4 7. Keep the trigger and the electrical 22. Do not use Paint Sprayer without the cord plug clean and paint-free. Spray Gun’s nozzle guard in place. 8. Do not run Paint Sprayer while empty. Page 4 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 5 Keep it out of reach of children. 30. People with pacemakers should consult their physician(s) before use. Electromagnetic fields in close proximity to heart pacemaker could cause pacemaker interference or pacemaker failure. Page 5 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
-
Page 6: Extension Cords
The plug and Cord gauge Maximum cord length outlet should look like those in the preceding 150 feet illustration. 100 feet Page 6 ITEM # APS517 Airless Paint Sprayer Operating Instructions... -
Page 7: Parts Diagram
Switch (Not Shown) Pressure Control Filter Knob Paint Hose Outlet Prime/Spray Switch Power Cord Spray Tip Hanging Hook Spray Gun Spray Tip Guard Trigger Lock Trigger Guard Trigger Paint Hose Page 7 ITEM # APS517 Airless Paint Sprayer Operating Instructions... - Page 8 Low Pressure Spraying, Priming/Cleaning, or Rolling. Align the Pressure Control Knob with indicator on the Sprayer Housing to set the function. Hi SprayLow SprayPrime/CleanRoll Low Pressure Spray Rolling High Pressure Spray Prime/Clean Page 8 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 9 1. Attach Paint Hose to Paint Hose Outlet 2. Attach Paint Hose to Paint Gun and and tighten with wrench. tighten with two wrenches. 3. Turn Pressure Control Knob to Low Pressure Spray setting. Page 9 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 10 1. Turn Power Switch off and unplug unit from outlet. Note: Always set to Prime mode between uses. 2. Switch Prime/Spray switch to Prime mode. 3. Point gun into paint pail and activate Sprayer Trigger to relieve pressure. Page 10 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 11 Let fluids discharge from Priming Tube into waste 3. Submerge Suction Tube in water or flushing solvent. bucket for 30 to 60 seconds then switch Power to Off. Page 11 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 12 Suction Tube and submerge in paint pail. 14. If the motor stops, the pump and tubes are primed. If it does not stop, repeat priming steps. 15. Start Painting. Page 12 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 13 Control Knob and increase pressure as needed by turning clockwise to create a good spray pattern. Overlap Strokes Overlap strokes by half, always aim stroke at bottom edge of last stroke. Page 13 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 14 2. Adjust nozzle to clean setting. 7. Release Trigger and engage Trigger Lock. 3. Turn Spray/Prime Switch to Spray mode. 8. Adjust nozzle to Spray mode. 4. Turn power on. Page 14 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 15 2. Separate tubes. 7. Switch power to on. 3. Place Priming Tube in empty waste bucket. 8. Spray paint into paint pail. 4. Submerge Suction Tube in water or flushing fluid. Page 15 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
- Page 16 11. Continue to flush until clear. 15. Remove filter. OFF O 16. Clean all parts in warm, soapy water or 12. Release trigger, turn power off and relieve pressure. flushing fluid with a bristled brush. Page 16 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
-
Page 17: Long Term Storage
10. Wipe the sprayer with a clean cloth. Store in a clean dry location out of reach of children. 5. Turn Pressure Control Knob to Low/Spray. Hi Spray Low Spray Prime/Clean Roll Page 17 ITEM # APS517 Airless Paint Sprayer Operating Instructions... -
Page 18: Disposal Instructions
1. Dust or dirt on surface. 1. Clean surface with compressed air center (contamination). or tack cloth before painting. 3. Raised grain. 3. Wipe wood surface with thinner to raise grain, Page 18 ITEM # APS517 Airless Paint Sprayer Operating Instructions... -
Page 19: Parts List
Stell Ball (Φ6.35) Oil ring Seal Seat Washer Output Pusher Sealing ring Shield O-Ring (12.5x2.65) O-Ring (2.6x1.8) Sealing ring seating Sealing Ring O-Ring (22.4x1.8) Seal Washer Copper Guide Bushing Spring Page 19 ITEM # APS517 Airless Paint Sprayer Operating Instructions... - Page 20 PARTS DIAGRAM Page 20 ITEM # APS517 Airless Paint Sprayer Operating Instructions...
