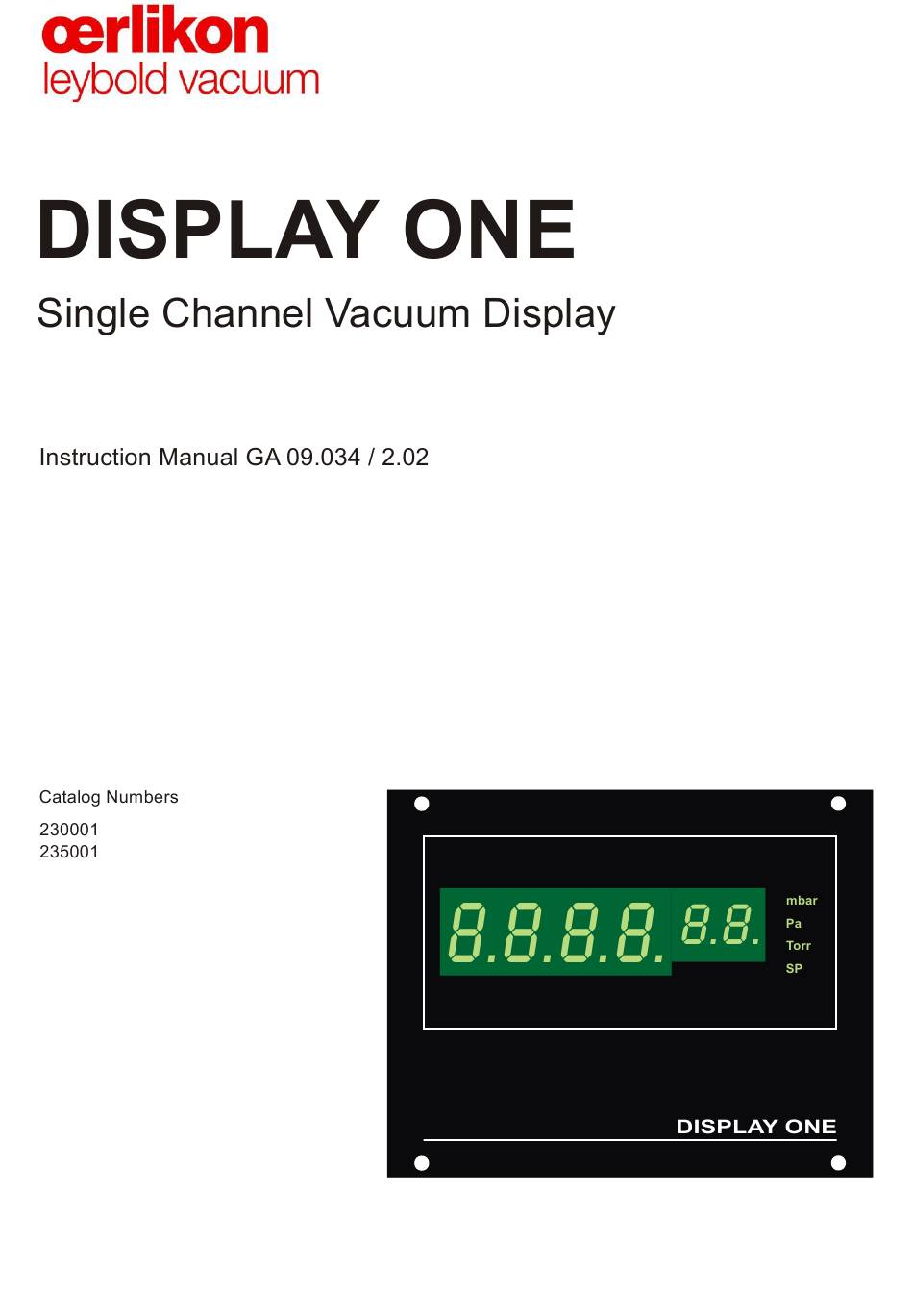

Summary of Contents for Oerlikon Leybold Vacuum DISPLAY ONE
-
Page 3: Table Of Contents
Contents Contents List of Figures List of Tables Description Validity 1.1.1 Catalog Number 1.1.2 Nameplate Conforming Utilisation Responsibility and Warrenty Transport Damages Safety General Signs and Symbols Basic Safety Regulations General Description General Functional Characteristics Applicable Transmitters Technical Data General Data 4.1.1 Mechanical Data 4.1.2... - Page 4 Installation Scope of Delivery Mechanical Installation 5.2.1 Rack Installation 5.2.2 Benchtop Instrument 5.2.3 Panel Mounting Connections 5.3.1 Rear of the Instrument 5.3.2 Mains Connection 5.3.3 Input 5.3.4 Analogue Output and Relay Output Operation Front Panel Switching On and Switching OFF 6.2.1 Switching On 6.2.2...
-
Page 5: List Of Figures
List of Figures Figure 1 – Nameplate (example) Figure 2 – Dimensions DISPLAY ONE (mm) Figure 3 – Rear of the instrument Figure 4 – Connector for Transmitter (RJ45) Figure 5 – Connection for Analogue Output and Relay Output Figure 6 – Front Panel List of Tables Table 1 –... -
Page 6: Description
Figure 1 – Nameplate (example) Conforming Utilisation The DISPLAY ONE serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC. Responsibility and Warrenty Oerlikon Leybold Vacuum GmbH will assume no responsibility and warranty when the operator or third parties •... -
Page 7: Transport Damages
Transport Damages • Check the packaging for visible damages • Send an advice of damage to the carrier and to the insurer in case of damage • Retain the packaging material, because the reconsignment in the original packaging of the manufacturer is prerequisite for warranty claims •... -
Page 8: Safety
Safety General The DISPLAY ONE is supplied ready for operation. Even so, we recommend that you carefully read these Operating Instructions so as to ensure optimum operating conditions right from the start. These Operating Instructions contain important information on the functions, installation, commissioning, operation and troubleshooting of the DISPLAY ONE. -
Page 9: General Description

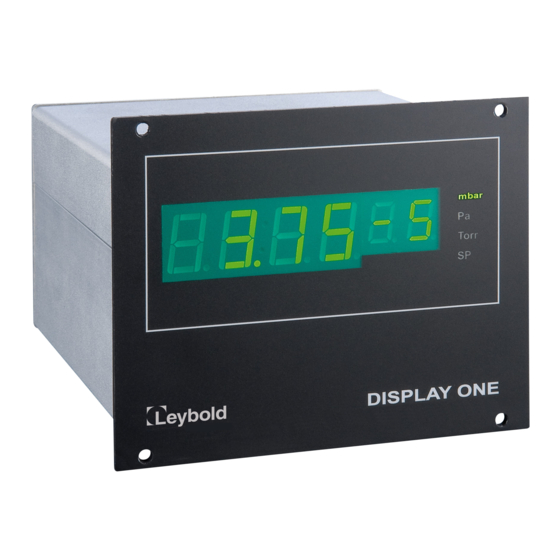

General Description General Functional Characteristics The DISPLAY ONE serves as a simple power supply and display unit for the transmitters from the series THERMOVAC and PENNINGVAC. Applicable Transmitters The following transmitters can be operated via DISPLAY ONE: Transmitter Type Display... -
Page 10: Technical Data
Width: 106.0 mm (1/4 19“) Height: 84.5 mm (2 HE) Depth: 108.0 mm Weight: 0.5 kg Build-in depth: ca. 150 mm (including connected plug) Application: Rack installation Panel mounting Benchtop instrument Figure 2 – Dimensions DISPLAY ONE (mm) GA 09.034/2.02 – 07/10... -
Page 11: Environment
4.1.2 Environment Temperature: Storage: -20 ... +60 °C Operation: +5 ... +50 °C (sea level) +5 ... +30 °C (2000 m NN) Relative humidity of the air: max. 80 % (to 30 °C) decreasing to max. 50 % (from 40 °C) Usage : indoors (max. -
Page 12: Transmitter Powering
4.3.1 Transmitter Powering Voltage: +24 VDC ±5 % Current: max. 100 mA Fuse protection: 200 mA, self-resetting Powering complies the requirements of a grounded low voltage (SELV-E according to EN61010). 4.3.2 Measuring Technique Measuring ranges: Sensor dependent (max. 1.5·10 …5·10 mbar) Measuring rate: 50 s... -
Page 13: Installation
• Panel mounting WARNING: Power disconnection Set up or install the DISPLAY ONE in such a way that they can to operate or place at any time the power switch you surely that a power disconnection is at any time possible. -
Page 14: Panel Mounting
Connections 5.3.1 Rear of the Instrument Figure 3, page 12 shows the rear of the DISPLAY ONE. The pin assignment of the individual connections is described in the following chapters. Figure 3 – Rear of the instrument Mains connection with mains switch and device fuses... -
Page 15: Input
Ident resistor Status SP CAUTION: Improper Measuring Instruments Measuring instruments, which are not intended for the usage with the DISPLAY ONE, can damage the device. Operate the DISPLAY ONE only with the appropriate instruments ( Chapter 3.2 Applicable Transmitter, page 7). -
Page 16: Operation
Switching On and Switching OFF 6.2.1 Switching On • Witch the mains switch on. After switching on the DISPLAY ONE will operate the following: • Self test • Display test • Display of the used software version • Identify transmitter •... -
Page 17: Switching Off
Chapter 6.5 Parameter Mode, page 16 Measurement Mode 6.4.1 Selection After switching on the DISPLAY ONE it will automatically run the measuring mode. 6.4.2 Description The measuring mode is the standard mode of operation. Here the measured values of the transmitters are indicated. -
Page 18: Parameter Mode
The selection of the parameters is made by the configuration switch ( Figure 3 D, page 12) on rear of the DISPLAY ONE. Proceed in addition as follows: • Switch the instrument off • Set the DIP switches as requiered •... -
Page 19: Maintenance And Servicing
Keep the instrument dry. Do not open the instrument. Troubleshooting 7.2.1 Trouble Indication and Error Messages A malfunction within the DISPLAY ONE is shown by an error message on the display Table 8, page 17). Error (Display) Cause and Remedy S-Err Sensor error. -
Page 20: Shelving And Waste Disposal
Please keep the original packaging. You will need this packaging in case of storing the DISPLAY ONE or shipping to the Oerlikon Leybold Vacuum GmbH. Shelving The DISPLAY ONE must only be stored in dry room. During storage, the following ambient conditions need to be maintained: • Ambient temperature: -20...+60 °C •... - Page 22 Safety information on contamination of compressors, vacuum pumps and components. Scope Every employer (user) is held responsible for the health and safety of his employees. This also applies to service personnel performing maintenance work either at the premises of the user or the service company in charge.
- Page 23 Declaration of Contamination of Compressors, Vacuum Pumps and Components The repair and / or servicing of compressors, vacuum pumps and components will be carried out only if a correctly completed declaration has been submitted. Non-completion will result in delay. The manufacturer can refuse to accept any equipment without a declaration. A separate declaration has to be completed for each single component.
- Page 24 Sales and Service Germany Europe Asia Oerlikon Netherlands P.R. China Japan Belgium Leybold Vacuum GmbH Oerlikon Oerlikon Oerlikon Oerlikon Bonner Strasse 498 Leybold Vacuum Nederland B.V. Leybold Vacuum (Tianjin) Leybold Vacuum Leybold Vacuum Nederland B.V. D-50968 Cologne Proostwetering 24N International Trade Co. Ltd. Japan Co., Ltd.
