Summary of Contents for Stevens CONTRACTOR MKIII

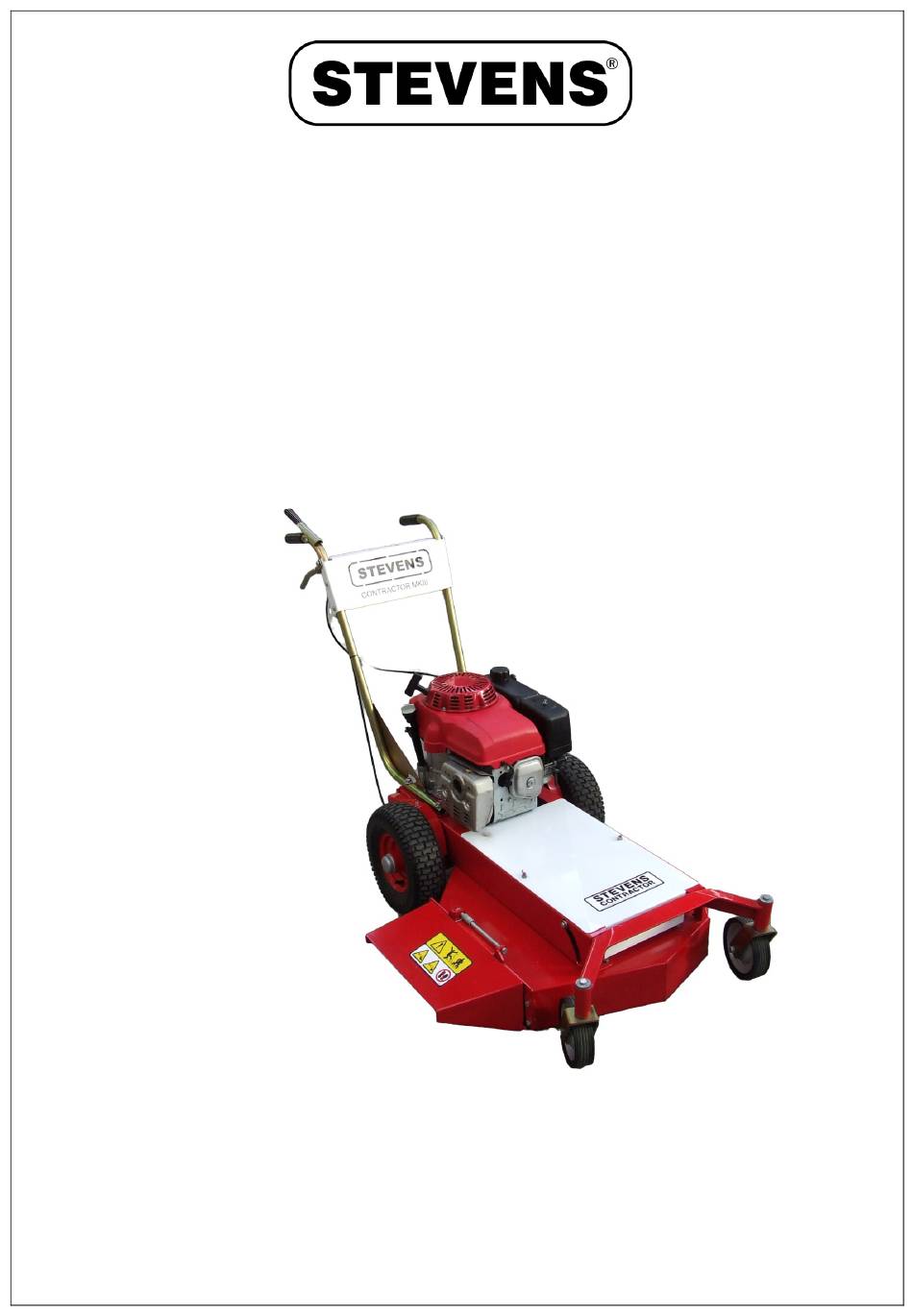

- Page 1 CONTRACTOR MKIII OWNER’S MANUAL Safety, Operating and Maintenance Instructions Please read and save these instructions. For safety, read all safety and operating instructions prior to operating the machine. Effective date Sept 2013...
- Page 2 Manufacturer’s Warranty The Manufacturer is Stevens Products Ltd, hereinafter referred to as the ‘Manufacturer’. The user/owner is the original purchaser, hereinafter referred to as the ‘User’. The Manufacturer’s obligation under this warranty is limited to correcting without charge at its factory or by one of its authorised dealers, with the Manufacturer’s approval, any parts thereof,...
- Page 3 Owner Information: Date of Purchase: Purchased From: Serial Number: The model of your machine is CON660III Safety Guide Protect yourself and others by following these safety steps: a) Know your controls. Learn how to stop the engine quickly in an emergency. b) NEVER MOW WITH THE DISCHARGE FLAP OPEN OR BELT GUARD OFF.
- Page 4 Operating your Mower Starting the Engine Fill the fuel tank with clean unleaded fuel and check the oil level on the dipstick before attempting to start the engine. Open the fuel tap under the fuel tank by pushing it backward as shown on the pictorial diagram on the top of the air cleaner cover.
- Page 5 Wheel Drive Belt Tension The cables from the operating levers to the drive levers are adjustable at both ends. Stevens recommend adjusting the top end at the handle. You should not need to adjust the bottom end ever.
- Page 6 Options Mulching Kit Stevens make a mulch kit which is available for any 660MKIII. This blocks the discharge to provide recycling of the clippings for a well maintained lawn mowed regularly. This kit consists of a baffle and mulch blade. The baffle can be fitted with no tools required. The blade requires the use of a 24mm socket to remove the blade bolt and refit.
- Page 7 1257 1226 14076-00 SF103 029-1 1206 1204 SF102 SF007 1209 SF016 1205 1227 SF100 1263 SF101 SF110 1207 SF007 SF002 1028 SF004 5245 SF106 SF104 SF082 5245 SF117 SF113 1254 1214 F028 6300-LLU SF058 1210 SF044 SF111 1233 1233 SF002 SF016 F002 SF119...
- Page 8 Qty Part No. Description 022 Front Wheel Bush 2 029‐1 Stevens Contractor Decal 1 030 Engine Throttle Cable 1 031 Grease Cap 2 038 Honda GXV340 engine 1 041‐6 Gearbox ‐ 25:1 Reduction Ratio 1 044 Round Handle Grip 2 084 Rear Wheel Seal 2 094 Rear Wheel Bearing Spacer 2 095 Serial Plate 1 110 Front Wheel 2 1028 Height Adjuster Spring/Idler Spring 3 ...
- Page 9 Qty Part No. Description 1231 Wheel Drive Belt Tensioner Spring 2 1232 Height Adjuster Outer Guide 1 1233 Deck Belt Idler Guides 2 1240 Discharge Chute Rubber Bumper 1 1241 Wheel Drive Clutch Cables 2 1242 Castor Fork/Deck Belt Bushes 6 1250 Main Drive Shaft 1 1251 Wheel Drive Pulley 2 1252 Decal Throttle 1 1253 Fabricated Chute 1 1254 Drive Guard L.H 1 1255 Drive Guard R.H 1 1256 ...
- Page 10 Qty Part No. Description SF006 M8 x 20mm Hex Head Bolt 6 SF007 M8 Plain Nut 8 SF012 M6 Spring Washer 1 SF016 M8 x 40mm Hex Head Bolt 6 SF024 3/8" Flat Washer 12 SF027 M8 Wing Nut 2 SF028 3/8” UNC Nyloc Nut 6 SF039 M8 x 16mm Hex Head Bolt 10 SF041 M10 x 20mm Hex Head Bolt 2 SF058 M10 Nyloc Nut 10 SF062 M12 Nut 2 SF071 M10 x 40mm Hex Head Bolt 1 SF082 ...
