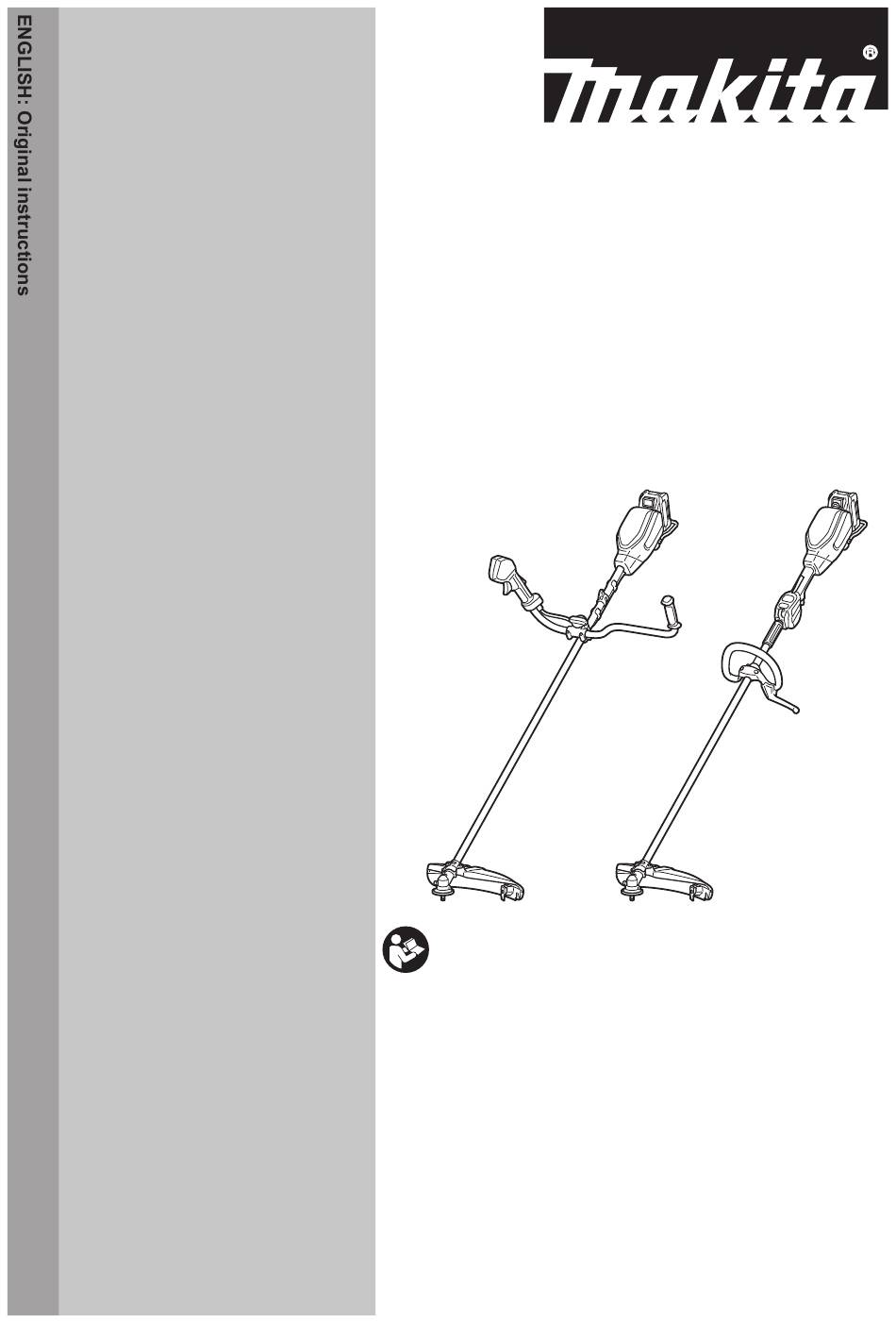

- Page 1 INSTRUCTION MANUAL Cordless Grass Trimmer UR006G UR007G Read before use.
-
Page 2: Specifications
SPECIFICATIONS Model: UR006G UR007G Handle type Bike handle Loop handle No load speed Cutter blade 3: 0 - 7,000 min (at each rotation speed level) Plastic blade (305 mm) 2: 0 - 5,500 min 1: 0 - 4,600 min Nylon cutting head... - Page 3 Noise Model UR006G Cutting tool Sound pressure level (L Sound power level (L Applicable dB(A) dB(A) standard dB(A) Uncer- dB(A) Uncer- tainty (K) tainty (K) dB(A) dB(A) 2-tooth blade 80.8 95.4 ISO22868 (ISO11806-1) 4-tooth blade 82.9 99.2 ISO22868 (ISO11806-1) Nylon cutting head 81.7...
- Page 4 Vibration Applicable standard : ISO22867(ISO11806-1) Model UR006G Cutting tool Left hand Right hand (m/s Uncertainty K (m/s Uncertainty K (m/s (m/s 2-tooth blade 4-tooth blade Nylon cutting head Plastic blade Model UR007G Cutting tool Left hand Right hand (m/s Uncertainty K...
-
Page 5: Ec Declaration Of Conformity
Personal safety EC Declaration of Conformity Stay alert, watch what you are doing and use common sense when operating a power tool. For European countries only Do not use a power tool while you are tired or The EC declaration of conformity is included as Annex A under the influence of drugs, alcohol or med- to this instruction manual. -
Page 6: Intended Use
Power tool use and care Do not use a battery pack or tool that is dam- aged or modified. Damaged or modified batteries Do not force the power tool. Use the correct may exhibit unpredictable behaviour resulting in power tool for your application. The correct fire, explosion or risk of injury. -
Page 7: Personal Protective Equipment
Personal protective equipment Electrical and battery safety Do not expose the tool to rain or wet condi- tions. Water entering the tool will increase the risk of electric shock. Do not use the tool if the switch does not turn it on and off. Any tool that cannot be con- trolled with the switch is dangerous and must be repaired. -
Page 8: Cutting Tools
Never attempt to switch on the tool if it is dam- 14. Never touch moving hazardous parts before aged or not fully assembled. Otherwise serious the moving hazardous parts have come to a complete stop and the battery cartridge is injury may result. - Page 9 — Cutting blades are suitable for cutting weeds, high grasses, bushes, shrubs, underwood, thicket, and the like. — Never use other blades including metal multi-piece pivoting chains and flail blades. It may result in serious injury. Only use the cutting tool that are marked with a speed equal or higher than the speed marked on the tool.
-
Page 10: First Aid
12. Use the batteries only with the products WARNING: DO NOT let comfort or familiarity specified by Makita. Installing the batteries to with product (gained from repeated use) replace non-compliant products may result in a fire, exces- strict adherence to safety rules for the subject sive heat, explosion, or leak of electrolyte. - Page 11 Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that have been altered, may result in the battery bursting causing fires, personal injury and damage. It will also void the Makita warranty for the Makita tool and charger. Tips for maintaining maximum battery life Charge the battery cartridge before completely discharged.
-
Page 12: Parts Description
PARTS DESCRIPTION UR007G UR006G Speed indicator ADT indicator Caution lamp Main power button (ADT = Automatic Torque Drive Technology) Reverse button Battery cartridge Lock-off lever Switch trigger Hanger Handle Barrier (country specific) Protector Protector extension (for Shoulder harness nylon cutting head / plastic blade) -
Page 13: Functional Description
Tool / battery protection system FUNCTIONAL DESCRIPTION The tool is equipped with a tool/battery protection system. This system automatically cuts off power to WARNING: Always be sure that the tool is the motor to extend tool and battery life. The tool will switched off and the battery cartridge is removed automatically stop during operation if the tool is placed before adjusting or checking function on the tool. -
Page 14: Main Power Switch
Indicating the remaining battery Main power switch capacity Tap the main power button to turn on the tool. To turn off the tool, press and hold the main power Press the check button on the battery cartridge to indi- button until the speed indicator goes off. cate the remaining battery capacity. The indicator lamps light up for a few seconds. ► 1 . - Page 15 Plastic blade head The tool speed increases by increasing pressure on the (305 mm) Plastic blade switch trigger. Release the switch trigger to stop. (255 mm) UR006G High 0 - 7,000 0 - 5,500 Medium 0 - 5,500 0 - 5,000...
-
Page 16: Electronic Function
Installing the handle cator start blinking, and the cutting tool rotates in reverse direction when you pull the switch trigger. For UR006G To return to regular rotation, release the trigger and wait until the cutting tool stops. Insert the shaft of the handle into the grip. Align the screw hole in the grip with the one in the shaft. - Page 17 When not in use, store the hex wrench as illustrated to For UR007G keep it from being lost. Attach the upper and lower clamps on the damper. UR006G Put the handle on the upper clamp and fix it with hex socket head bolts as illustrated. ► 1 . Hex socket head bolt 2. Handle 3. Upper clamp 4.
- Page 18 For nylon cutting head / plastic blade Correct combination of the cutting tool and the protector CAUTION: Take care not to injure yourself on the cutter for cutting the nylon cord. CAUTION: Always use the correct combi- Attach the protector to the clamp using bolts. After nation of cutting tool and the protector.
-
Page 19: Cutter Blade
Cutter blade Insert the hex wrench through the hole in the gear case to lock the spindle. Rotate the spindle until the hex wrench is fully inserted. CAUTION: When handling a cutter blade, always wear gloves and put the blade cover on the blade. CAUTION: The cutter blade must be well pol- ished, and free of cracks or breakage. -
Page 20: Nylon Cutting Head
Attaching the shoulder harness Nylon cutting head NOTICE: WARNING: Be sure to use genuine Makita nylon Be extremely careful to maintain cutting head. control of the tool at all times. Do not allow the tool to be deflected toward you or anyone in the work vicinity. - Page 21 Adjusting the hanger position Clasp the hook on the shoulder harness to tool's ring and hanger. For UR006G only For more comfortable handling of the tool, you can change the hanger position. Loosen the hex socket head bolt on the hanger, and slide the hanger to a comfortable working position.
- Page 22 Adjust the hanger position as shown in the figure Correct positioning and handling allow optimum control and then tighten the hex socket head bolt. and reduce the risk of injury caused by kickback. UR006G 750 mm 100-300 mm 750 mm The hanger position from the ground UR007G The cutting tool position from the ground The horizontal distance between the hanger...
-
Page 23: Maintenance
Discoloration, deformation or cracks may result. To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjustment should be performed by Makita Authorized or Factory Service Centers, always using Makita replacement parts. Cleaning the tool Clean the tool by wiping off dust, dirt, or cut off grass with a dry cloth or one dipped in soapy water and wrung out. - Page 24 95-M10L 100 mm 80 mm 24 ENGLISH...
-
Page 25: Troubleshooting
► 1 . Arrow on the protector 2. Arrow on the blade TROUBLESHOOTING Before asking for repairs, conduct your own inspection first. If you find a problem that is not explained in the manual, do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy Motor does not run. -
Page 26: Optional Accessories
The use of any other accessory or attachment may result in serious personal injury. CAUTION: These accessories or attachments are recommended for use with your Makita tool specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use accessory or attachment for its stated purpose. - Page 28 Makita Europe N.V. Jan-Baptist Vinkstraat 2, 3070 Kortenberg, Belgium Makita Corporation 3-11-8, Sumiyoshi-cho, Anjo, Aichi 446-8502 Japan 885901-227 www.makita.com 20210413...
