Summary of Contents for Milagrow WindowBot8.0

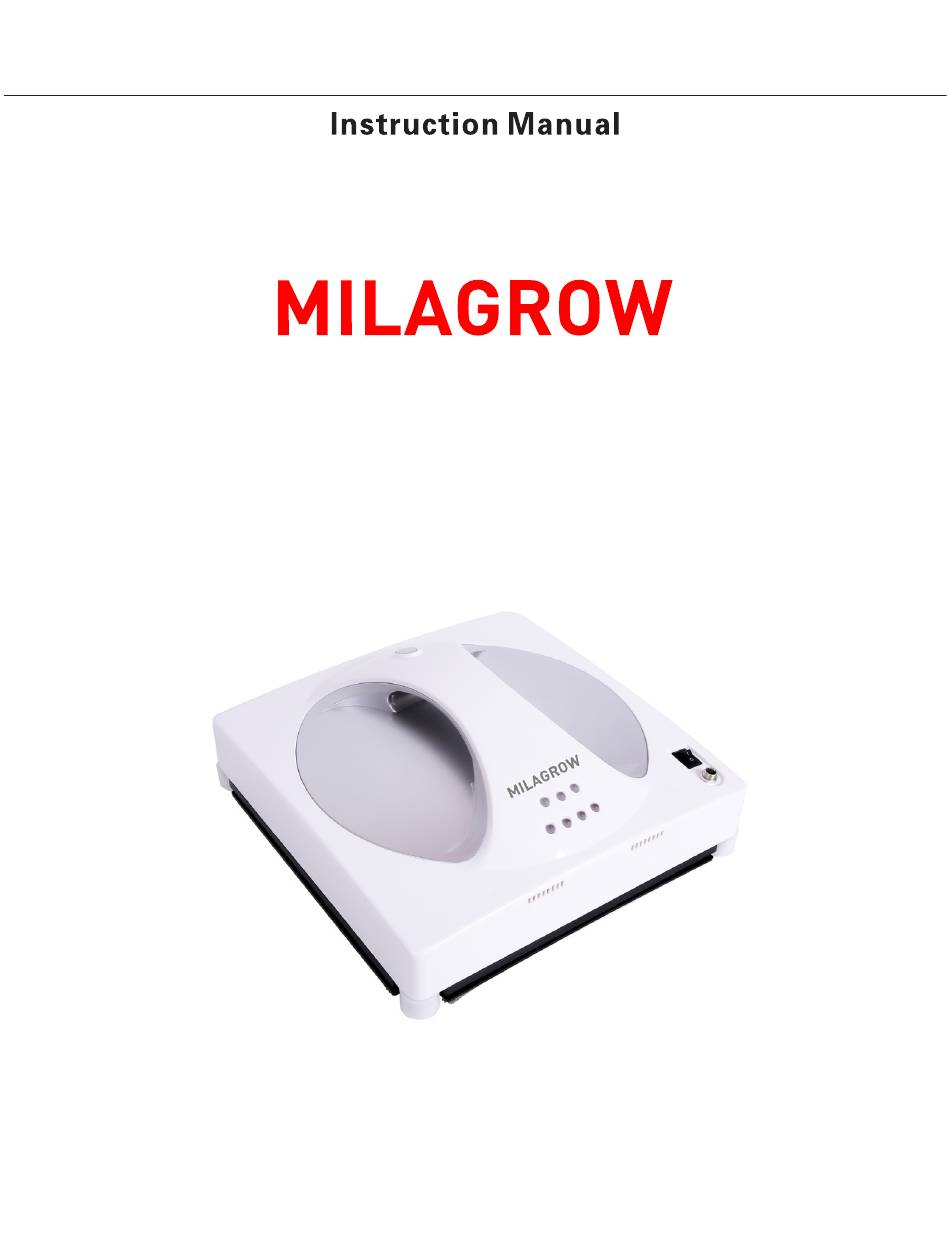

- Page 1 WINDOW CLEANING ROBOT Window...
-
Page 2: Table Of Contents
CONTENTS Safety Criteria 2. Product Composition 2.1 Package contents 2.2 Technical parameters 3. Product Manual 3.1 Precautions before use 3.2 Install the cleaning cloth 3.3 Connect the adapter 3.4 Assemble the safety rope assembly 3.5 Product work 3.6 Product pause 3.7 End the work 4. -
Page 3: Safety Criteria
Window 1.Safety Criteria Please read this manual carefully before using the product. Save the manual. When using the product, please maintain consistent vigilance and keep the following precautions: 1.This product is strictly forbidden to use under the following conditions: 1.1 Products can not be used by children under 12 years old and the person physically or mentally impaired. - Page 4 Window 1.Safety Criteria outlet. Do not use the product when it is not working properly due to dropping, damaging or water ingress. To avoid injury, the product sho- uld be repaired by the manufacturer or its after-sales service department. 1.14 The cleaning cloth can be applied to the wet glass surface, Non- reflux of water droplets on glass.
- Page 5 Window 1.Safety Criteria 2.8 Battery charging can not be carried out in an overheated or undercooled environment to avoid affecting battery life. If you don't use it for a long time, please charge the battery every 1-2 months for 2 hours. 2.9 The battery must be replaced by the professional staff of the manufacturer, its maintenance department or similar department.
-
Page 6: Product Composition
Window 2. Product Composition 2.1 Package Contents Instruction Adapter Component Host Manual Safety Rope Remote Control Clean Cloth Components 2.2 Technical Parameters Operating Voltage (V) Rated power (W) Remote control Rated input voltage (V) Adapter Type: WT-2403750 Output: DC24V 3.75A Input: AC110-240V 50/60Hz... - Page 7 Window 2. Product Composition 2.3 Part name Host 1. Pause /Start button 2. Handle 3. Power switch 4. Status indicator 5. Battery indicator 6. Power jack 7. Air outlet 8. Guide wheel 9. Floating wiping chassis 10. Anti-drop sensor 11. Drive wheel 12.
-
Page 8: Product Manual
Window 3. Product Manual 3.1 Precautions before use It is strictly forbidden to use this product on framed glass with a thickness of the border (height difference from the glass surface to the bezel) of less than 5 mm. Use this product in a framed or frameless ratio of ≥... -
Page 9: Install The Cleaning Cloth
Window 3. Product Manual When the product is working on a horizontal glass surface, the remote control should be used to control the operation of the product. If you use this product on windows that are not completely vertical, the product may not function properly. Make sure that you are in the side care area and, if necessary, assist the product. -
Page 10: Connect The Adapter
Window 3. Product Manual 3.3 Connect the adapter Disassemble the power line end of the product and the power line of the adapter, connect both ends of the extension line to the power line end of the product's power supply line and the adapter power line, and tighten up the power line at the end of the power supply line and the... -
Page 11: Product Work
Window 3. Product Manual 3.5 Product work Connect the power supply and make sure fasten the safety rope Do not disconnect the power supply while the product is running. Otherwise, the product will fall risk. Turn the power switch on When turn on, do not let the hair or other small objects near the fan, so as not to... - Page 12 Window 3. Product Manual Start working Automatic Mode: There are two ways to start the work: Press the button on the host or the button on the remote control, all can start the automatic mode. N Mode: Operation via remote control mode key N key: for vertical glass, the product to "N"...
-
Page 13: Product Pause
Window 3. Product Manual Manual Mode: Use a remote control to control the operation of the machine and the up,down, left and right. Among: Up and down keys are forward / backward. Right and left keys to adjust the machine direction. 3.6 Product pause In the process of working, by host or remote control... -
Page 14: End The Work
Window 3. Product Manual 3.7 End the work End glass cleaning, the product will return to the start position, the beep sounds. Remove the product Grip the product handle, press about 5 seconds, the fan stops working, then remove the host from window. -
Page 15: Maintenance
Window 4. Maintenance Clean Walking Belt When cleaning the cloth and bottom components, unplug the power and turn off the host. 4.1 Cleaning cloth Remove the cleaning cloth, soak in water at 20 ℃ for 2 minutes, then with a soft brush clean . - Page 16 Window 4. Maintenance Walking belt: Clean with a dry cloth so as not to damage the product suction. Fall prevention sensor: Clean with a dry cloth to maintain its sensitivity.
-
Page 17: Status Indicator
Window 5. Status Indicator 1. The indicator lights of the current running status of the machine are yellow-green two-color light, blue light and red light. Yellow: Charging Green: Charging completed Blue: The machine is normal Red: Machine abnormality 2. The indicator of the current power of the machine (blue). - Page 18 Window 6. Route Plan “N” key: The machine from left to right in accordance with the N route wipe. Automatic wipe complete will back initial position. “Z” key: The machine from top to bottom in accordance with the Z route wipe.
-
Page 19: Fault Description
Window 7. Fault Description Troubleshooting Solution: Appearance Solution Number Clean cloth too wet or spray more water on Machine Slips the glass. Replace other non-wet wipes or spray the glass on the water to dry it. Please contact the dealer or after-sales Green or yellow service center. - Page 20 Window 7. Fault Description Product calibration: The product has been calibrated at the factory, and the user does not need to calibrate it under normal use. If you have a serious bump and do not use it for a long time, you may need to calibrate it yourself.The calibration steps are as follows: 1.
-
Page 21: Warranty Card
Window 8. Warranty Card Warranty Card Dear client! Thanks for using product. In order to offer perfect after sale service, our service team would like to give you promise for standard service hereby. Please keep well your valid document of purchasing as an evidence to get our after sale service.
