5.4. WING HOOD USE ..................................39 5.5. IN CASE OF FIRE ..................................41 INFORMATION ON ADJUSTMENTS......................42 6.1. RECOMMENDATIONS FOR ADJUSTMENTS ..........................42 6.2. AIR FLOW ADJUSTMENT ................................42 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 3
9.2. RECOMMENDATIONS FOR REPLACEMENT INTERVENTIONS ....................47 9.3. LIST OF REPLACEABLE COMPONENTS ..........................48 9.4. OPTIONAL ....................................50 9.5. SCRAPPING AND DECOMMISSIONING ..........................51 9.6. TABLE OF SCHEDULED MAINTENANCE ..........................52 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
This symbol refers exclusively to apparatuses compliant with directive 94/9/EC. The operations shown with the following symbol must be performed only by qualified personal with specific training in working safely in areas with potentially explosive atmospheres. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Technician chosen and authorised from among those having the qualifications, Experienced maintenance skills and information, to perform routine and extraordinary maintenance technician interventions. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
The electrostatic charge accumulated by the flexible pipes might ignite a fire. Therefore, they must have electrical conductivity and be earthed. In the EXTRACTION FAN version The machine must be installed in an area where there is no explosive atmosphere. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Incorrect cleaning or not replacing the filters may cause the polluting agent to be dispersed in the external environment. 2.7. SAFETY SIGNS PLACED ON THE MACHINE There are no safety signs on the machine. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
HANDLING, ASSEMBLY AND INSTALLATION INFORMATION 3.1. HANDLING, STORAGE AND PACKAGING The standard MasterWeld packaging does not guarantee protection against rain. The machine must be stored in an enclosed environment with a relative humidity below 70%. The machine must be stored in temperatures between -10°C and +50°C inclusive.
Page 10

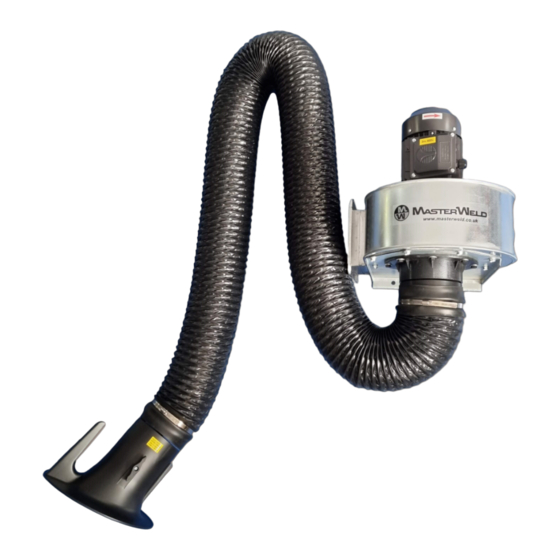

The Extraction Fan arms can be installed on wall shelf, stand and on trolley machines. There are two different supports: rounded (zinc-coated and painted) and squared (stainless steel) For further IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 11
Ø ARM ROUNDED PAINTED SQUARE STAINLESS 300000615401 WALL SHELF 3000033237 300000682101 FLANGE 3000025354 300000670102 3000033177 300002535501 3000033241 300002535601 3000033243 300002535701 3000025363 WALL SHELF DIMENSIONS Ø ARM N° fori 170/190/210 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
(the bolts are not provided by MasterWeld). Fasten the MasterWeld shelf holder plate. Fasten the MasterWeld shelf to the shelf holder plate with ØM8x40 Proceed with the installation according to the instructions “Assembling the wall- mounted shelf”.
IMAGE Fasten the wall shelf in the required position with appropriate bolts (the bolts are not provided by MasterWeld). Take the slewing bearing from the previously opened box and fasten it to the shelf on the wall using the ØM8x40 screws and M8 nuts and washers provided with the arm.
Page 14
"3.2.4. Hood assembly". Fix the flexible to the cap and to the upper joint, using the bands supplied with the arm. Carry regulations described paragraph "3.7. CUSTOMISED CALIBRATION" IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Different types of hood can be installed on the Extraction fan arm, as shown in the table below. ARMS HOODS WING HOOD PAINTED STAINLESS Ø ARM LIGHT LIGHT LIGHT LIGHT √ √ √ √ √ √ √ √ √ √ √ √ √ √ √ IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 16
Fix the hood (A) to the arm using the M10 nut (B) with profiled washer (C), placing the Teflon washer (D) on the front side, and screws ØM10x35 (G) and Teflon (E) and flat (F) washers IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Make a first, very slow lifting manoeuvre, keeping the component as close as possible to the ground to ensure that the load is balanced. Refer to the diagrams below for indications regarding the lifting points. Example of lifting the complete arm. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
See section "4.6. DESCRIPTION OF PERIMETER AREAS". To install the machine and size the suction line properly, please contact the MasterWeld Technical Department in advance.
Version with light kit The arm can be delivered with hood complete with light. Please consult the wiring diagram below for the power connections. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
3.6. METHODS FOR INSTALLING OPTIONAL PARTS The optional Parts that are difficult to assemble are not described in the manual, and the MasterWeld Technical Department must be contacted for any information that may be required. The machine can be delivered with the following optional: •...
Page 21
STEP ACTION IMAGE Fasten the wall shelf in the required position with appropriate bolts (the bolts are not provided by MasterWeld). See table in Para 3.4 "Machine installation mode" Assembly the fan on the wall shelf previously described. Assembly the slewing bearing and the arm as described in "WALL SHELF ASSEMBLY"...
Page 22
3) Bend the flaps of the frame 4) Fix the inner support of the frame with the handle fixing nut 5) Apply the mesh to the frame using the 4 screws supplied. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 23
(through the hole), using the feed through strip provided, after removing the protection cap. 3) Connect the power cord installed at point 2) with the kit connector IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Position the arm as shown in figure and remove the spring cover on the upper part of joint 1 using a flat tip screwdriver as shown in figure. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 25
RETRACTED position and to DECREASE the effort required by the operator to return the arm to the EXTENDED position at the same time. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
RETRACTED position and to DECREASE the effort required by the operator to return the arm to the EXTENDED position at the same time. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Check the tightness of the bolts Make sure the work range of the arm is free from obstacles. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Declaration of incorporation of the partly completed machine Extraction Fan Arm MasterWeld herewith declares that the partly completed machine complies with the enclosed II, part I section B and respects following base requirements of the Machine Directive 2006/42/CE: 1.1.2.; 1.1.3.; 1.1.5.; 1.3.1.; 1.3.2.;...
In this manner it is possible to reach a maximum work position of 90° on the vertical axis. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
The Extraction Fan arm differs from standard MasterWeld products for the following features: - stainless steel stiff pipes, shutter and suction hood - anti static flexible hoses (with R<10 Ohm, -20°<T<90°) and conductive tubes (do not required copper braids to connect the tube sections).
Ø180 Ø180 Ø200 Ø200 Ø250 Ø250 length [m] weight [kg] MAX Flow [m 1250 1250 1800 1800 2600 2600 3100 3100 4000 4000 MAX Loss [mmH [mmH2O] [m3] IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
CE Regulation use and maintenance manual 4.5. SAFETY DEVICE DESCRIPTION Sparkle separating mesh The Extraction Fan version differs from standard MasterWeld products for the following features: - stainless steel stiff pipes, shutter and suction hood - anti static flexible hoses (with R<10 Ohm, -20°<T<90°) and conductive tubes (do not required copper braids...
Page 35
10° 5° 10° 10° 10° 0° 5° 10° 10° 15° 15° 155° 155° 165° 150° 150° 150° 150° 160° 150° 155° 165° 165° 1350 1400 1430 1450 1500 IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 36
90° 90° 90° 90° 0° 0° 0° 0° 0° 0° 0° 0° 0° 0° 0° 0° 180° 180° 180° 180° 180° 180° 180° 180° 180° 180° 180° 180° IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
5.1. RECOMMENDATIONS FOR USAGE The machine is designed to operate in negative pressure. Any other use of the machine must be previously authorised by MasterWeld Should the user not have written authorisation, the Manufacturer shall deny any liability for damage caused to persons or objects and the warranty on the line and machinery shall cease.
• Drawing in dust with a ST3 Kst>200bar•m•s-1 and / or minimum ignition energy > 10 mJ IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
5.2.2. Intended use in Extraction Fan environments The machine is designed to operate also with St2 powders. For St3 powders, please contact MasterWeld's technical department. In the Extraction Fan version Table 1 refers to filter applications depending on the category of the product processed.
• T = Dust ignition temperature • T = Ignition temperature of a 5mm layer of dust • T = The lower between T and T Riferimento nube strato IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
To ensure the suction effectiveness of the high-efficiency Wing hood, it must be placed 30 cm away from the suction point. Bigger distances will annul part of the suction and fail to ensure adequate speeds. 30 cm IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Attempt to put out the fire using a portable fire extinguisher (min.class AB) After extinguishing the flames, air out the area and, if possible, transport the machinery into the open. If necessary, contact the fire brigade. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
To regulate the air flow rate, close the gate to decrease it (optional). To regulate the air flow, close the shutter or change the fan's speed using the inverter to decrease it. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Check wear of slewing bearing • Check the cleaning of the inlet piping going to the filer. including hoods, flexible • pipes. Check conditions of internal adjustment • shutter IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Spent dusts and spare parts must be stocked and disposed of in compliance with the law in force in the country where the machine is used. Do not disperse polluting material in the environment. Put the filters into their respective sacks. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Adjust the phase inversion of the plug. The fan turns but vacuuming is insufficient. Obstructed air ducts. Remove the obstacles. Any shutters on the collection elements closed partially Open the shutters. closed. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
ASSISTANCE AND SPARE PARTS DEPARTMENT MasterWeld, Olympic House, Southmead Park, Collett, Didcot, Oxfordshire, United Kingdom, OX11 7WB Tel: +44 (0) 1235 510 717 web: www.masterweld.co.uk Spare Parts Offer Request Form Goods sending address Invoice sending address Name of requesting party...
In order to avoid the risk of fire or explosion, never smoke or use open flames inside or in the vicinity of the filter during maintenance or cleaning operations. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Brake assembly + bearings Bearings hose Rivet Nut with washer Screw Arm structure Flexible hose clamp Hood joint Hood Hood hose Hood rigid tube Central hose Upper rigid tube Screw IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Page 50
Trolley bearing Arm structure Bearing hose Bearing rigid tube Central hose Hood rigid tube Hood hose Hood joint Hood Hose clamp Screw Screw and nut with washer Rivet IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
HOOD REMOVING AND INSTALLATION(OPTIONAL) See Para. "Machine installation mode". LIGHT KIT INSTALLATION (OPTIONAL) See Para. "Method for installing optional parts". JOINT REMOVING AND INSTALLATION (OPTIONAL) See Para. "Machine installation mode". IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
STEEL. FULLY RECYCLABLE NON-RECYCLABLE MATERIAL. Hand over to a landfill. DISPOSE. Please consult the current regulations in force for information on how to properly dispose of these items. IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
Check wear of slewing bearing Check conditions of internal adjustment shutter YEARLY Operation Date Operator's signature Replace mandatory flexible channel sections with flexible hoses providing the same physical features IT IS FORBIDDEN TO EVEN PARTIALLY REPRODUCE THE TEXT AND/OR ILLUSTRATIONS. www.masterweld.co.uk...
