Summary of Contents for Quick Salt QUICKSALT20

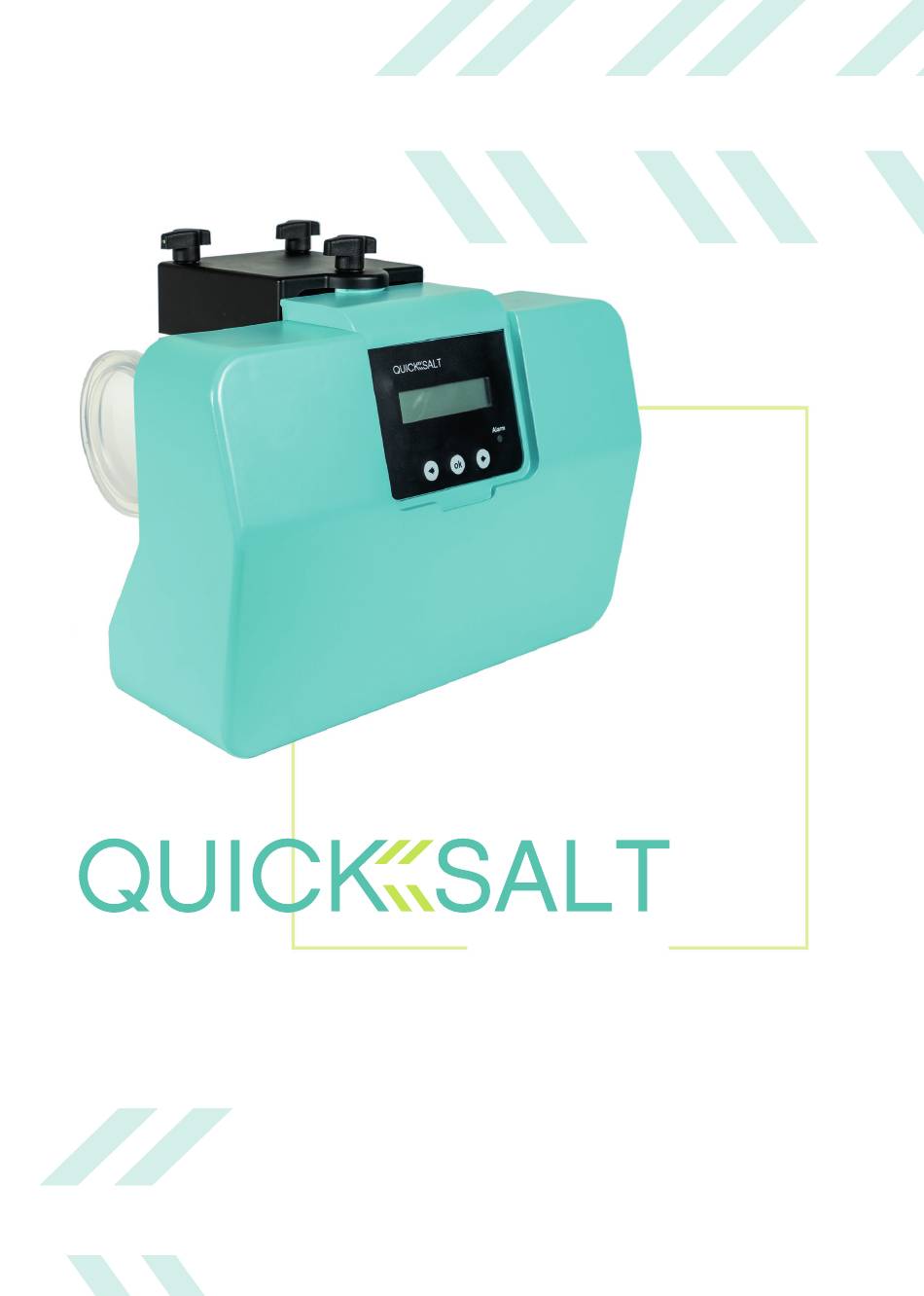

- Page 1 MANUAL DE USUARIO 20/40/60 USER’S GUIDE...
- Page 2 PLEASE NOTE THE REGISTRATION DATA OF THE EQUIPMENT YOU HAVE PURCHASED, WHICH CAN BE FOUND ON THE SIDE LABEL. QUICKSALT60 QUICKSALT40 QUICKSALT20 These data will be of use if you wish to ask any MODEL......question, services, or part replecement.
- Page 3 MANUAL DE USUARIO IMPORTANT This electronic equipment must be installed by qualified personnel. Follow the installation and operating instructions carefully. Improper handling and/or installation of the equipment could result in serious risks to property, severe personal injury and even death. Throughout the manual you will find two types of information to which you should pay particular attention: DANGER Risk of electric shock, explosion or any other risk that endangers people.
- Page 4 MANUAL DE USUARIO...
-
Page 5: Table Of Contents
MANUAL DE USUARIO Content Safety Instructions ............................06 11.-Description of the System ........................07 1.1.-Technical Specifications ......................07 2. Installation ............................... 08 2.1. Tools ............................. 08 2.2 Mounting options ..........................09 2.3. Hydraulic installation ....................... 10 2.4. Electrical Installation ....................... 15 2.4.1 Connection to the switchboard .................. -
Page 6: Safety Instructions
MANUAL DE USUARIO Safety Instructions Do not attempt to install the equipment Make sure that the power cord of the yourself if you do not have the knowledge of equipment is well protected and there is electricity and hydraulic installation. no risk of being trapped by tools such as a lawnmower or similar. -
Page 7: Description Of The System
It also has a system that will alert you if salt is required to be added to the water so that you can optimize its performance and cell life. 1.1. Technical Specifications QUICKSALT20 QUICKSALT40 QUICKSALT60 Maximum 11,71 0,80lbs... -
Page 8: Installation
MANUAL DE USUARIO 2. Installation Open the box carefully so as not to damage any parts, and make sure the contents are as follows: QUICKSALT Housing and Racord and Installation control unit Electrolytic cell mounting clamps Template Water flow sensor Temperature Kit Pass-through kit (flow switch) -
Page 9: Mounting Options
MANUAL DE USUARIO 2.2. Mounting options QUICKSALT allows you two mounting configurations, depending on your preferences and the space available in your installation: TYPE A Installation: The cell and the electronic control unit are assembled together. TYPE B Installation: The cell and the electronic control unit are mounted separately. -
Page 10: Hydraulic Installation
MANUAL DE USUARIO 2.3. Hydraulic installation Security warning It is always preferable that the pool is empty before installing the equipment. However, if your pool is full and you do not wish to empty it, you should carefully follow the instructions below: 1) Turn the filter selector valve to the “close”... - Page 11 MANUAL DE USUARIO The measures required for each of these elements are as follows: - Electrolysis cell: Minimum 14 inches. - Flow sensor: Minimum 4 inches. Both elements must be installed in the same pipe. It is important that the water flows first through the flow sensor, and then through the electrolysis cell.
- Page 12 MANUAL DE USUARIO 2.3.2. Assembly of the cell Once the accessories have been glued, the cell can be assembled. Please follow the steps below: 1) The orientation of the cell housing must always be vertical. Note that the tab marked in the following picture is facing away from the wall, i.e.
- Page 13 MANUAL DE USUARIO 5) Check that the cell is properly installed inside the housing, including the O-ring between the round cell cover and the housing. 6) Depending on where you want to locate the control unit, proceed as follows: Attention: Please, ensure that the connection cables between the cell and the control unit, are placed over the green mark.
- Page 14 MANUAL DE USUARIO Water flow (Gall/min) 11/2” 2” Paddle length *Close **Open *Close **Open 1+2+3 1+2+3+4 1+2+3+4+5 1+2+3+4+5+6 * Close by flow rise ** Open by flow decrease Note: An excessively long paddle in a high water flow would reduce the life of the sensor.
-
Page 15: Electrical Installation
MANUAL DE USUARIO 2.4. Electrical Installation 2.4.1. Connection to the switchboard Once you have checked that the hydraulic installation does not present any losses, you can connect your QUICKSALT chlorinator to the electrical control panel. Attention: Disconnect the power supply to the panel before handling it. Never open the switchboard without having disconnected the power from the main switchboard. -
Page 16: Starting Up
MANUAL DE USUARIO 3. Starting up 3.1. Preparation of the pool water 3.1.1. How to add salt to your pool QUICKSALT salt chlorinator requires a small concentration of common salt (NaCL) to work properly. The recommended concentration is between 3300ppm and 8000ppm with the most common concentration being 4000ppm. - Page 17 MANUAL DE USUARIO 3.1.2. Chemical balance of water You should keep in mind that much of the effectiveness of your QUICKSALT chlorinator will depend on the pH of the water being within the proper range: between 7.2 and 7.6. It is common that the pH tends to increase with the use of the salt chlorinator, so it should be analyzed periodically and adjusted if necessary.
-
Page 18: Operation
4.1. Choosing the QUICKSALT model There are 3 models of QUICKSALT chlorinator, according to their maximum production capacity. QUICKSALT20 QUICKSALT40 QUICKSALT60 POOL 20.000 GALLONS 40.000 GALLONS 60.000 GALLONS... -
Page 19: Navigation
MANUAL DE USUARIO 4.2. Navigation In the central part of the control unit, you will find the control panel, which consists of a two-line LCD display and a button panel with 3 keys: Left, OK and right. Use the buttons to navigate through the menu to make settings, as shown below: Left arrow: Go back in the navigation, and reduce the value to be adjusted (e.g. -
Page 20: Main Screen
MANUAL DE USUARIO 4.3. Main Screen It shows the status of the equipment, and its current production: First line: Chlorine production in , and Prod: 100% 17.0V the voltage at which it is operating. Second line: Equipment status: “OK” will Status: 70ºF be displayed in case the equipment is... - Page 21 MANUAL DE USUARIO 4.4.1. Production Allows you to regulate production of chlorine, between 0 and 100 in 10 increments. This is useful to adjust the chlorine concentration of your pool, without having to decrease the hours of filtration. 4.4.2. Cleaning QUICKSALT chlorinator has a cell self-cleaning system, which prevents lime deposits on the surface of the electrodes.
-
Page 22: Maintenance
MANUAL DE USUARIO 5. Maintenance This electrolysis equipment does not require any specific maintenance while the cell is within its useful life. However, here are some tips that will help you to function optimally and prolong the life of your cell: Avoid using the equipment with too low salt concentrations. -
Page 23: Warnings And Alarms
MANUAL DE USUARIO production is restored again. This feature extends the lifespan of the Cell. Additionally, a pass-through kit (sold separately) is available, which allow you to continue running water through the plumbing without the Electrolytic Cell in place. It can be useful in case your installation does not have a plumbing by-pass system, and it is necessary to remove the cell system from the installation for maintenance purposes. - Page 24 MANUAL DE USUARIO An alarm is considered to be any serious incident that may compromise the safety of the installation or the equipment itself. If this happens, the equipment stops automatically, displaying an acoustic warning and a message on the screen. User action is required to correct the issue. Press OK to resume production once the problem has been resolved.
-
Page 25: Warranty
MANUAL DE USUARIO 7. Warranty This equipment has a 2-year warranty on its control units. In the electrolysis cells, the warranty will be two years as long as they have not exceeded the hours of use of the cells, depending on the model selected. The electrolysis cell of the QUICKSALT equipment has an approximate life of... -
Page 26: Part List
MANUAL DE USUARIO 7.1. Part list and spare parts Check Quicksalt package, it must contain these following items. Also, these items are available for spare parts. Part Description Quantity Picture Spare part reference QUICKSALT control QS-Control unit *Cell-RP35QS-10K Electrolysis cell *Cell-RP25QS-10K *Cell-RP15QS-10K QS-Vaso... - Page 27 MANUAL DE USUARIO...
- Page 28 U.S. Office: 1680 Michigan Avenue, suite 700 Miami Beach, Florida 33139...
