INSTALLATION AND SERVICE MANUAL
For Installation of Martini small HP LED.
Model. MN-91261,MN-91262,MN-91271 and MN-91272

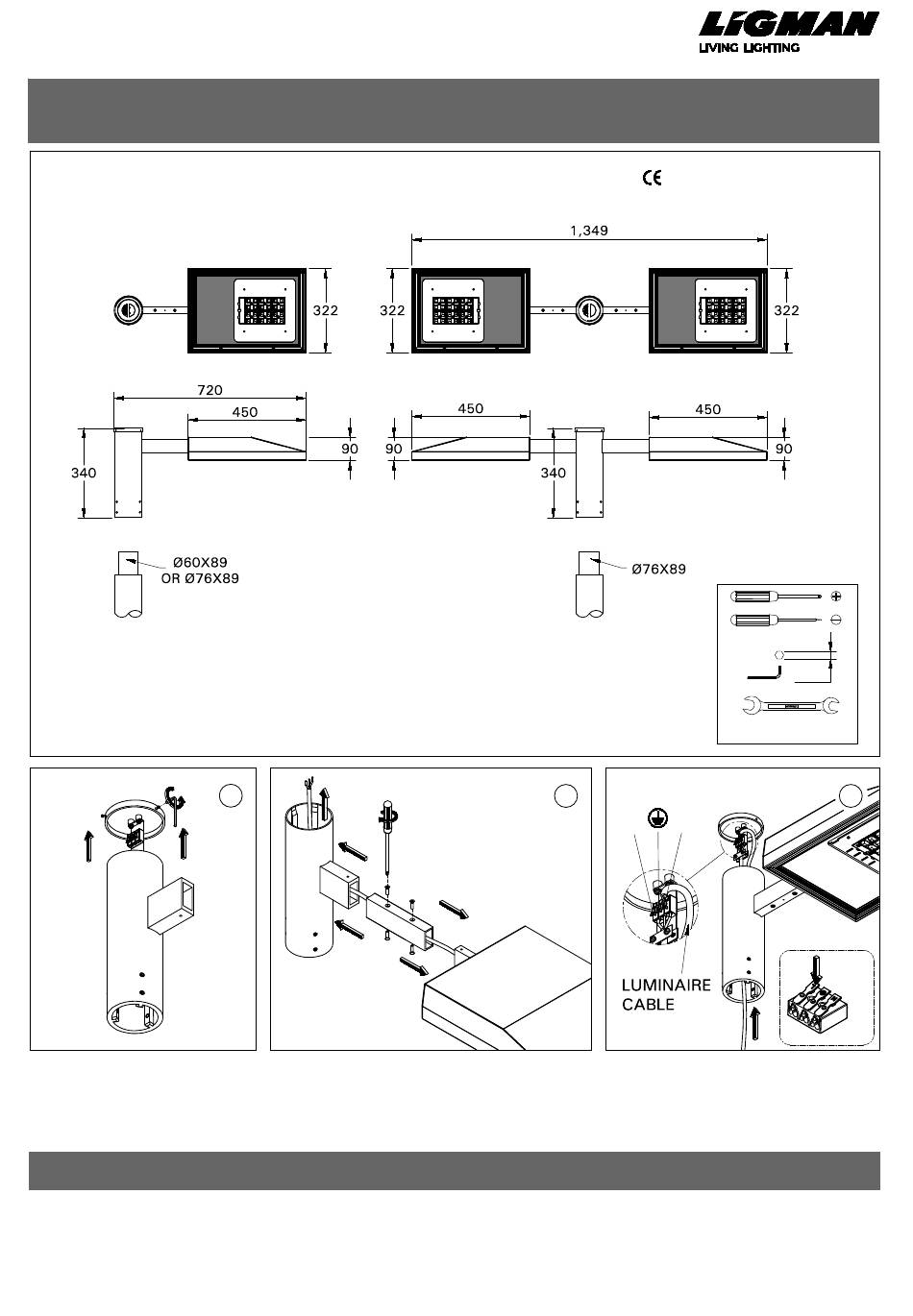

Product drawing (dimensions)
MN-91261,MN-91262
Weight : 13.0Kg.
Windage Area :0.07m².
■ LIGMAN standard products are supplied with the control gear 220-240V 50/60Hz.
The control gear for other voltages and frequencies is available upon request, please consult us for more details.
■ LIGMAN luminaires are designed to conform IEC 60598 2-1 standard.
Technical amendments and modifications techniques reserved.
L i g m a n L i g h t i n g
Europe Headquarters
Ligman Europe s.r.o.
VGP Park Usti nad Labem, P 2
Prestanov 113
403 17 Prestanov
Czech Republic
Tel. +420 608 740 504
sales.cz@ligman.com
|
www.ligman.com
1
Thailand Headquarters
Ligman Lighting Co., Ltd.
17/2 Moo 4, Monthong, Bangnampreaw
Chachoengsao 24150 Thailand
Tel : +66 (2) 7339140
info@ligman.com
M MN-91261/07/11/16REV.0
MN-91271,MN-91272
Weight : 26.6Kg.
Windage Area :0.17m².
2
Torque:3.0Nm.
1/2
IP54 IK07 CLASS I
2,4,5
TOOL
N
L
Ligman Ltd
Regus House, Victory Way
Crossways Business Park
Dartford DA2 6QD
Tel. 0800 975 0622
sales.uk@ligman.com
FM-TS-13-1/13-03-2561/REV.4
3
Push
