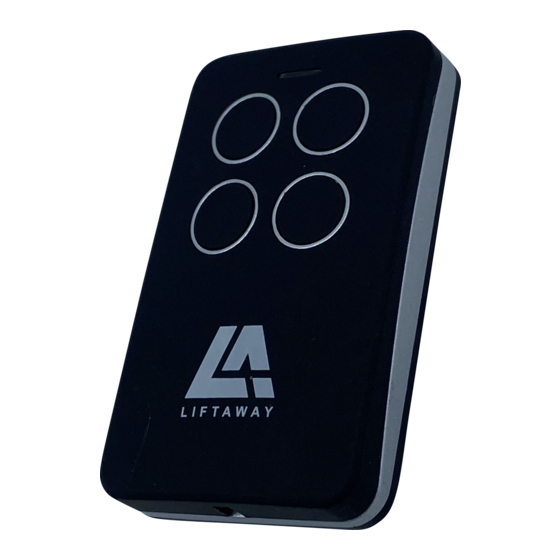

Liftaway LAUVR1 Quick Start Manual

STEP 1:
CLONING YOUR EXISTING REMOTE
O�������
������ ����
������
STEP 1.2:
Press and hold the top left button on LAUVR1
Universal Remote. While continuing to hold
top left button press top right button 4 times,
then release all buttons. (this will put LAUVR1
Universal Remote into learn mode, the red
L.E.D will flash)
FLASH
STEP 1.4:
Check the red LED on LAUVR1, once LED
illuminates continuously then begins to
flash rapidly - this indicates code has been
cloned successfully.
* Note: with simple coded remotes the red
LED will just flash rapidly immediately, either
result is acceptable.
FLASHING RAPIDLY
MEANS THE CODE
HAS BEEN COPIED
LAUVR1
U��������
R�����
PRESS 4 TIMES
HOLD
STEP 1.1:
Place existing working remote and Liftaway
Universal Remote on flat surface, 2-3cm away,
making sure the top ends of each remote
face each other.
STEP 1.3:
Press and hold the operating button on
existing working remote (one of the
generic remotes above) you wish to
clone for 3-8 seconds
HOLD FOR
3 - 8 SECONDS
STEP 1.5:
Press the button on LAUVR1 that you wish
to assign to operate your garage/gate motor.
The red LED will now go out indicating
operation complete. Your remote is now
successfully cloned and is ready to link to
your garage/gate motor.
1
3
2 - 3 cm
2
4
