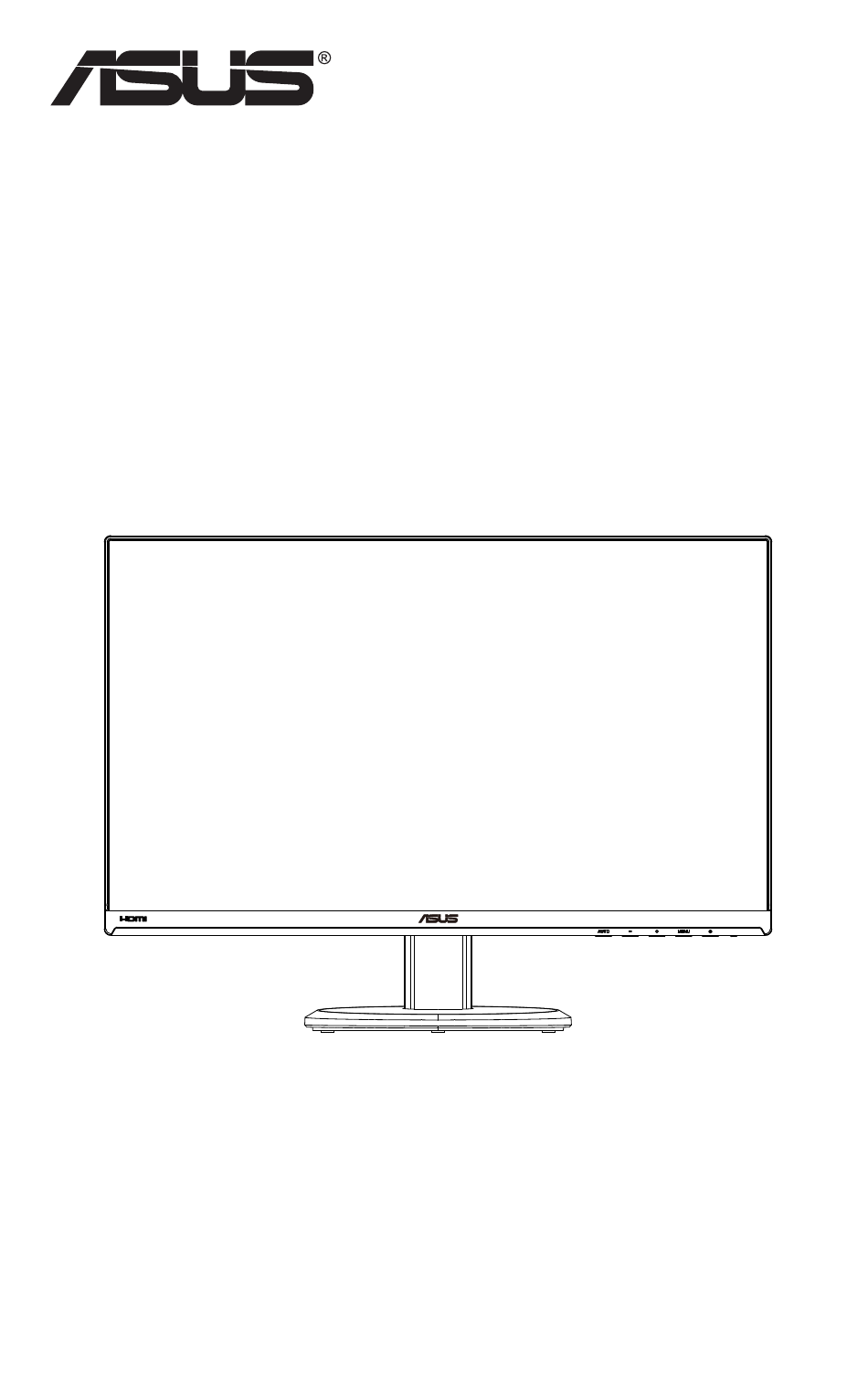

  • Page 1 VA229HR LCD Monitor User Guide...

  • Page 2: Table Of Contents

    Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.

  • Page 3: Notices

    Notices ® As an Energy Star Partner, our company has determined ® that this product meets the Energy Star guidelines for energy efficiency.

  • Page 4: Safety Information

    Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.

  • Page 5: Care & Cleaning

    Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. •...
  • Page 6 Refer to the following sources for additional information and for product and software updates. ASUS websites The ASUS websites worldwide provide updated information on ASUS hardware and software products. Refer to http://www.asus.com Optional documentation Your product package may include optional documentation that may have been added by your dealer.

  • Page 7: Welcome

    ® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...

  • Page 8: Assembling The Monitor Base

    Assembling the monitor base Attach the base to the arm. Screw the base to the arm tightly. • We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. Chapter 1: Product Introduction...

  • Page 9: Monitor Introduction

    When OSD menu is on, press - or + to adjust menu. • Press this button over five seconds to enable or disable the key lock function. + Button: • When OSD menu is on, press - or + to adjust menu. ASUS LCD Monitor VA229H...
  • Page 10 MENU Button: • Press this button to enter the OSD menu. • Press this button to enter/select the icon (function) highlighted while the OSD is activated. Power Button/Power Indicator: • Press this button to turn the monitor on/off. • The color definition of the power indicator is as the below table. Status Description Blue...

  • Page 11: Rear Of The Lcd Monitor

    1.4.2 Rear of the LCD monitor HDMI AC-IN port HDMI port VGA port Audio-in port Earphone port Kensington Lock ASUS LCD Monitor VA229H...

  • Page 12: Detaching The Arm/Stand (For Vesa Wall Mount)

    Hold the stand while removing the screws. • The VESA wall mount kit ( 100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm). ASUS LCD Monitor VA229H...

  • Page 13: Adjusting The Monitor

    Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you. • Hold the stand to prevent the monitor from falling while changing its angle.

  • Page 14: Osd (On-Screen Display) Menu

    Each mode has the Reset selection, allowing you to maintain your setting or return to the preset mode. ASUS VA229 Splendid RGB Mode VGA 1920x1080@60Hz Standard Mode sRGB Mode Scenery Mode Theater Mode Game Mode Night View Mode Reading Mode Darkroom Mode ASUS LCD Monitor VA229H...
  • Page 15 In the sRGB, the Saturation, Color Temp., SkinTone, Sharpness, Brightness, Contrast and ASCR functions are not user-configurable. Blue Light Filter Adjust the energy level of blue light emitted from LED backlight. ASUS VA229 Blue Light Filter RGB Mode VGA 1920x1080@60Hz Level 0...
  • Page 16 In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. Image You can adjust the image Sharpness, Trace Free, Aspect Control, Vividpixel,ASCR, Position (VGA only), and Focus (VGA only) from this main function. ASUS LCD Monitor VA229H...
  • Page 17 0 to faster 100. • Aspect Control: Adjusts the aspect ratio to “Full”, “4:3”,“Overscan”. • Vividpixel: ASUS Exclusive Technology that brings lifelike visuals for crystal-clear and detail-oriented enjoyment. The adjusting range is from 0 to 100. •...
  • Page 18 ASUS VA229 Input Select VA229 RGB Mode VGA 1920x1080@60Hz HDMI System Setup Adjusts the system configuration. ASUS VA229 System Setup RGB Mode VGA 1920x1080@60Hz Splendid Demo Mode GamePlus QuickFit ECO Mode OSD Setup Language Key Lock More ASUS LCD Monitor VA229H...
  • Page 19 ASUS VA229 System Setup VA229 RGB Mode VGA 1920x1080@60Hz Back Information Power Indicator Power Key Lock All Reset • Splendid Demo Mode: Activate the demo mode for the Splendid function. • GamePlus: The GamePlus Function provides a toolkit and creates abetter gaming environment for users when playing different types of games.
  • Page 20 Information: Displays the monitor information. • Power Indicator: Turn the power LED indicator on/off. • Power Key Lock: To disable / enable power key • All Reset: Selects “Yes” to revert all settings to the factory default mode. ASUS LCD Monitor VA229H...

  • Page 21: Specifications

    3.2 Specifications Model VA229HR Panel Size 21.5” W (54.61 cm) Max. Resolution 1920 x 1080 Brightness (Typ.) 250cd/m Intrisinc Contrast Ratio (Typ.) 1000:1 Viewing Angle (CR≤10) 178°(V); 178°(H) Display Colors 16.7 M Response Time (Typ.) 5 ms (Gray to Gray)

  • Page 22: Troubleshooting (Faq)

    • Adjust the R/G/B color settings or select the Color Temperature via OSD. Screen image is blurry or fuzzy • Press the AUTO button to automatically adjust the image (for VGA mode only). • Adjust the Phase and Clock settings via OSD. ASUS LCD Monitor VA229H...

  • Page 23: Supported Timing List

    Supported Timing List VESA / IBM Modes Support Timing Resolution Refresh Rate Horizontal Frequency 640 x 480 60Hz 31.469KHz 640 x 480 67Hz 35KHz 640 x 480 75Hz 37.5KHz 720 x 400 70Hz 31.469KHz 800 x 600 56Hz 35.156KHz 800 x 600 60Hz 37.879KHz 800 x 600...
