- Page 1 1-1/2 inch Vinyl Handrail Model(s): BHRVE15C-P INSTALLATION, OPERATION & MAINTENANCE MANUAL...
-
Page 2: Table Of Contents
1-1/2 inch Vinyl Handrail TABLE Of CONTENTS Model(s): BHRVE15C-P Table of Contents General Description.........3 Installation............4-7 Parts List............8 Maintenance............9 Standard Warranty..........10 factory Assistance...........11 Copyright 2017 by Babcock-Davis. All rights reserved. This document contains proprietary information. No part of this document may be reproduced without the prior written consent of Babcock-Davis. -
Page 3: General Description
1-1/2 inch Vinyl Handrail GENERAL DESCRIPTION Model(s): BHRVE15C-P general description Recessed vinyl corner guards are designed for years of safe building use. Proper installation of the corner guards is critical to the product’s performance. The following are general instructions for installing, maintaining and cleaning vinyl corner guards. -
Page 4: Installation
1-1/2 inch Vinyl Handrail INSTALLATION Model(s): BHRVE15C-P installation Preparation: Verify that all products listed on the packaging slip are included in the package. Check the products for damage. If product is damaged, contact customer support immediately to report a freight claim. - Page 5 1-1/2 inch Vinyl Handrail INSTALLATION Model(s): BHRVE15C-P installation Step 7 Attach brackets to retainer using 1/4 inch machine screw, flat washers and standard nylon lock nut provided. Do not tighten until rail has been mounted in place and all brackets are secured to wall.
- Page 6 1-1/2 inch Vinyl Handrail INSTALLATION Model(s): BHRVE15C-P Installation, Operation & Maintenance Manual Rev 09/17...
- Page 7 1-1/2 inch Vinyl Handrail INSTALLATION Model(s): BHRVE15C-P cutting adjustment diagrams and schedule Important: Install retainer and RETAINER COVER molded accessories before cutting Return L - 3-3/16" L - 3-3/16" the snap-on cover. Outside Corner L - 1/8" L - 0"...
-
Page 8: Parts List

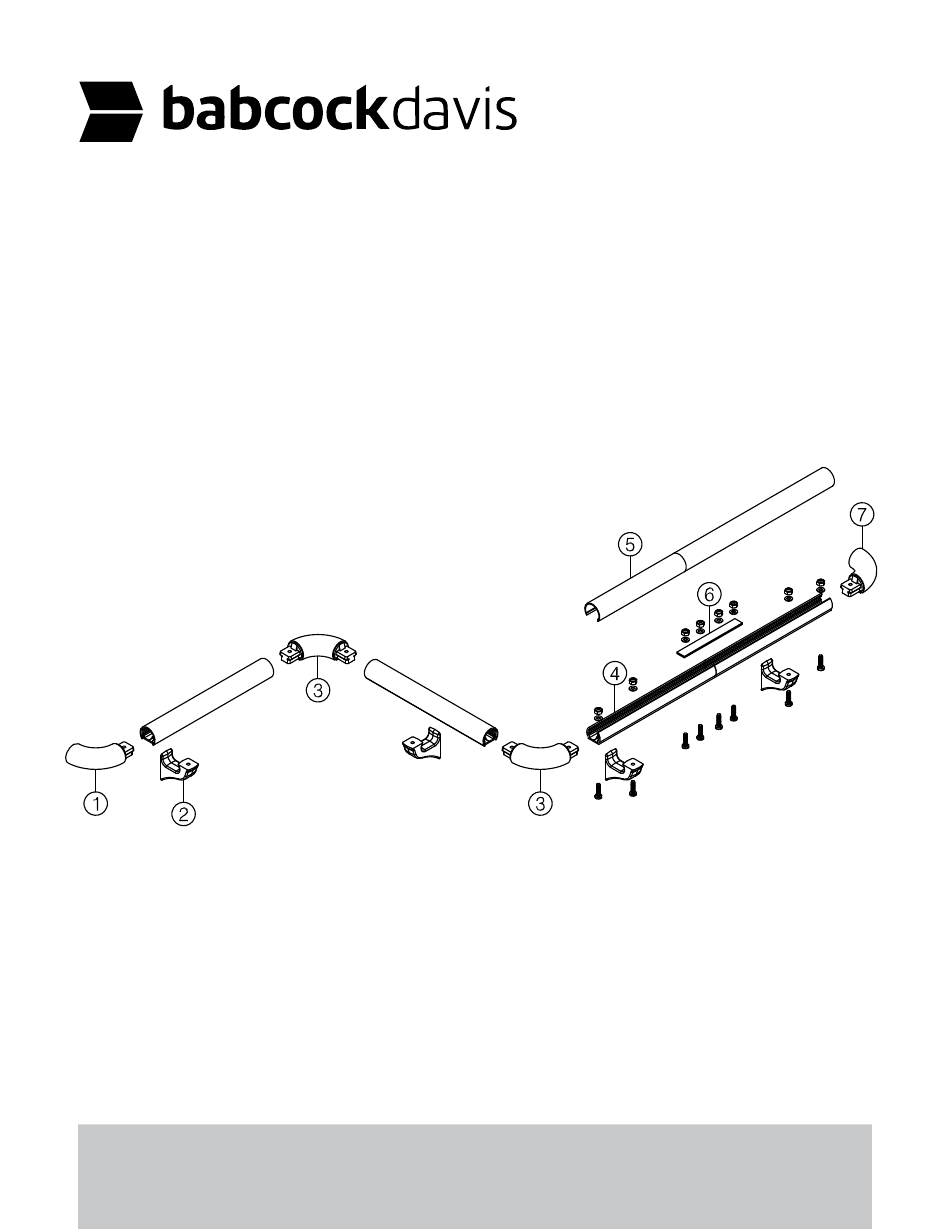

1-1/2 inch Vinyl Handrail PARTS LIST Model(s): BHRVE15C-P parts list Diagram # Part Number Description BHRVE15C-LR-P LEfT HAND WALL RETURN BHRVE15C-BR-P BRACKET BHRVE15C-IOC-P INSIDE/OUTSIDE CORNER BHRVE15C-AR-P ALUMINUM RETAINER BHRVE15C-VC-P VINYL COVER BHRVE15C-SK-P SPLICE BHRVE15C-RR-P RIGHT HAND WALL RETURN When ordering, please specify color name. Current color charts are available on www.babcockdavis.com. -
Page 9: Maintenance
1-1/2 inch Vinyl Handrail MAINTENANCE Model(s): BHRVE15C-P maintenance • Do not use ammonia based cleaner, powdered cleaners or bleach; they can leave a residue if not rinsed properly. Use a liquid cleaner, such as SoftScrub without bleach, Fantastic, 409, etc., on a sponge or a soft cloth; use a stiff bristle brush to remove heavy dirt from the textured surface if necessary. -
Page 10: Standard Warranty
1-1/2 inch Vinyl Handrail STANDARD WARRANTY Model(s): BHRVE15C-P standard warranty Babcock-Davis warrants all Wall and Door Protection to be free from manufacturing defects in materials, factory finishes and workmanship for a period of five (5) years from the date of shipment. Should a product fail to function in normal use within this period, Babcock-Davis shall furnish a replacement or new part at Babcock-Davis’s... -
Page 11: Factory Assistance
1-1/2 inch Vinyl Handrail fACTORY ASSISTANCE Model(s): BHRVE15C-P factory assistance Babcock-Davis engineers and manufactures Wall and Door Protection for worldwide customers. Our products are an integral part of commercial projects to prevent damage and safeguard your building investment. Recognized as an industry leader, Babcock-Davis has been relied upon by building and construction professions for over 100 years and we pride ourselves in offering exceptional technical support. - Page 12 Visit www.BabcockDavis.com for the latest version of this document and more information. Great Products. Better Partners. 9300 73RD AVENUE NORTH BROOKLYN PARK, MN 55428 (888) 412-3726 (888) 312-3726 fAX WWW.BABCOCKDAVIS.COM...
