Summary of Contents for Baumer SensControl

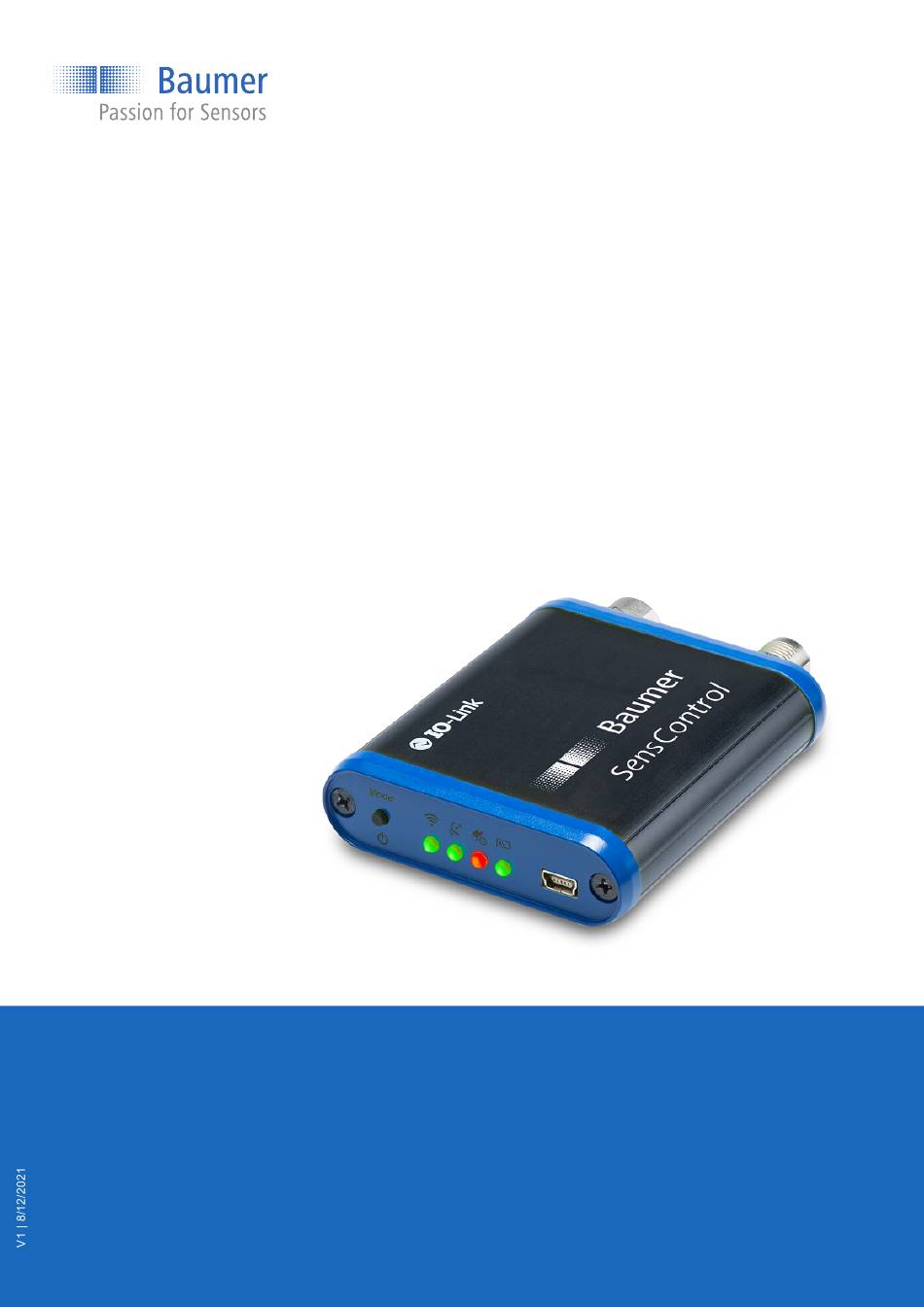

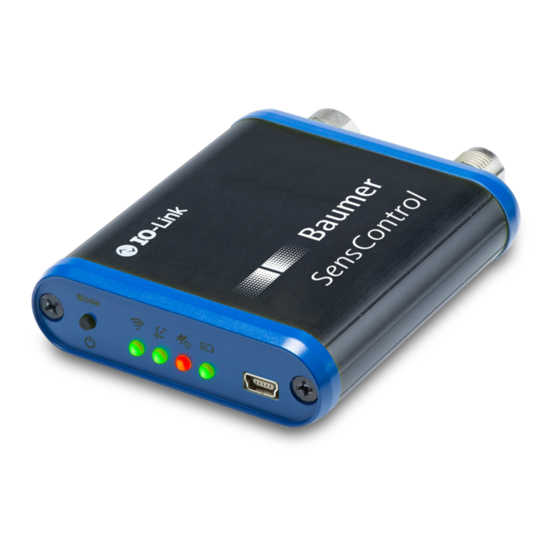

- Page 1 Operating Manual SensControl EN-US Wireless IO-Link Master and App...
-
Page 2: Table Of Contents
4 Operation..............................11 4.1 Switching the SensControl on/off......................11 4.2 Changing the operating mode (master/sniffing)..................11 4.3 Charging the battery ..........................11 4.4 Operating the SensControl in sniffing mode ..................12 4.4.1 Connecting the SensControl (sniffing mode) ................12 4.4.2 Activating sniffing mode ...................... -
Page 3: About This Document
In addition, the local occupational health and safety regulations and general safety regulations apply. The illustrations in this manual are examples only. Deviations are at the discretion of Baumer at all times. The product is not intended for permanent installation in automation systems. -
Page 4: Name Plate
About this document Baumer Name plate The name plate can be found on the back of the SensControl. Made in Germany Ill. 1: Name plate Serial number Device name WLAN SSID ex works Operating Manual SensControl | V1... -
Page 5: Description
The changes made to the parameters and control commands in the SensControl app are forwarded to the IO-Link device. Master mode is the mode in which the SensControl starts when it is switched on. As soon as an IO-Link device is connected to the SensControl, communication is estab- lished between the IO-Link device and the SensControl. -
Page 6: Direct Mode
WLAN that may have been configured. LED 2 ... provides information about the status of the IO-Link communication. Lights up green: The SensControl is operating in Master mode and the IO-Link de- vice has the status OPERATE. Lights up red: No IO-Link device is connected or the status could not be changed to OPERATE. -
Page 7: Senscontrol App
Baumer Description SensControl app The SensControl app allows you to access the connected IO-Link device (for parameterization and visualization) via your smartphone/tablet. The app is available in the Apple App Store and Google Play Store. Ill. 3: SensControl app Roles The SensControl app distinguishes between 3 roles that have different permissions: Observer,... -
Page 8: Power Supply
Integrated battery In battery mode, the SensControl has a runtime of approx. 3 h with an energy consumption of the IO-Link device of 2 W on average. In battery mode, the SensControl provides up to 350 mA for the IO-Link device. -
Page 9: Dimension Drawing, Connections, And Display Elements
Baumer Description Dimension drawing, connections, and display elements Ill. 5: Dimension drawing, connections, and display elements V1 | SensControl Operating Manual... -
Page 10: Commissioning
The SensControl automatically downloads the IODD of the connected IO-Link device. ü Finally, the start screen of the SensControl app opens. The device is now ready for use. INFO The SensControl app stores IODDs in an offline cache once they have been downloaded. If the required IODD has already been downloaded, you can also use the SensControl app without an Internet connection. -
Page 11: Operation
200 mA. w Connect the USB charging cable included in the scope of delivery to the SensControl (con- nector for mini-USB) and to a conventional charger for cell phones or to a PC/laptop. -
Page 12: Operating The Senscontrol In Sniffing Mode
Connect the USB IOLM to the SensControl (connection for IO-Link master). b) Connect the sensor to the SensControl (connection for IO-Link device). c) Insert a MicroSD card into the SensControl (slot for MicroSD card). The MicroSD card must be FAT32-formatted. -
Page 13: Activating Sniffing Mode
1 = IO-Link device > IO-Link master Information is given in hexadecimal Resetting to factory settings Instruction: w Press and hold the power button of the SensControl until all LEDs light up and then go out one after the other (approx. 10 sec). Result: ü... -
Page 14: Operation Of The Senscontrol App
Select the desired source (URL) from which the IODD of the IO-Link device is to be down- loaded. NOTICE! The SensControl automatically downloads the IODD from the URL set here as soon as you connect the IO-Link device to the SensControl. -
Page 15: Creating Favorites
Navigate to the desired submenu item. In our example: Identification Vendor Name b) Tap the asterisk (on the right of the submenu item). Result: ü The submenu item is saved in the list of favorites. V1 | SensControl Operating Manual... -
Page 16: Parameterizing An Io-Link Device (Example)
Parameterizing an IO-Link device (example) INFO The type and scope of the adjustable parameters depends on the IO-Link device connected to the SensControl. The following is an example of how to parameterize the switch point SP1 for an inductive distance sensor from Baumer. Condition: ð... - Page 17 Baumer Operation c) Tap Setpoints. ü Setpoints page opens. d) Tap SSC1 Param. ü SSC1 Param page opens. V1 | SensControl Operating Manual...
- Page 18 Operation Baumer e) Tap on SP1. ü page opens. f) Use the slider bar to set the desired value for SP1 (1) and confirm with Apply (2). Result: ü The parameter for SP1 is set. Operating Manual SensControl | V1...
-
Page 19: Technical Data
▪ Voltage IO-Link device: 24 V ±20% Radio transmission output WLAN: 18 dBm max. Bluetooth Smart: 2 dBm Standards EN 55022 /2010 Class A EN 55024 /2010 + A1 /2015 Contains FCC ID: W7OMRF24WG0MAMB Contains FCC ID: PVH0950 IC: 5325A-0950 V1 | SensControl Operating Manual... - Page 20 List of illustrations Ill. 1 Name plate ............................Ill. 2 Functionality of the SensControl......................Ill. 3 SensControl app ..........................Ill. 4 Connections on the SensControl ......................Ill. 5 Dimension drawing, connections, and display elements ..............Operating Manual SensControl | V1...
- Page 24 www.baumer.com/worldwide...
