Summary of Contents for Kingspan Sensor Watchman UNI

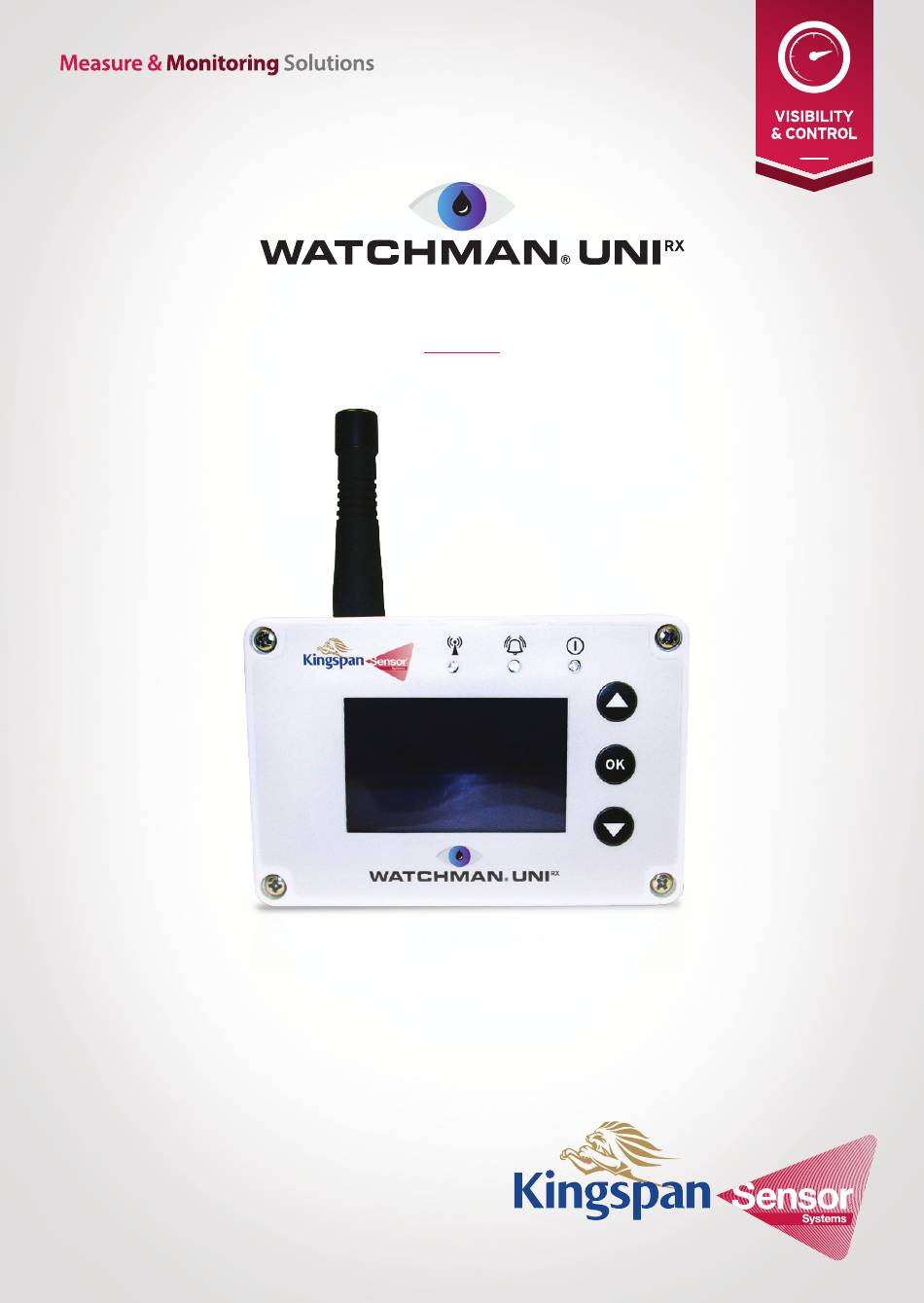

  • Page 1 User Guide...

  • Page 2: Table Of Contents

    CONTENTS Introduction to Watchman UNI List of compatible products Where to purchase Features Indicator and button descriptions Main screen indicators Set up Specifications...

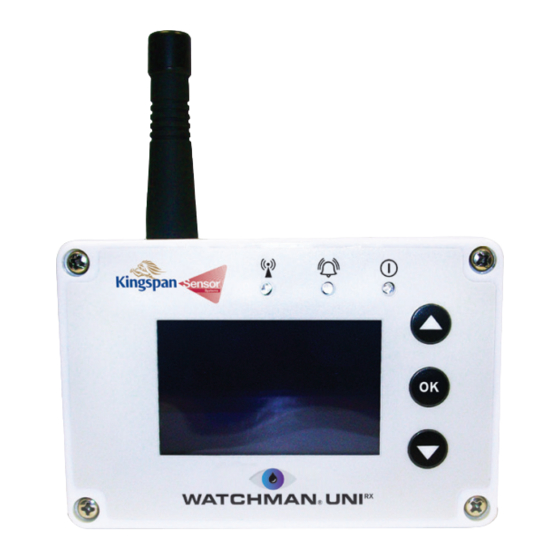

  • Page 3 Watchman UNI is a universal receiver for heating oil and waste oil level measurement. As a receiver it is compatible with the Sensor Watchman range including: WatchmanSonic - Part code 003963 WatchmanAlarm - Part code 004030 WatchmanSonic Plus - Part code 002893 WatchmanSonic 4-20mA waveguide - Part code 019052...

  • Page 4: Features

    MAIN FEATURES Level measurement using Leak alarm indication ultrasonic or 4-20mA sensor + audible notification Display level in ‘Litres’, ‘cm’ and ‘%’ 128x64 graphic display, blue backlight Compatible with 4.20mA and wireless Watchman transmitter range Two fully configurable relay outputs (up to 240V, 500mA) “Waste oil mode”...

  • Page 5: Indicator And Button Descriptions

    INDICATOR AND BUTTON DESCRIPTIONS Wireless data LED Indicates data transfer Alarm LED Blinks when alarm occurs Power LED On if the power is switched ON Enter to menu/ confirm Down...

  • Page 6: Main Screen Indicators

    FIRMWARE REVISION When powering up the unit, software version will be displayed for 3 seconds. 1. Main Screen Level can be displayed in Level (L or cm) ‘L’ or ‘cm’, see section 3.0. Bargraph MAIN SCREEN INDICATORS Low level (only for normal mode) When the level reaches the threshold, nozzle icon will appear on the screen and the buzzer will sound three times every 1 hour.
  • Page 7 Theft rate alarm (only for WatchmanAlarm) When the level drop is detected (more than 3cm/2 hours) the ‘tank’ icon is displayed on the screen, alarm led flashes and the buzzer sounds continuously. To switch OFF the audible alarm press any key. Alarm will reset at the next good reading, up to 30 minutes.
  • Page 8 No echo (wireless unit ) or no connection (wired unit) When the No Echo is detected the triangle icon and middle bars are displayed and level is not available. Low Battery (only for WatchmanSonic products) When the Low Battery has been detected on the transmitter unit, the battery and triangle icons are displayed on the screen.
  • Page 9 CUSTOM STRAPPING TABLE Use this feature if your tank type is not listed and you have information on your tank’s calibration via a calibration chart or strapping bands (These can be obtained from the tank supplier / manufacturer). This feature is a tabular record of volume in Litres versus height measurement in cm.

  • Page 10: Set Up

    SETUP WIZARD FLOW CHART NORMAL MODE CUSTOM BM...
  • Page 11 SETUP WIZARD FLOW CHART WASTE OIL MODE CUSTOM BM...
  • Page 12 2.2 Relay1 Setup This option enables configuration of Relay1. 2.3 Relay2 Setup This option enables configuration of Relay2. 2.4 LCD Backlight ON/OFF This option enables switching ON/OFF the backlight. AUTO OFF- backlight will be switched off after approx. 2 minutes ON – backlight will remain ON all the time.
  • Page 13 4. TERMINOLOGY Tank height (single skin tank) Sonic height – height from the bottom of the – height from the bottom of the tank tank to the top of the tank. to the top of the WatchmanSonic base. Tank height (bunded Offset –...

  • Page 14: Specifications

    SPECIFICATIONS 1. Electrical and environmental specification Operating temperature: Supply voltage: 9-12VDC 0˚C÷40˚C. (9V AC adapter included). Relay’s max switching Max current consumption: current: 500mA. 100mA. 2. Connections...
  • Page 15 3. LEDs Colour Function Action Data received from the transmitter “short blink” indicates radio Blue frame received properly Alarm indication Blinks if the alarm occurs Green Power ON indication “ON” if the power is switched on and device is working properly 4.
  • Page 16 DIMENSIONS 120.00...
  • Page 18 Global Headquarters Kingspan Environmental Ltd. Sensor Systems Team, 180 Gilford Road, Portadown, Co. Armagh, BT63 5LF tel: +44 (0) 28 3836 4415 fax: +44 (0) 28 3836 4445 sensor@kingspan.com www.kingspansensor.com...
