Westell Boxer BXB19-D Manual

R
Westellr Boxert BXB19-D Outdoor Battery Box
CONTENTS
1. GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2. FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
3. INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4. MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5. CUSTOMER & TECHNICAL SERVICES
6. WARRANTY & RETURNS
7. SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . .
8. APPENDIX A− Product Views
1.

GENERAL

1.1 Document Purpose
This document provides general, installation, and specifica-
tion information for the Westellr Boxert BXB19-D Outdoor
Battery Box, which is shown in Figure 1. The intended audi-
ence for this document is Network engineering, operations,
and installation personnel. See Table 2 for ordering informa-
tion on this product and for available orderable options for this
product. Consult the documentation shipped with the two Box-
er cabinets that are typically installed above this battery box
(the 20-RU equipment cabinet and the side car cabinet) .
- NOTE -
Hereafter, the Westell Boxer BXB19-D Battery Box may be
referred to as the battery box" or the BXB19-D." The Boxer
cabinet installed above the battery compartment of the battery
box hereafter may be referred to as the equipment cabinet" or
the Boxer 20" and the Boxer customer-demarcation cabinet
installed above the cable access compartment of the battery box
may be referred to at the side car" cabinet.
1.2 Document Status
Whenever this practice is updated, the reason will be stated in
this paragraph.
1.3 Product Purpose and Description
The two-compartment Boxer battery box is designed to be
mounted with and under a Boxer 20-RU equipment cabinet and
a Boxer Side Car" cabinet (see Figure 2 for an assembled,
installed, but open view of the cabinets mounted on the battery
box). The battery box provides an enclosed, weather-resistant,
vented space for an optional battery back-up system for the
Boxer equipment cabinet. One of the two compartments of the
battery box is an enclosed aesthetically-concealed area for
cable access, storage, ingress and egress. The open ceiling of
this cable concealment compartment allows generous and am-
E2010 Westell, Inc. All rights reserved.
Westellr is a registered trademark of and Boxert is a trademark of Westell, Inc.
PAGE #
1
2
4
12
. . . . . . . . 12
. . . . . . . . . . . . . . . . . . . . . 12
13
. . . . . . . . . . . . . . . . . .
14
030-100689 Rev. A, September 2010

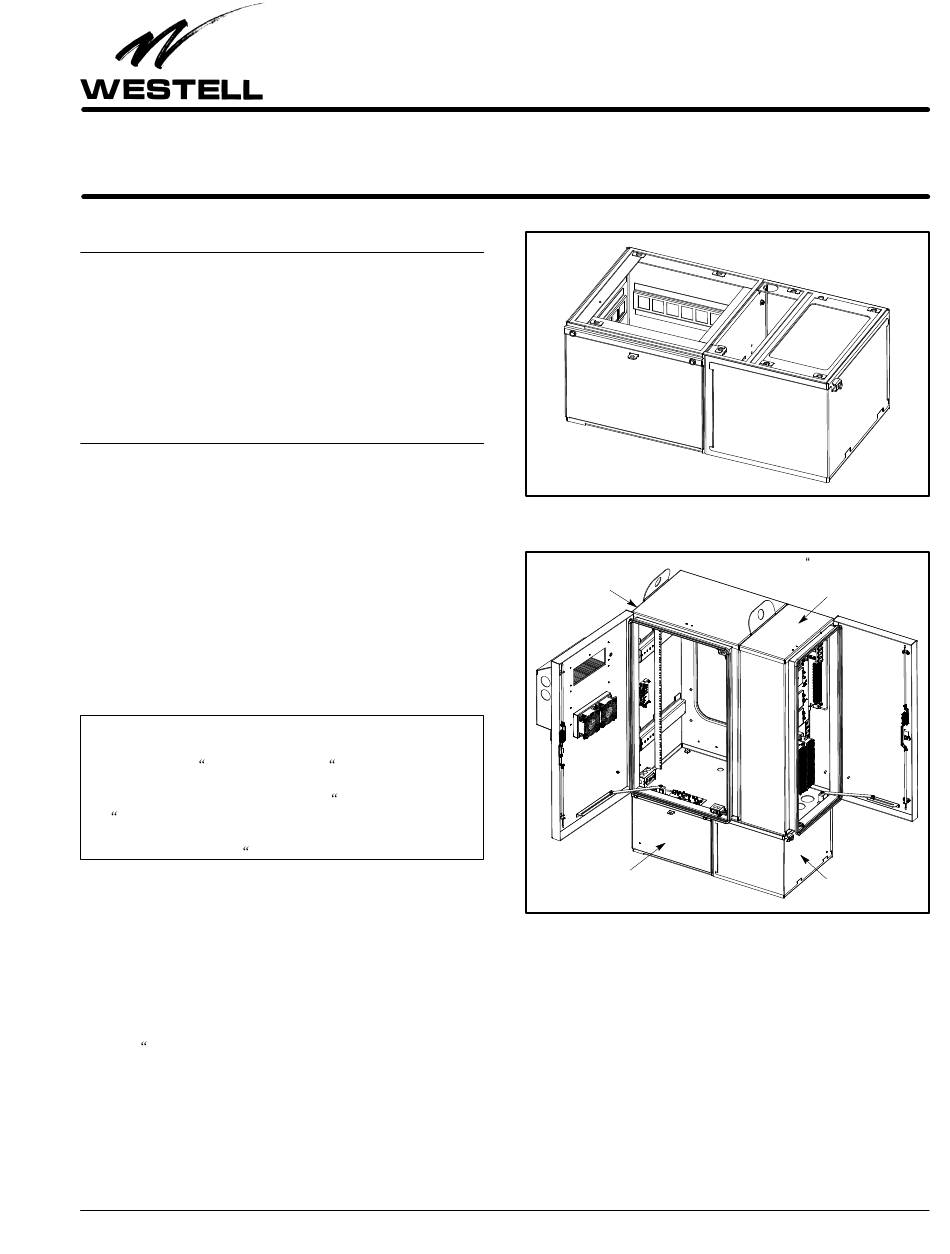

Figure 1. Isometric View of Boxer Battery Box
Boxer 20-RU
Equipment
Cabinet
Battery
Compartment
of Battery Box
Figure 2. Boxer Cabinets Mounted on Battery Box
ple cable and conduit access and routing through the
compartment and into both Boxer cabinets mounted above it.
The other compartment is for customer-supplied batteries.
The battery compartment is vented. Both compartments have
a large, grounded, door panel which can be locked and un-
locked with a 216 tool or can wrench. The battery compartment
also contains a hasp on the front panel for an optional padlock.
A kit shipped with the battery box is located in the battery
compartment and contains the parts listed near the end of
Paragraph 1.5. See Table 2 for specific models and included
parts.
Section BXB-19D-20A
Equipment Issue A
Side Car"
Boxer Cabinet
(demarcation)
Cable Access
Compartment
of Battery Box
1009IARA
Page 1 of 21
