- Page 1 INSTRUCTION MANUAL WATER DISPENSER Model Number : EFWC505 BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS. Frigidaire is a pending or registered trademark used under license from Electrolux Home Products,Inc. Made in China...
- Page 2 NAME AND STRUCTURE Hot water button 10 Hot water outlet Room water button Drip tray Cold water button 12 Door Power indicator 13 Cold switch Heating indicator 14 Hot switch Water shortage indicator 15 Condenser Cooling indicator 16 Power cord Cold water outlet 17 Drain valve Room water outlet...
-
Page 3: Operation
OPERATION Ambient temperature ● Temperature 0-35°C ● Atmosphere 86-106 kpa ● VOLTAGE:115V/60HZ ● Put the water cooler on the horizontal ground. Leave an adequate space (10-20 cm) ● behind the water cooler for good ventilation. When using the bottles with pure water, remove the cap of the water bottle. Open the ●... - Page 4 remove the power plug and drain the rest water in the hot tank. Then tighten the cap. Open the cold water tap to drain the rest water in the cold tank. If there is no water flowing from cooling tap, please shut down the cooling switch until ●...
-
Page 5: Maintenance
CAUTION The back of the device should be kept away from wall and high temperature elements, ● such as TV or video. It should be put in shady places. Do not switch on until water comes out of the hot water mouth to prevent any damage ●... -
Page 6: Troubleshooting Guide
TROUBLESHOOTING GUIDE Problem Possible cause Water cooler does not operate Not plugged in The circuit breaker tripped or blown fuse. Water cooler is not cold enough Check to be sure the cold switch on the back is on. The water cooler does not have the correct clearance. - Page 7 DIMENSIONS PRODUCT DEPTH (IN.) 13.8 PRODUCT HEIGHT (IN.) 41.1 PRODUCT WIDTH (IN.) 12.2 WIRING DIAGRAM...
- Page 8 NOTICE D’UTILISATION DISTRIBUTEUR D’EAU CHAUDE ET FROIDE Modèle : EFWC505 AVANT UTILISATION, VEUILLEZ LIRE ET RESPECTER TOUTES LES REGLES DE SECURITE ET INSTRUCTIONS D’UTILISATION.
- Page 9 Le nom et la structure le robinet d’eau chaude 10 Sortie d'eau chaude Bouton d'eau de la chambre bac d’eau le robinet d’eau froide 12 porte lampe indicative de tension 13 bouton de refroidissement lampe indicative de chauffage 14 bouton de chauffage la pénurie d'eau indicateur 15 le condenseur lampe indicative de...
- Page 10 Les opérations La température ambiante La température 0-35 degrés Celsius L’atmosphère 86-106 kpa VOLTAGE:115V/60HZ Poser l’appareil sur un terrain horizontal et solide.Laisser un espace suffisant (de 10cm à 20cm) derrière l’appareil pour assurer la bonne ventilation. ...
- Page 11 et du réfrigérateur commence à fonctionner encore. Mettez en marche soit le commutateur d'eau froide soit le commutateur du réfrigérateur, le processus peut fonctionner séparément. Distributeur d'eau froide et chaude: L’indicateur rouge est allumé, les travaux de système de chauffage. La lumière rouge s'éteint, statut conservation du chaud; L'indicateur vert est allumé, système de refroidissement;Le voyant vert éteint, statut conservation de froid.
-
Page 12: Entretien Et Dépannage
8. après le changement de l'eau et fermer la porte, réservoir chaud et le froid ont été rempli d'eau, puis lampe de fuite d'eau sera éteint de lui-même. Attention Le dos du dispositif doit être éloigné du mur et des éléments, de la TV ou des objets de valeur à... -
Page 13: Guide De Dépannage
Guide de dépannage Problème Cause possible Le distributeur de l'eau ne fonctionne Non branché. pas. Fusible débranché ou le disjoncteur a sauté. Le refroidisseur de l'eau n'est pas Contrôler si le passage froid à l’arrière est allumé. assez froid. Le distributeur d'eau n'a pas le dégagement correct.
Need help?
Do you have a question about the EFWC505 and is the answer not in the manual?
Questions and answers
Red light is on and flashing even though there is water. The pump is not working either.
If the red light is flashing on a Frigidaire EFWC505 and the pump is not working, it means there is a water shortage. Both the tank and bottle are empty, causing the machine to lock, the water shortage indicator to flash, and an alarm to sound for 30 seconds.
This answer is automatically generated
I have trouble keeping getting the water to dispense. I followed the manual. I have had the cooler for 4 months and it was working fine until yesterday
Possible causes of water not dispensing from the Frigidaire EFWC505 cooler after four months of use include:
1. Dry burn of the hot tank – unplug the power cord, wait over one hour, then plug in and refill the tank with water.
2. The cooler is not plugged in.
3. A tripped circuit breaker or blown fuse.
4. The water bottle may not be properly connected or empty.
5. The water pump may not be functioning due to blockage or damage.
Check these factors to identify and fix the issue.
This answer is automatically generated
Frigidaire bottom load model number EFWC505keeps with red light then makes noise after water is replaced then beeps for a while and red light blinks.
The red light and beeping on the Frigidaire bottom load model EFWC505 after replacing the water indicate a water shortage. This means the tank is empty or the water is not being pumped properly. Ensure the pipe is inserted correctly into the water bottle and the cap seals the bottleneck tightly.
This answer is automatically generated
I replaced the water bottle and now it will not **** the water up through the tube.
The Frigidaire EFWC505 may not be drawing water through the tube after replacing the water bottle because the water tube is not pressed tightly into the new bottle. If it is not secured properly, the pump may not be able to draw water into the water tank.
This answer is automatically generated
My despenser is not heating or cooling the water and the red light is blinking
The Frigidaire EFWC505 water dispenser may not be heating or cooling the water and showing a blinking red light because of a "dry burn" condition. This happens when the heating switch is turned on without water in the tank. To fix this, unplug the power cord, wait for more than 1 hour, then plug it back in and fill the tank with water. This may allow the hot tank to work again.
This answer is automatically generated
water is not coming out replaced with new jug
Water may not be coming out of the Frigidaire EFWC505 after replacing the jug due to the following reasons:
1. Improper Tube Placement: The water tube may not be inserted tightly into the new bottle. Ensure the tube is properly placed and pressed tightly, or the pump may not function.
2. Water Shortage Lock: If both the shortage water tank and the bottle lack water, the machine locks, and the water shortage indicator light flickers while an alarm sounds for 30 seconds.
3. Door Not Closed: If the door is open, the pump stops working. Ensure the door is fully closed after replacing the bottle.
4. Air in the System: After replacing the bottle, air may be trapped in the water lines. Press the dispenser lever several times to release air and allow water to flow.
Check these factors to restore normal water flow.
This answer is automatically generated
The red light is flashing and no water will dispense. How can this be fixed?
If no water dispenses and the red light is flashing on a Frigidaire EFWC505, it may be due to a dry burn condition. To fix this:
1. Unplug the power cord.
2. Wait for more than one hour.
3. Plug the unit back in.
4. Fill the hot tank with water.
This may allow the hot tank to work again.
This answer is automatically generated

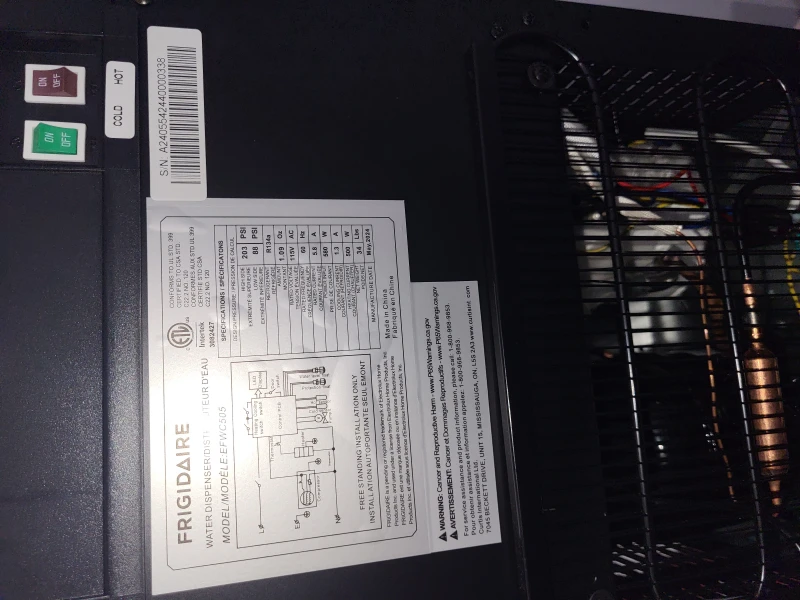

Our water cooler EFWC505 Model, has the far right light continuosly blinking. Bottle is full and in correctly but I cannot seem to get it to stop.
The plastic part that connects to the metal rod that goes into the water jug is broken. How do I order that part or what is the part number?
The red light indicating that we need to change the water will not turn off even though we have changed the jug and it is full.
The red light on the Frigidaire EFWC505 indicates that the heating system is working. If it remains on after changing the water jug, it is likely because the dispenser is heating the water to reach the default hot temperature. This is normal operation and the red light will go off once the water reaches the desired temperature and switches to warm-keeping status.
This answer is automatically generated
