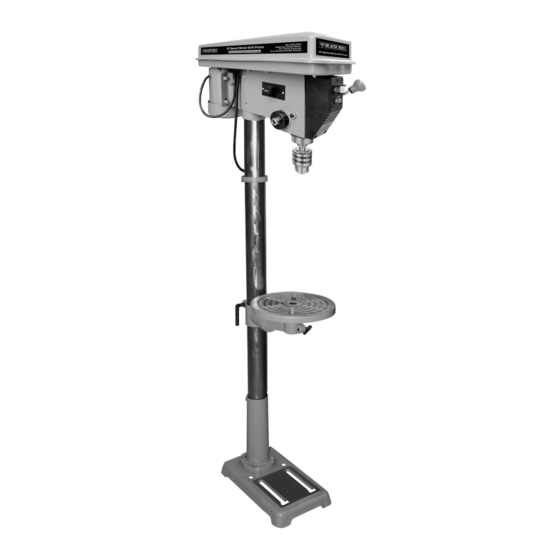

DP16UL
16 Speed Drill Press
Assembly & Operating Instructions
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time
without prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE, DO
NOT OPERATE THIS PRODUCT!
HAVE QUESTIONS OR PROBLEMS? DO NOT RETURN THIS PRODUCT TO THE
RETAILER - CONTACT CUSTOMER SERVICE.
If you experience a problem or need parts for this product, visit our website http://www.buffalotools.com
or call our customer help line at 1-888-287-6981, Monday-Friday, 8 AM - 4 PM Central Time. A copy of
the sales receipt is required.
FOR CONSUMER USE ONLY – NOT FOR PROFESSIONAL USE.
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
DP16UL 16 Speed Drill Press Assembly & Operating Instructions
1
Advertisement
Table of Contents
Related Manuals for Buffalo Tools Black Bull DP16UL
Summary of Contents for Buffalo Tools Black Bull DP16UL
- Page 1 DP16UL 16 Speed Drill Press Assembly & Operating Instructions READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT. This manual provides important information on proper operation & maintenance. Every effort has been made to ensure the accuracy of this manual. These instructions are not meant to cover every possible condition and situation that may occur.
-
Page 2: Recognize Safety Symbols, Words And Labels
RECOGNIZE SAFETY SYMBOLS, WORDS AND LABELS What You Need to Know About Safety Instructions Warning and Important Safety Instructions appearing in this manual are not meant to cover all possible conditions and situations that may occur. Common sense, caution and care must be exercised when assembling or using this product. -
Page 3: General Product Specifications
GENERAL PRODUCT SPECIFICATIONS FEATURES: • Enclosed Fan Cooled Motor • Belt Drive Speed Adjustment • Rack & Pinion Table Raises And Lowers Easily • 11" Diameter Dry Round Table Tilts 90 Degrees Left & Right • With Laser Centering Device and Work Light (requires up to 40W Bulb not included) SPECIFICATIONS •... - Page 4 THESE FACTORS MUST BE SUPPLIED BY THE OPERATOR. Keep your work area clean and well lit. Cluttered work benches and dark work areas may cause accidents or injury. Do not operate drill in explosive areas, such as in the presence of flammable liquids, gases or dust. The drill may create sparks which may ignite the dust or fumes.
- Page 5 All work areas should be clean and well lit. Accidents are more likely to occur in poorly lit and cluttered areas. Keep children, and other distractions at a distance while operating power tools. Keep the power cord in good condition, and replace damaged cords immediately. Do not use the cord to pull the plug from the outlet.
-
Page 6: Important Safety Instructions
When servicing a tool, use only identical replacement parts and follow instructions in the manual. Use of unauthorized parts or failure to follow maintenance Instructions may create a risk of shock or injury. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE. This manual contains important information regarding safety, operation, maintenance and storage of this product. Before use, read carefully and understand all warnings, cautions, instructions and labels. -
Page 7: Package Contents
PACKAGE CONTENTS • 16 Speed Drill Head Assembly • Table Assembly • Base • Column Assembly • Chuck Guard Assembly • Assorted loose parts COMPONENTS Quill Feed Spring Adjustment Column Feed Handle Power Switch Laser Light Switch Rack Base Table Column Support Arm Locking Handle Table Lock... - Page 8 ASSORTED LOOSE PARTS DP16UL 16 Speed Drill Press Assembly & Operating Instructions...
-
Page 9: Parts Description
PARTS DESCRIPTION DP16UL 16 Speed Drill Press Assembly & Operating Instructions... - Page 10 ASSEMBLY Do not stare directly at the laser beam. Never aim the beam at any person or object other than the work piece. Do not deliberately aim the beam at personnel. Staring at the beam may cause flash blindness. Unpack product from package and review contents. Keep all packaging until product has been reviewed. Do not operate the machine until it is completely assembled.
- Page 11 Column Assembly to Base NOTE: Ideally, the base should be firmly bolted to the floor, prior to assembly of other components. The mounting surface must be flat, level and capable of supporting the drill weight. With the base on a flat level surface, bolt on the Column using the 4.M10 Hex head screws provided and tighten.
-
Page 12: Settings And Adjustments
SETTINGS AND ADJUSTMENTS Table The table may be raised, lowered or swivelled about the column, by loosening the table support locking handle (Fig.8). Adjust accordingly using the table crank, and re-tighten the locking handle. If the table assembly moves stiffly when being swivelled about the column, loosen the upper collar allen screw (at the rack) to allow the collar to move very slightly, thereby providing a little more clearance between rack and collar. -
Page 13: Removing The Chuck
lnsert KEY into switch. Key is made of yellow plastic. A light is also provided which is built into the head. The light switch is located above the ON/OFF switch. REMOVING THE CHUCK To remove the chuck, pull the spindle down fully, using the feed handles. The slot in the side of the Quill will become visible. -
Page 14: Troubleshooting
ACCESSORIES Use only accessories that are recommended by the manufacturer for your model. Accessories that may be suitable for one tool may become hazardous when used on another tool. Always attach grounded (3-prong) extension cords to grounded (3-prong) outlets. If you must use an extension cord, be sure that the gauge is large enough to carry the amount of current necessary for your power tool. -
Page 15: Head Assembly Diagram
HEAD ASSEMBLY DIAGRAM DP16UL 16 Speed Drill Press Assembly & Operating Instructions... - Page 16 PULLEY & SPINDLE ASSEMBLY DP16UL 16 Speed Drill Press Assembly & Operating Instructions...
- Page 17 COLUMN/BASE ASSEMBLY DP16UL 16 Speed Drill Press Assembly & Operating Instructions...
- Page 18 (DP16UL201610) DP16UL 16 Speed Drill Press Assembly & Operating Instructions...
