Entrée Bath Gen III-
Gen III Entree Bath

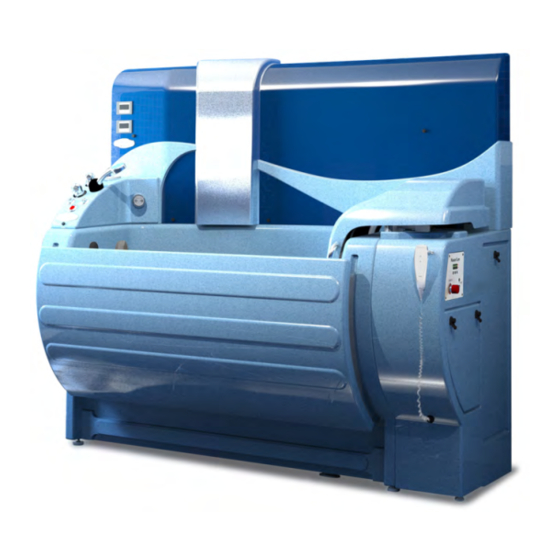

MODEL MB-68 AV-XL
INSTALL CHECK LIST & USER MANUAL
Important Safety Instructions
Read & Follow All Instructions Thoroughly
Important safety instructions. Read and follow all instructions thoroughly.
CAUTION:
The caution heading identifies important maintenance and operation
information. Failure to obey a caution warning may result in damage to the Entree Bath
and may void the warranty.
450 E 32
nd
Ave – Fremont, NE 68025
800-798-5867 FAX: 402-721-3023
www.mastercarebath.com
MODEL MB-68 AV-XL
10-20-19
Page 1 of 51
Advertisement
Table of Contents
Summary of Contents for Mastercare Entree Bath Gen III MB-68 AV-XL
- Page 1 Entrée Bath Gen III- MODEL MB-68 AV-XL Gen III Entree Bath MODEL MB-68 AV-XL INSTALL CHECK LIST & USER MANUAL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath and may void the warranty.
-
Page 2: Table Of Contents
Entrée Bath Gen III- MODEL MB-68 AV-XL TABLE OF CONTENT Architectural Specifications & Rough-In Information ..................... 3 Dimensions ................................3 Specifications ................................3 Plumbing & Electrical Rough-In Information, Tub Anchoring Information ............. 5 Placement Configuration ............................5 Installation Manual ................................. 6 Before Starting ................................7 Tools Needed For Installation .......................... -
Page 3: Architectural Specifications & Rough-In Information
Entrée Bath Gen III- MODEL MB-68 AV-XL ARCHITECTURAL SPECIFICATIONS & ROUGH-IN INFORMATION DIMENSIONS Exterior Dimensions Width Door Closed ........................36" Width Door Opened ........................34.25" Width Swivel Seat rotated out of the tub .................. 63” Length MB-68-AV (XL) Standard Wall Placement ............... 80" Height To top of Console ......................72" Interior Dimensions Length-Straight ........................ - Page 4 Entrée Bath Gen III- MODEL MB-68 AV-XL Switches: Membrane and Pneumatic. Thermometer: Digital temperature measurements. Door/Entry: Door full length of tub with swivel seat rotating out for easy transfer. Tub Fill/Shower: Built-in thermostatic mixing valve certified to ASSE 1016-2005, ASME A112.18.1-2005, CSA B125 and UPC listed. Tub Fill / Shower shut off: Valves certified ASSE and UPC listed with ceramic disc controls.
-
Page 5: Plumbing & Electrical Rough-In Information, Tub Anchoring Information
Entrée Bath Gen III- MODEL MB-68 AV-XL PLUMBING & ELECTRICAL ROUGH-IN INFORMATION, TUB ANCHORING INFORMATION Placement Configuration 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 5 of 51 www.mastercarebath.com... -
Page 6: Installation Manual
Gen III Entree Bath MODEL MB-68 AV-XL INSTALLATION MANUAL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath and may void the warranty. -
Page 7: Before Starting
Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL BEFORE STARTING TOOLS NEEDED FOR INSTALLATION ½” Deep and 9/16” Channel Tape Adjustable Deep Socket Locks Measure Wrench and Ratchet 7/16” Masonry Hand Held #2 Phillips 5/16 Nut Hammer Drill Bit Thermometer Screwdriver Driver Drill Caulking Gun 450 E 32 Ave –... -
Page 8: Entrée Gen Iii Location Reference
Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL ENTRÉE GEN III LOCATION REFERENCE Console Console Shut Off Foot End Controls Service Access TOP VIEW OF TUB Chair Back of the Top High Quality and Wood Stud Floor or Concrete Required. Front of the Top 450 E 32 Ave –... -
Page 9: Installation Check List
If damage is found, or Shock & Tip Tag is altered, do not accept delivery. It must be reported, communicated and documented immediately to the freight company and MasterCare 1- 800-798-5867. Proceed to inspect the tub for hidden and concealed damage. Leave the tub on the pallet until ready for installation. -
Page 10: Entree Tub Crate Removal
ENTREE TUB CRATE REMOVAL IMPORTANT: IMMEDIATELY UPON RECEIPT, CHECK FOR VISIBLE FREIGHT DAMAGE. IF DAMAGE IS FOUND, IT MUST BE REPORTED, COMMUNICATED AND DOCUMENTED IMMEDIATELY TO THE FREIGHT COMPANY AND MASTERCARE 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 10 of 51 www.mastercarebath.com... - Page 11 Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL Transfer and Positioning: The tub is shipped with the door in the open position. To transfer, plug the tub into an extension cord and rotate the door to a nearly closed position, by pushing on the Door Close button until the door rotates all the way up and it just starts to cam in.
- Page 12 Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL End to End Center Line TOP VIEW Rear Tub of Tub Service Panel eft Rear tub leg 2” 90 PVC close ST EL connected to 2” tub drain located 10” From wall on left rear tub leg 22”...
- Page 13 Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL Tighten the hose clamps on the rubber couplers. Anchor the tub to a concrete section or to a stud floor. 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 13 of 51 www.mastercarebath.com...
- Page 14 Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL MODEL MB-68 AV-XL Proceed to the Operation Manual on page 16. Go through a bath cycle and verify all functions work correctly. Make sure that when the fill knob is in the hot position, hot water comes out of the valve. Check the water temperature and verify it is in the proper range.
- Page 15 Entrée Bath Gen III - MODEL MB-68 AV-XL INSTALLATION MANUAL Make sure the Casual Water Drain (located in the back side of the tub) is properly connected. Casual Water Drain Connection 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 15 of 51 www.mastercarebath.com...
-
Page 16: Operation Manual
Gen III Entree Bath MODEL MB-68 AV-XL OPERATION MANUAL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath and may void the warranty. - Page 17 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL WARNINGS • Risk of accidental injury or drowning; children and impaired individuals should not use hydromassage bathtub without trained adult supervision. • To avoid injury; exercise care when entering or exiting the hydromassage bathtub. • Do not use drugs or alcohol before or during the use of a hydromassage bathtub to avoid unconsciousness and possible drowning.
-
Page 18: Features And Operating Controls
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL FEATURES AND OPERATING CONTROLS Foot-End Controls Hand Lift Control Service-End Controls FOOT-END CONTROLS Reservoir Water Mixing Valve: Adjusts the temperature of the Thermometer mixer water to the shower Spray and tub fill spigot. Turn counterclockwise for hotter and Tub Water Thermometer clockwise for colder mixed water (accuracy... -
Page 19: Bathaire (Sm) Variable Speed System
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Thumb Screws: The thumb screws hold the service panel in FOOT-END CONTROLS place and are to be removed only by authorized service personnel for service access. Liquid Dispensing Controls: These controls are used to add Bath Oil and Shampoo directly into the bath water. Drain Handle / Overflow: It is used to drain the tub and to manage tub overflows. - Page 20 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Hand Lift Control: Allows the Up and Down motion of the Lift SERVICE-END CONTROLS during the transfer of the resident into the tub. Its cord allows for flexibility in the range of distance so it can be used by the caregiver Scale Control Pad while he or she is assisting the resident.
-
Page 21: Operation
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL OPERATION Before operating the Entree Bath, familiarize yourself with the key features of the tub outlined in the Tank Temperature FOOT-END CONTROLS drawings supplied with these Thermometer instructions. Tub Water Thermometer BATHING PROCEDURES Tub Fill and Console Shower Controls... - Page 22 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL (SM) Turn On The BathAire by gently pushing (SM) in on the BathAire On/Off Touch Pad BATHAIRE CONTROLS (SM) located on the lower left side deck of the Wave On/Off tub. (Do not use sharp object) This will Button Button warm up the environment inside the tub.
- Page 23 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Transfer Individual to the Tub Lift Push down on the Open Door Button Open Door Button Comfort Pads until the door is fully opened and stops on its own. b. Position the comfort pad group in the Lift Chair as follows;...
- Page 24 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Weight the Individual (Refer to the Scale Calibration Procedure, on page 28 Key steps to Get Accurate and Consistent Weights: Before you transfer the resident on to the chair, be sure there is not object touching the chair, or anyone leaning on the chair.
- Page 25 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Tub Fill Procedures with Auto-Fill Console: Tank Temperature FOOT-END CONTROLS Thermometer a. Turn the BathAire (sm) b. Push down on the Close button until the Incoming Water Thermometer door is fully closed and stops on its own. Tub Fill and You will no longer hear the motor and the Console...
- Page 26 Shampoo & shampoo the individual’s hair and wash Conditioner Body Wash Item: 90201 Item: 90301 their body with MasterCare’s specially formulated Shampoo and Body Wash. Bathe or assist the individual with their hygiene needs. Reservoir Water FOOT-END CONTROLS b. To rinse, lift the Shower Spray from its...
- Page 27 Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL Dry as much of the individual as you can before removing them from the tub by leaning the individual forward and towel dry their back side and inside of the tub area behind the individual. Lift each leg and towel dry the underside of the legs/top of the seat, under legs and feet/foot well area under feet.
-
Page 28: Cleaning Procedures
Raise the chair until it is possible to reach the surfaces under the chair. Scrub the upper and lower surfaces of the chair. Allow contact time as detailed on disinfectant/cleaner. MasterCare Disinfectant/ cleaner requires 10 minutes, which is a common Industry Standard. -
Page 29: Bathaire (Sm) Purge Cycle
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL BATHAIRE (SM) PURGE CYCLE: BathAire will automatically turn on after the bath has been idle for twenty (20) minutes and run for one (1) minute. This allows the area around the aerators to completely dry. Other Considerations: CAUTION: When being... -
Page 30: Adjusting The Entree Tub For Lift/Transfer Devices
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL ADJUSTING THE ENTREE TUB FOR LIFT/TRANSFER DEVICES For those cases when a lift/transfer device is needed: 1. Push down on the Door Open Button allowing the door to rotate to a fully open position until it stops on its own. 2. -
Page 31: Emergency Open/Close Door Procedures
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL EMERGENCY OPEN/CLOSE DOOR PROCEDURES In the event of a medical emergency where it is needed to open the door before the tub is totally Open Door Button empty: hold Emergency Door Open Button and the Door Open Button at the same time to open the door. It will overwrite the drain water sensors. -
Page 32: Gfci Reset Procedures
OPERATION MANUAL GFCI RESET PROCEDURES All MasterCare bathing systems are equipped with onboard GFCI’s making them easy to access for your convenience. In the event a power surge trips the GFCI, it can be accessed and reset using the following procedures:... -
Page 33: Aromatherapy, Comfort Pad And Belting Procedures
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL AROMATHERAPY, COMFORT PAD AND BELTING PROCEDURES Aromatherapy: Before activating the BathAire , remove the Aromatherapy Access Cap and insert a scented cartridge into the canister. (SM) “DO NOT OPEN THE CARTRIDGE”, DO NOT place loose beads or liquids in the sachet holder. Securely close the cap prior to turning on BathAire (SM) CAUTION:... - Page 34 Per manufacturer recommendations it is NOT advised to use conditioners on the pads and straps. Disinfect the pads and straps with MasterCare Disinfectant according to the label and thoroughly rinse with water. Rotating the pads on a daily basis will help prolong the life of the pads.
-
Page 35: Scale System
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL SCALE SYSTEM FUNCTION KEYS Recall: Used to recall last measurement. When pressed, the last stable measurement will be displayed for 5 seconds. On/Zero: Used to turn on weight scale (if in sleep mode), or to zero the scale (tare or minor offset adjustment). lb/kg: Used to select measurement units (pounds or kilograms). -
Page 36: Scale Calibration Procedure
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL SCALE CALIBRATION PROCEDURE To enter the calibration mode, executes the following steps: Make sure that the weight scale is active (press the "On/Zero" key to exit sleep mode, if required). Position the scale platform at the desired height. Note: the "Up"... -
Page 37: Entree Bath Training Check List
Entrée Bath Gen III - MODEL MB-68 AV-XL OPERATION MANUAL ENTREE BATH TRAINING CHECK LIST After reviewing the operation and safety instructions in this manual, the Entree Bath can be operated and all components can be identified OPERATION: Turn On BathAire (SM) Control Secure Individual Move Individual In To The Entree Bath Close Tub Door With Push Buttons Close Drain With Open/Close Lever Adjust Mixing Valve To Desired Temperature... -
Page 38: Maintenance Manual
Gen III Entree Bath MODEL MB-68 AV-XL MAINTENANCE MANUAL Important Safety Instructions Read & Follow All Instructions Thoroughly Important safety instructions. Read and follow all instructions thoroughly. CAUTION: The caution heading identifies important maintenance and operation information. Failure to obey a caution warning may result in damage to the Entree Bath and may void the warranty. - Page 39 MODEL MB-68 AV-XL MAINTENANCE MANUAL MasterCare hygiene products are designed and manufactured to help provide a more operationally efficient and secure environment for your staff and residents. It is required that a scheduled maintenance program be set up to insure that the efficiencies and security designed into the bathing system are kept at peak levels. Instructions on how to set up a scheduled maintenance program are covered in this manual.
-
Page 40: Problem Solving And Diagnosis
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL PROBLEM SOLVING AND DIAGNOSIS: The following guide is intended to help solve the majority of problems that may occur due to normal wear and use of the system over time. Problem Potential Causes Door does not open/close Procedure: Drain sensors are detecting water in the tub. -
Page 41: Entree Bath Leak Guide
The attendant is not holding the door close switch down until the door rotation stops automatically. To correct: make sure the attendant is holding the switch down until the door rotation stops automatically. The seal is flattened and unable to compress further. To correct: call MasterCare to order a new seal and replacement instructions. - Page 42 Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 42 of 51 www.mastercarebath.com...
-
Page 43: Electrical Assembly Diagram
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL ELECTRICAL ASSEMBLY DIAGRAM ITEM NO. PART NUMBER DESCRIPTION 102920 WIRE TIE 8" 210177 CG AIR FG CONTROL SHELF 40020 BLOWER, SILVER NON ELECTRONIC 40012 CONTROL, COMFORT WARM 40016 CONTROL, UNIVERSAL UNIT 40028 LATCH, FRONT HEAVY DUTY LH SS W/ HOLES 40032 LATCH, STEM GEN III 706150... -
Page 44: Entree Door Seal Maintenance & Replacement Instructions
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL ENTREE DOOR SEAL MAINTENANCE & REPLACEMENT INSTRUCTIONS (Parts #211081 & 211082): Note: Read all instructions carefully and thoroughly. Refer to the attached Entree Door Seal drawing to reference details. 3. Push door close button, bringing door up and stop once the Phillips head screw are visible on the side of the door. (Fig. -
Page 45: Entree Door Seal Diagram
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL ENTREE DOOR SEAL DIAGRAM DO NOT REMOVE 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 45 of 51 www.mastercarebath.com... -
Page 46: Diverter Seal Diagram
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL DIVERTER SEAL DIAGRAM The diverter seal is located on the lower lip of the fiber glass door cover. It should be inspected annually and replaced if worn or deteriorated. To install: 1. Open door from a closed position until diverter seal to be replaced just clears the bottom curve of the tub. -
Page 47: Aeration Injector Diagram
(Part #804845): Notes: Socket welded/glued joints shall be primed and glued using PVC primer and glue per MasterCare best practices. Pipe thread fittings shall be properly prepared with Teflon tape and/or paste, and tightened in accordance with MasterCare best practices. -
Page 48: Gen Iii Mixing Valve Cartridge
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL GEN III MIXING VALVE CARTRIDGE Adjustment & Replacement Instructions (Item #600578): Note: Read and follow all instructions thoroughly. Refer to the GEN II Mixing Valve Diagram to reference details. Supplies needed: Silicone lubricant if replacing the cartridge (readily available at local hardware stores). Adjustment Instructions: 19. -
Page 49: Gen Ii Mixing Valve Diagram
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL GEN II MIXING VALVE DIAGRAM ITEM NO. DESCRIPTION THERMOSTATIC VALVE CARTRIDGE, REPLACE THERMOSTATIC O-RING SETTING RING HANDLE, ROUND ZINC FOR THERMOSTATIC CONTROL VALVE USE SCREW ESCUTCHEON, BRASS FOR VOLUME 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 49 of 51... -
Page 50: Door Open/Close Transmitter Buttons Instructions
Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL DOOR OPEN/CLOSE TRANSMITTER BUTTONS INSTRUCTIONS (Part #706127): Note: Read and follow all instructions thoroughly. Refer to the drawing bellow to reference. 1. Loosen and remove both thumb screws from the foot end control. Gently tilt the foot end control to the side. 2. - Page 51 Entrée Bath Gen III - MODEL MB-68 AV-XL MAINTENANCE MANUAL FOR ADDITIONAL MAINTENANCE HELP OR TO PLACE AN ORDER Online: www.mastercarebath.com, Email: mastercareweb@mastercarebath.com Call: 1-800-798-5867 (M-F/8a.m.- 5p.m. CST 450 E 32 Ave – Fremont, NE 68025 10-20-19 800-798-5867 FAX: 402-721-3023 Page 51 of 51 www.mastercarebath.com...
