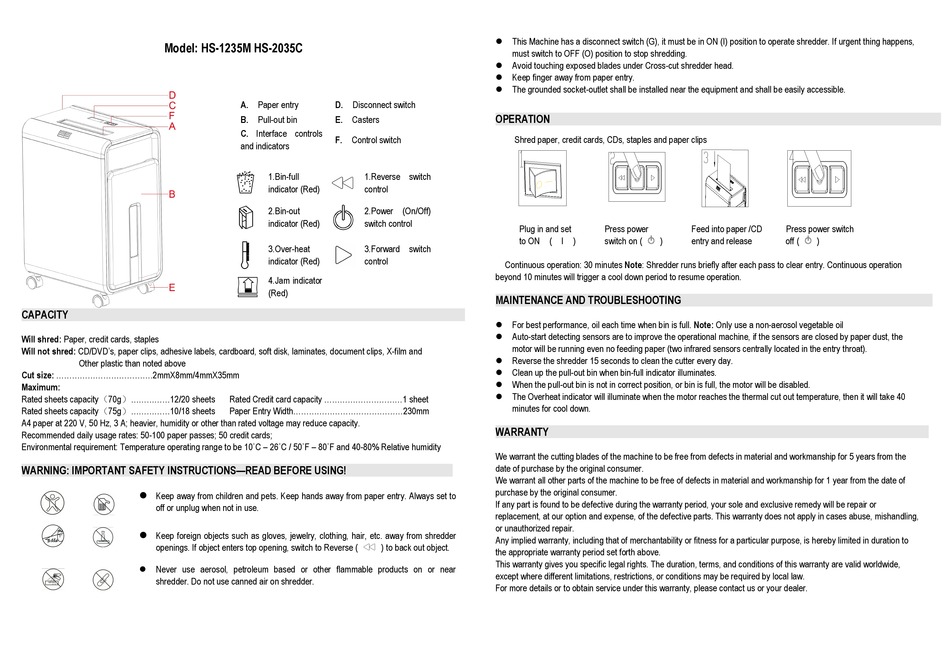

Toolots HS-1235M Operating Instructions

Model: HS-1235M HS-2035C

CAPACITY

Will shred: Paper, credit cards, staples
Will not shred: CD/DVD's, paper clips, adhesive labels, cardboard, soft disk, laminates, document clips, X-film and
Other plastic than noted above
Cut size: .....................................2mmX8mm/4mmX35mm
Maximum:
Rated sheets capacity（70g）...............12/20 sheets
Rated sheets capacity（75g）...............10/18 sheets
A4 paper at 220 V, 50 Hz, 3 A; heavier, humidity or other than rated voltage may reduce capacity.
Recommended daily usage rates: 50-100 paper passes; 50 credit cards;
Environmental requirement: Temperature operating range to be 10˚C – 26˚C / 50˚F – 80˚F and 40-80% Relative humidity
WARNING: IMPORTANT SAFETY INSTRUCTIONS—READ BEFORE USING!
Keep away from children and pets. Keep hands away from paper entry. Always set to

off or unplug when not in use.
 Keep foreign objects such as gloves, jewelry, clothing, hair, etc. away from shredder
openings. If object enters top opening, switch to Reverse (
 Never use aerosol, petroleum based or other flammable products on or near
shredder. Do not use canned air on shredder.

A. Paper entry

D. Disconnect switch

B. Pull-out bin

E. Casters

C. Interface controls

F. Control switch

and indicators
1.Bin-full 1.Reverse switch
indicator (Red) control
2.Bin-out 2.Power (On/Off)
indicator (Red) switch control
3.Over-heat 3.Forward switch
indicator (Red) control
4.Jam indicator
(Red)
Rated Credit card capacity ..............................1 sheet
Paper Entry Width..........................................230mm
) to back out object.
 This Machine has a disconnect switch (G), it must be in ON (I) position to operate shredder. If urgent thing happens,
must switch to OFF (O) position to stop shredding.
 Avoid touching exposed blades under Cross-cut shredder head.
 Keep finger away from paper entry.
 The grounded socket-outlet shall be installed near the equipment and shall be easily accessible.

OPERATION

Shred paper, credit cards, CDs, staples and paper clips
Plug in and set Press power
to ON ( I ) switch on ( )
Continuous operation: 30 minutes Note: Shredder runs briefly after each pass to clear entry. Continuous operation
beyond 10 minutes will trigger a cool down period to resume operation.

MAINTENANCE AND TROUBLESHOOTING

 For best performance, oil each time when bin is full. Note: Only use a non-aerosol vegetable oil
 Auto-start detecting sensors are to improve the operational machine, if the sensors are closed by paper dust, the
motor will be running even no feeding paper (two infrared sensors centrally located in the entry throat).
 Reverse the shredder 15 seconds to clean the cutter every day.
 Clean up the pull-out bin when bin-full indicator illuminates.
 When the pull-out bin is not in correct position, or bin is full, the motor will be disabled.
 The Overheat indicator will illuminate when the motor reaches the thermal cut out temperature, then it will take 40
minutes for cool down.

WARRANTY

We warrant the cutting blades of the machine to be free from defects in material and workmanship for 5 years from the
date of purchase by the original consumer.
We warrant all other parts of the machine to be free of defects in material and workmanship for 1 year from the date of
purchase by the original consumer.
If any part is found to be defective during the warranty period, your sole and exclusive remedy will be repair or
replacement, at our option and expense, of the defective parts. This warranty does not apply in cases abuse, mishandling,
or unauthorized repair.
Any implied warranty, including that of merchantability or fitness for a particular purpose, is hereby limited in duration to
the appropriate warranty period set forth above.
This warranty gives you specific legal rights. The duration, terms, and conditions of this warranty are valid worldwide,
except where different limitations, restrictions, or conditions may be required by local law.
For more details or to obtain service under this warranty, please contact us or your dealer.
Feed into paper /CD Press power switch
entry and release off ( )
