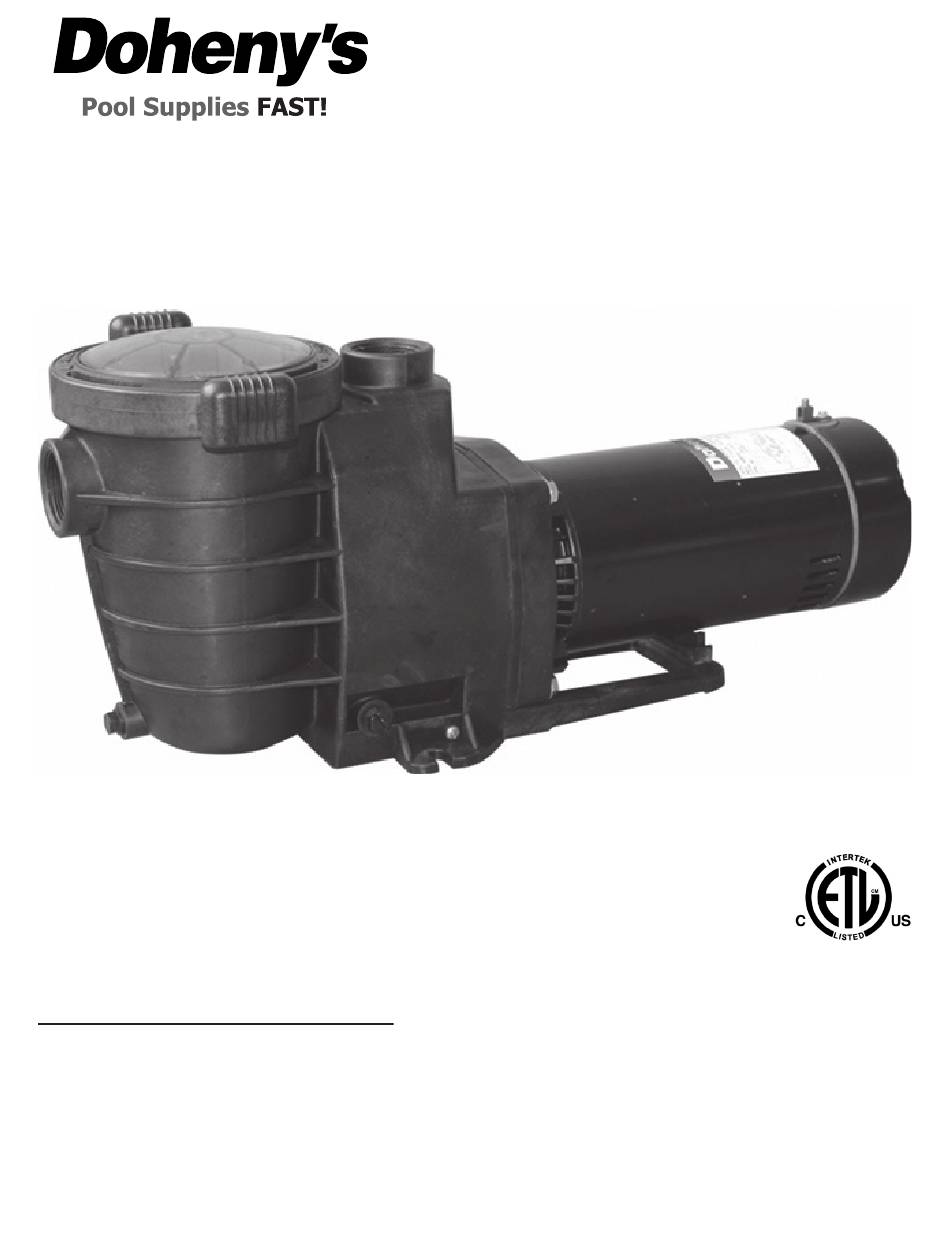

Silencer Pumps
Item #s 7816 & 7817
INSTALLATION, OPERATION & PARTS
To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely.
SAVE THIS INSTRUCTION MANUAL
Use of appointed replacement parts voids warranty.
ATTENTION INSTALLER – THIS MANUAL CONTAINS IMPORTANT INFORMATION
ABOUT THE INSTALLATION, OPERATION, AND SAFE USE OF THIS PUMP THAT MUST
BE PROVIDED TO THE END USER OF THIS PRODUCT. FAILURE TO READ AND FOLLOW
ALL INSTRUCTIONS COULD RESULT IN SERIOUS INJURY.
This equipment must be installed
and serviced by a qualified technician. Improper installation can create electrical hazards which could result in
property damage, serious injury or death. Improper installation will void the warranty.
10411 80th Avenue Pleasant Prairie, WI 53158 | Orders and Customer Care: 1-800-574-7665 | Fax: 1-800-323-5932 | Doheny.com
Advertisement
Table of Contents
Summary of Contents for Doheny's 7816
- Page 1 ® Silencer Pumps Item #s 7816 & 7817 INSTALLATION, OPERATION & PARTS To prevent potential injury and to avoid unnecessary service calls, read this manual carefully and completely. SAVE THIS INSTRUCTION MANUAL Use of appointed replacement parts voids warranty.
- Page 2 Symbol means: ▲CAUTION For pumps with/without 3-ft (91m) cord or 6-ft (1.82m) cord ▲DANGER 6. This pump is for use with permanently installed Indicates that if failure to avoid potential hazard, pools and may also be used with hot tubs and will cause severe personal injury or death or spas if so marked.
- Page 3 Body Entrapment: When a portion of the body i. A safety vacuum release system SVRS) is held against the drain cover trapping the meeting ASME/ANSI A112.19.17 swimmer underwater. This hazard is present when Manufactured Safety Vaccum Release the drain cover is missing, broken, or the cover (SVRS) for Residential and Commercial flow rating is not high enough for the pump(s).
- Page 4 CHAPTER 3 IMPORTANT: Place filter manual air relief valve : GENERAL PLUMBING in the open position and wait for all pressure in For Solvent Weld Connection the system to be relieved. Rigid or flexible PVC pipe can be used. Pipe ends Before starting the system, fully open the manual should be clean and free of any flash caused by the air relief valve and place all system valves in the...
- Page 5 CHAPTER 5 2. Drain system by loosening drain plugs (drain : ELECTRICAL DATA plugs will drain without completely removing Refer to information on motor nameplate for the plug from unit) and/or removing pipe caps. electrical service data. All motors should have fused disconnect switch or circuit breaker.
- Page 6 : TECHNICAL DATA 2. Motor windings connected for wrong voltage ITEM# HP VOLT / HZ AMPS on dual voltage model. 3. Inadequate ventilation 7816 230V/115V 60HZ 10A / 3.2A 3450 Pump Delivers No Water 7817 1.5 230V/115V 60HZ 12A / 3.6A 3450 1.
- Page 7 In-ground Silencer Pumps Item #’s 7816 & 7817 PART DESCRIPTION NUMBER REQ’D 647276571 Cover 65431042080 O-Ring 647252704001 Basket 647276501080 Pump Housing 65432040080 O-Ring 648910604080 Diffuser 89106101 Impeller for 7816 89106201 Impeller for 7817 65028026000 Seal Assembly 65431121080 O-Ring 648910602080 Pump Cover 5225007000 Screw 3/8-16UNC*25.4mm...
- Page 8 1 Year Limited Doheny's Pool Pump Warranty Please read installation instructions before installing pool pump This pump was inspected before shipment from our warehouse. To original purchasers of this pump, Doheny Enterprises, Inc., 10411 80th Ave, Pleasant Prairie, WI, warrants its products free from defects in materials and workmanship for a period of ONE (1) year from the date of purchase.
