Summary of Contents for Integrated Visual Data Technology ED2E-Elite SkidWeigh

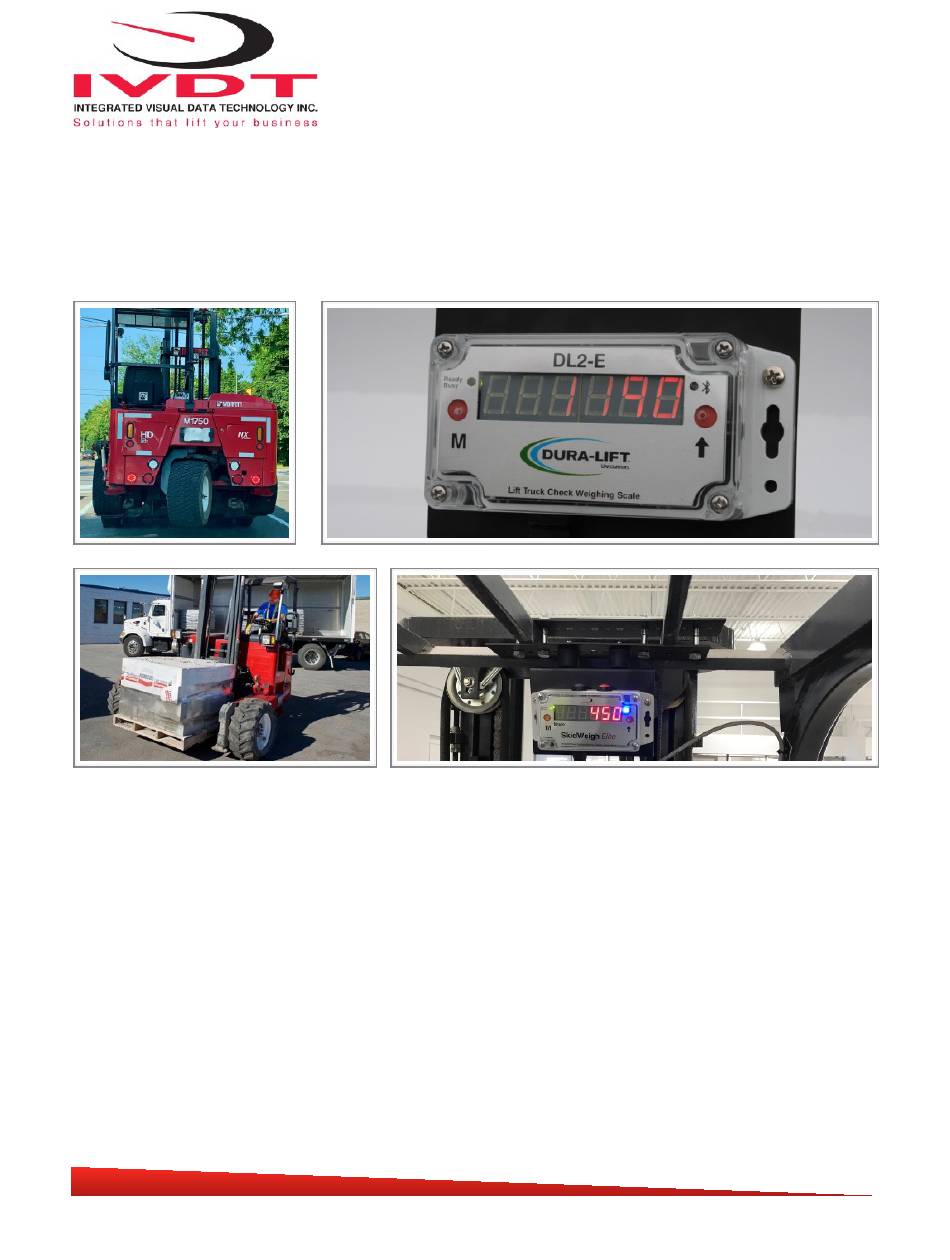

- Page 1 Installation & Calibration Manual ED2E-Elite SkidWeigh & DL2-E DURA-LIFT Systems Lift Truck Onboard Weighing Scale ED2E-Elite V2200HIAB Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
-
Page 2: Electromagnetic Compatibility
General Installation Guide This ED2E-Elite SkidWeigh / DL2-E system installation & calibration guide describes how to install, calibrate, test and use your on-lift truck board load weighing system. Following the instructions in this guide will enable you to get your system operating quickly and easily. -
Page 3: Pressure Transducer Installation
Operational principal The ED2E-Elite SkidWeigh system operational principal is based on the hydraulic pressure transducer mounted in the vehicle lifting hydraulic circuit that will automatically activate the “weighing cycle / specific algorithm ” every time a skid load is lifted just above the ground. The increase in pressure is converted in an electronic signal at the sample rate of 16000 readings per session which is converted into a load weight reading. -
Page 4: Compact Size
(Pressure transducer cable must be connected to the digital indicator seven wires single cable) White Wire, signal wire 0 to 2,5 V - Black Wire, negative - Red Wire, positive, 11 VDC Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7... - Page 5 Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 6 After few seconds, LED display will show “1” in Mode digit and “0” value in furthest right digit display. Automatic zeroing is done! Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 7 - Keep pressing “M” button and enter a third, forth and fifth values. - As the input for known load value has only four digits (4000 in our example), the fifth digits must be “0”. Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 8 When you lower the load to the ground system will go automatically into operational mode. - Mode digit will display number 8. Weighing calibration function is completed and system is ready to be used Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 9 Example: If the lifted load is above preset overload value of 4500, in our case showing 5489 pounds the LCD display will - Show actual overload value - LED display will “flash” - Audio warning will be activated and stay on until load is lowered to the ground Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 10 - Wait for few seconds and “Bluetooth Blue LED Light” will come on. - The mobile Bluetooth printer is paired with the system. Bluetooth LED Power On LED Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 11 By pressing two weighing channels switch indication on LED display will change to Mode 82 Note: The calibration procedure is the same for the second weighing channel, indicated on LED display as Mode 82. Two Independent Weighing Channels Switch Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
- Page 12 - If the load lifted is above pre-set overload value the LED display will show overload and LED will flash. Audio warning will be activated and stay on until load is lowered to the ground. Integrated Visual Data Technology Inc., 3439 Whilabout Terrace, Oakville, Ontario, Canada L6L 0A7...
