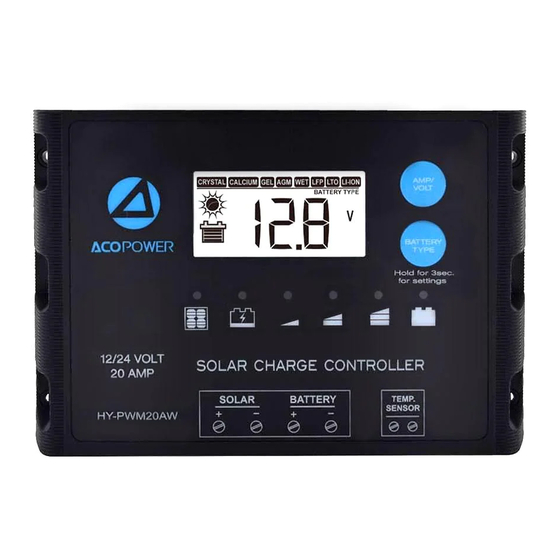

Summary of Contents for ACOPOWER HY-PWM20AW
- Page 1 SOLAR CHARGE CONTROLLER Input: DC12V Solar Panel (Max.25V) Output: DC12V, 10A / 15A / 20A Input: DC12/24V Solar Panel (Max.52V) Output: DC12/24V, 10A / 15A / 20A User’s Manual THIS MANUAL CONTAINS IMPORTANT SAFETY AND OPERATING INSTRUCTIONS P.1/...
- Page 3 Always install a battery fuse on each circuit including the solar controller ● ● Do not disassemble charger, take it to a qualified person when repair is required. ● Do not reverse connect the wires to the solar panel or battery ●Appliances incorporating batteries which contain materials hazardous to the environment.
- Page 4 The Solar Controller has 4 terminals which are clearly marked ‘Solar’ and ‘Battery’. The cable connection method is flexible and easy. Use the string wires, directly secure the input and output wires into the terminal holes of the solar controller, screw tightly the wires to the “Solar” terminal to the Solar Panel. screw tightly the wires to the “Battery”...
- Page 8 100% no condensation Voltage in below table are for 12V use, x 2 for 24V use. Power Your Green Life! Tel: +1- 626-575 7722 Cell: +1-213-820 6518 Fax: +1- 626-737 1140 Add: 4120 Valley Blvd, Walnut, CA 91789,USA Email: sales@acopower.com Web:www.acopower.com...
