Rowlinson Garden Products SS260 Manual

8x6 greenhouse
Hide thumbs

Advertisement

Quick Links

Download this manual
SS260
8x6 Greenhouse
PLEASE READ CAREFULLY BEFORE ASSEMBLY

Advertisement

loading
Need help?

Need help?

Do you have a question about the SS260 and is the answer not in the manual?

Questions and answers

Related Manuals for Rowlinson Garden Products SS260

Summary of Contents for Rowlinson Garden Products SS260

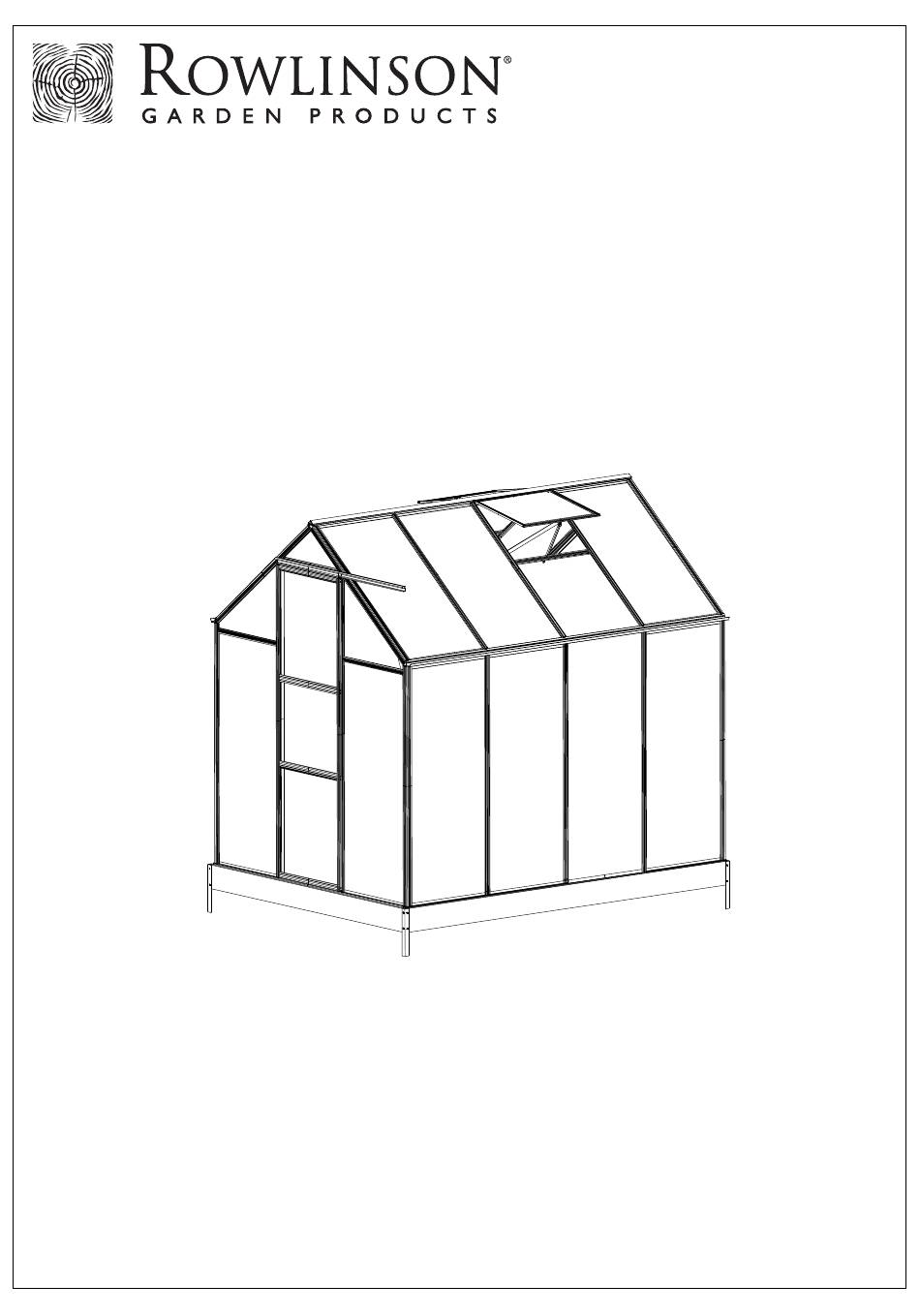

  • Page 1 SS260 8x6 Greenhouse PLEASE READ CAREFULLY BEFORE ASSEMBLY...
  • Page 2 Attempting to assemble this product on your own could lead to damaged panels or framework. If in doubt of any aspect regarding the assembly, use or safety of your greenhouse please contact us: Help Line (Normal Office Hours) 01829 261 121 ROWLINSON GARDEN PRODUCTS LIMITED Green Lane Wardle Nr.Nantwich...
  • Page 3 QTY. Part NO. Base frame assembly For greenhouses being positioned on a hard surface e.g concrete. (For assembly on soft surface e.g grass please see next page) W05 14 Step 1 S01 16 M01 16 07 10 S03 10 When fixing the greenhouse to the base, please loosen the Step 2 screws of the greenhouse and then fix the W05 with it.
  • Page 4 QTY. Part NO. Base frame assembly For greenhouses being positioned on a B01 2 soft surface e.g grass. B02 2 (For assembly on hard surface e.g concrete please see previous page) B04 4 W05 14 Step 1 S01 16 M01 16 Spikes to be sunk into ground When fixing the greenhouse to the base, please loosen the screws of the greenhouse and then fix the W05 with it.
  • Page 6 PARTS P2 Door Frame Assembly Polycarbonate (P7-P10) Front Assembly Part PART NO. Qty. QTY. PART Qty. PART Qty. L01A L01B L16B L01D L18A L01E L03A L03B P3 Roof Vent Frame Assembly L04A Part QTY. L04B L05A L05B (P4-P6) Back Assembly Part QTY.
  • Page 7 PART NO. Qty. P2 Door Frame Assembly L16B L18A L18A L16B L16B L16B Step 1-1 L18A Step 1-2 Step 1-3 2/19...
  • Page 8 Part QTY. P3 Window Frame Assembly Step 2-3 Step 2-2 Step 2-2 Step 2-1 Step 2-3 Step 2-2 Step 2-2 Step 2-1 Step 2-3 3/19...
  • Page 9 Part QTY. (P4-P6) Back Assembly L01A L01B L01C L03B L03C L03D L05A L08A Step 3-10 Please pay attention to the cut corner. The direction must be correct!! The same as another side. L01B L01A L08A Step 3-1 Step 3-2 4/19...
  • Page 10 Please pay attention to the cut corner. The direction must be correct!! The same as another side. L01B L05A L03D L03C L05A L05A L03D L05A L08A Step 3-3 Step 3-4 L03B L03B L03B Step 3-5 Step 3-6 5/19...
  • Page 11 Step 3-8 Step 3-7 L03D and L01C must be put tightly and correctly using W04. Do not leave big space between L03D and L01C. The same for another side. L01C S01/M01 S01/M01 L01A L01C L01C L03D L01C Step 3-10 Step 3-9 6/19...
  • Page 12 Part QTY. (P7-P10) Front Assembly L01A L01B L01D L01E L03A L03B L04A L04B L05A Step 4-14 L05B Please pay attention to the cut corner. The direction must be correct!! The same as another side. Step 4-1 L04B L04A Step 4-2 Step 4-3 7/19...
  • Page 13 L05B L01A L05A L05B L05B L05A L05A Step 4-4 Step 4-5 L04A L03B L03B L05B L03B Step 4-6 8/19...
  • Page 14 L01E S01(2PCS)/PLACE L03B L01B L05B L05A L01E L01D Step 4-8 Step 4-7 S01/M01 Step 4-9 9/19...
  • Page 15 S01(4PCS) L03A Step 4-11 M01/S01 Step 4-10 L03A Step 4-12 Use S02 and M01 to fix the W03's position correctly. S02/M01 S02/M01 S02(2PCS) Step 4-13 Step 4-14 10/19...
  • Page 16 Part QTY. (P11-P19)Assembly L02A L02B L03B L05C L05D L05E L05F L08B L08B Step 5 11/19...
  • Page 17 3pcs L02A Step 3-10 Step 6 L02A L02A Step 7 12/19...
  • Page 18 L02A L02A L02A L08B Step 8 L05C L05C L05C L05C Step 4-14 Step 9 13/19...
  • Page 19 Step 10 4pcs L02B Step 11 14/19...
  • Page 20 5pcs L02B Step 12 Step 2-3 Step 13 15/19...
  • Page 21 5pcs L02B Step 14 L03B S01(4PCS) L03B L02B L03B Step 15 16/19...
  • Page 22 5pcs 4pcs L02B L02B Step 16 Step 2-3 Step 17 17/19...
  • Page 23 5pcs L02B Step 18 L03B L03B S01(4PCS) L02B L03B Step 19 18/19...
  • Page 24 L05D L05D L05E L05E L05E L05D L05D L05F L05F L05F L05F L05F L05F Step Step 20 J03L/R J02L/R J02L/R J02L/R Step 21 19/19...
  • Page 25 ROWLINSON GARDEN PRODUCTS LIMITED components shown and are only correct at time of Green Lane printing. We reserve the right to change the Wardle Nr.Nantwich specification of our products without prior notice. Cheshire 2010 © Rowlinson Garden Products Ltd CW5 6BN...
