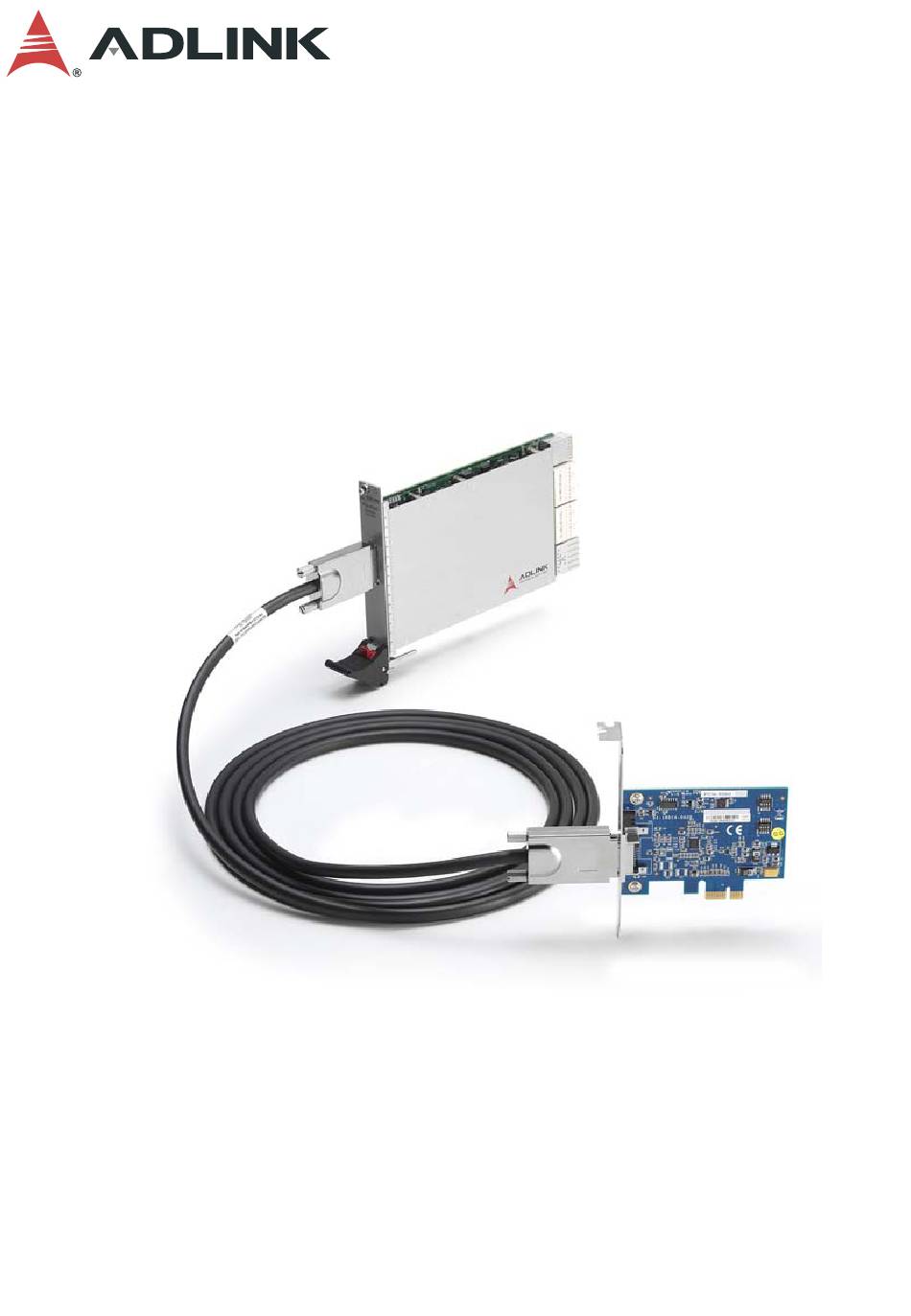

ADLINK Technology PCIe-PXIe-8565 User Manual

Pcie to pxie extension kit

Advertisement

Quick Links

PCIe-PXIe-8565
PCIe to PXIe Extension Kit
User's Manual
Manual Rev.:
Revision Date:
Part No:
Leading EDGE COMPUTING
1.0
December 23, 2020
50-11270-1000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCIe-PXIe-8565 and is the answer not in the manual?

Questions and answers

Summary of Contents for ADLINK Technology PCIe-PXIe-8565

  • Page 1 PCIe-PXIe-8565 PCIe to PXIe Extension Kit User’s Manual Manual Rev.: Revision Date: December 23, 2020 Part No: 50-11270-1000 Leading EDGE COMPUTING...
  • Page 2 Leading EDGE COMPUTING Revision History Revision Release Date Description of Changes 2020-12-23 Initial release Revision History...
  • Page 3: Preface

    PCIe-PXIe-8565 Preface Copyright © 2020 ADLINK Technology, Inc. This document contains proprietary information protected by copy- right. All rights are reserved. No part of this manual may be repro- duced by any mechanical, electronic, or other means in any form without prior written permission of the manufacturer.
  • Page 4 Leading EDGE COMPUTING Conventions Take note of the following conventions used throughout this manual to make sure that users perform certain tasks and instructions properly. Additional information, aids, and tips that help users perform tasks. NOTE: NOTE: Information to prevent minor physical injury, component dam- age, data loss, and/or program corruption when trying to com- plete a task.
  • Page 5: Table Of Contents

    PCIe-PXIe-8565 Table of Contents Revision History..............ii Preface ..................iii List of Figures ............... vii List of Tables................ix 1 Introduction ................ 1 Specifications............... 2 1.1.1 PCIe-8560 PCI Express Host Adapter ....... 2 1.1.2 PXIe-8565 3U PXIe System Module Controller..2 1.1.3...
  • Page 6 Leading EDGE COMPUTING A Appendix: Troubleshooting (FAQ) ........15 Important Safety Instructions..........19 Getting Service ..............21 Table of Contents...
  • Page 7: List Of Figures

    PCIe-PXIe-8565 List of Figures Figure 2-1: PCIe-8560 to Host PC Installation ........7 Figure 2-2: PXIe-8565 to PXI Chassis Installation Diagram ....8 Figure 2-3: PCIe x1 Cable Assembly ..........9 Figure 3-1: PCIe to PXIe Extension Kit Functional Block Diagram .. 11 Figure 3-2: PCIe-8560 Mechanical Layout........
  • Page 8 Leading EDGE COMPUTING This page is intentionally left blank. viii List of Figures...
  • Page 9: List Of Tables

    PCIe-PXIe-8565 List of Tables Table 1-1: PCIe-8560 Power Requirements ........2 Table 1-2: PXIe-8565 Power Requirements ........2 Table 1-3: Available Models.............. 4 Table 2-1: PCIe-8560 to Host PC Installation Legend ...... 7 Table 3-1: PCIe-8560 Mechanical Layout Legend......12 Table 3-2: PCIe-8560 LED Behavior ..........
  • Page 10 Leading EDGE COMPUTING This page is intentionally left blank. List of Tables...
  • Page 11: Introduction

    PCIe-PXIe-8565 Introduction The PCIe-PXIe-8565 PCI Express to PXI Express extension kit provides control of PXI Express modules installed in a PXIe chas- sis using high bandwidth PCI Express technology. The extension kit consists of a PCIe-8560 peripheral card, PXIe-8565 3U system...
  • Page 12: Specifications

    Leading EDGE COMPUTING 1.1 Specifications 1.1.1 PCIe-8560 PCI Express Host Adapter PCI Express Base Specifications Rev. 1.0a compliant PCI Express Gen 1 x1 link, up to 250MB/s data throughput Extended distance of up to 7 meters Low-profile PCI Express card, 87(W) x 69(H) mm 1.1.2 PXIe-8565 3U PXIe System Module Controller PXI-5 PXI Express Hardware Specification Rev.
  • Page 13: Operating And Storage Environment

    Insertion loss in sockets and accessory cable connectors may increase after frequent/multiple insertions/removals, degrad- ing the signal integrity of high speed PCI Express transmission. CAUTION: For each PCIe-PXIe-8565 socket or accessory cable connec- tor, more than 200 connections/disconnections can impede functionality and performance. 1.2 Features PXI-5 PXI Express hardware specification Rev.
  • Page 14: Available Models

    Leading EDGE COMPUTING 1.4 Available Models Model Description PXIe remote controller kit: PCIe-8560, PCIe-PXIe-8565/1M PXIe-8565, and 1m cable PXIe remote controller kit: PCIe-8560, PCIe-PXIe-8565/3M PXIe-8565, and 3m cable PXIe remote controller kit: PCIe-8560, PCIe-PXIe-8565/7M PXIe-8565, and 7m cable Table 1-3: Available Models 1.5 Platform Services Installation...
  • Page 15: Getting Started

    PCIe-PXIe-8565 Getting Started Diagrams and images of equipment mentioned are used for reference only. Actual system appearance may vary. NOTE: NOTE: 2.1 Package Contents PCIe-8560 (PCI Express x1 host adapter for extension kit) PXIe-8565 (3U PXI Express system module controller)
  • Page 16: Installing The Pcie-8560 On A Host Computer

    Leading EDGE COMPUTING Ensure that there is no shipping and handling-related damage to components before installation or modification. Do not apply power to any equipment if it has been damaged. CAUTION: 2.3 Installing the PCIe-8560 on a Host Computer 1. Power off your host computer. 2.
  • Page 17: Figure 2-1: Pcie-8560 To Host Pc Installation

    PCIe-PXIe-8565 Figure 2-1: PCIe-8560 to Host PC Installation Item Description Industrial/desktop PC with PCI Express x1 slot PCIe-8560 (PCI Express host card) PCI Express x1 slot Table 2-1: PCIe-8560 to Host PC Installation Legend Getting Started...
  • Page 18: Installing The Pxie-8565 In A Pxie Chassis

    Leading EDGE COMPUTING 2.4 Installing the PXIe-8565 in a PXIe Chassis 1. Remove the cover panel of the system slot. 2. Remove the PXIe-8565 from the packaging. Note: Wear anti-static gloves and use an anti-static sur- face when handling the card. 3.
  • Page 19: Connecting The Host Computer And Pxi Chassis

    PCIe-PXIe-8565 Connecting the Host Computer and PXI Chassis This section illustrates how to connect a PCIe cable assembly between the the PCIe-8560 on your host computer and the PXIe-8565 on the PXI chassis. Removing the PCIe cable assembly after the system is pow- ered on may cause system errors or data loss.
  • Page 20: Power On/Power Off Sequence

    Leading EDGE COMPUTING 2.6 Power On/Power Off Sequence To power on the PCIe to PXIe Extension Kit: 1. Ensure that the extension cable is properly connected to the host PC and PXIe chassis. 2. Power on the PXIe chassis. 3. When the status LEDs of the PXI Express chassis and all installed modules indicate ready, power on the host DO NOT remove the cable after the system and PXIe chassis are powered on.
  • Page 21: Hardware Information

    PCIe-PXIe-8565 Hardware Information 3.1 Functional Block Diagram Host PC Remote PXIe Chassis PCIe-8560 PXIe-8565 PXIe Slot PLX SWITCH PLX SWITCH PXIe Slot PXIe Slot Figure 3-1: PCIe to PXIe Extension Kit Functional Block Diagram Hardware Information...
  • Page 22: Pcie-8560 Mechanical Layout

    Leading EDGE COMPUTING 3.2 PCIe-8560 Mechanical Layout Figure 3-2: PCIe-8560 Mechanical Layout PCIe x1 external cabling PCIe x1 edge connector Status LED Table 3-1: PCIe-8560 Mechanical Layout Legend Description Off: No power STATUS On: PCIe Gen 1 link active Table 3-2: PCIe-8560 LED Behavior Hardware Information...
  • Page 23: Pxie-8565 Mechanical Layout

    PCIe-PXIe-8565 3.3 PXIe-8565 Mechanical Layout Figure 3-3: PXIe-8565 Mechanical Layout PCIe x1 external cabling PWR/PRSNT LED LINK LED Table 3-3: PXIe-8560 Mechanical Layout Legend Description Off: No power PWR/PRSNT Orange: Power on; no module detected Green: PCIe-8560 detected LINK Off: No link (Link status between 0.5Hz blinking: PCIe Gen 1 link active...
  • Page 24 Leading EDGE COMPUTING This page is intentionally left blank. Hardware Information...
  • Page 25 Answer: ADLINK provides cable accessories PCIe-PXIe-8565 in 1, 3, and 7-meter lengths, with a maxi- mum cable length of up to 7 meters. Question: When using the PCIe-PXIe-8565, do I need to install any additional software or drivers? Answer: Yes,...
  • Page 26: Figure A-1: Bus Number Information

    Bus>>ACPI Buses): Figure A-1: Bus Number Information Question: One or more modules in the PXI Express chassis con- nected via the PCIe-PXIe-8565 are missing from Windows Device Manager. What’s the best way to solve this or other compatibility problems (like no-boot)?
  • Page 27 Check for any abnormal LED status on the PCIe-PXIe-8565. (See “PCIe-8560 Mechanical Layout” on page 12.) Check that the PCIe-PXIe-8565 cable is not broken or bent, and that the connector is not dirty or broken. Make sure sufficient PXI Express bus numbers are avail- able.
  • Page 28 Leading EDGE COMPUTING This page is intentionally left blank. Troubleshooting (FAQ)
  • Page 29 PCIe-PXIe-8565 Important Safety Instructions For user safety, please read and follow all instructions, WARNINGS, CAUTIONS, and NOTES marked in this manual and on the associated equipment before handling/operating the equipment. Read these safety instructions carefully. Keep this user’s manual for future reference.
  • Page 30 Leading EDGE COMPUTING Never attempt to fix the equipment. Equipment should only be serviced by qualified personnel. A Lithium-type battery may be provided for uninterrupted, backup or emergency power. RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THEIR INSTRUCTIONS.
  • Page 31 San Jose, CA 95138, USA Tel: +1-408-360-0200 Toll Free: +1-800-966-5200 (USA only) Fax: +1-408-360-0222 Email: info@adlinktech.com ADLINK Technology (China) Co., Ltd. 300 Fang Chun Rd., Zhangjiang Hi-Tech Park Pudong New Area, Shanghai, 201203 China Tel: +86-21-5132-8988 Fax: +86-21-5132-3588 Email: market@adlinktech.com ADLINK Technology GmbH Hans-Thoma-Straße 11...
