VOLO The Power User Manual

Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

www.volo.systems
The Power
User Manual
V1.2 Copyright VOLO 2015
Page | 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the The Power and is the answer not in the manual?

Questions and answers

Summary of Contents for VOLO The Power

  • Page 1 The Power User Manual V1.2 Copyright VOLO 2015 Page | 1...

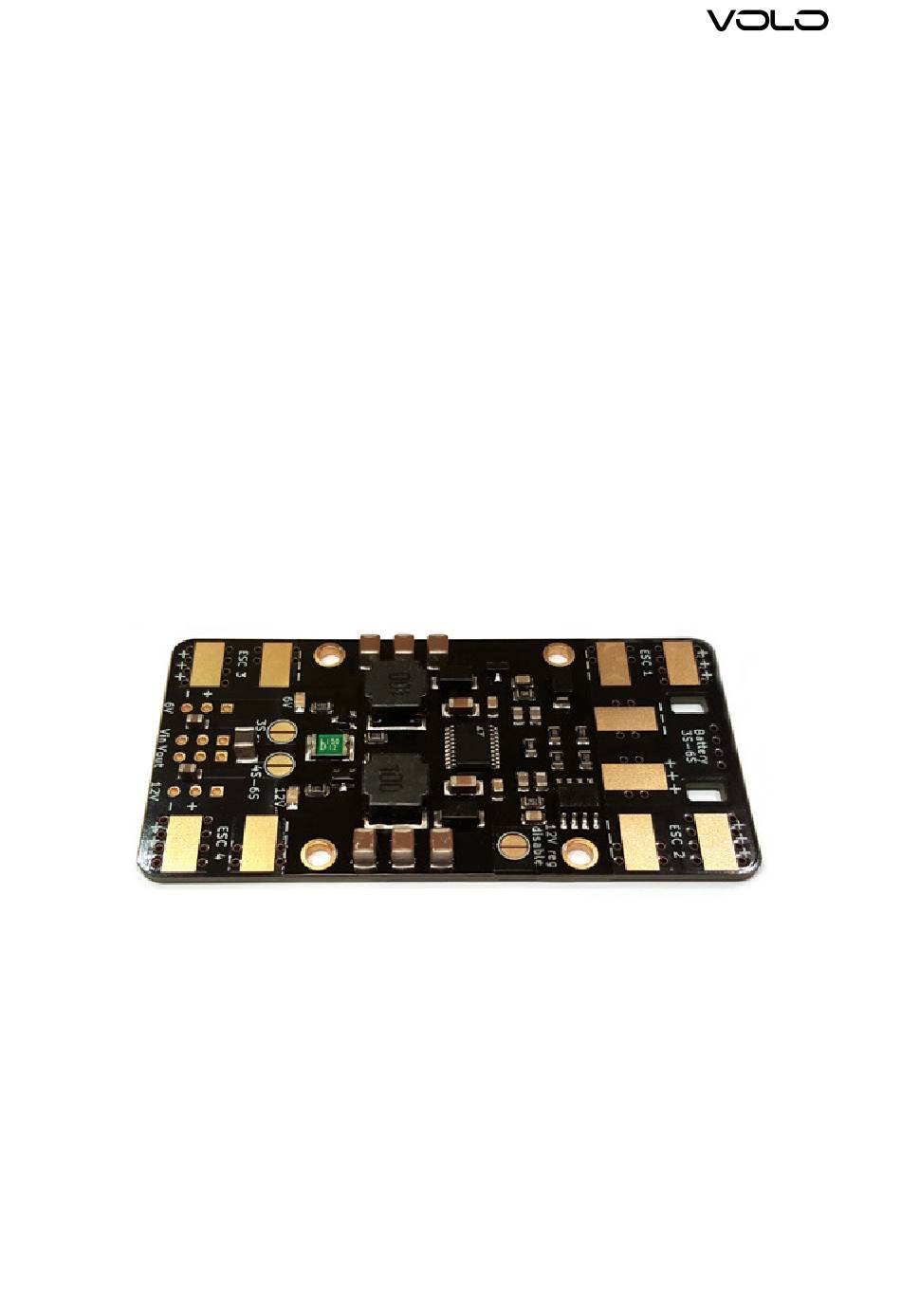

  • Page 2 Let’s start with the connection guide. This guide assumes that you already know how to solder on ESC and battery cables. The Volo Power Distribution Board has been engineered from the ground up to provide the highest possible performance and reliability in a small form-factor. The Volo PDB distributes power from a battery pack to 4 ESCs, as well as providing two regulated DC outputs for powering servos, cameras, video transmitters, etc.
  • Page 3 The Power passes the 3S battery voltage straight through to the 12V outputs, but first it passes the voltage through a self-resetting fuse. This helps protects your LiPo from damage or fire from any short circuits in your 12V wiring.
  • Page 4 V1.2 Copyright VOLO 2015 Page | 4...
  • Page 5 - Operating temperature range: -20 to +70C (-4 to +158F) - Storage temperature range: -40 to +85C (-40 to +185F) Contact US: Contact US: Contact US: Contact US: Email: info@volo.systems Web: www.volo.systems Facebook: www.facebook.com/volo.systems Forum : www.FPVLab.com (VOLO sponsor thread) V1.2 Copyright VOLO 2015 Page | 5...
